Single Switch

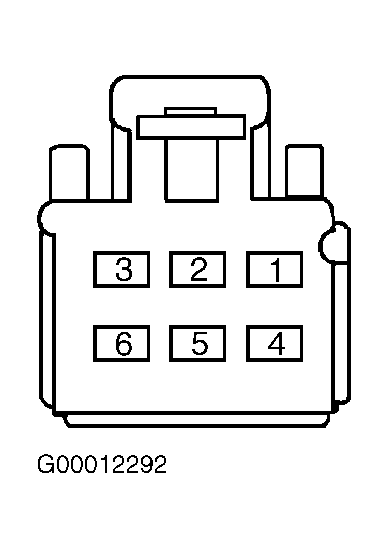

Remove single switch from vehicle. Check continuity between specified terminals while operating switch to specified position. See SINGLE SWITCH TESTING table. See Figure . Replace switch if continuity between specified terminals is not specified.
SINGLE SWITCH TESTING
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Up | 3 & 5 |
| Down | 2 & 3 |
| Neutral | 1 & 2; 5 & 6 |
