Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

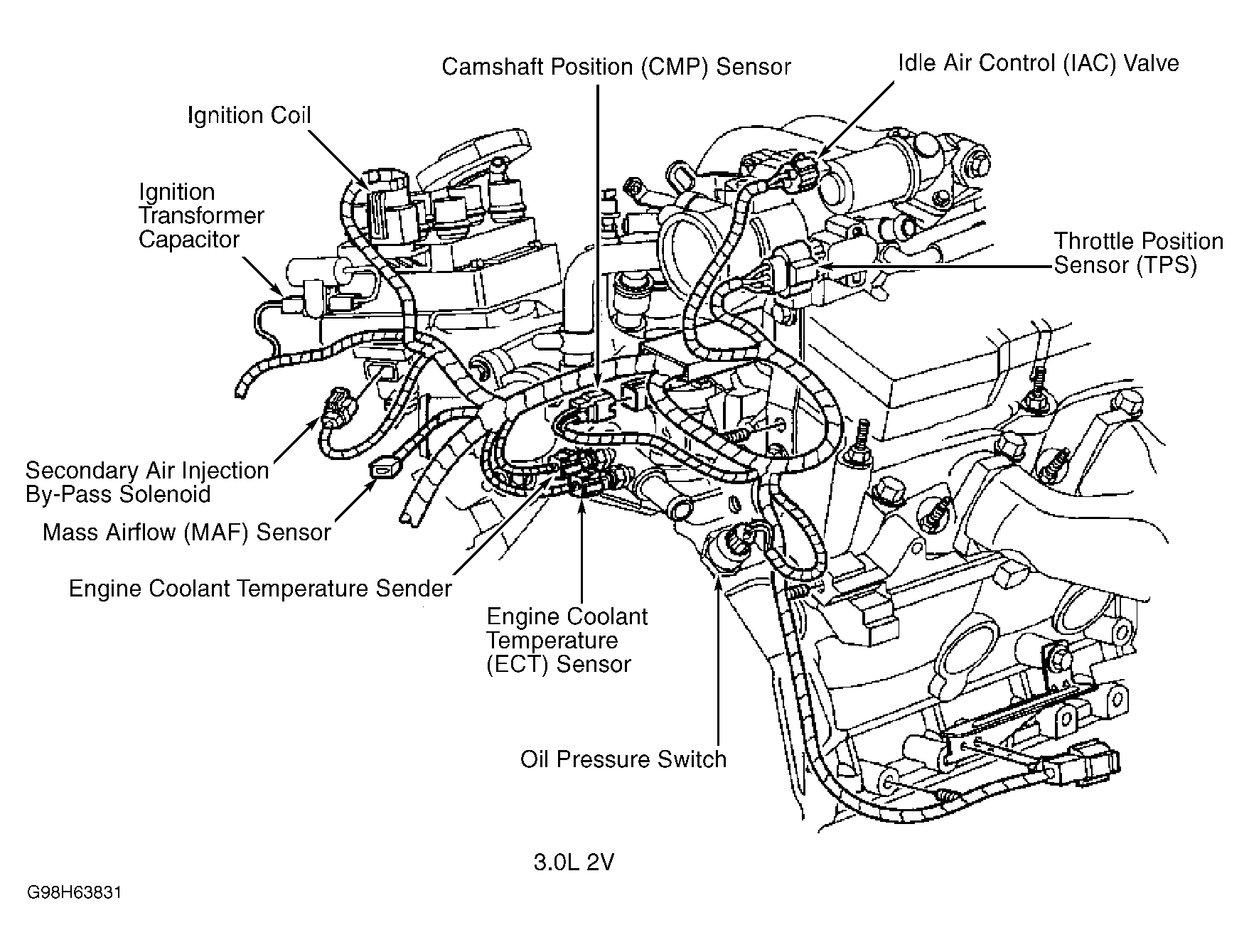

Fig 1: Right Front Of Engine (3.0L 2V)

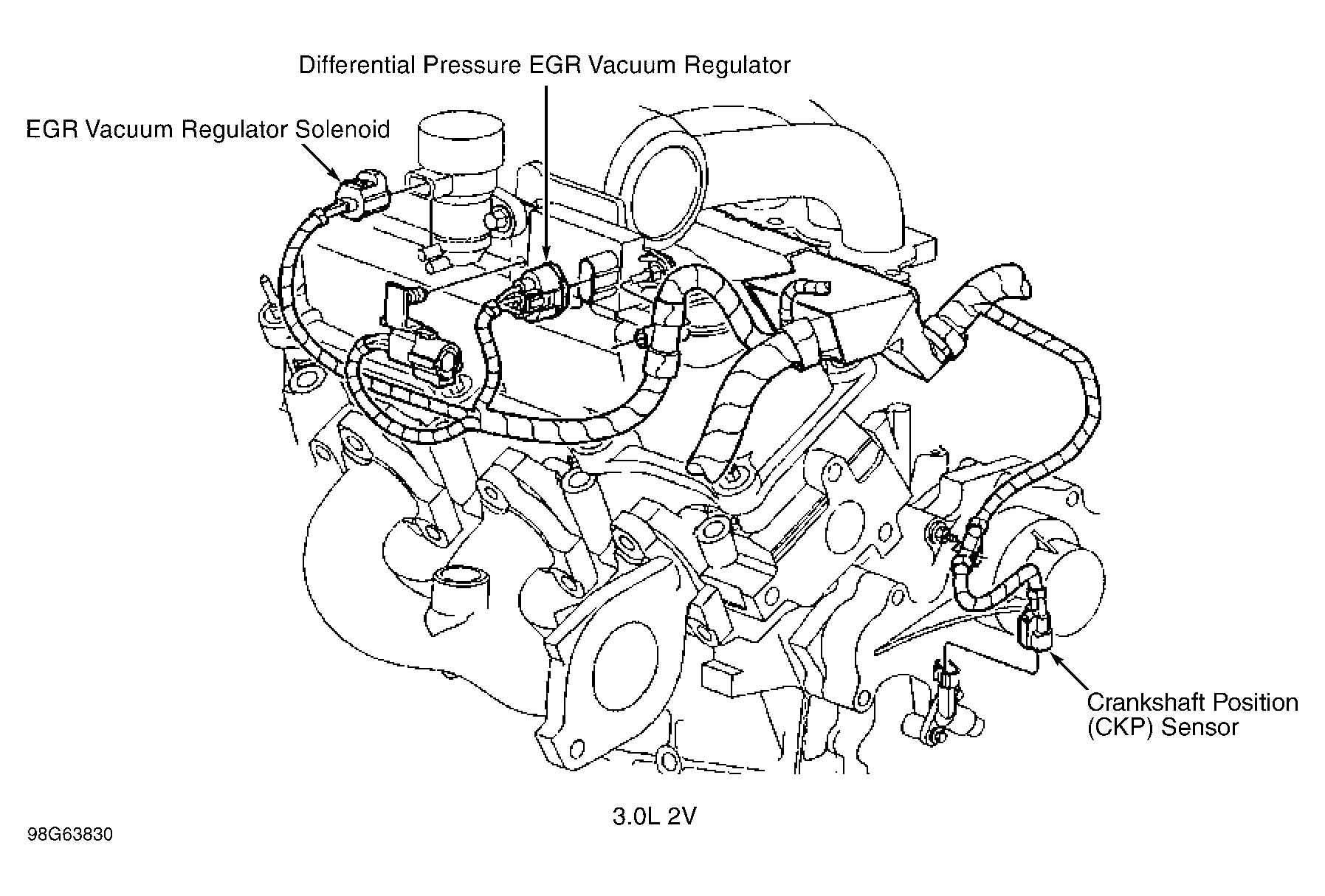

Fig 2: Right Rear Of Engine (3.0L 2V)

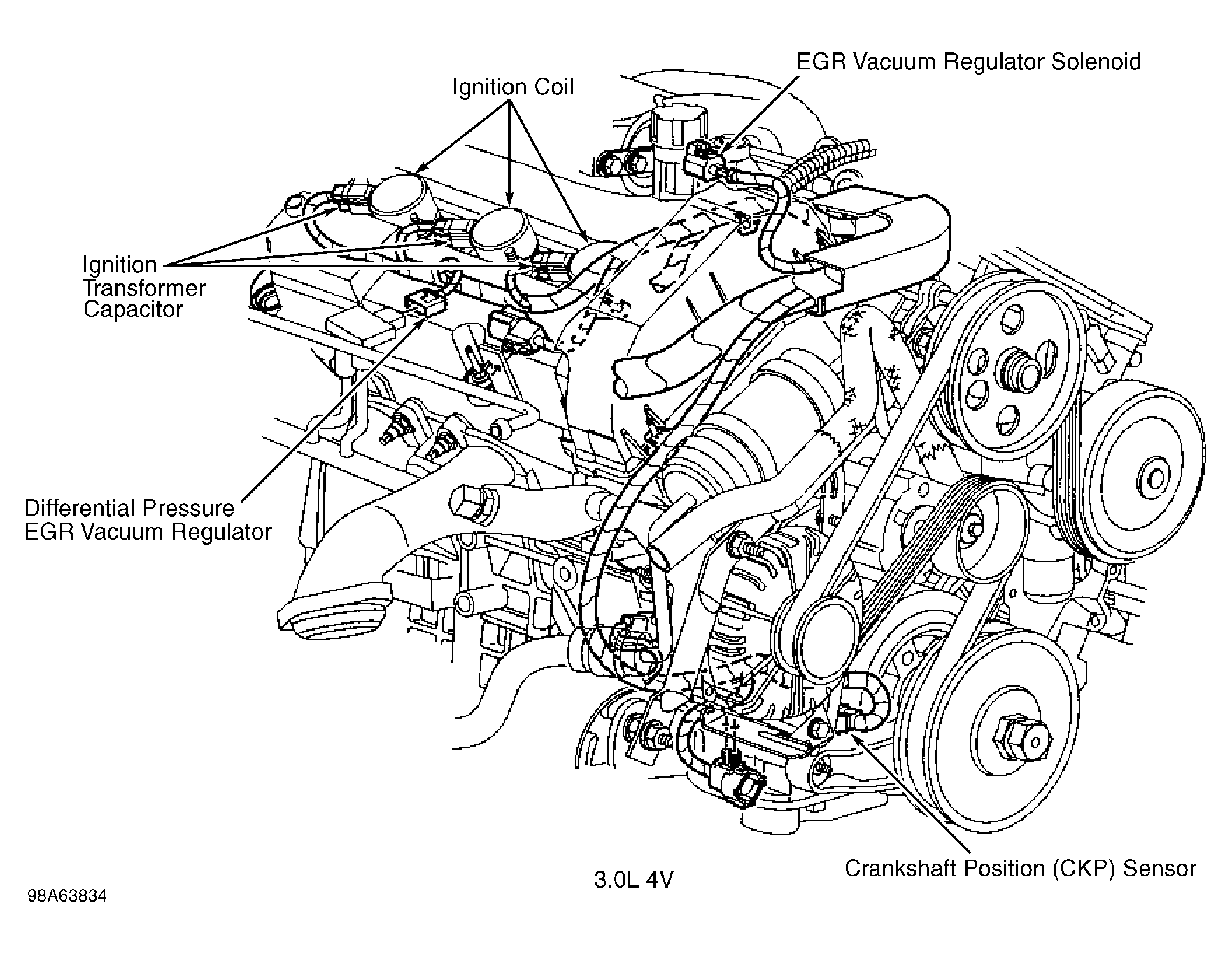

Fig 3: Left Rear Of Engine (3.0L 4V)

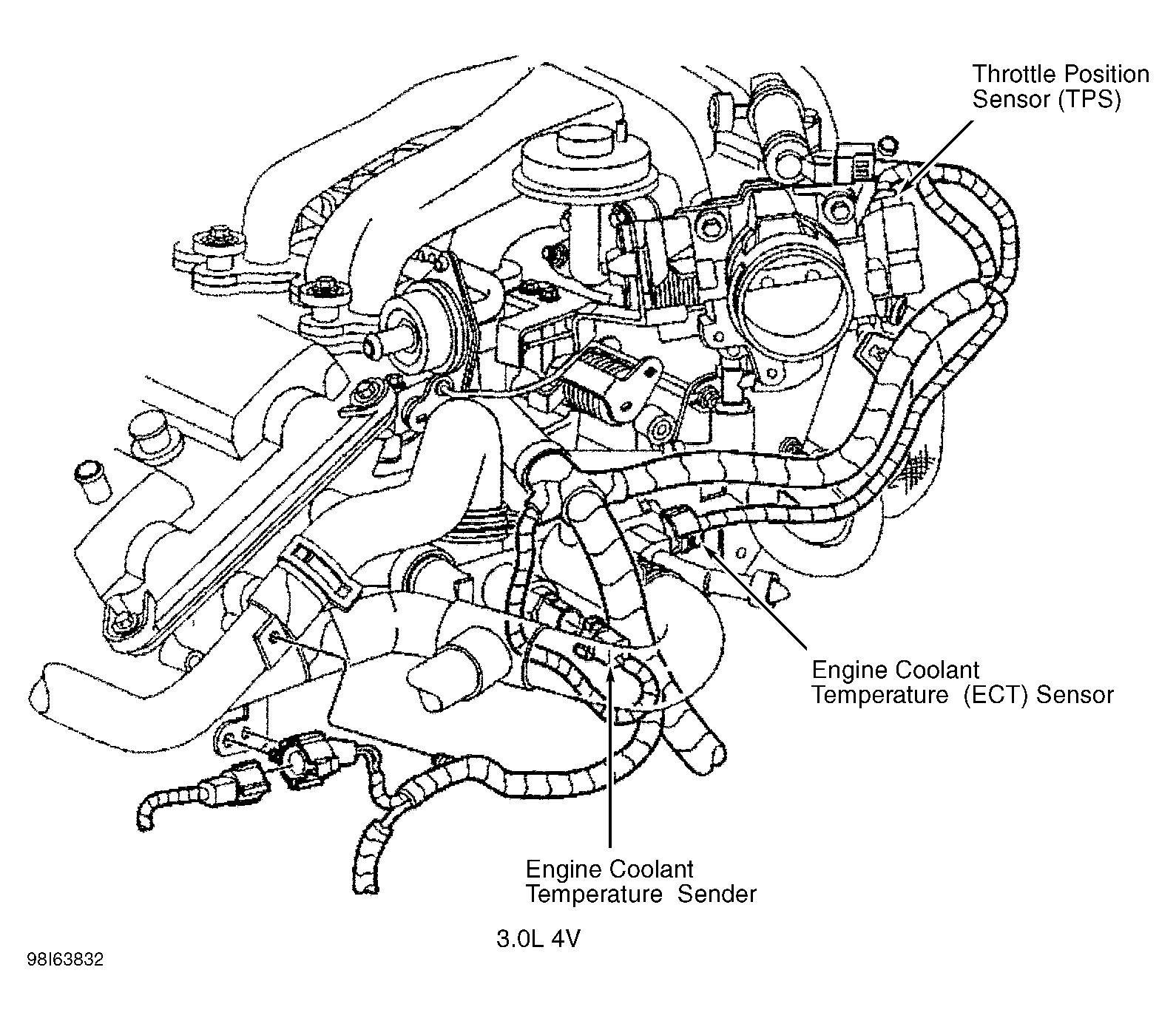

Fig 4: Left Front Of Engine (3.0L 4V)

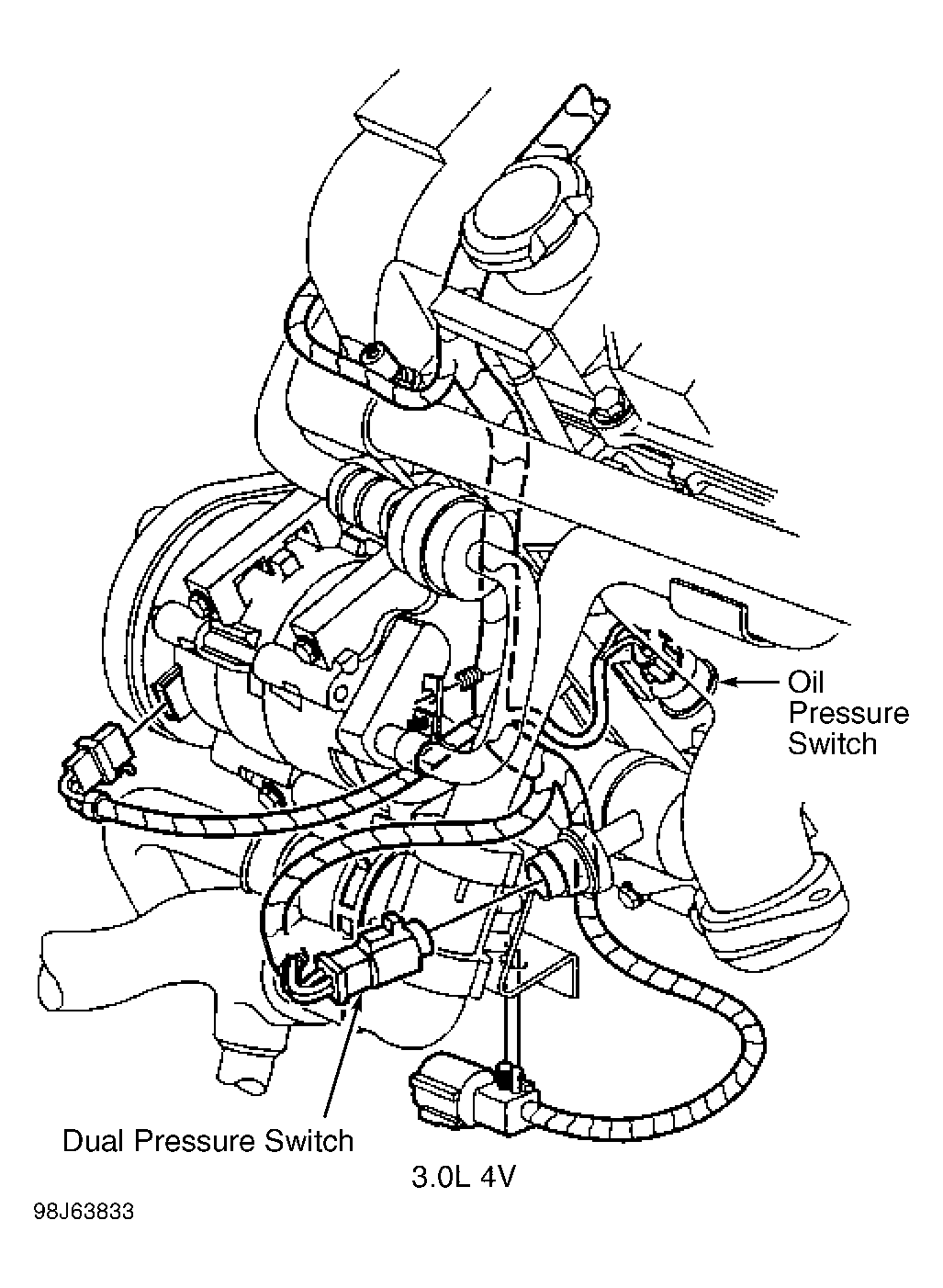

Fig 5: Right Front Of Engine (3.0L 4V)

Fig 6: Right Rear Of Engine Compartment
