Component Locations

COMPONENT LOCATIONS

Component

Location

Accessory Delay Relay

In Fuse Junction Box (FJB)

Battery Junction Box (BJB)

Left Side Of Engine Compartment

Front Electronic Module (FEM)

⁽¹⁾ Below Left Side Of Instrument Panel

Fuse Junction Box (FJB)

Behind Left Side Of Instrument Panel

Rear Electronic Module (REM)

⁽²⁾ Behind Right Side Rear Quarter Panel

⁽¹⁾	See Fig 1 .

⁽²⁾	See Fig 2 .

Fig 1: Locating Front Electronic Module (FEM)

G99G05010

Courtesy of FORD MOTOR CO.

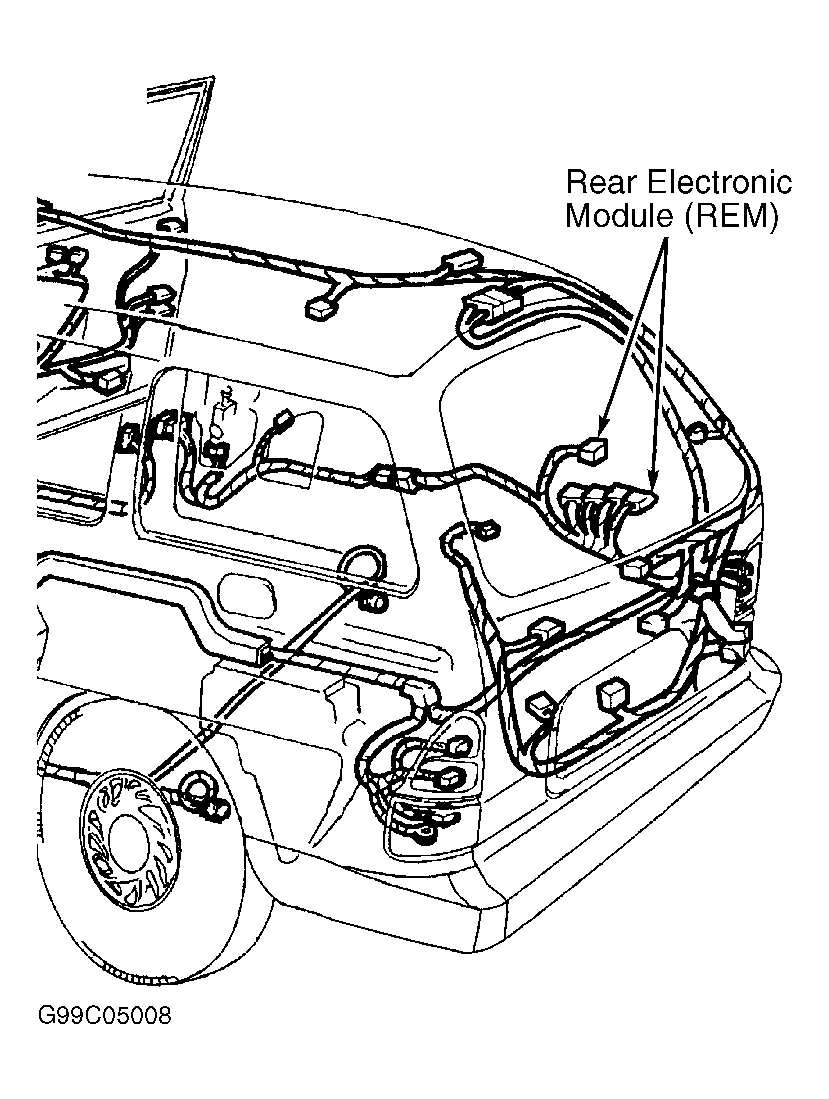

Fig 2: Locating Rear Electronic Module (REM)

G99C05008

Courtesy of FORD MOTOR CO.
