Master Window Regulator Control Switch

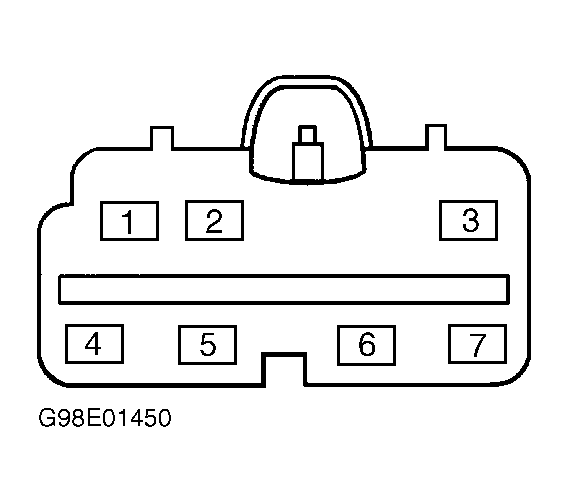

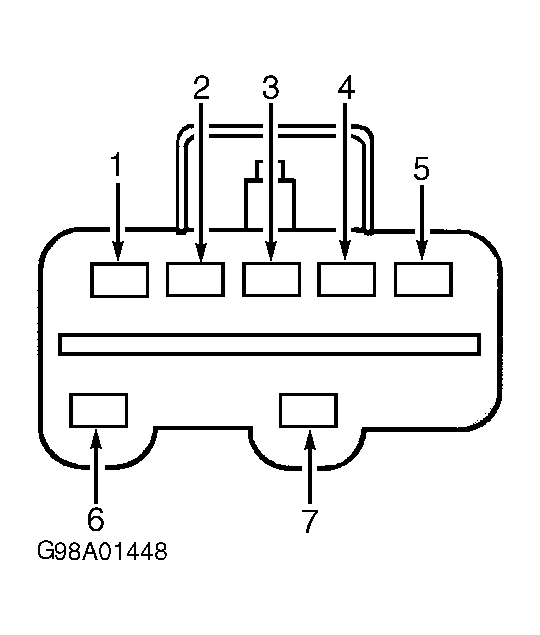

Disconnect master window regulator control switch. Check continuity between specified master window regulator control switch terminals with switch in appropriate position. See MASTER WINDOW REGULATOR CONTROL SWITCH table. See Fig 1 and Fig 2 . If continuity is not as specified, replace master window regulator control switch.
MASTER WINDOW REGULATOR CONTROL SWITCH
| Connector (Terminals No.) | Switch Position | Specification | |
|---|---|---|---|
| One-Touch Down Circuit | |||
| C501 (6 & 2) | Down | 480 ohms | |
| Power/Ground Checks Before Other Tests | |||
| C501 (6 & 7) | Both Front Switches (All Positions) | No | |
| C501 (7 & All Others, Except 6 & 2) | Both Front Switches (At Rest) | Yes | |
| Left Front Window Circuit | |||
| C501 (6 & 3) | Up | Yes | |
| C501 (6 & 1) | Down | Yes | |
| Right Front Window Switch | |||
| C501 (6 & 4) | Up | Yes | |
| C501 (6 & 5) | Down | Yes | |
| Left Flip Window Switch | |||
| C514 (1 & 5) | Up | Yes | |
| C514 (1 & 4) | Down | Yes | |
| Right Flip Window Switch | |||
| C514 (1 & 7) | Up | Yes | |
| C514 (1 & 6) | Down | Yes | |
