Connector Identification

NOTE: For connector identification, refer to illustrations. See Fig 1 - Fig 6 .
Fig 1: Identifying Front/Rear Electronic Module 17-Pin Harness Connector Terminals
G99C02712Courtesy of FORD MOTOR CO.
Fig 2: Identifying Front/Rear Electronic Module & Instrument Cluster 20-Pin Harness Connector Terminals
G99E02708Courtesy of FORD MOTOR CO.
Fig 3: Identifying Front/Rear Electronic Module & Climate Control 12-Pin Harness Connector Terminals
G99I02710Courtesy of FORD MOTOR CO.
Fig 4: Identifying Front/Rear Electronic Module & Instrument Cluster 22-Pin Harness Connector Terminals
G99G02714Courtesy of FORD MOTOR CO.
Fig 5: Identifying Front/Rear Electronic Module 26-Pin Harness Connector Terminals
G99F02718Courtesy of FORD MOTOR CO.

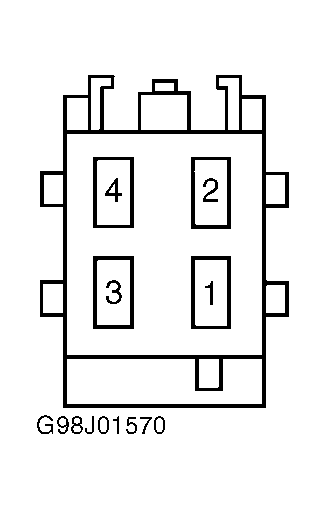

Fig 6: Identifying Front Electronic Module 4-Pin Harness Connector C348 Terminals
G98J01570Courtesy of FORD MOTOR CO.
