Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

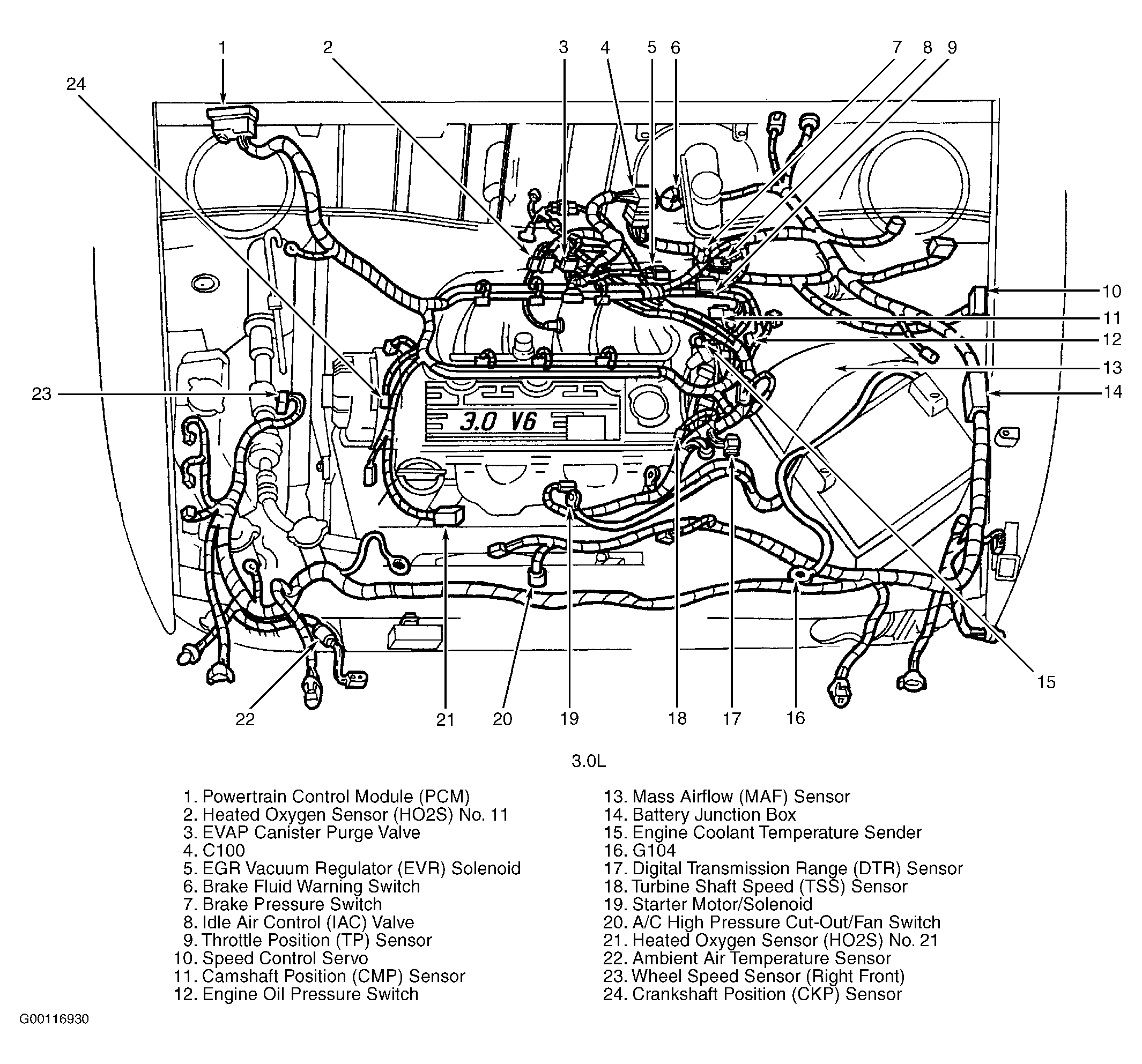

Fig 1: Engine Compartment (3.0L)

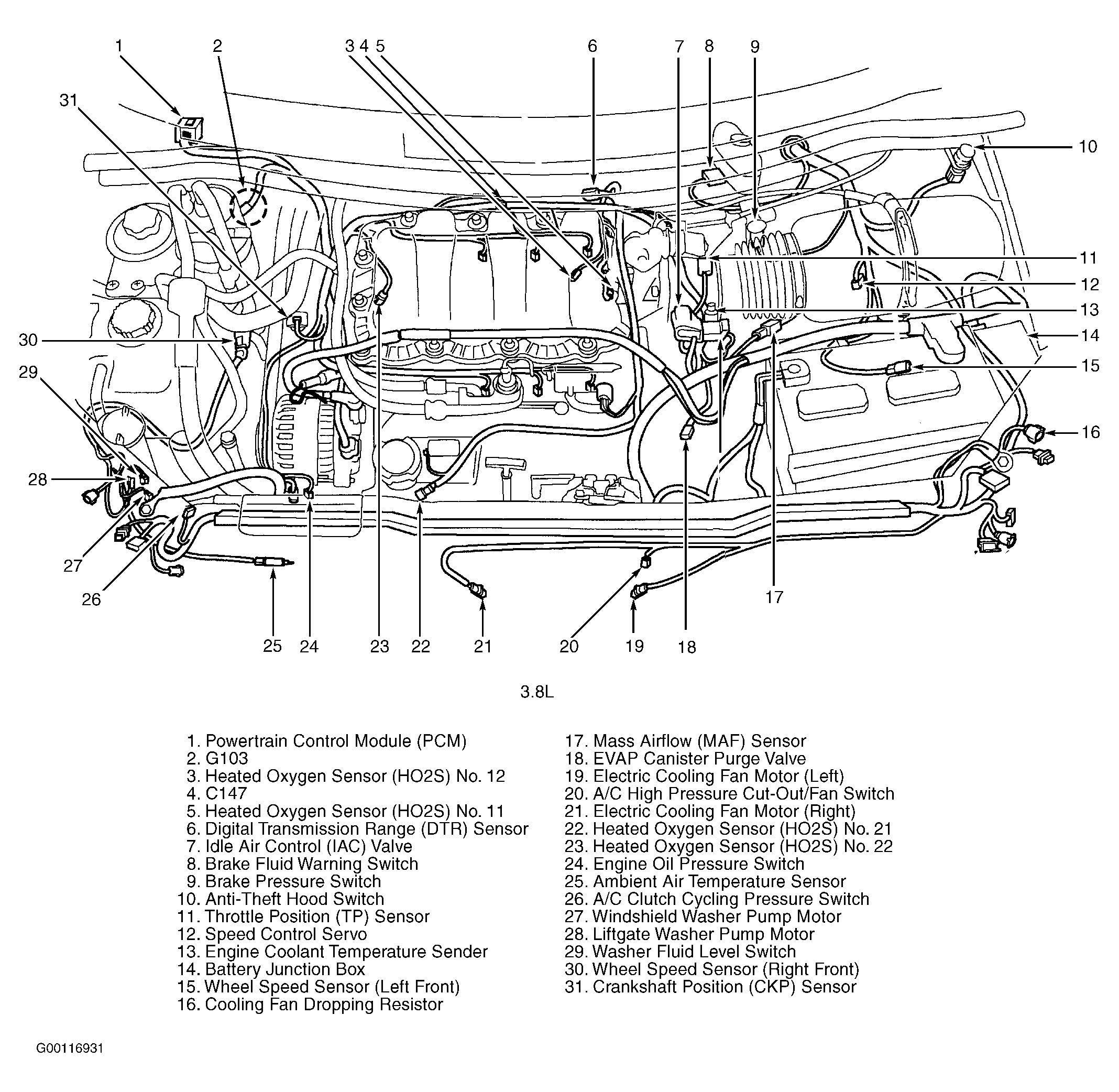

Fig 2: Engine Compartment (3.8L)

Fig 3: Dash

Fig 4: Left & Right Kick Panels

Fig 5: Floorpan

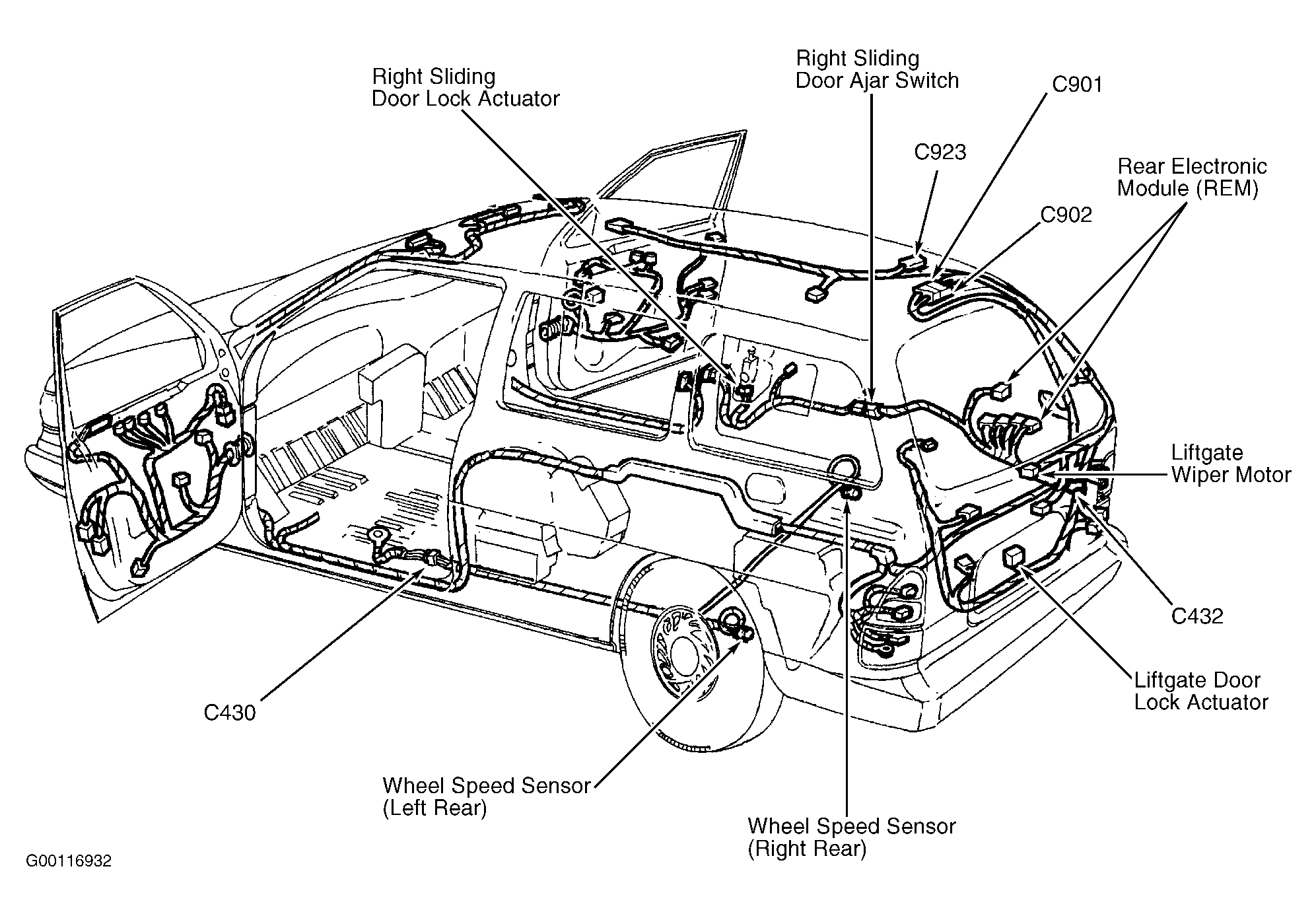

Fig 6: Vehicle Overview
