Communications Network: Notes
WARNING: This page is about a different car, the 2008 Ford RV Cutaway, 2008 Ford Econoline, 2008 Ford E450 Super Duty, and 2008 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

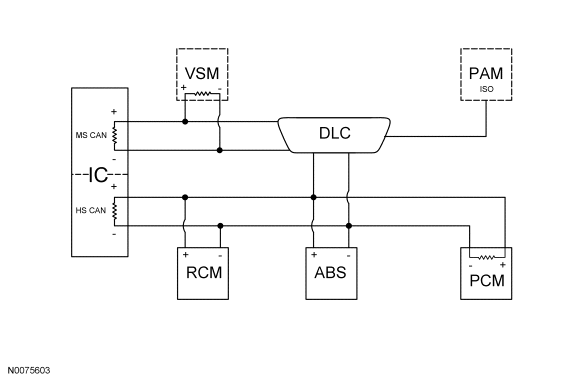

Vehicle communication utilizes the International Standards Organization (ISO) 9141 network, the medium speed controller area network (MS-CAN), and the high speed controller area network (HS-CAN). Information is sent to and from individual control modules that control specific functions. All 3 networks are connected to the data link connector (DLC). The DLC can be found under the steering column.
The 3 module communication networks are:
- ISO 9141
- Medium speed (MS) CAN
- High speed (HS) CAN
| Module Name | Network Type | Termination Module |
|---|---|---|
| ABS module | HS-CAN | No |
| Instrument cluster (IC) (gateway module) | HS-CAN MS-CAN |
Yes Yes |
| Parking aid module (PAM) (if equipped) | ISO 9141 | N/A |
| PCM | HS-CAN | Yes |
| Restraints control module (RCM) | HS-CAN | No |
| Vehicle security module (VSM) | MS-CAN | Yes |
