Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

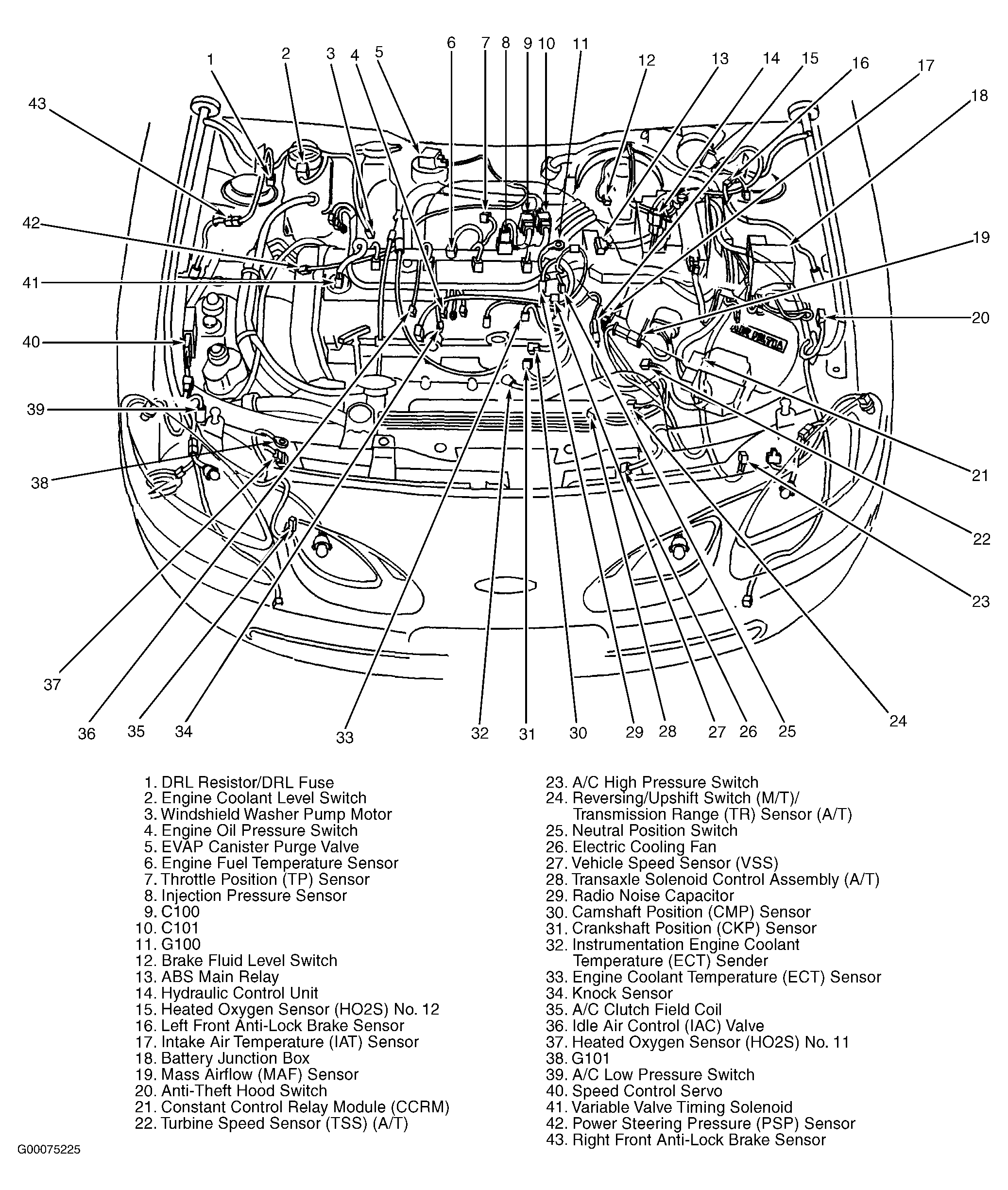

| Battery Junction Box | Left side of engine compartment, above wheelwell. See Figure . |

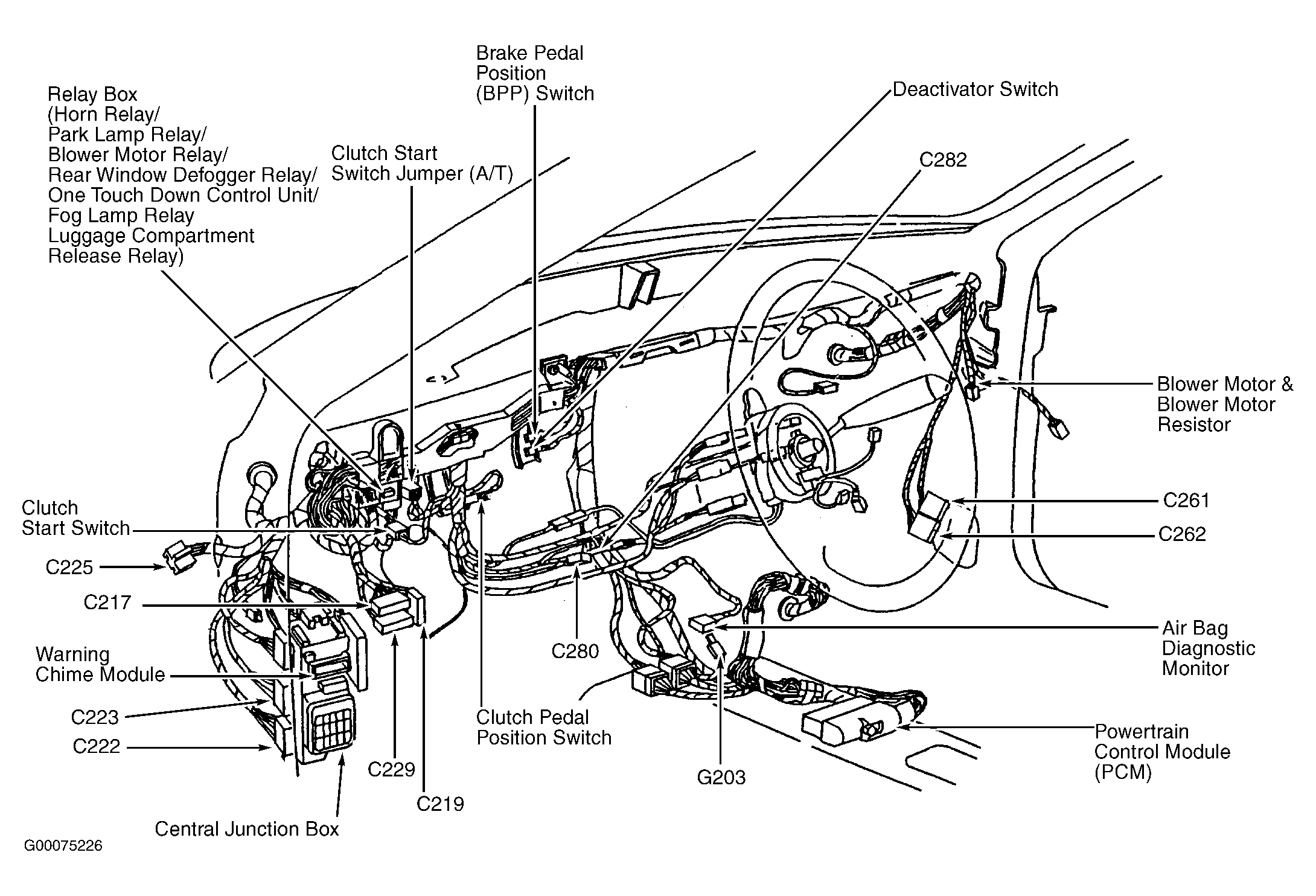

| Central Junction Box | Behind left side of dash. See Figure . |
| DRL Fuse | In rear of right strut tower. See Figure . |
| Relay Box | Behind left side of dash. See Figure . |
