Component Locations
WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

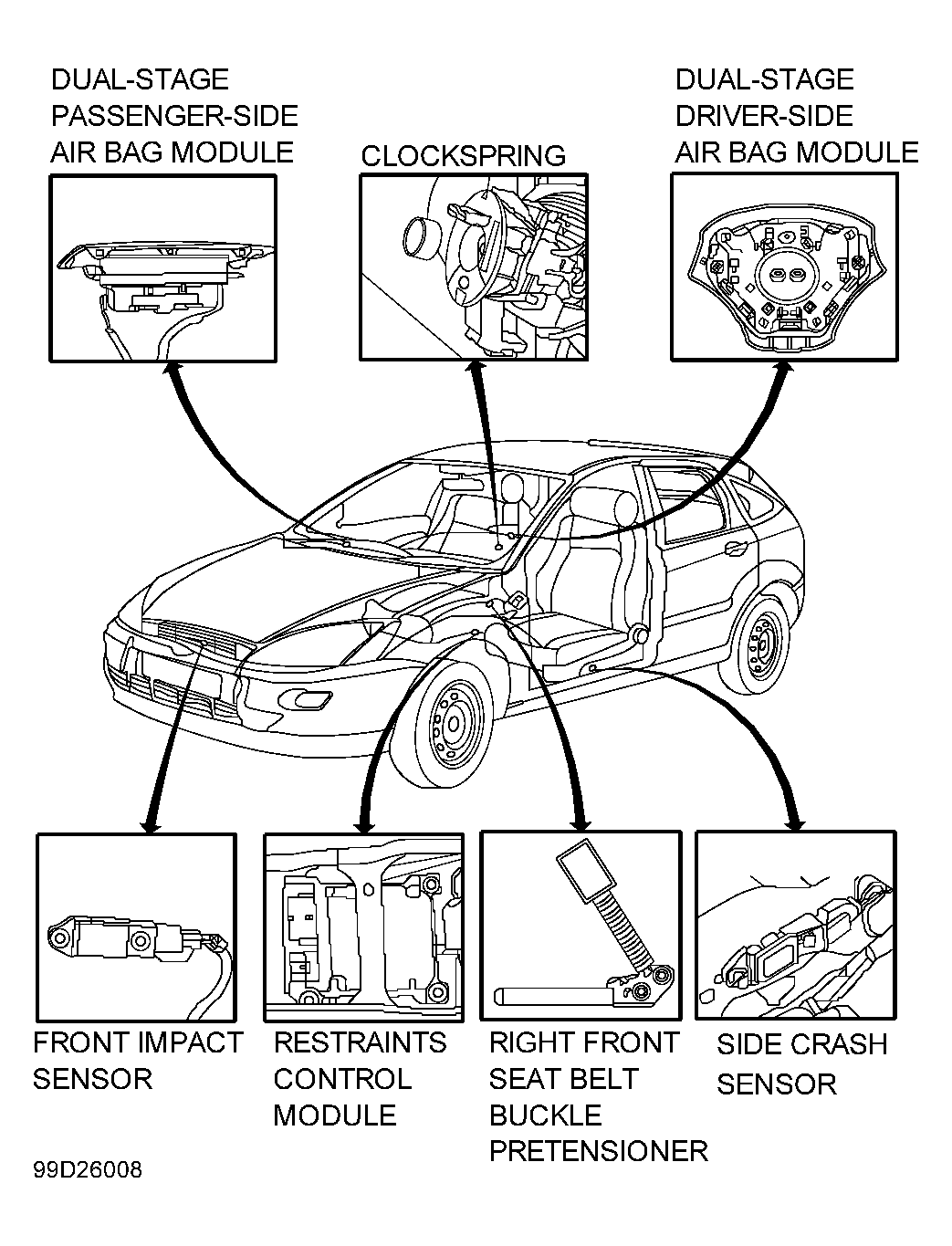

RESTRAINT SYSTEM COMPONENT LOCATIONS
| Component | (1)Location | ||
|---|---|---|---|
| Clockspring | On steering column, behind steering wheel | ||
| Dual-stage driver-side air bag module | Center of steering wheel | ||
| Dual-stage passenger-side air bag module | Right side of instrument panel, above glove box | ||
| Front impact sensor | On upper radiator core support, next to hood latch | ||
| Restraints Control Module (RCM) | Under center console, forward of hand brake | ||
| Seat belt buckle pretensioner | Integrated with right front seat belt buckle | ||
| Seat belt retractor pretensioner | Integrated with left front seat belt retractor | ||

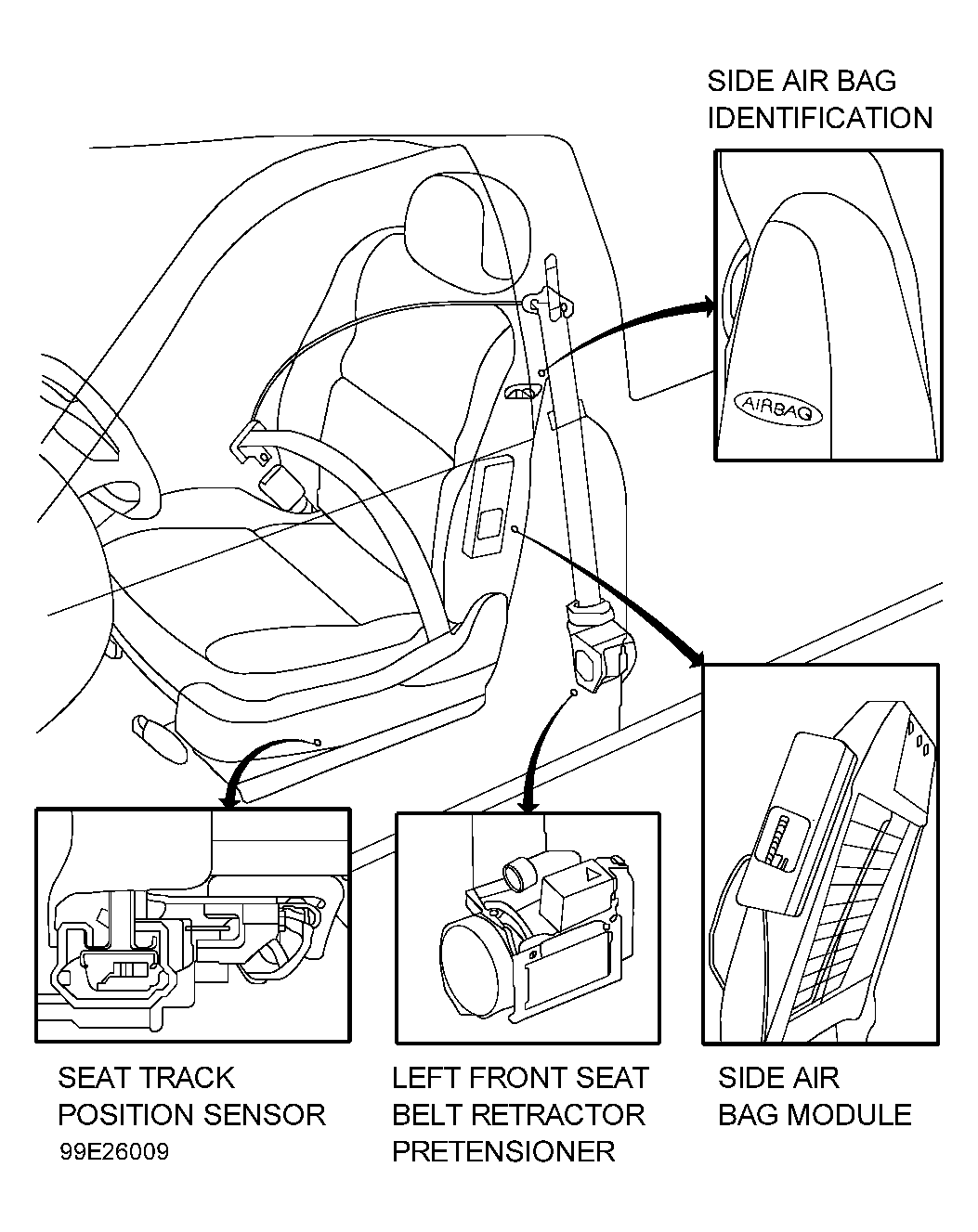

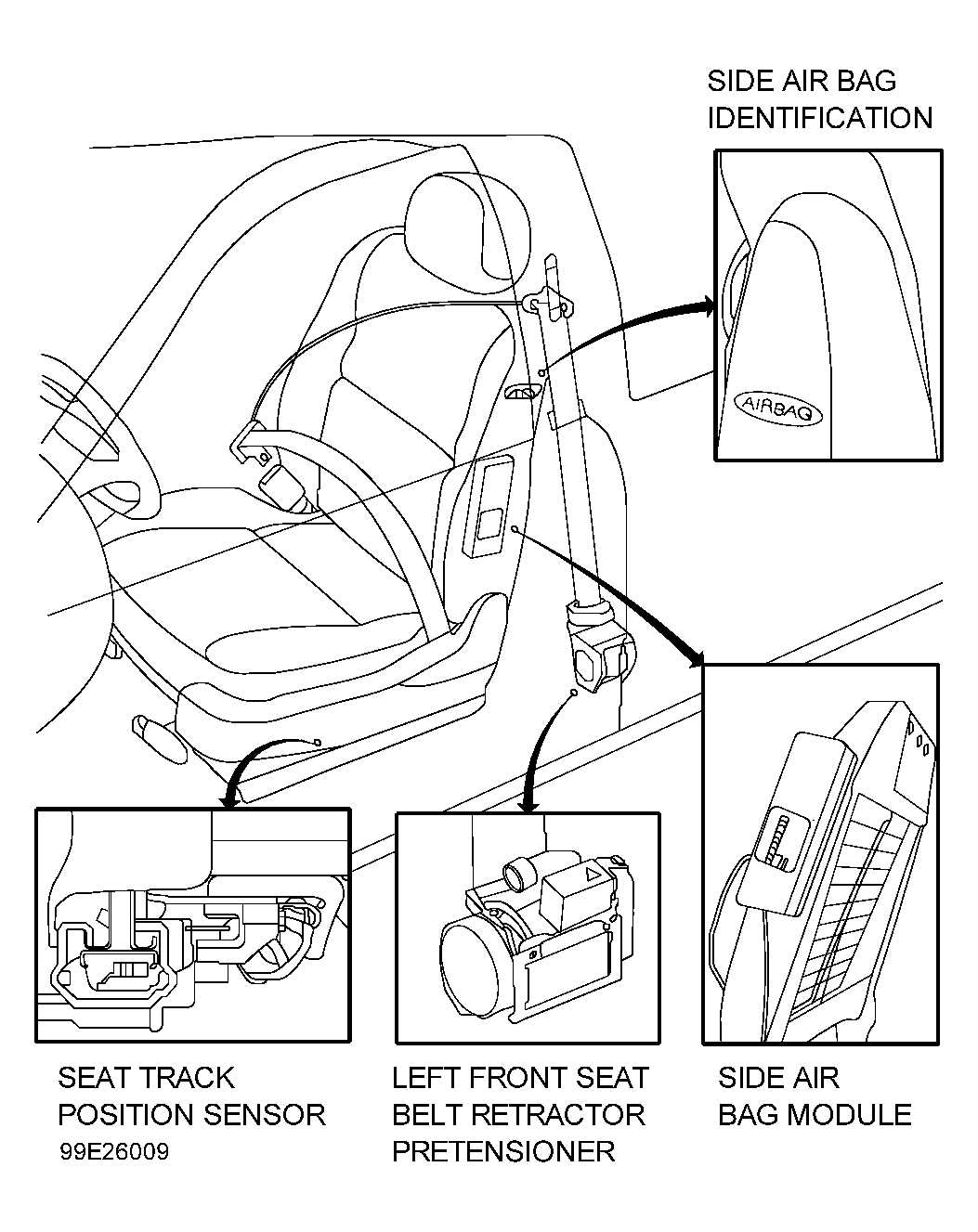

| Seat track position sensor | On left front seat track | ||
| Side crash sensors | On floor, under outboard side of front seats | ||
| Side air bag modules | Behind outboard bolster of front seat backs | ||
|
|||
