Repair Procedure

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Insert pre-stripped wire ends into proper size waterproof butt-splice connector, and crimp connector using appropriate crimping pliers. See Fig 1. Using heat gun, hair dryer or match, heat splice until it shrinks and adhesive oozes from each end of tubing. Connection is now waterproofed.

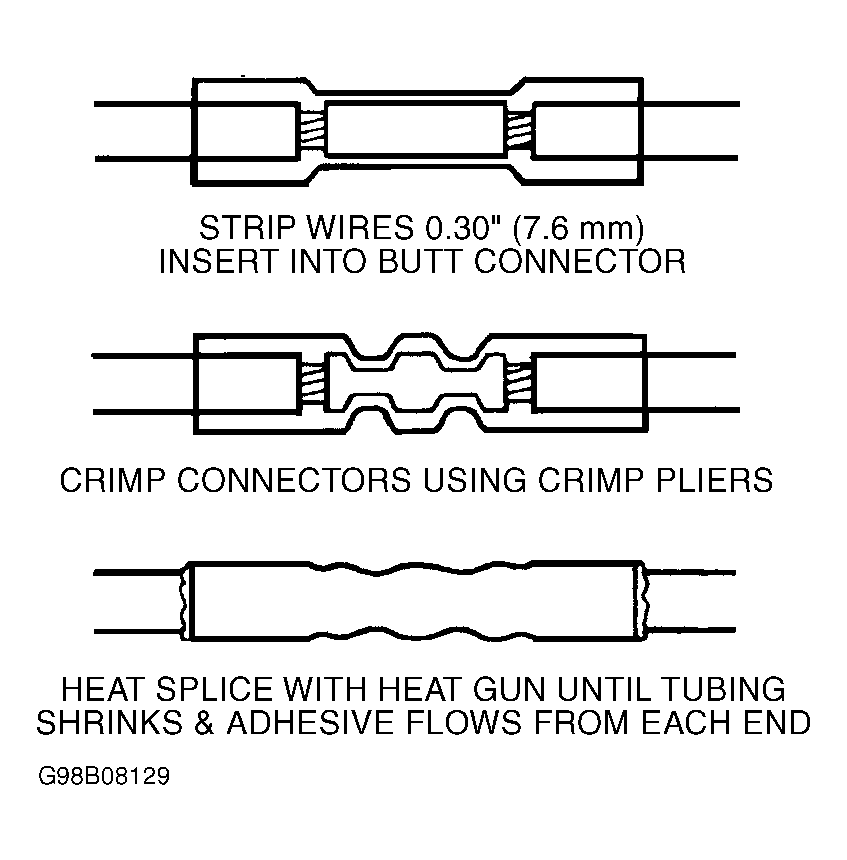

Fig 1: Repairing & Waterproofing Wiring Connections
G98B08129Courtesy of FORD MOTOR CO.
