Remove the parts in the order indicated in the following illustration and table.

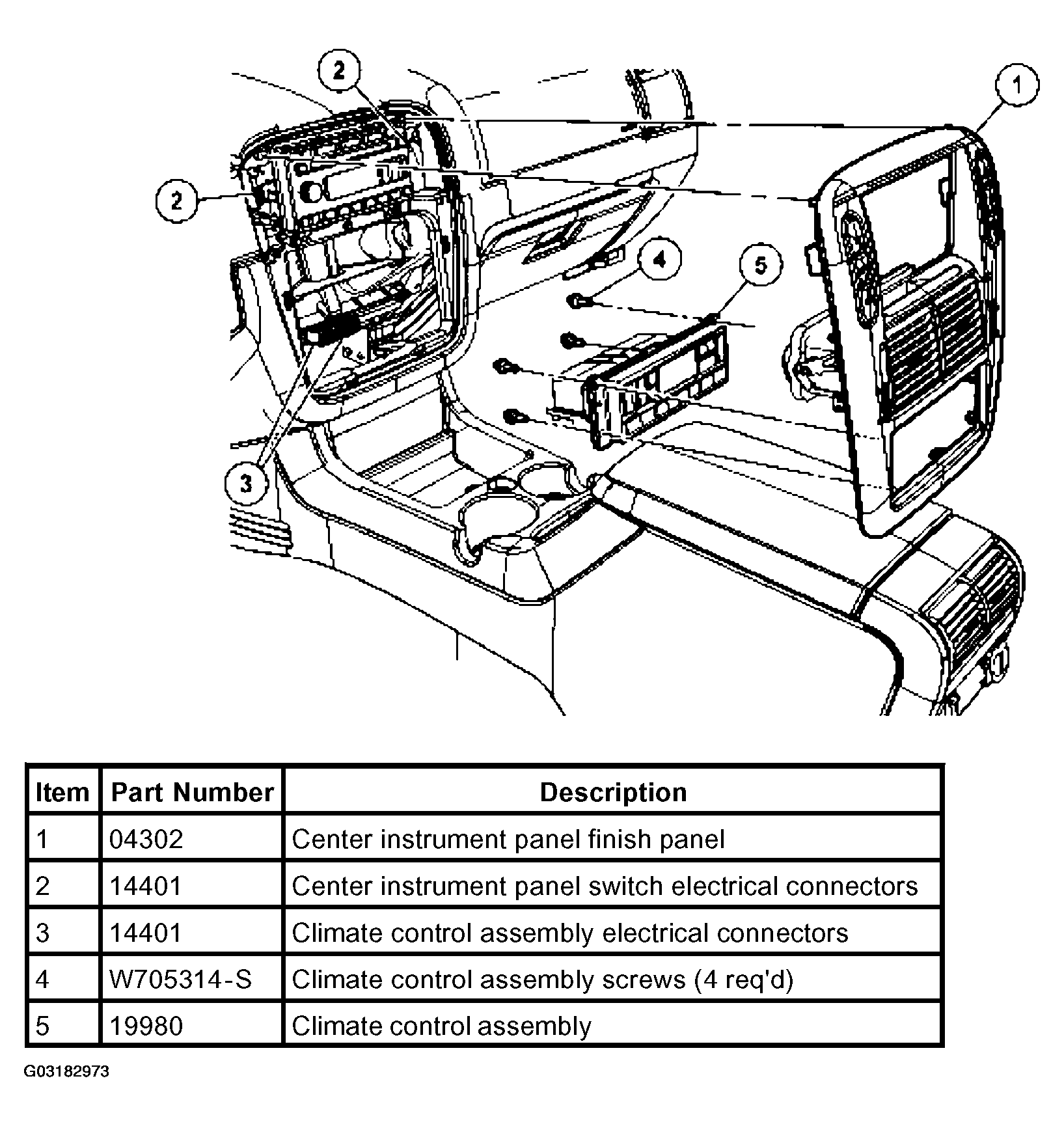

Fig 1: Identifying Removal Sequence Of Climate Control Assembly - DATC
