Light switch
WARNING:
This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

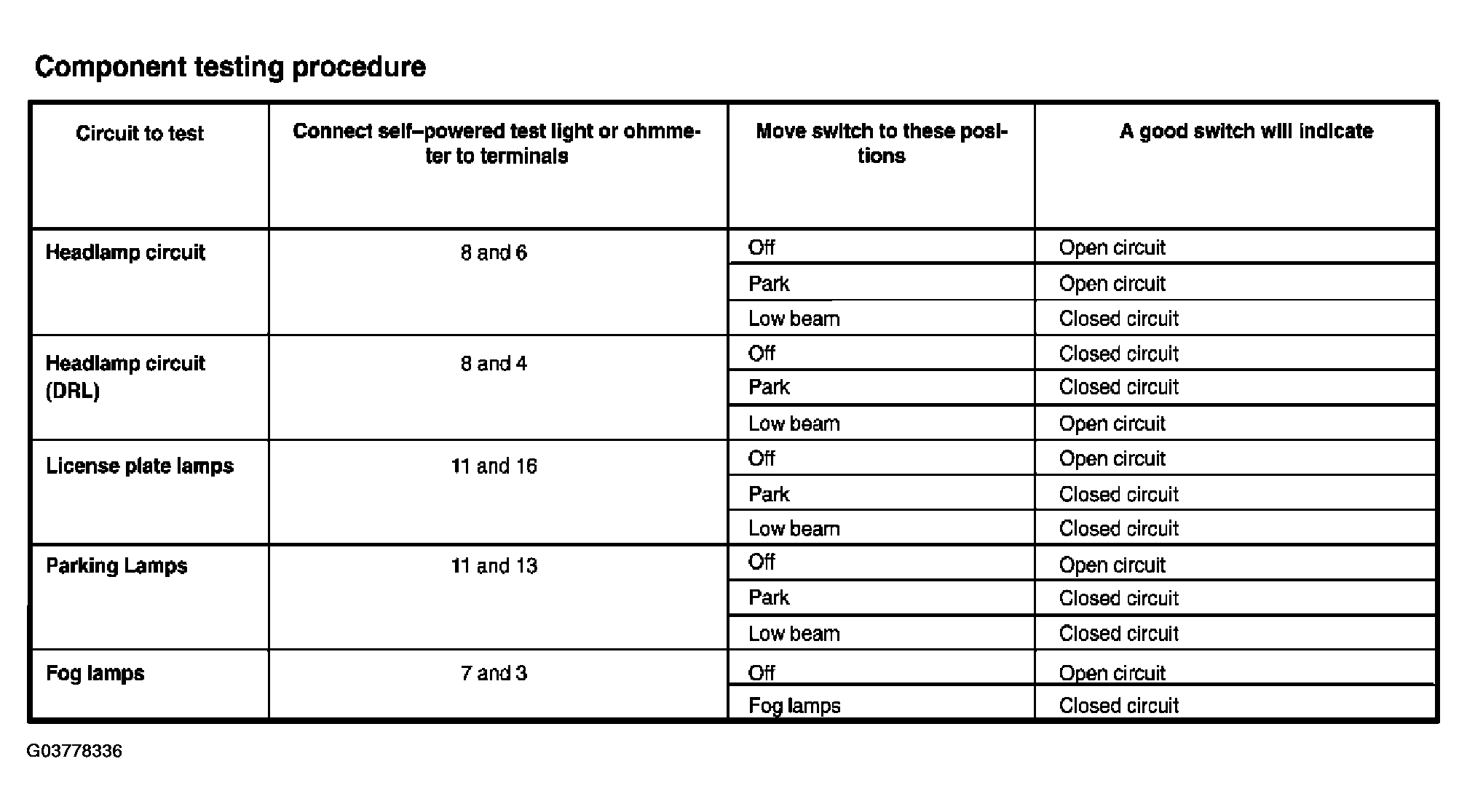

Fig 1: Testing Light Switch (1 Of 2)
Courtesy of FORD MOTOR CO.

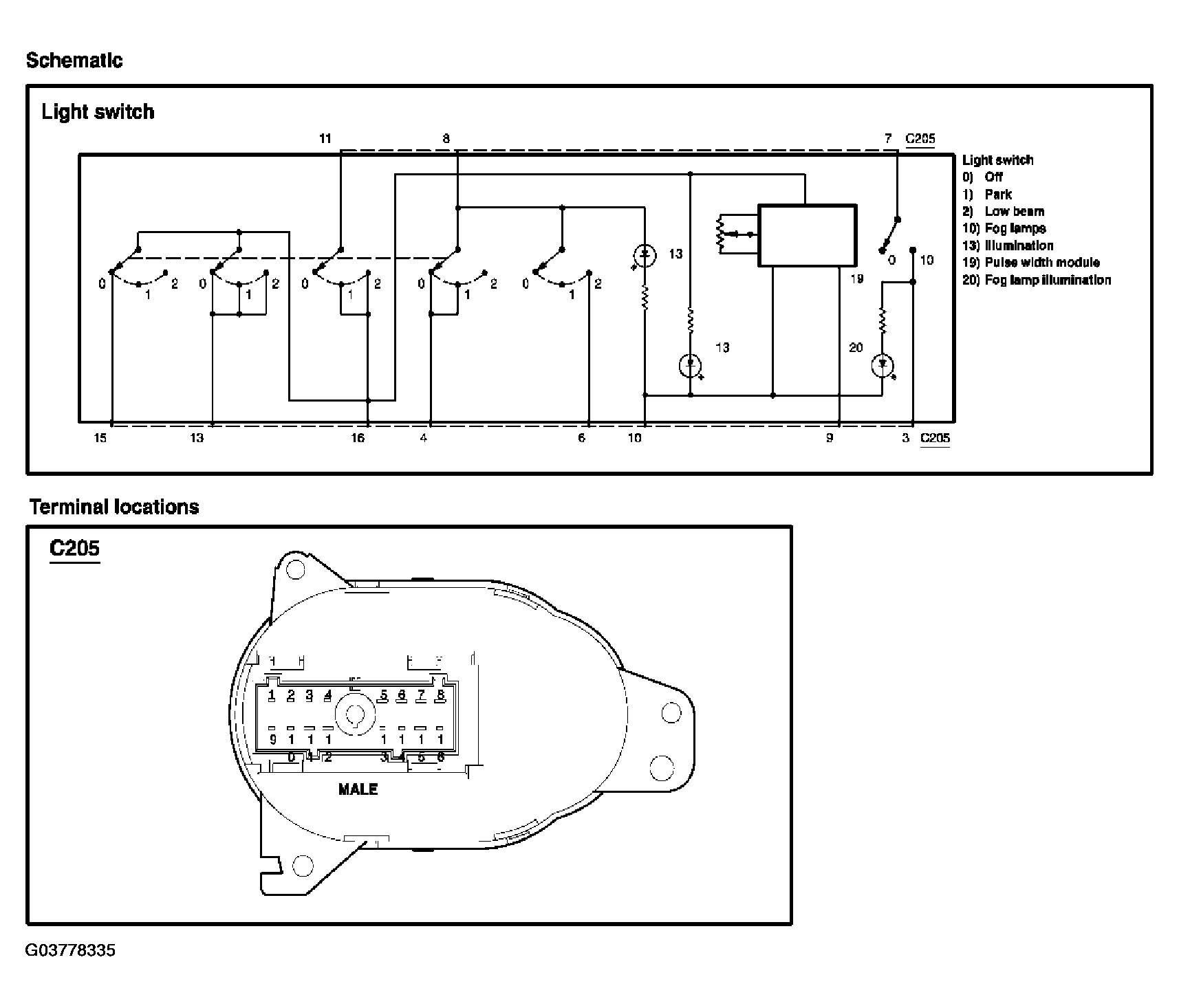

Fig 2: Testing Light Switch (2 Of 2)
Courtesy of FORD MOTOR CO.
