Moonroof adjust switch

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

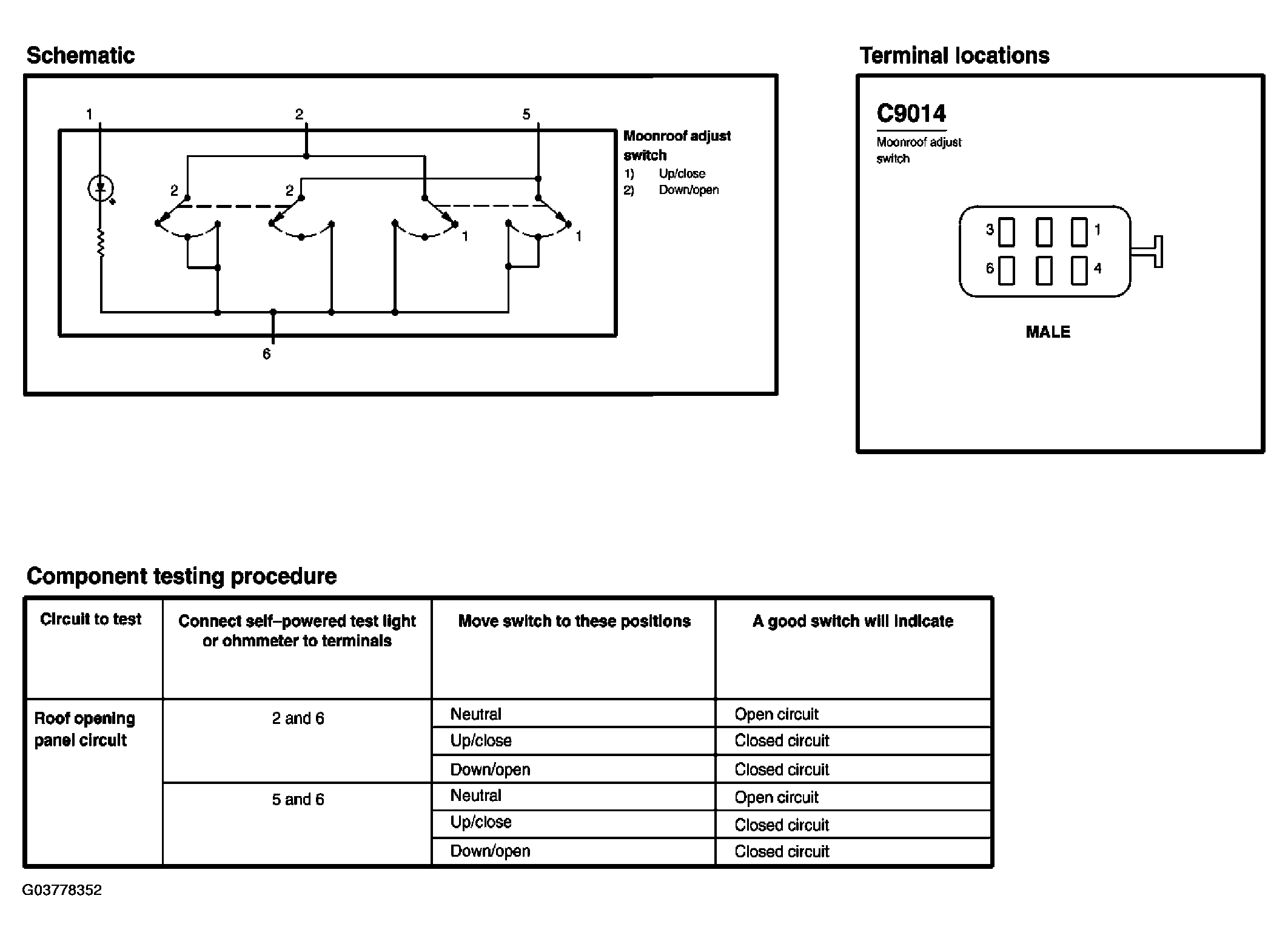

Fig 1: Testing Moonroof Adjust Switch
G03778352Courtesy of FORD MOTOR CO.
