Wiper/washer switch

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

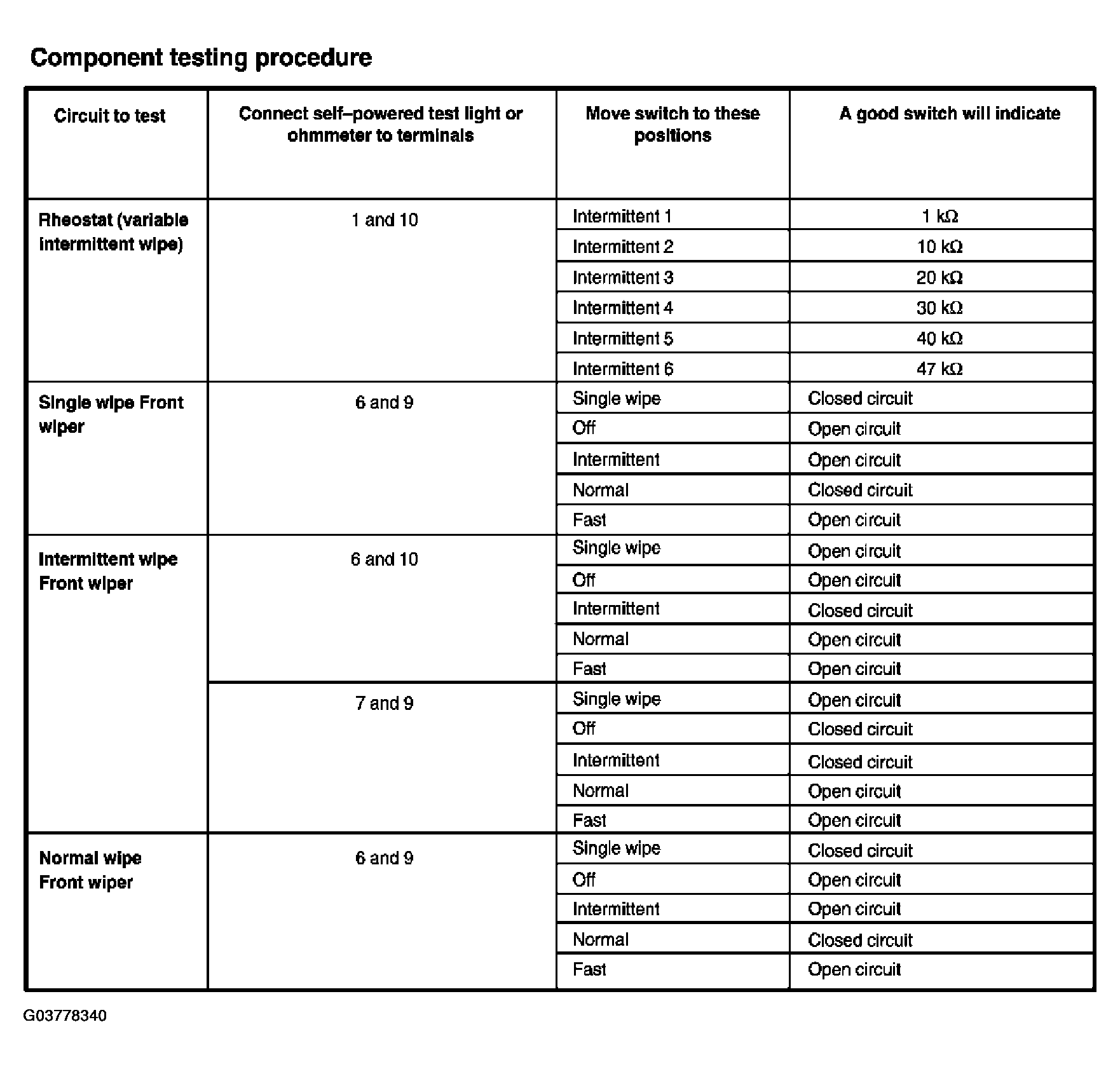

Fig 1: Testing Wiper/Washer Switch (1 Of 3)

Courtesy of FORD MOTOR CO.

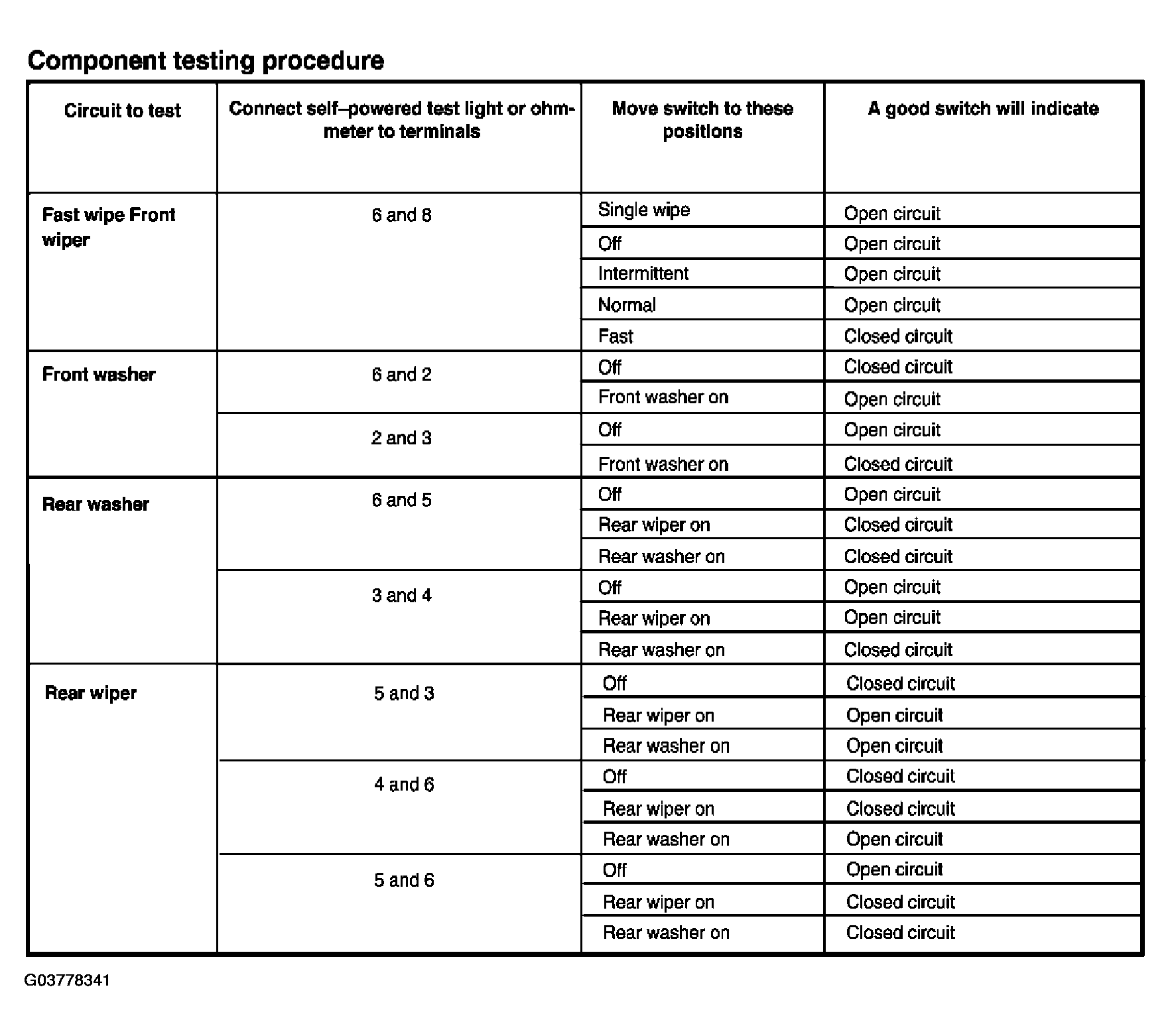

Fig 2: Testing Wiper/Washer Switch (2 Of 3)

Courtesy of FORD MOTOR CO.

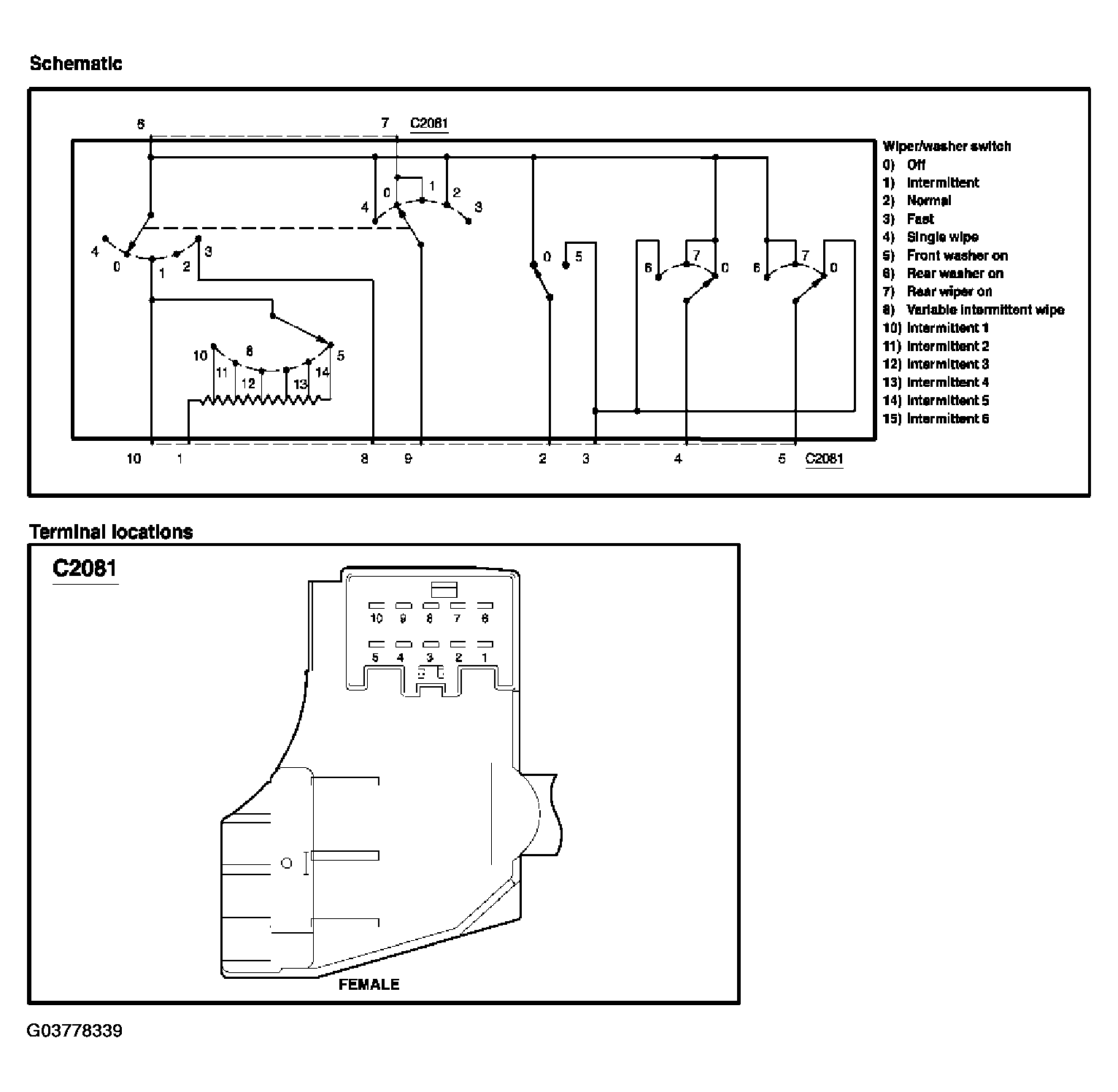

Fig 3: Testing Wiper/Washer Switch (3 Of 3)

Courtesy of FORD MOTOR CO.
