Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Air Suspension Control Module | Left center of dash. |
| Anti-Theft Transceiver Module | Behind center of dash. |
| Blower Motor Speed Controller (W/ EATC) | Near blower motor. |
| Central Timer Module (CTM) | Behind center of dash. |
| Compass/Outside Air Temperature Module | Near rear view mirror. |

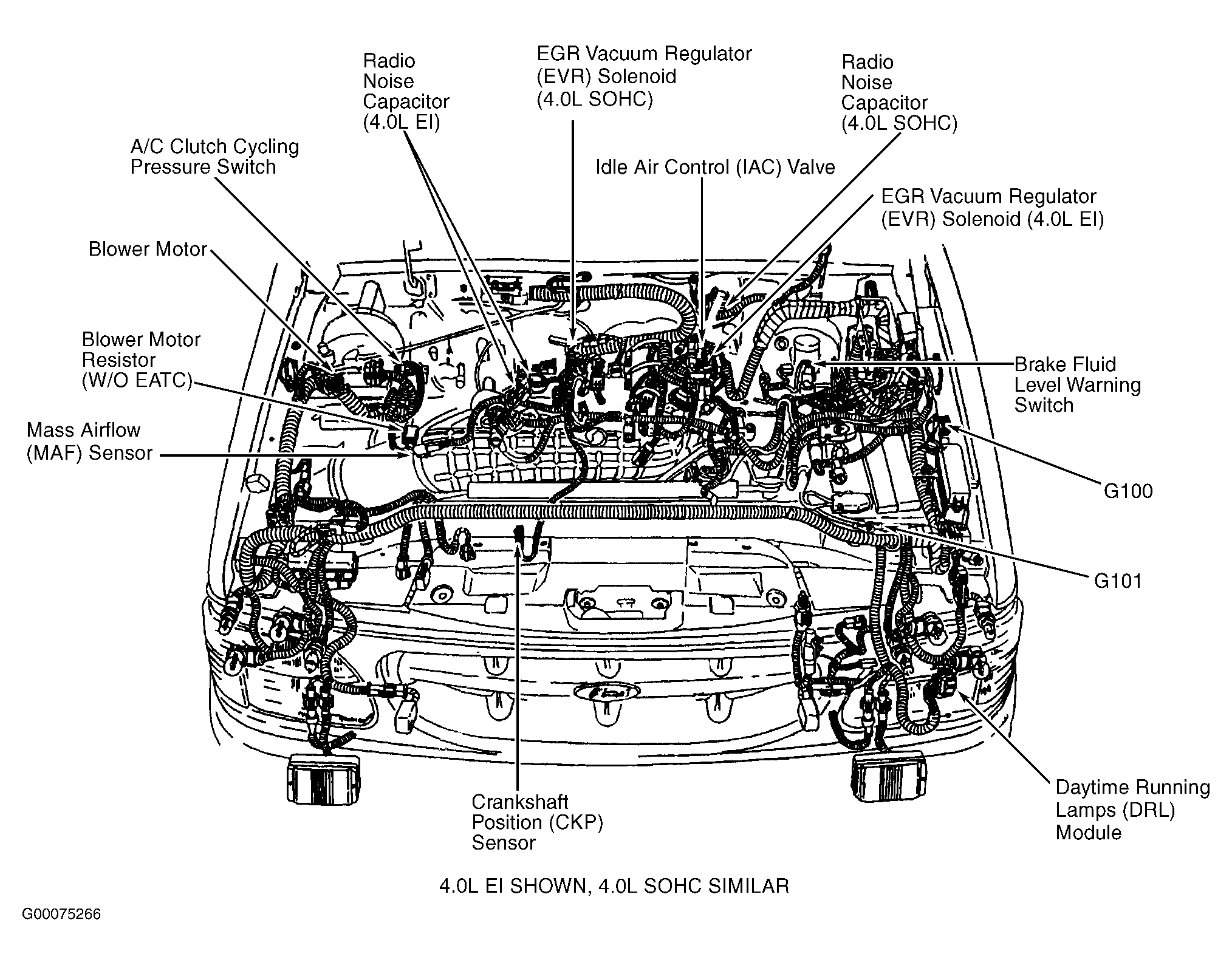

| Daytime Running Lights (DRL) Module (4.0L) | Left front corner of engine compartment. See Figure . |

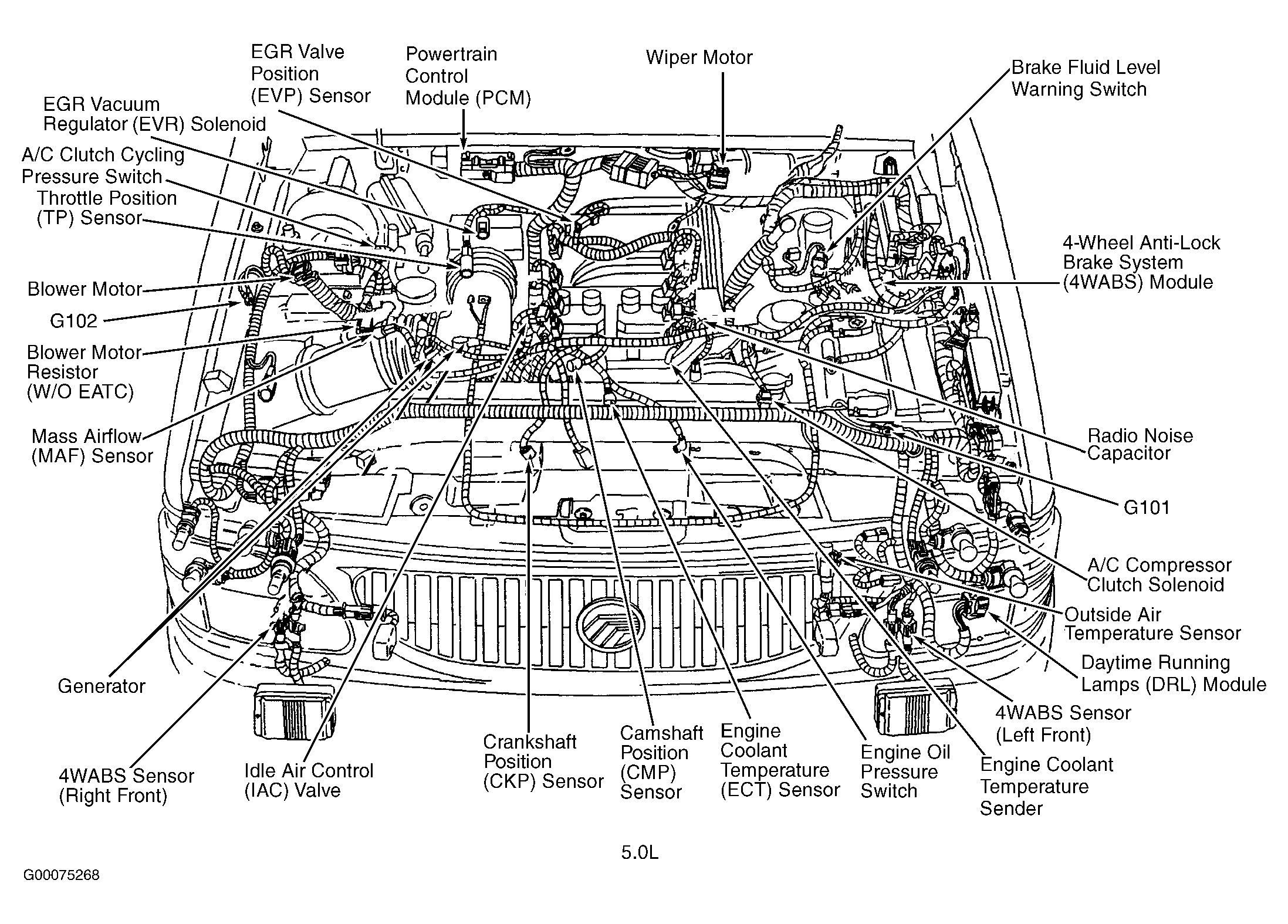

| Daytime Running Lights (DRL) Module (5.0L) | Left front corner of engine compartment. See Figure . |
| Dimmer Module | Left side of steering column. |
| Driver Seat Module (DSM) | Below left front seat. |
| Electric Shift Control Module | Near generic electronic module. |
| Electronic Automatic Temperature Control (EATC) Module | Behind center of dash. |
| Generic Electronic Module (GEM) | Behind center of dash. |
| Heated Seat Module (Left Front) | Under left front seat. |
| Heated Seat Module (Right Front) | Under right front seat. |
| Parking Aid Module (PAM) | Behind spare tire. |
| Passive Anti-Theft System (PATS) Module | Behind top right side of dash. |
| Power Antenna Module | On antenna mast. |

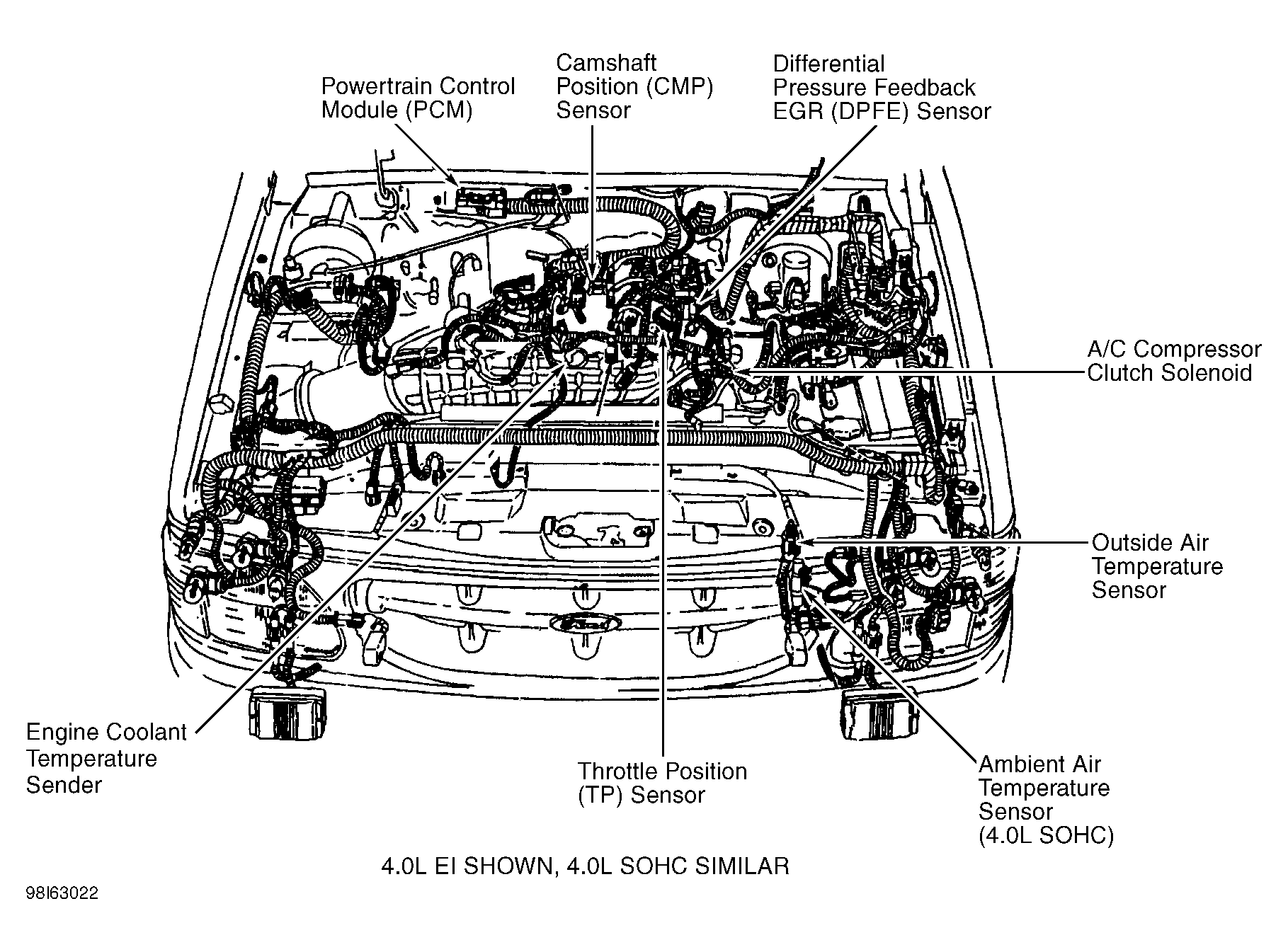

| Powertrain Control Module (PCM) (4.0L) | Mounted through firewall. See Figure . |
| Powertrain Control Module (PCM) (5.0L) | Mounted through firewall. See Figure . |
| Relay Module | Behind center of dash. |
| Remote Anti-Theft/Personality (RAP) Module | At left rear quarter panel. |
| Restraint Control Module (RCM) | Behind right side of dash. |

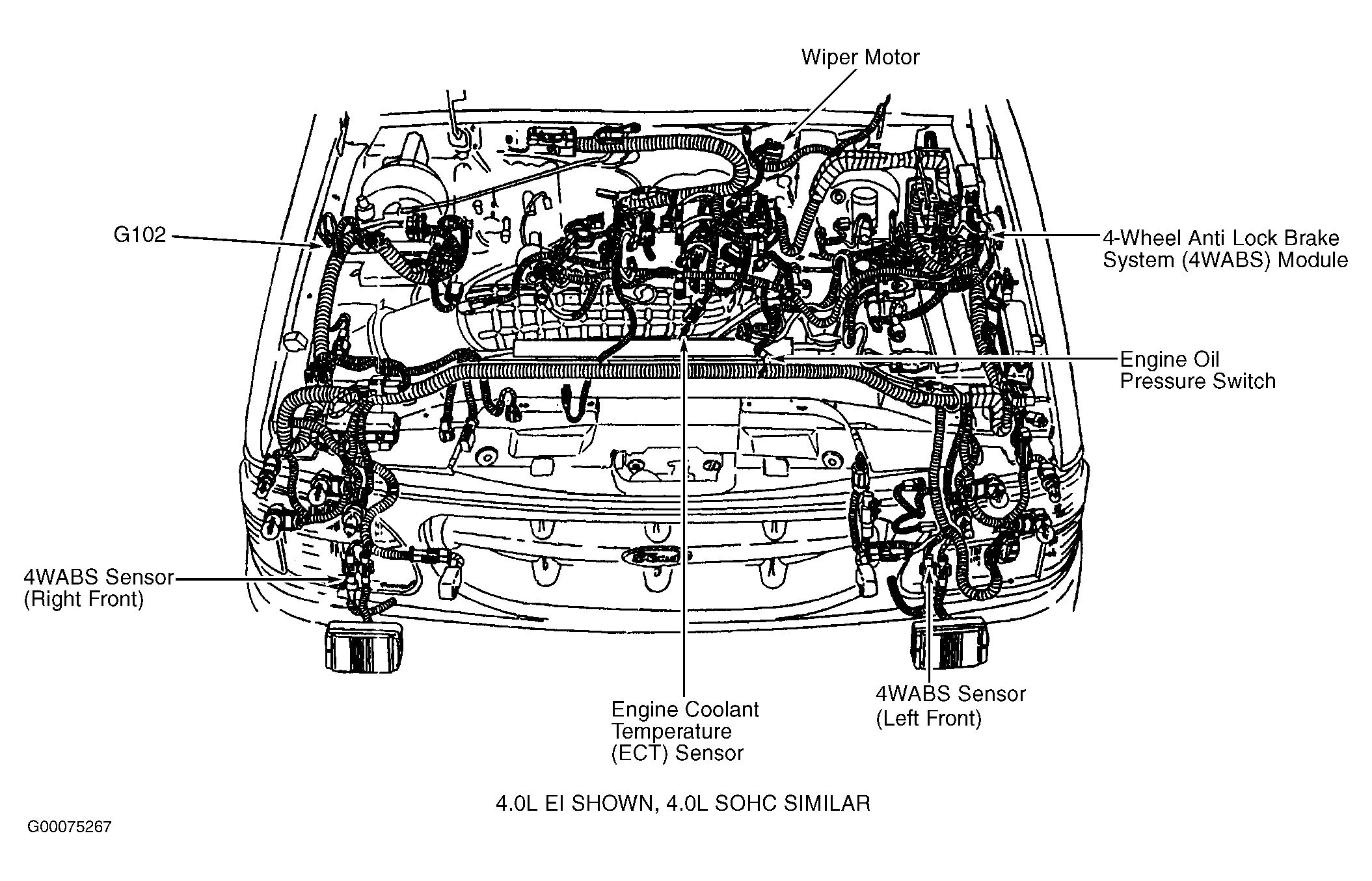

| 4-Wheel Anti-Lock Brake System (4WABS) Module (4.0L) | In left side of engine compartment. See Figure . |
| 4-Wheel Anti-Lock Brake System (4WABS) Module (5.0L) | In left side of engine compartment. See Figure . |
