Self-Diagnostic System

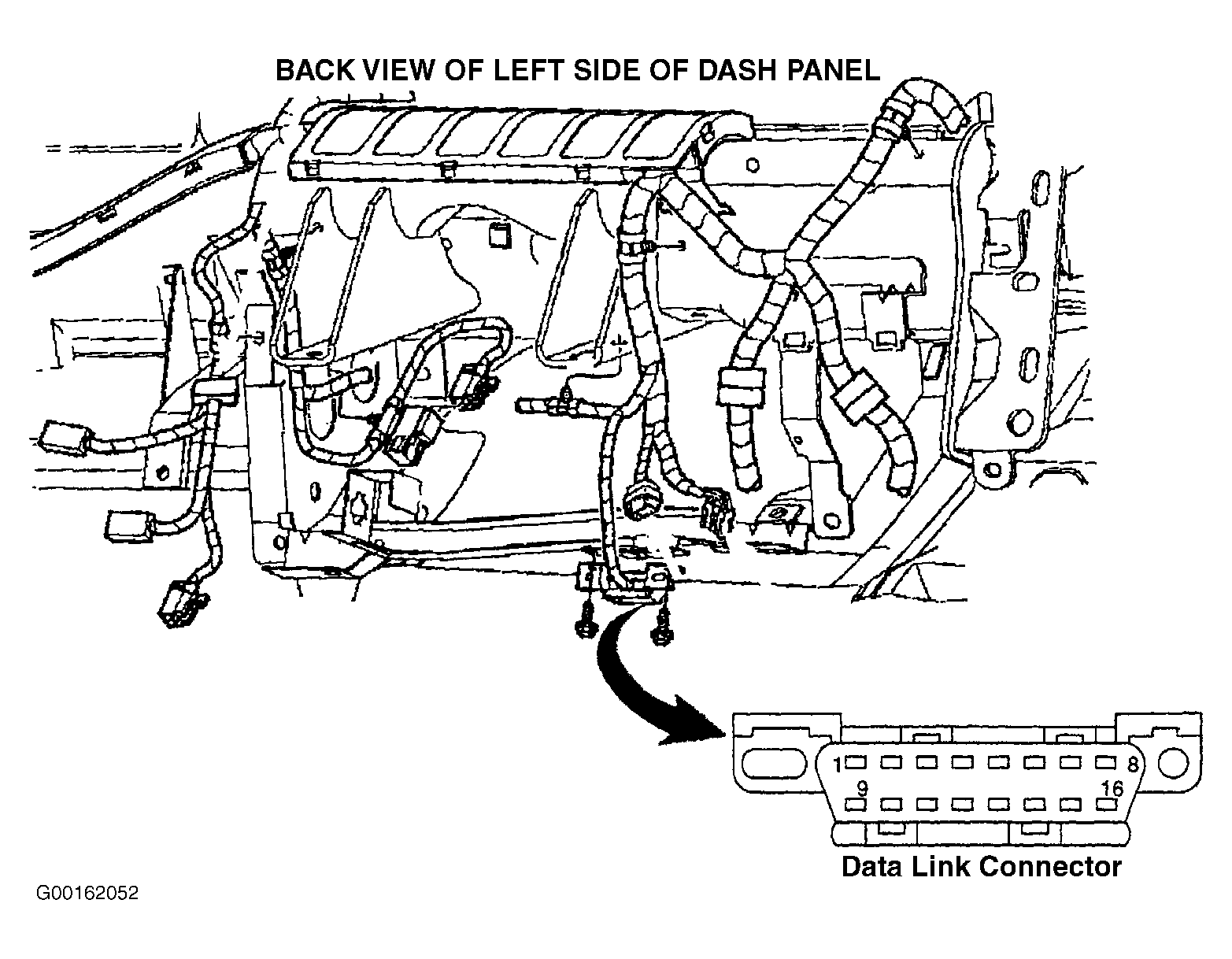

Turn ignition switch to LOCK position. Connect Worldwide Diagnostic System (WDS) tester or New Generation Star (NGS) tester to Data Link Connector (DLC), DLC is located below instrument panel. See Fig 1. Turn ignition switch to RUN position. Using WDS or NGS tester, perform data link diagnostics test. See DATA LINK DIAGNOSTIC TEST under SELF-DIAGNOSTIC SYSTEM in appropriate MODULE COMMUNICATIONS NETWORK - SABLE & TAURUS article. If WDS or NGS tester responds with CKT914, CKT915 or CKT70=ALL ECUS NO RESP/NOT EQUIP, repair module communications concern. See appropriate MODULE COMMUNICATIONS NETWORK - SABLE & TAURUS article. If WDS or NGS tester displays NO RESP/NOT EQUIP for Generic Electronic Module (GEM), perform TEST A: NO COMMUNICATION WITH GENERIC ELECTRONIC MODULE under SYSTEM TESTS.
If WDS or NGS tester responds with SYSTEM PASSED, retrieve and record continuous DTCs. Erase continuous DTCs. Using WDS or NGS tester, perform GEM self-test. Perform appropriate test in accordance with DTC retrieved. See GENERIC ELECTRONIC MODULE DTC INDEX table. Codes listed in this table are only for testing covered in this article. For complete DTC listing, see appropriate MODULE COMMUNICATIONS NETWORK - SABLE & TAURUS article. If no DTCs are retrieved, repair by symptom. See SYMPTOM INDEX table under SYSTEM TESTS.
Courtesy of FORD MOTOR CO. GENERIC ELECTRONIC MODULE DTC INDEX
| DTC |
Description |
Perform Test |
| B1302 |
Delayed Accessory Relay Coil Circuit Failure |
D & E |
| B1304 |
Delayed Accessory Relay Coil Circuit Short To Voltage |
E |
| B1342 |
ECU Defective |
|
| B1359 |
Ignition RUN/ACC Circuit Failure |
|
| B1398 |
Driver's Door Window One-Touch Relay Circuit Failure |
B & C |
| B1400 |
Driver's Door Window One-Touch Relay Circuit Short To Voltage |
C |
| B1405 |
Driver's Door Window Down Circuit Short To Voltage |
C |
| B1408 |
Driver's Door Window Up Circuit Short To Voltage |
B |
