Component Locations

NOTE: For additional component locations, refer to illustration. See Fig 1 .
COMPONENT LOCATIONS

Component Location
Accessory Delay Relay In Central Junction Box
Battery Junction Box Left Side Of Engine Compartment
Central Junction Box Behind Left Side Of Instrument Panel
Front Electronic Module Behind Left Side Of Instrument Panel

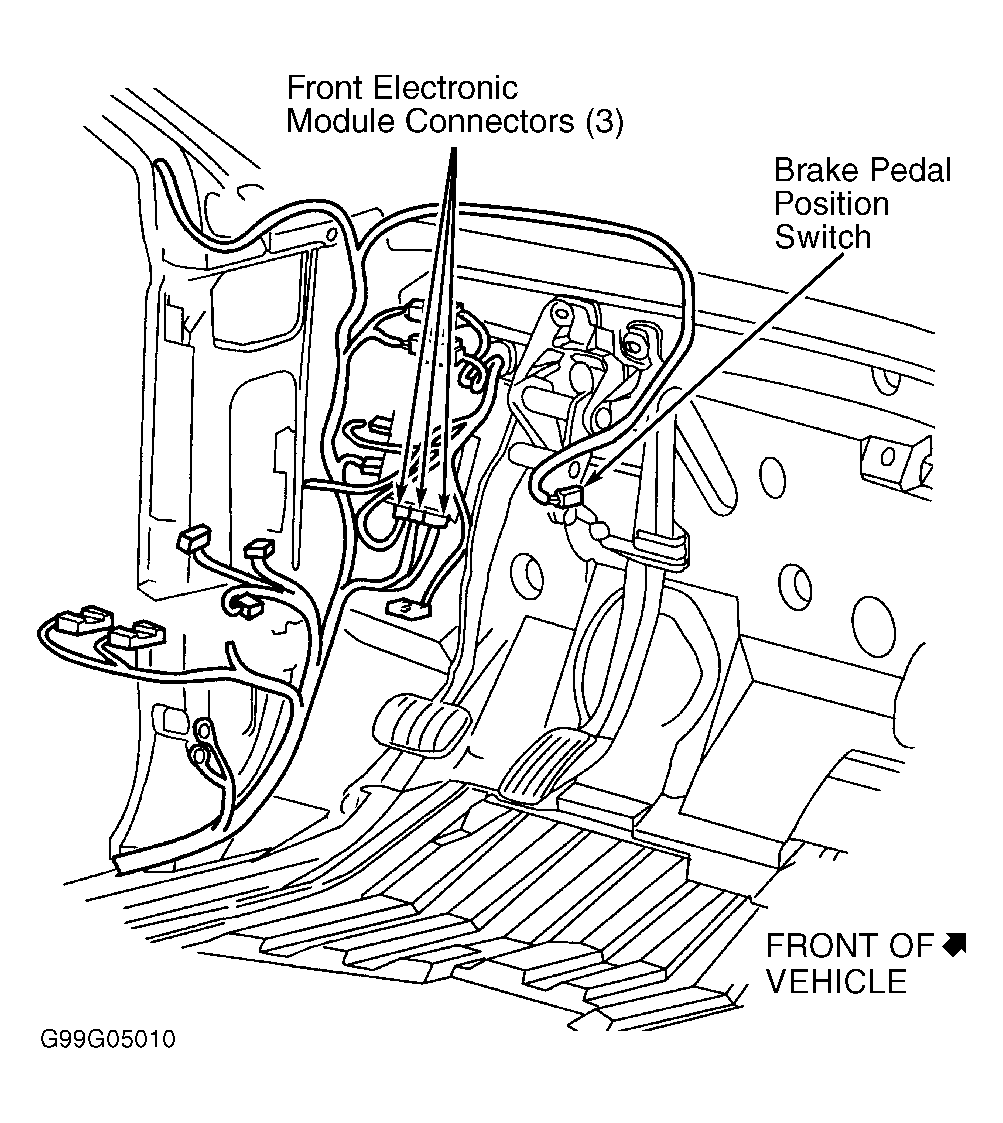

Fig 1: Locating Front Electronic Module Harness Connectors
G99G05010Courtesy of FORD MOTOR CO.
