Passenger's Window Regulator Control Switch

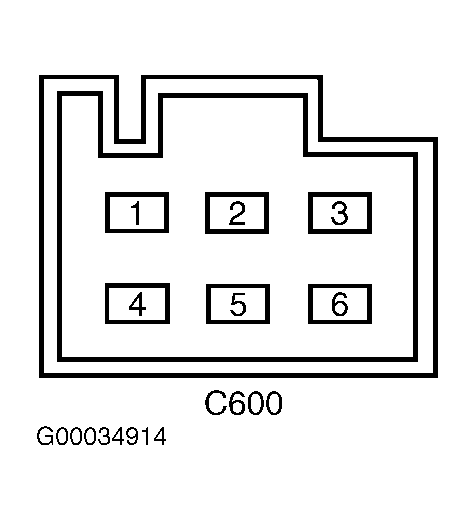

Disconnect passenger's window regulator control switch. Check continuity between specified passenger's window regulator control switch terminals with switch in appropriate position. See PASSENGER'S WINDOW REGULATOR CONTROL SWITCH CONTINUITY table. See Fig 1 . If continuity is not as specified, replace passenger's window regulator control switch.
PASSENGER'S WINDOW REGULATOR CONTROL SWITCH CONTINUITY
| Switch Position | Continuity Between Terminals No. |
|---|---|
| Up | 1 & 2; 3 & 5 |
| Down | 2 & 3; 5 & 6 |
