Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| A/C Clutch Diode | In battery junction box. |
| Auxiliary A/C Blower Relay Module | On back of left "B" pillar. |

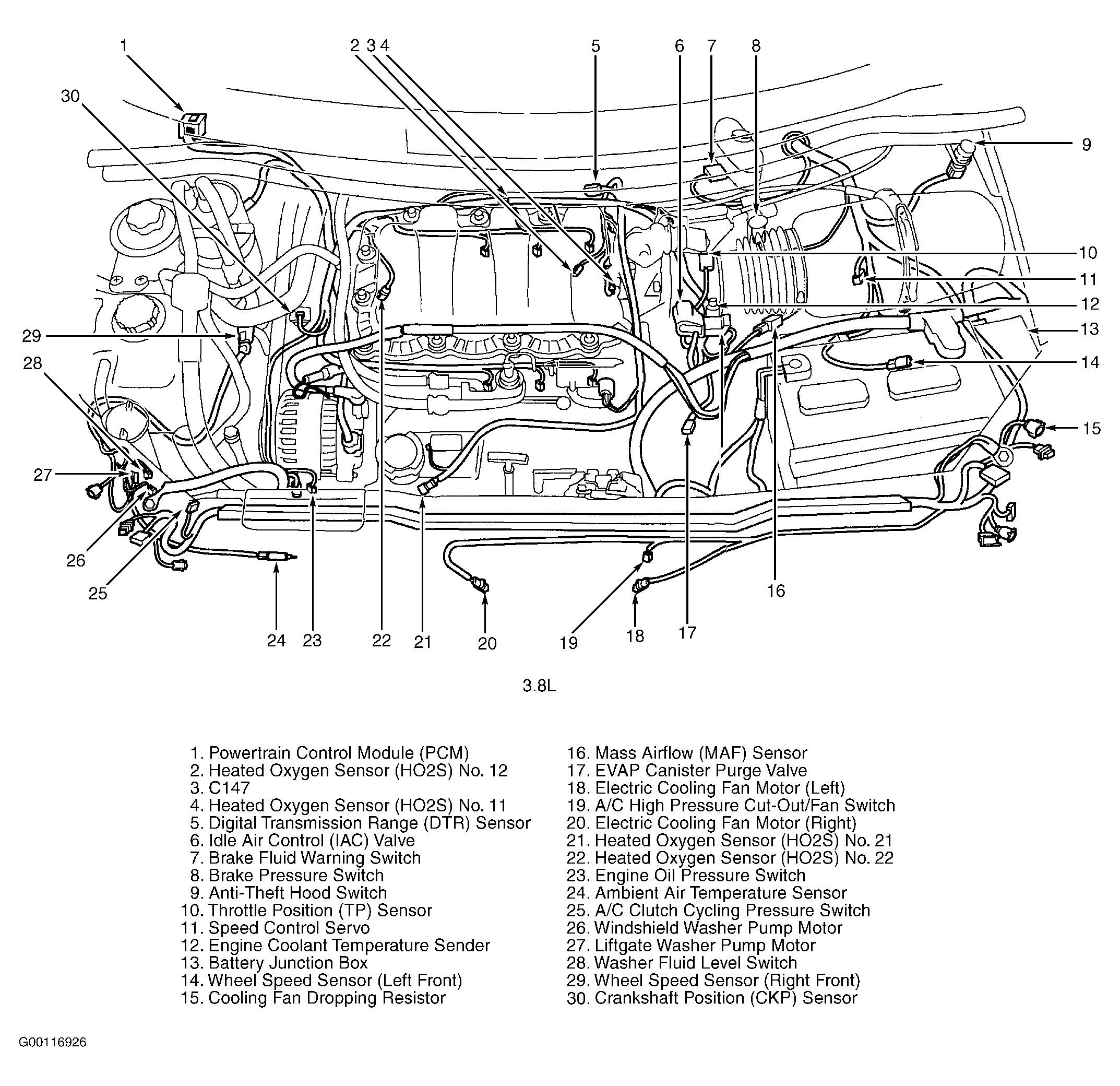

| Battery Junction Box | Left side of engine compartment. See Figure . |

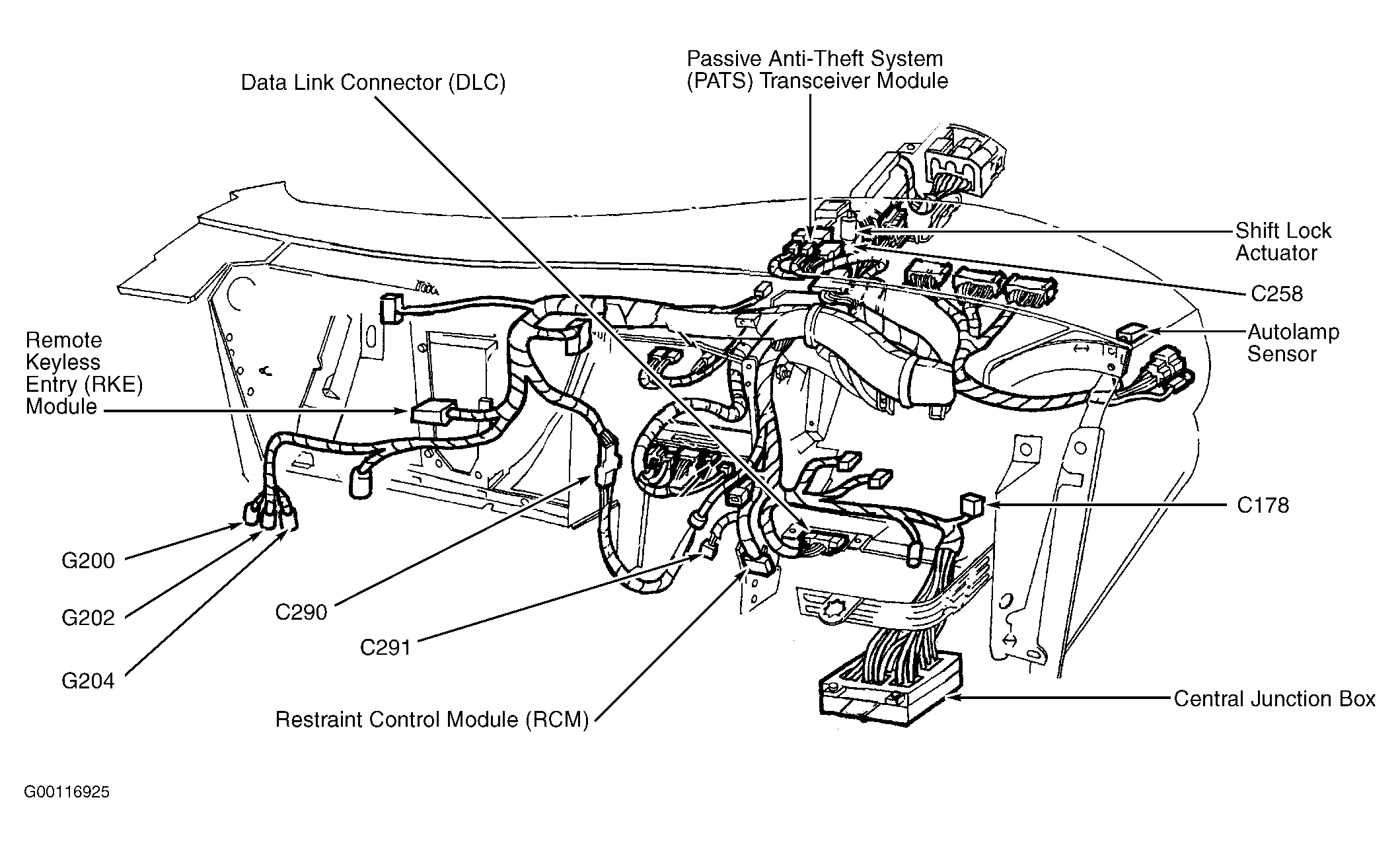

| Central Junction Box | Behind left side of dash. See Figure . |
| Fusible Link "A" | At battery junction box. |
| Fusible Link "B" | At battery junction box. |
| PCM Diode | In battery junction box. |
