Component Locations
WARNING: This page is about a different car, the 2000 Ford Windstar and 1999 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS
| Component | Location |
|---|---|

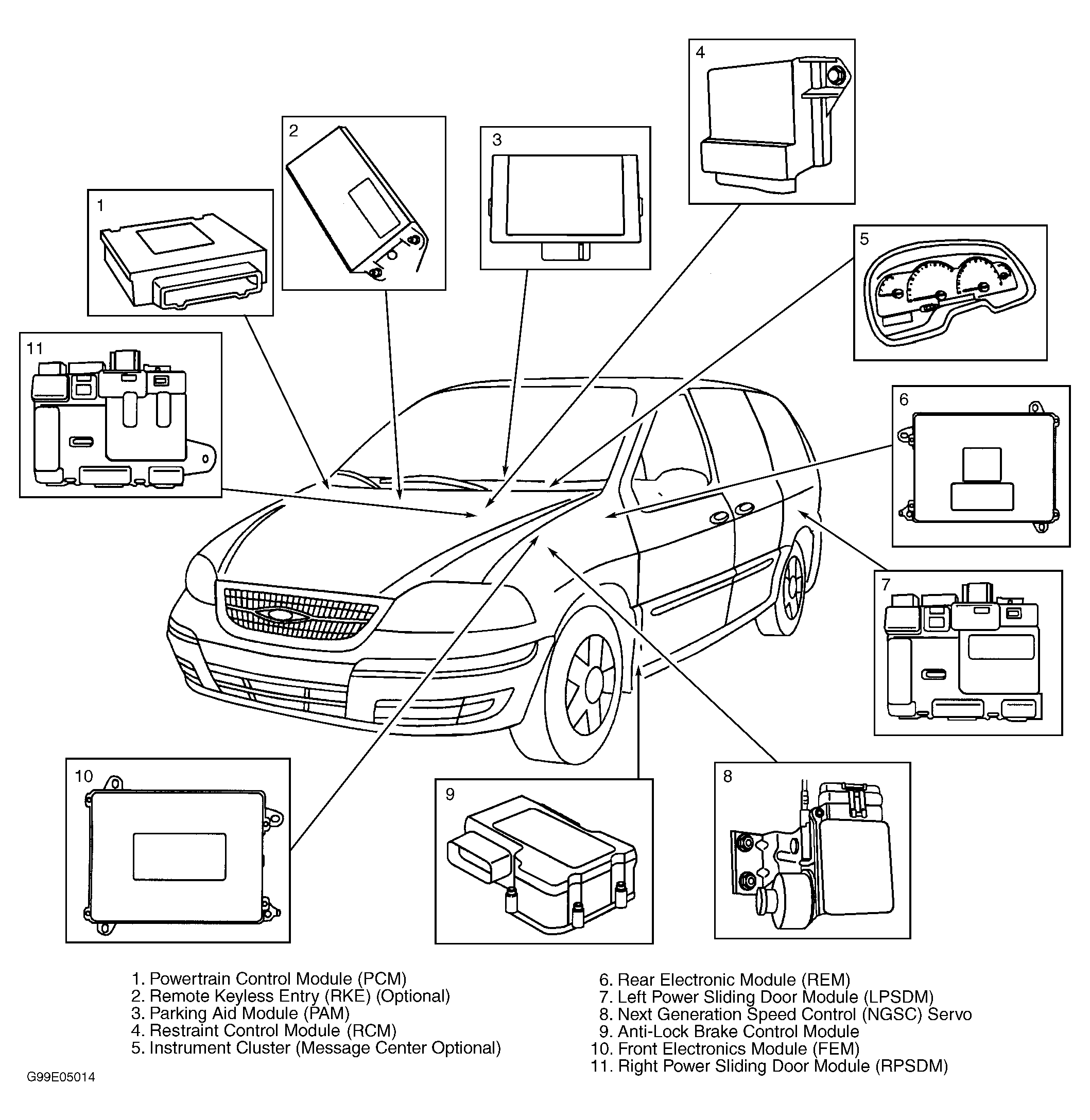

| Anti-Lock Brake Control Module | See Fig 1 |
| Data Link Connector (DLC) | Located Below Driver's Side Of Instrument Panel, Right Of Steering Column |
| Front Electronics Module (FEM) | See Fig 1 |
| In-Line 14-Pin Harness Connector C432 | Located Rear Right Side Of Cargo Area, Behind Panel |
| In-Line 16-Pin Harness Connector C180 | Located Behind Instrument Panel, Above Front Electronics Module (FEM) |
| In-Line 16-Pin Harness Connector C292 | Located Behind Driver's Side Kick Panel |
| In-Line 42-Pin Harness Connector C100 | Located At Left Rear Side Of Engine Compartment |
| Instrument Cluster | See Fig 1 |
| Next Generation Speed Control (NGSC) Servo | See Fig 1 |
| Parking Aid Module (PAM) | See Fig 1 |
| Rear Electronics Module (REM) | See Fig 1 |
| Remote Keyless Entry (RKE) Module | See Fig 1 |
| Restraint Control Module | See Fig 1 |
| Powertrain Control Module (PCM) | See Fig 1 |
