Direct Clutch Cylinder: Disassembly

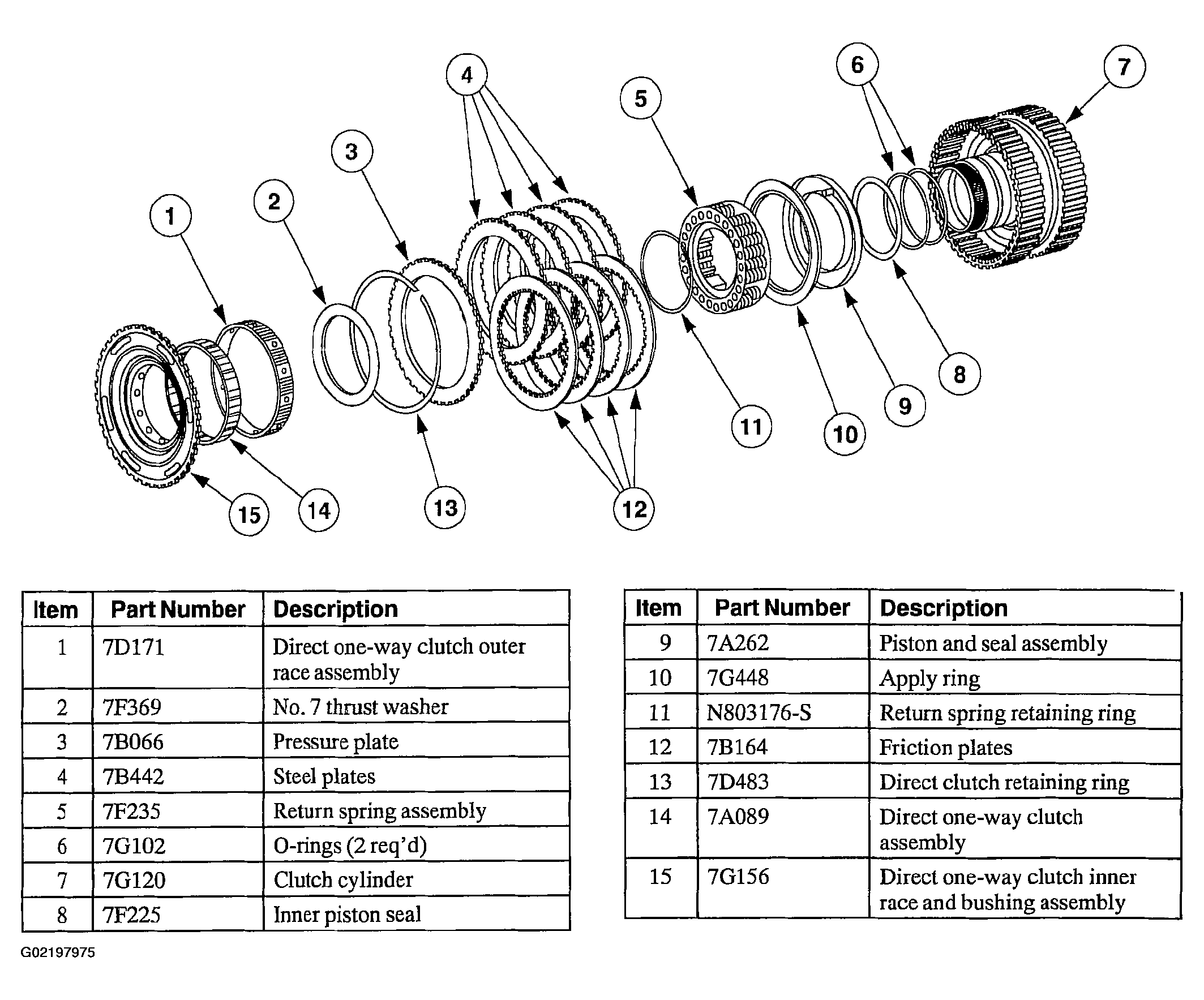

Fig 1: Identifying Direct Clutch Cylinder Assembly
G02197975
  1. Remove the direct one-way clutch assembly.
    1. Remove the direct one-way clutch assembly.
    2. Remove the direct clutch cylinder thrust washer.

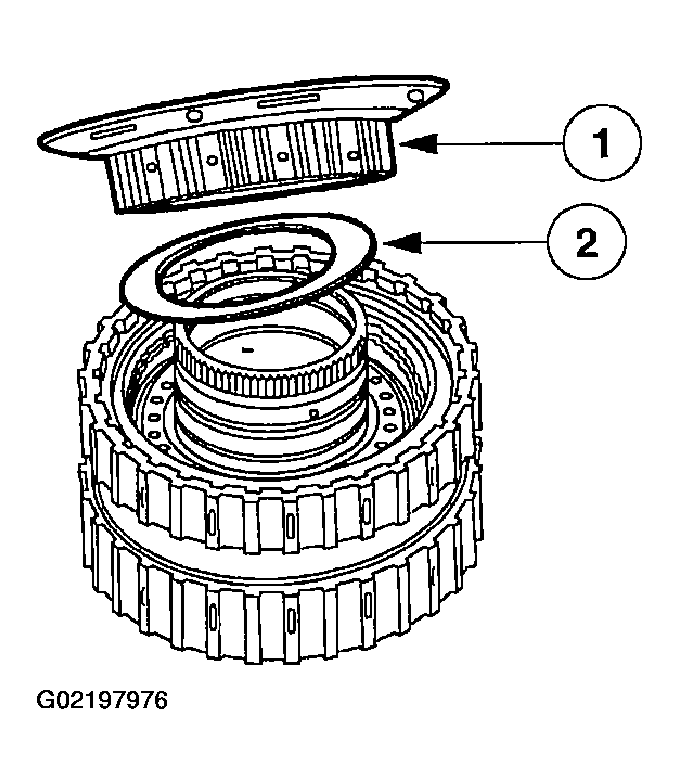

    Fig 2: Removing Direct One-Way Clutch Assembly
    G02197976
  2. Disassemble, clean and inspect the direct one-way clutch, inner and outer races.
    Fig 3: Inspecting Direct One-Way Clutch, Inner & Outer Races
    G02197977
  3. CAUTION: The circular depressions on the top of the nylon cage must be visible when installed on the inner race or the transaxle may be incorrectly assembled.
    NOTE: Outer race must rotate clockwise.

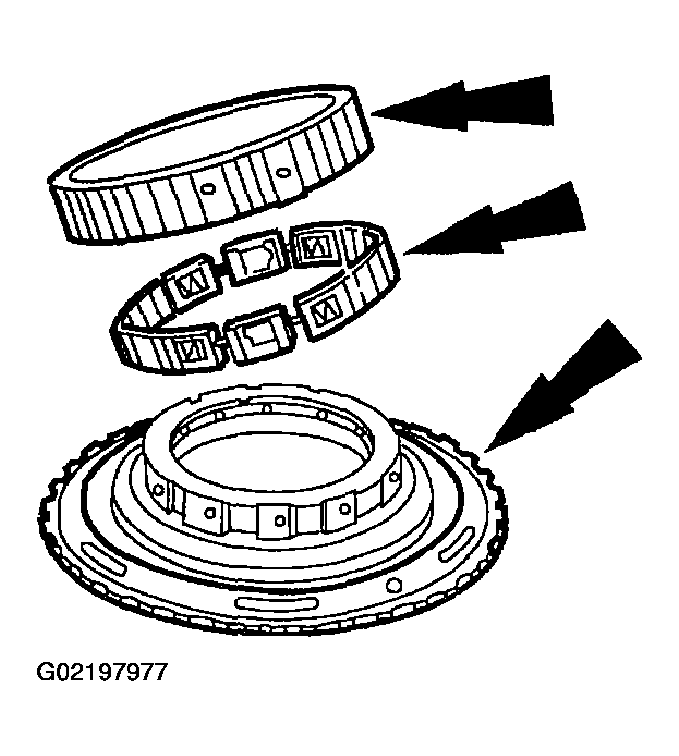

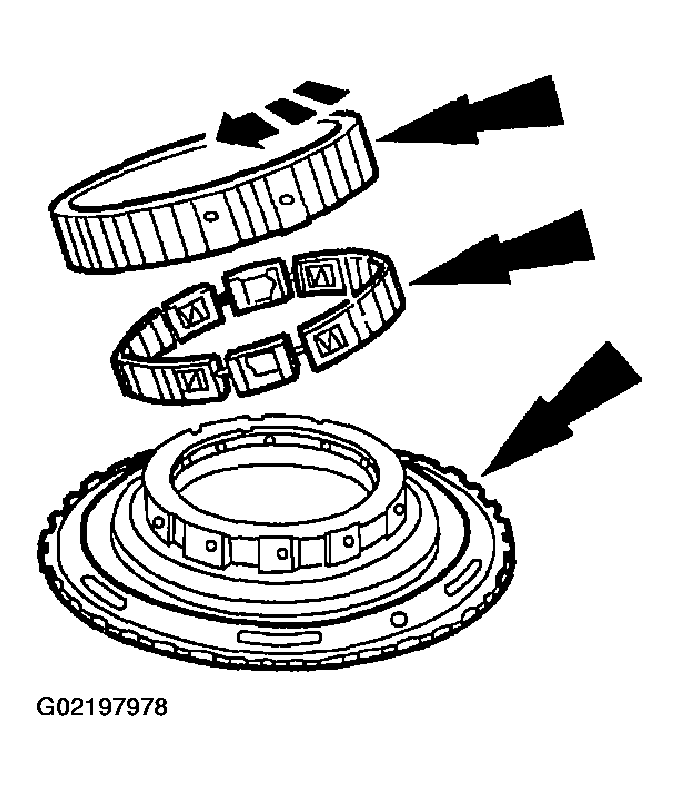

    Fig 4: Assembling One-Way Clutch
    G02197978
  4. Assemble the one-way clutch.
  5. Using the special tool remove the intermediate and direct clutch hub seal.

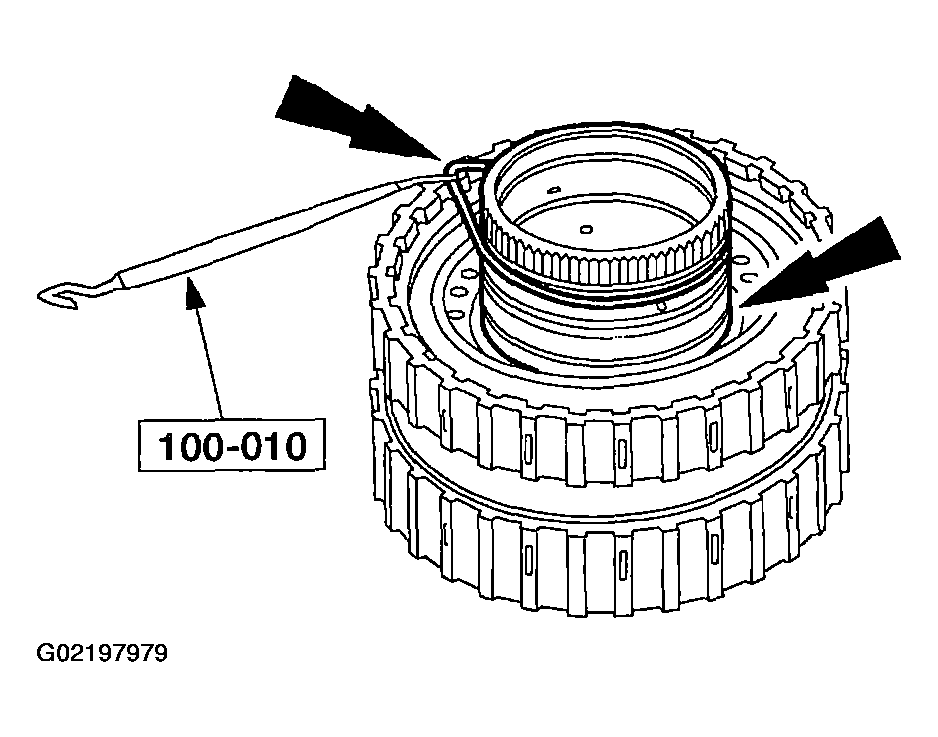

    Fig 5: Removing Intermediate & Direct Clutch Hub Seal
    G02197979
  6. CAUTION: Check for wear on inner splines of friction plates. Install new plates if worn.

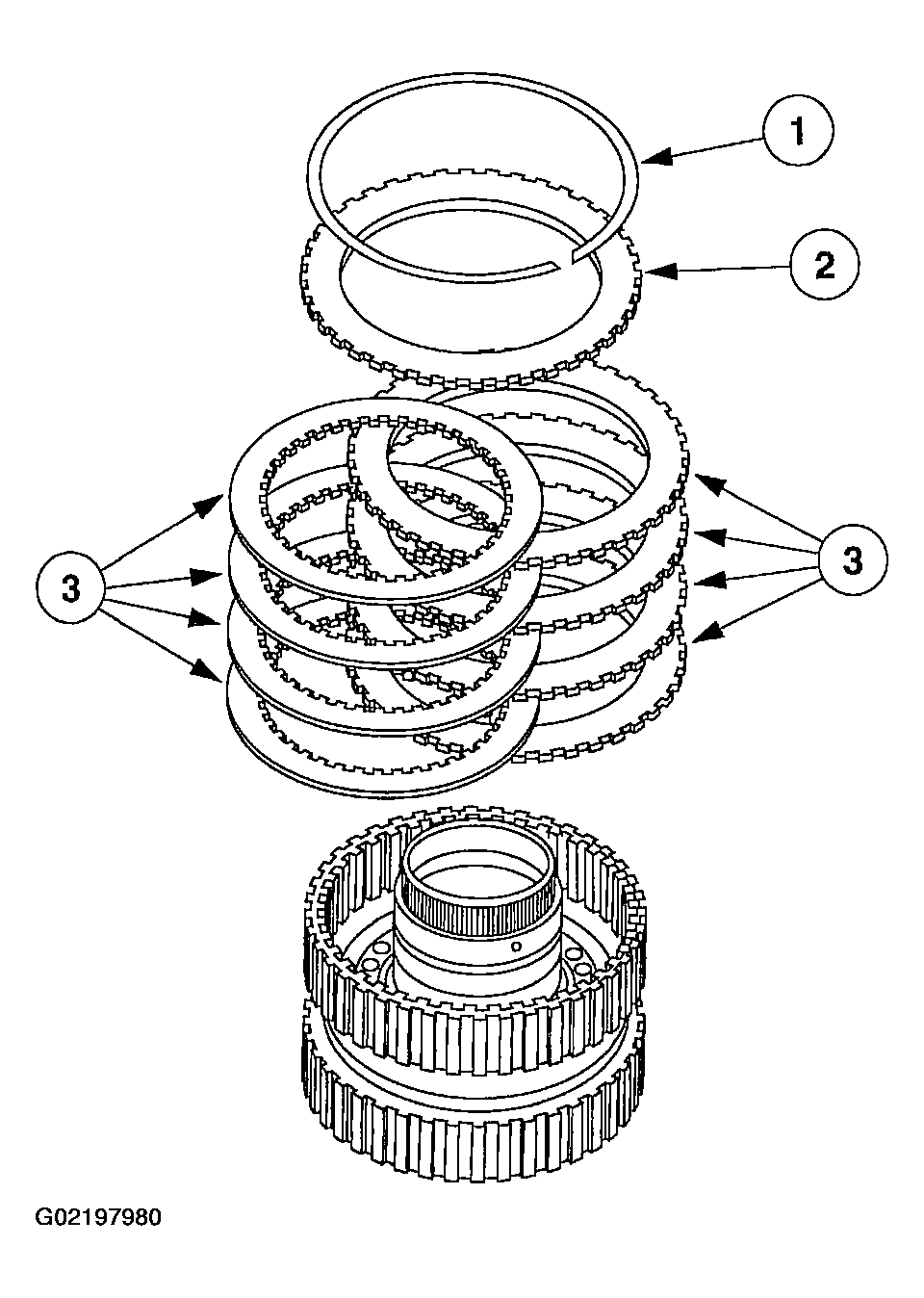

    Fig 6: Removing Intermediate Clutch Pack
    G02197980
  7. Remove the intermediate clutch pack.
    1. Remove the snap ring.
    2. Remove the clutch pressure plate.
    3. Remove the clutch pack.
  8. CAUTION: Do not allow the special tool to bottom out on the piston.

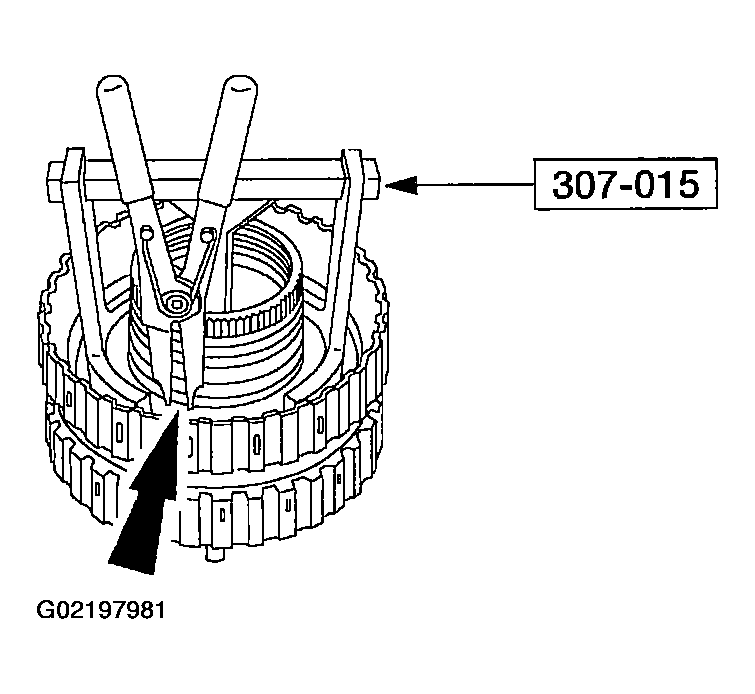

    Fig 7: Removing Direct Clutch Return Spring Snap Ring
    G02197981
  9. Using the special tool, compress the clutch spring and remove the snap ring.
  10. Remove the direct clutch return spring.

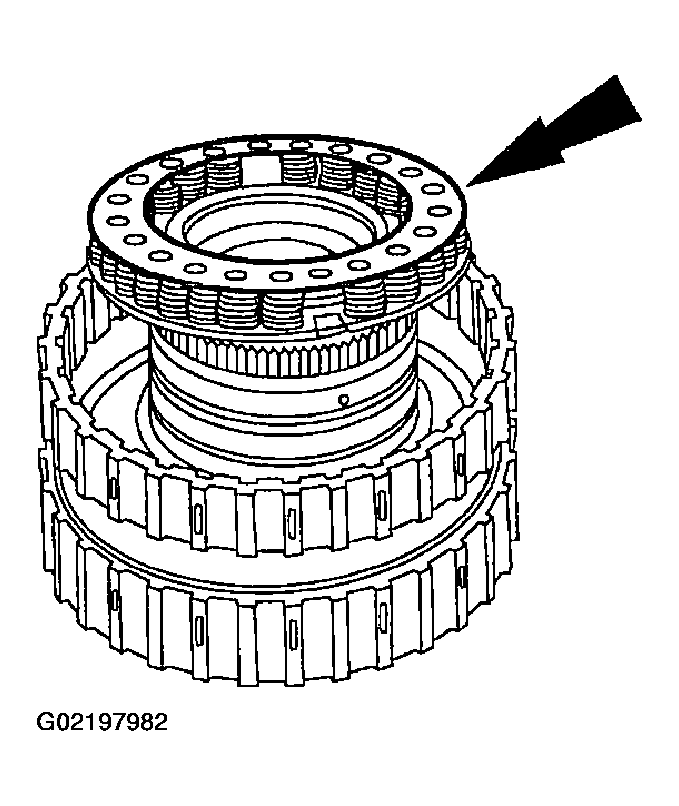

    Fig 8: Removing Direct Clutch Return Spring
    G02197982
  11. NOTE: The seal is part of the piston and is serviced as an assembly. Make sure that the check ball in the piston moves freely.

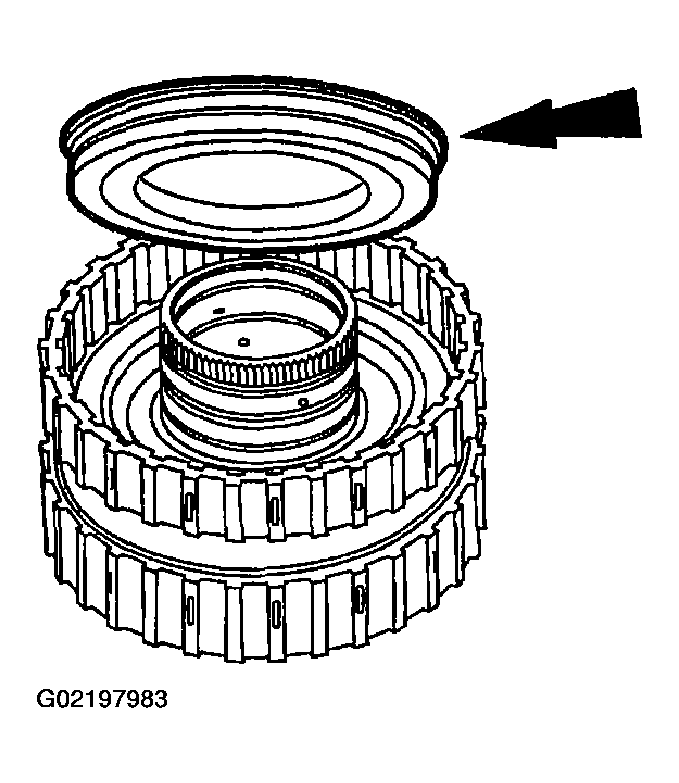

    Fig 9: Removing Piston & Seal Assembly
    G02197983
  12. Remove the piston and seal assembly.
  13. Separate the piston and seal assembly from the apply ring.
    Fig 10: Separating Piston & Seal Assembly From Apply Ring
    G02197984
  14. Using the special tool remove the inner piston seal.

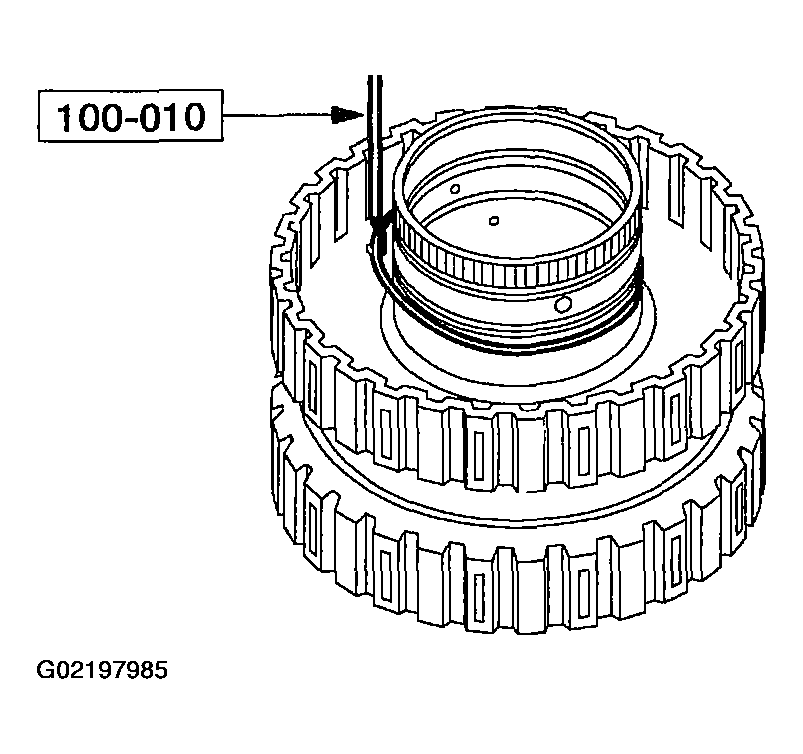

    Fig 11: Removing Inner Piston Seal
    G02197985
