Final Drive: Disassembly

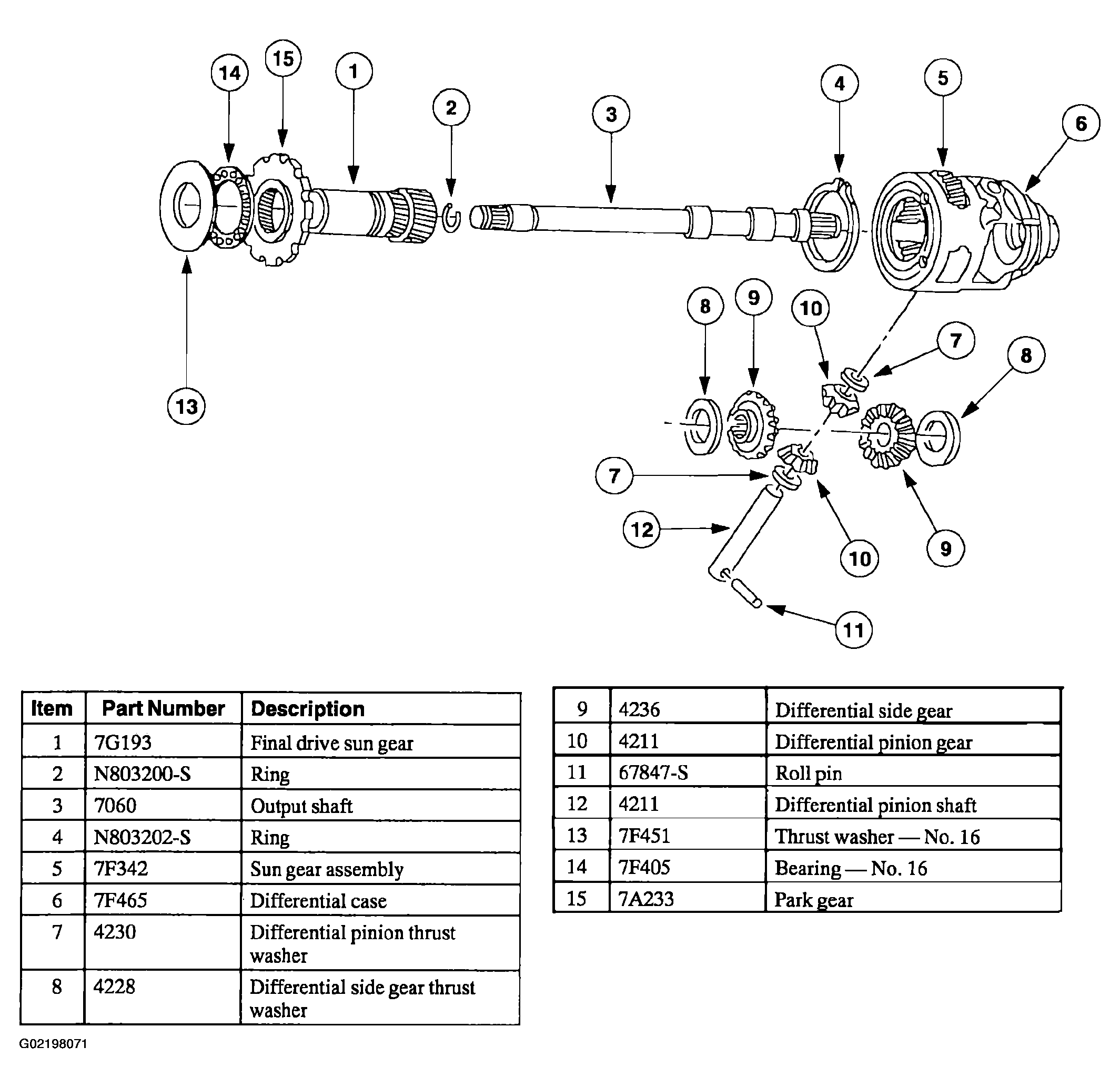

Fig 1: Exploded View Of Final Drive Assembly

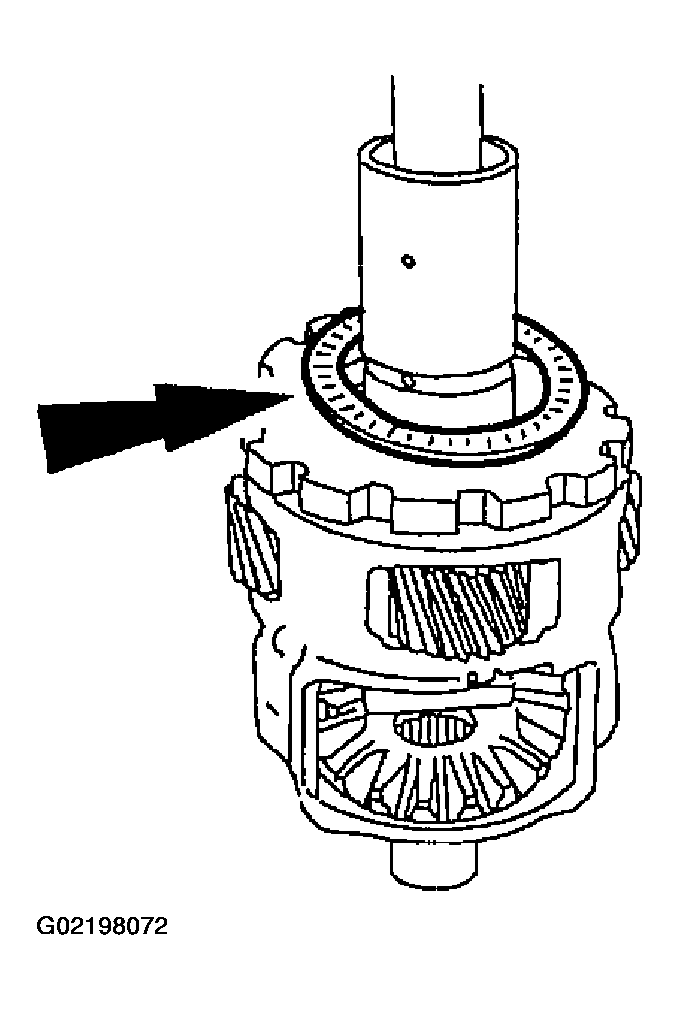

Remove the No. 16 final drive gear front thrust bearing.

Fig 2: Removing No. 16 Final Drive Gear Front Thrust Bearing

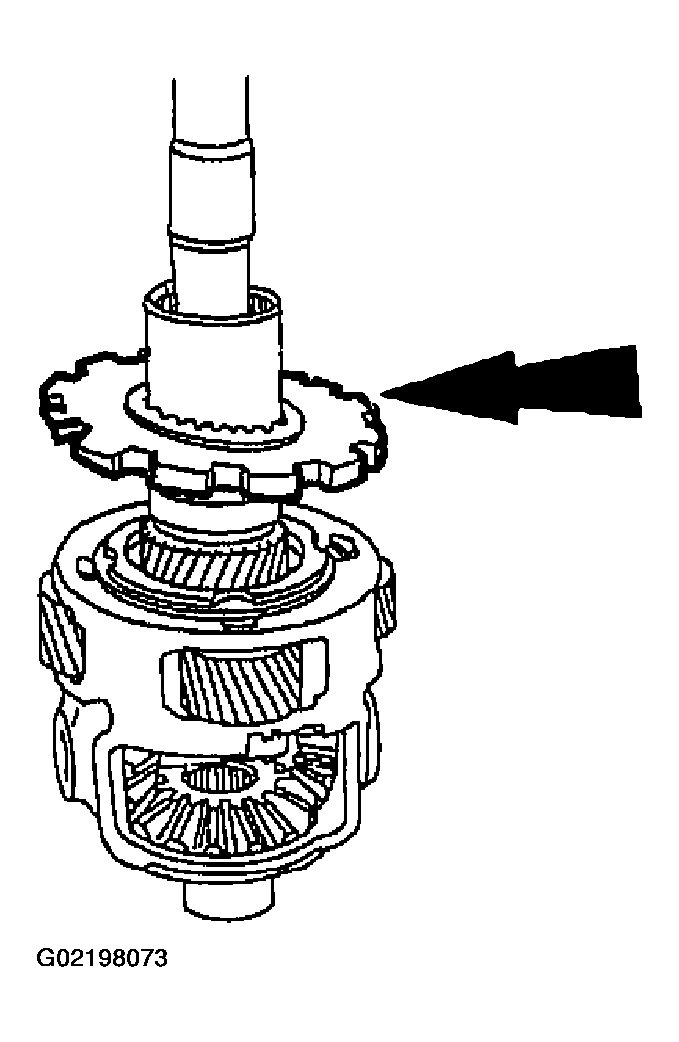

Remove the park gear.

Fig 3: Removing Park Gear

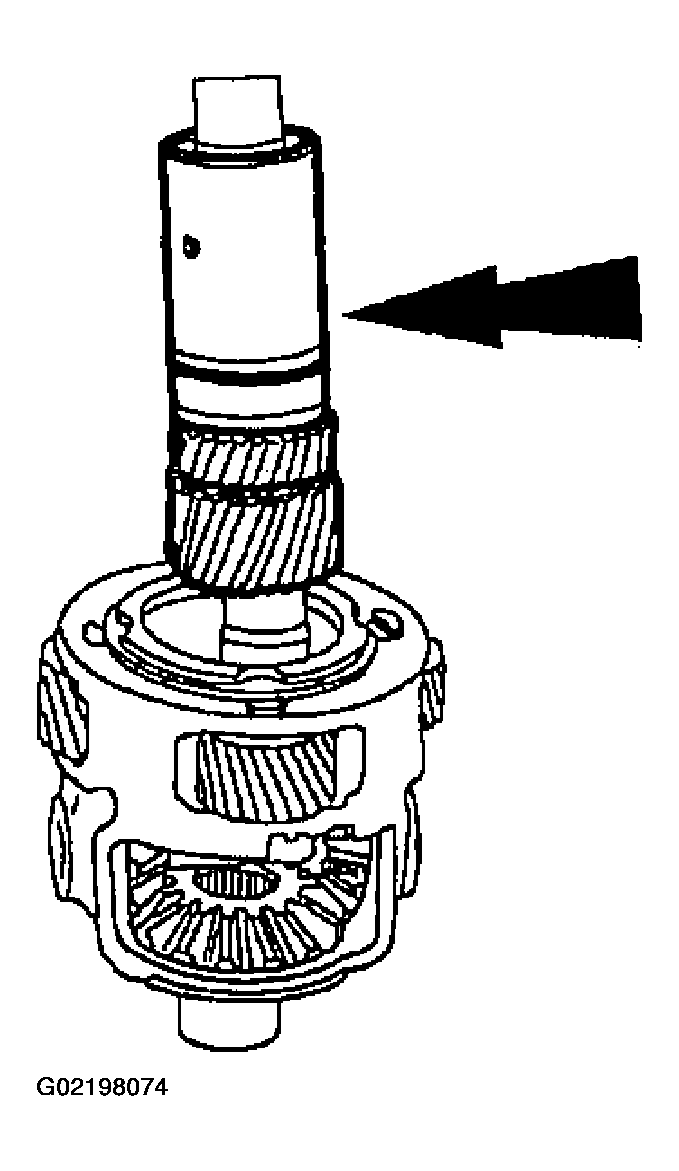

Remove the final drive sun gear and deflector.

Fig 4: Removing Final Drive Sun Gear & Deflector

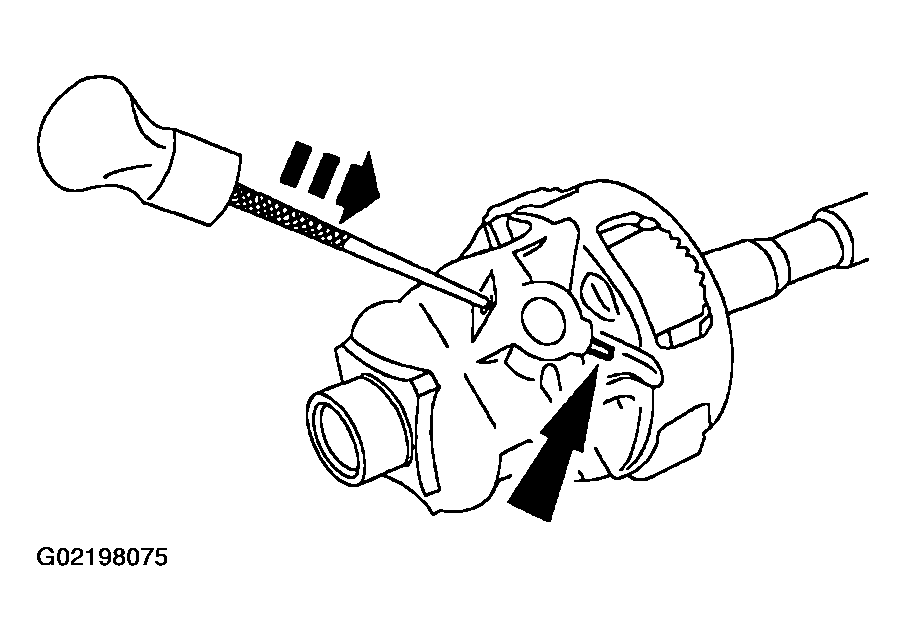

Remove the differential pinion shaft roll pin.

Fig 5: Removing Differential Pinion Shaft Roll Pin

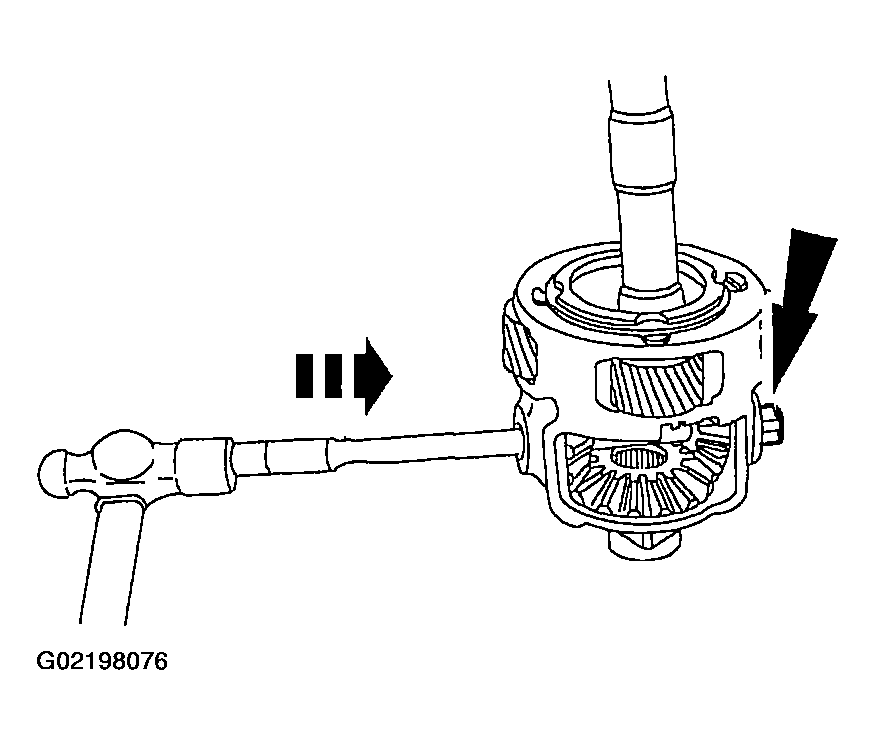

Remove the differential pinion shaft.

Fig 6: Removing Differential Pinion Shaft

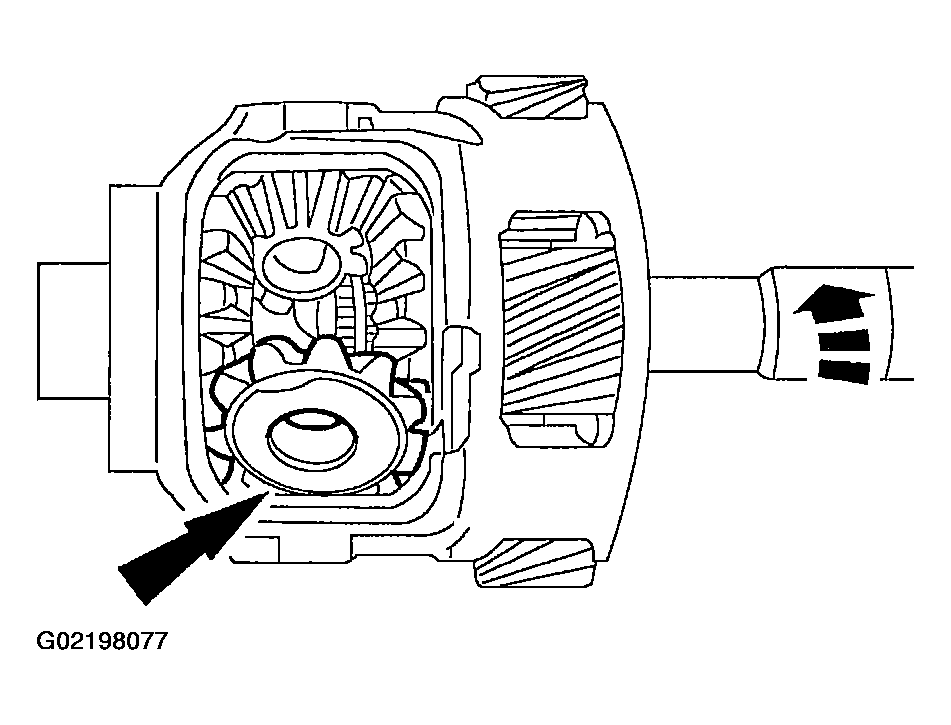

Rotate the output shaft and remove the differential pinion gear, and the differential pinion thrust washers.

Fig 7: Removing Differential Pinion Gear & Differential Pinion Thrust Washers

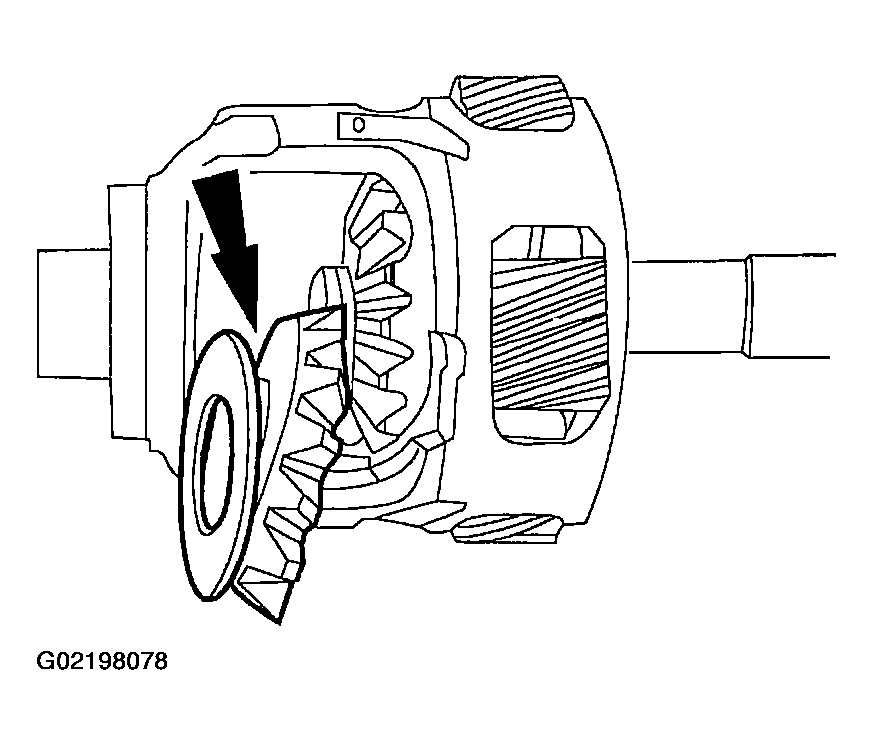

Remove the differential side gear and differential side gear thrust washer.

Fig 8: Removing Differential Side Gear & Differential Side Gear Thrust Washer

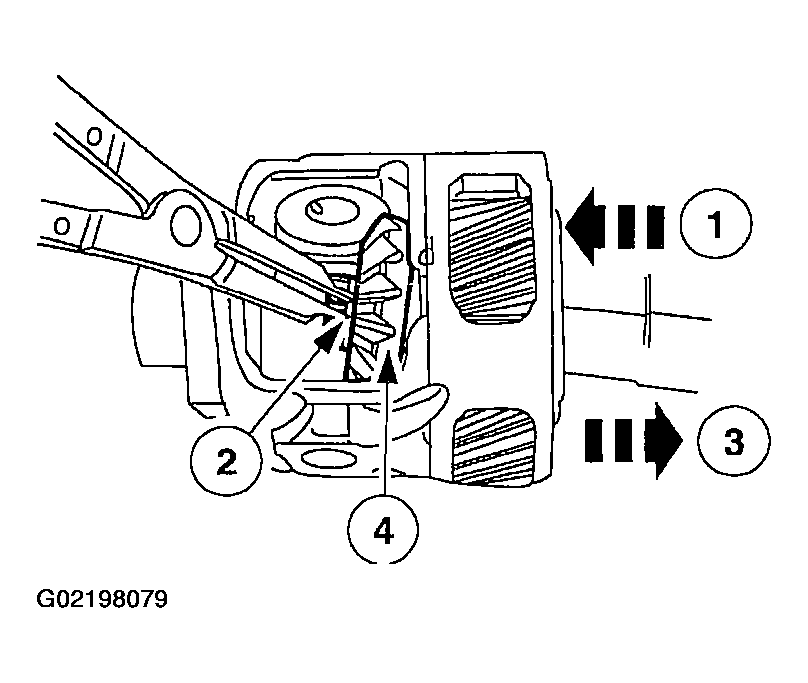

Remove the differential side gear and differential side gear thrust washer.
1. Move the output shaft.
2. Use the snap ring pliers to remove the retaining ring.
3. Remove the output shaft.
4. Remove the differential side gear and differential side gear thrust washer.
Fig 9: Removing Differential Side Gear & Differential Side Gear Thrust Washer
