Intermediate Clutch Cylinder: Disassembly

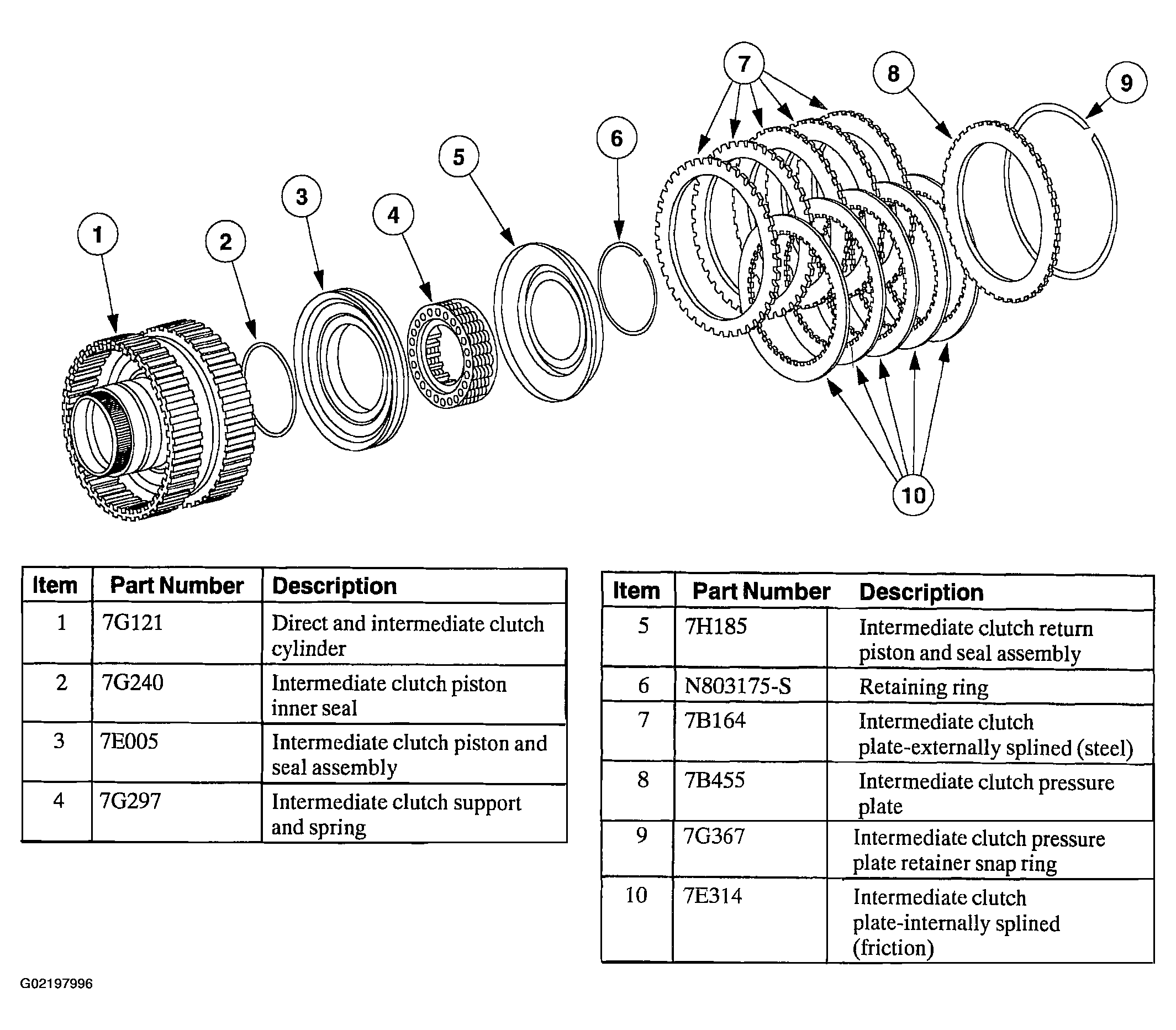

Fig 1: Identifying Intermediate Clutch Cylinder Assembly
G02197996
  1. Remove the intermediate clutch pack.
    1. Remove the snap ring.
    2. Remove the pressure plate.
    3. Remove the clutch pack.

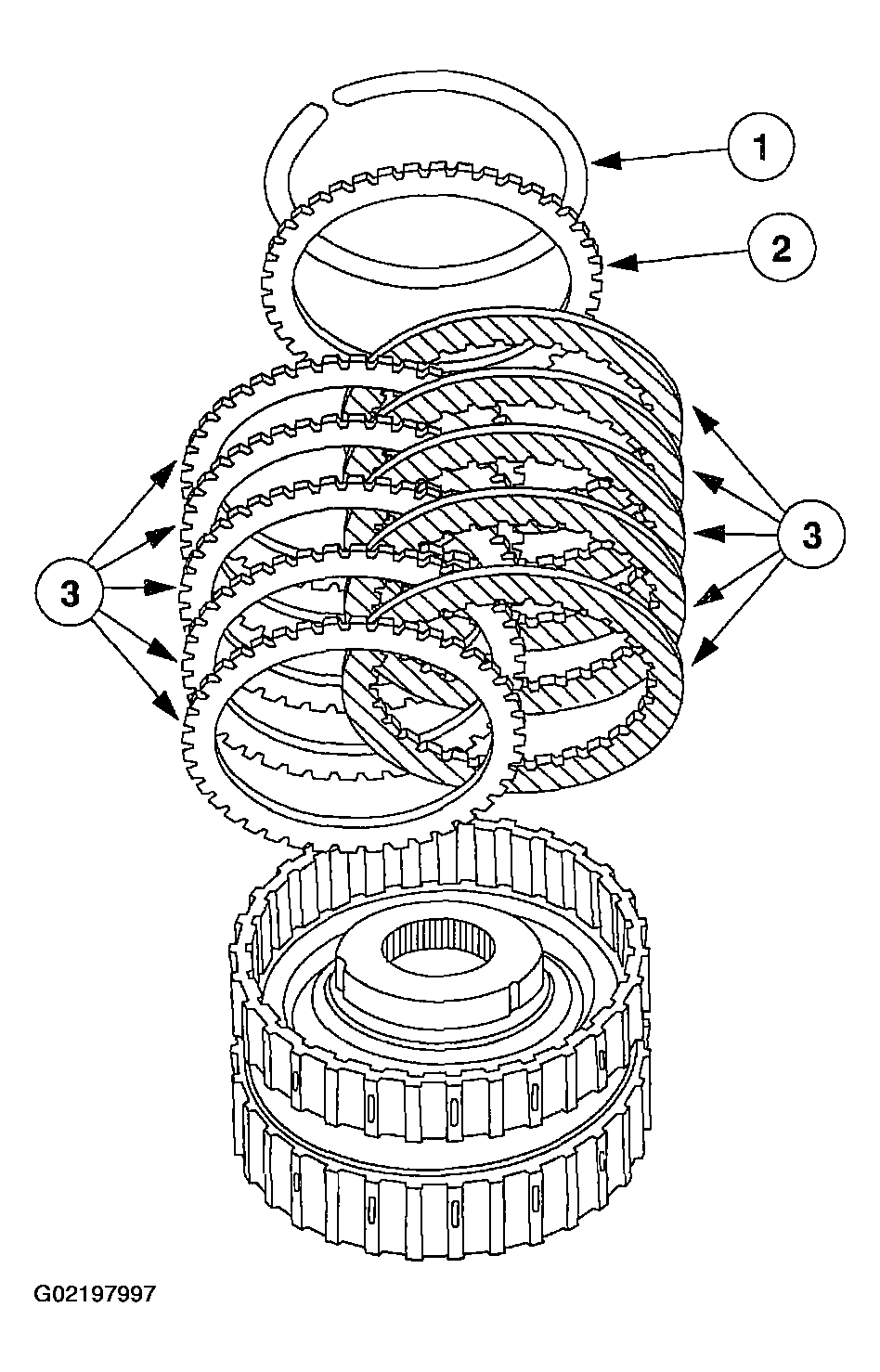

    Fig 2: Removing Intermediate Clutch Pack
    G02197997
    2. CAUTION: Do not fully compress the intermediate clutch spring retainer.
    Fig 3: Removing Clutch Return Spring Snap Ring
    G02197998
  2. Using the special tool, compress the intermediate clutch return spring and remove the snap ring.
    3. NOTE: The seal is part of the piston and is repaired as an assembly.

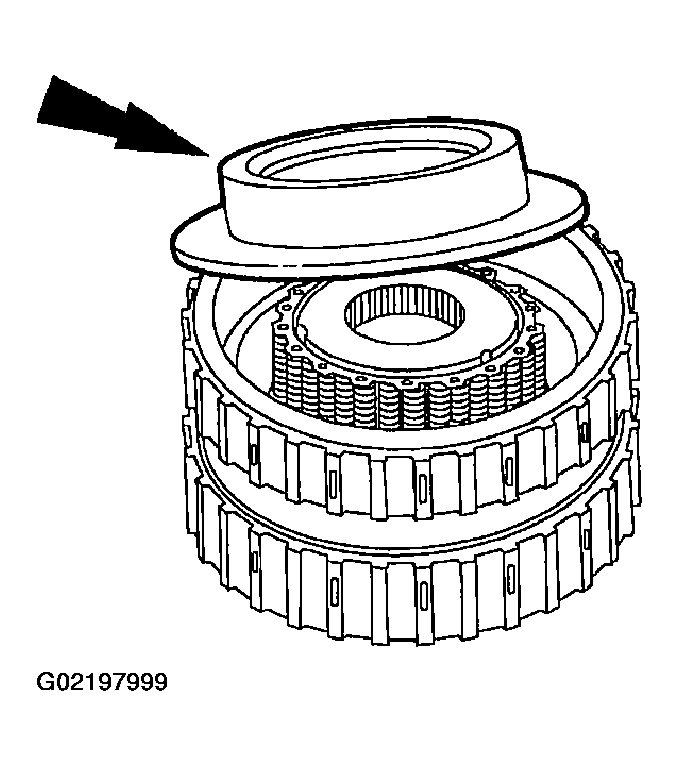

    Fig 4: Removing Intermediate Clutch Balance Piston Assembly
    G02197999
  3. Remove the intermediate clutch balance piston assembly.
  4. Remove the intermediate clutch return spring.

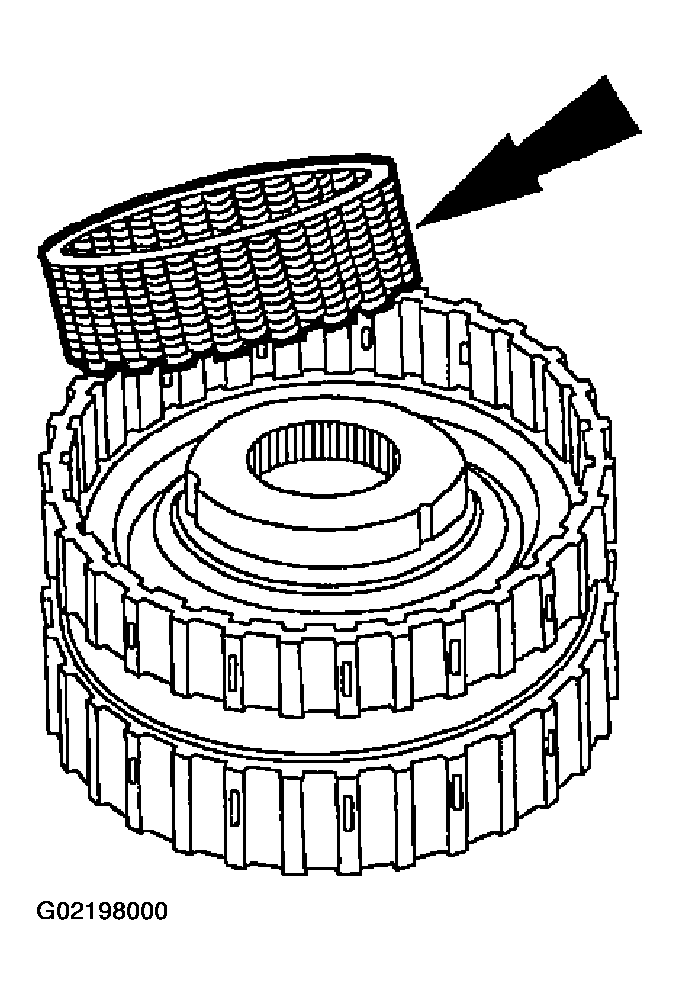

    Fig 5: Removing Intermediate Clutch Return Spring
    G02198000
    5. NOTE: The seal is part of the piston and is repaired as an assembly.

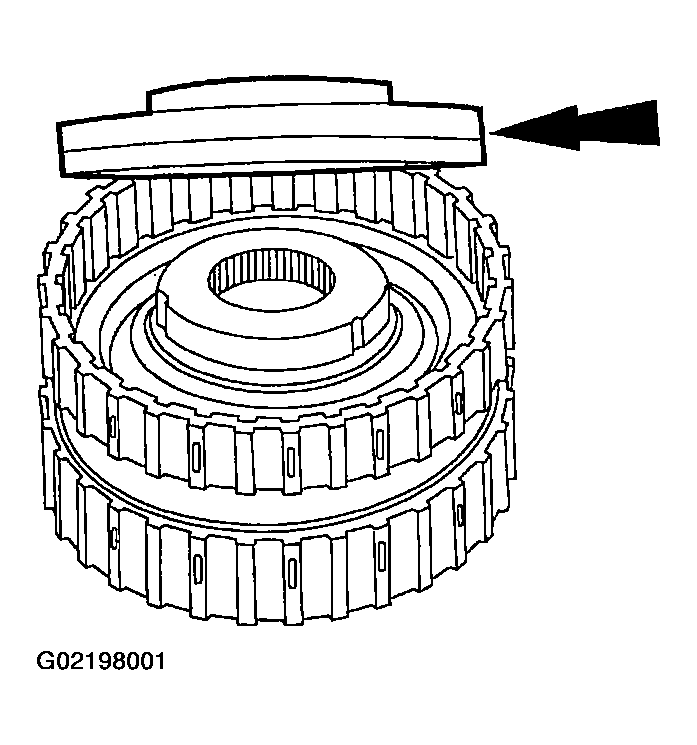

    Fig 6: Removing Intermediate Clutch Piston
    G02198001
  5. Remove the intermediate clutch piston.
  6. Remove the intermediate clutch piston inner seal.

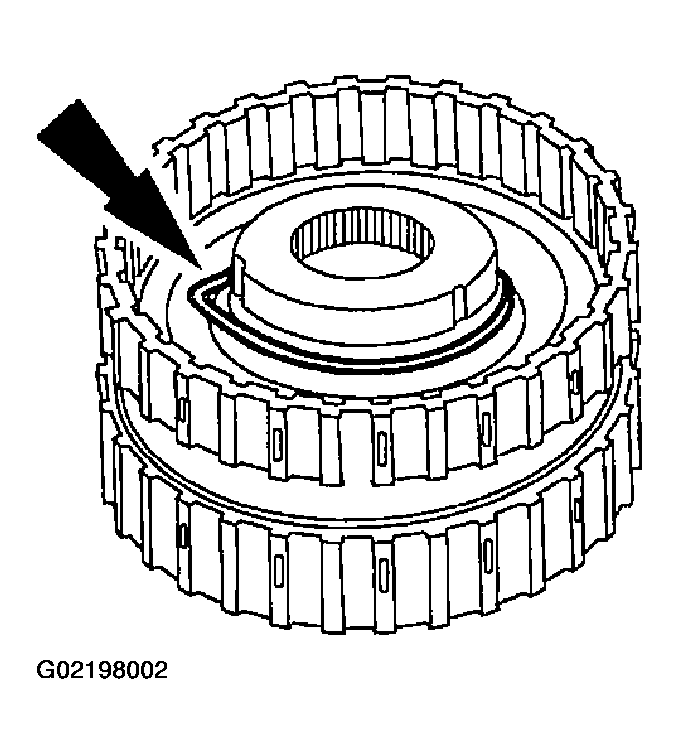

    Fig 7: Removing Intermediate Clutch Piston Inner Seal
    G02198002
