Pump Assembly: Assembly

    NOTE: Be sure the solenoids are locked in place by pressing down and rotating them.

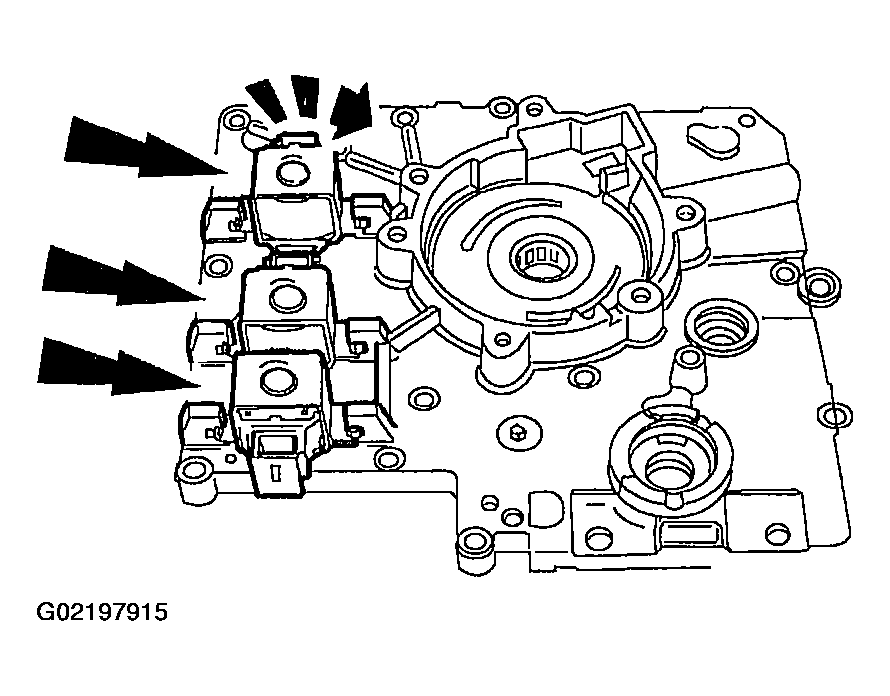

    Fig 1: Installing Shift Solenoids
    G02197915
  1. Install new O-rings and install the shift solenoids by pressing down and rotating them until they lock in place.
  2. Install the O-rings and install the EPC, TCC solenoids.

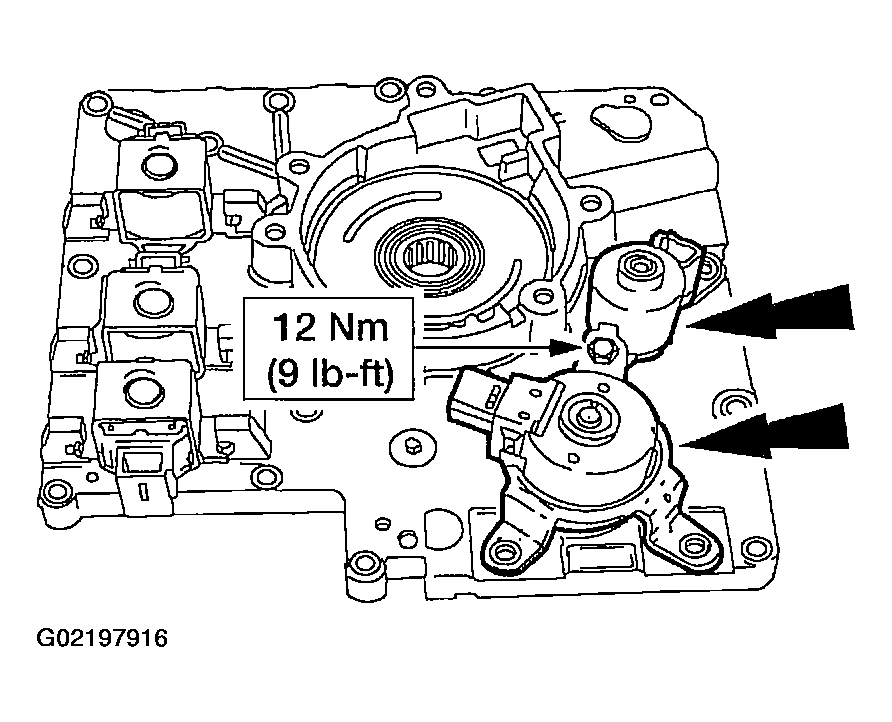

    Fig 2: Installing EPC & TCC Solenoids
    G02197916
  3. Install the bottom pump vane support ring.

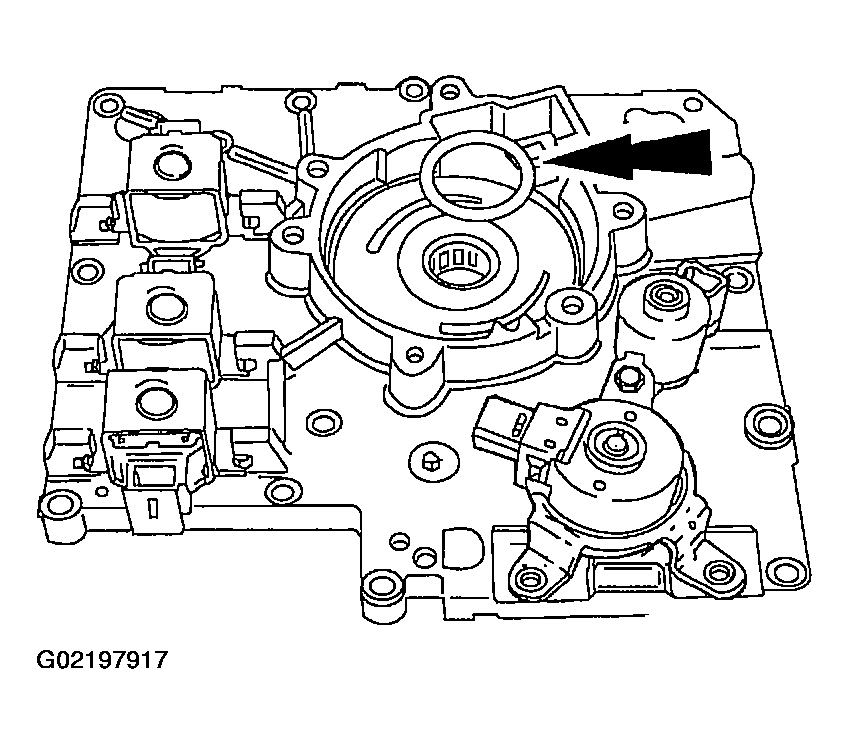

    Fig 3: Installing Bottom Pump Vane Support Ring
    G02197917
    4. NOTE: The counter bore area is where the pump shaft and mating splines pass through the rotor.

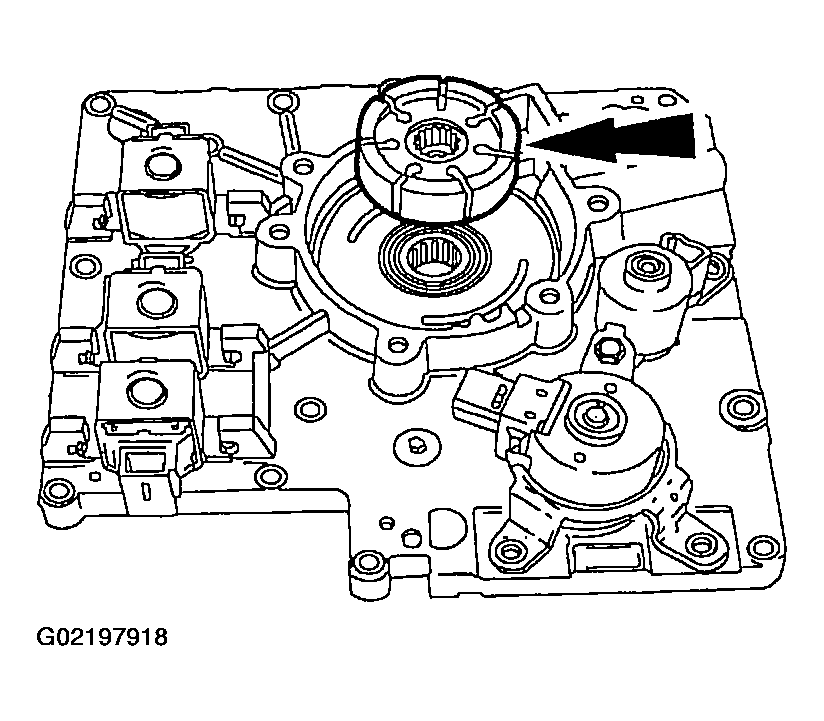

    Fig 4: Installing Rotor
    G02197918
  4. Install the rotor with the counter bore facing up.
    5. NOTE: The shiny portion of the vane blade is installed outward toward the pump bore ring.

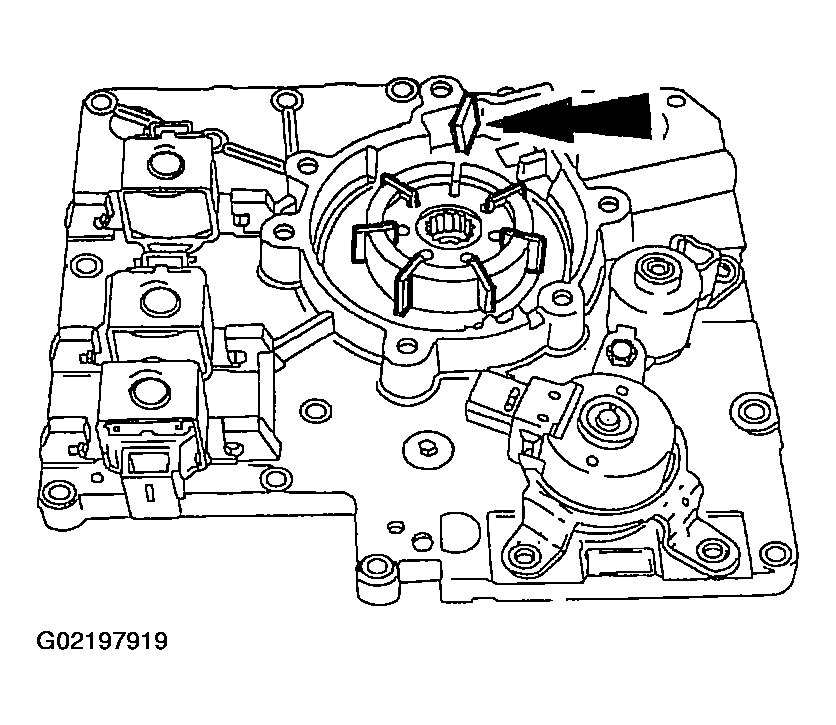

    Fig 5: Installing Pump Vanes
    G02197919
  5. Install the pump vanes.
  6. Install the pump body ring with the O-ring groove facing up.

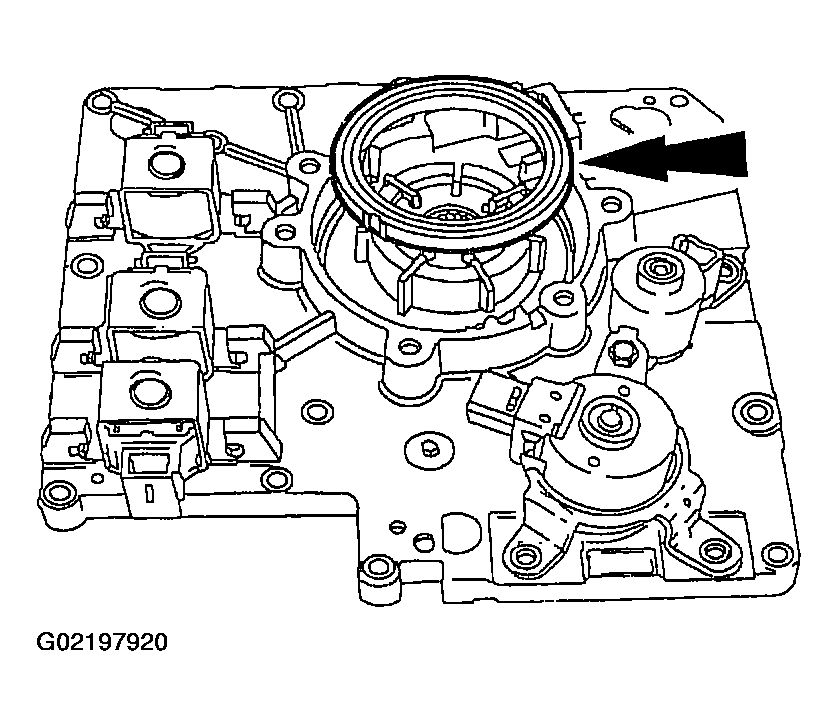

    Fig 6: Installing Pump Body Ring
    G02197920
  7. Install the top pump vane support ring.

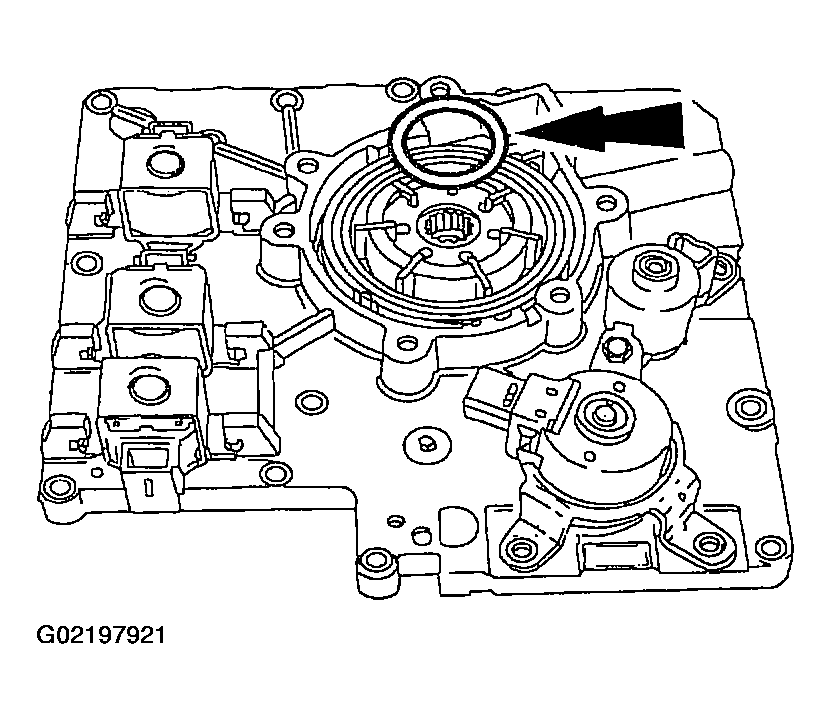

    Fig 7: Installing Top Pump Vane Support Ring
    G02197921
  8. Install the pump bore ring radial seal and support.
    1. Install the pump bore ring radial seal.
    2. Install the pump bore ring radial seal support.

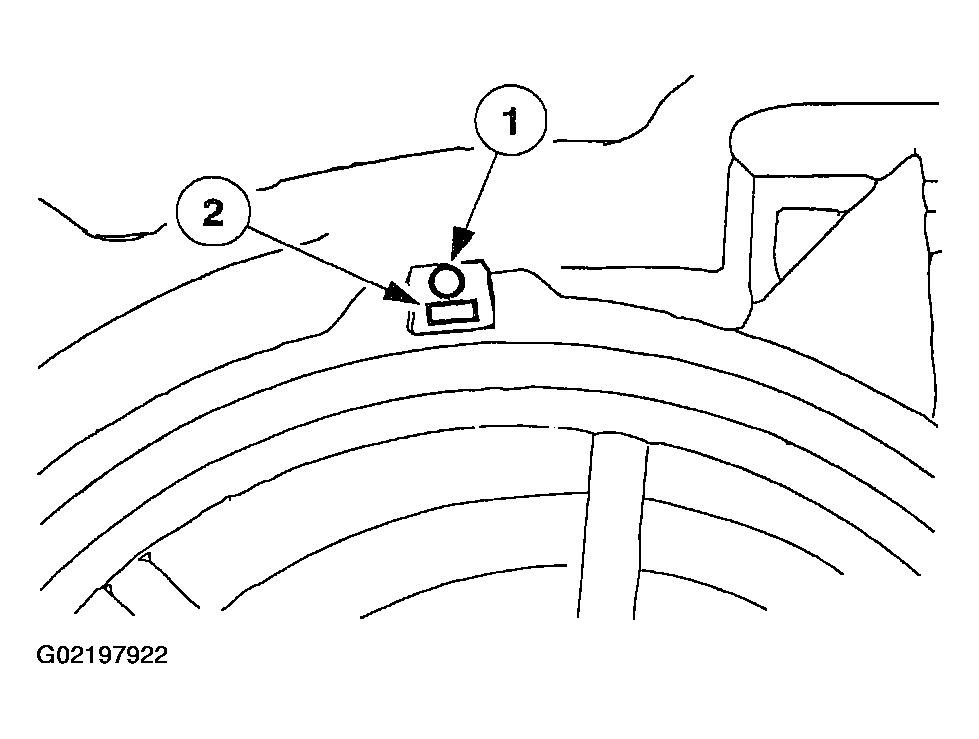

    Fig 8: Installing Pump Bore Ring Radial Seal & Support
    G02197922
  9. Install the metal bore ring and support seal.
    1. Install the support seal (O-ring).
    2. Install the bore ring side seal (metal).

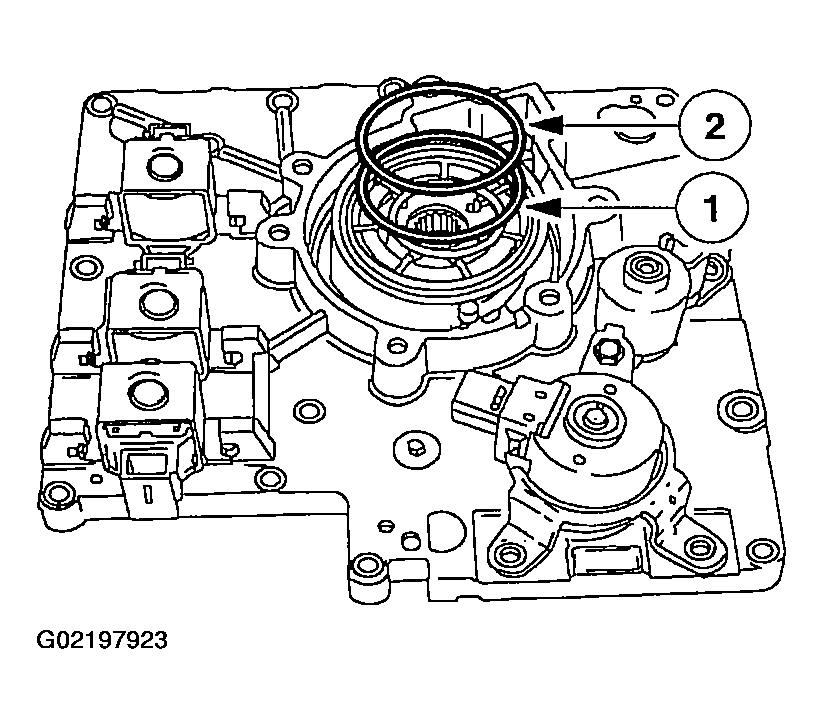

    Fig 9: Installing Metal Bore Ring & Support Seal
    G02197923
  10. Install the bore ring pivot pin.

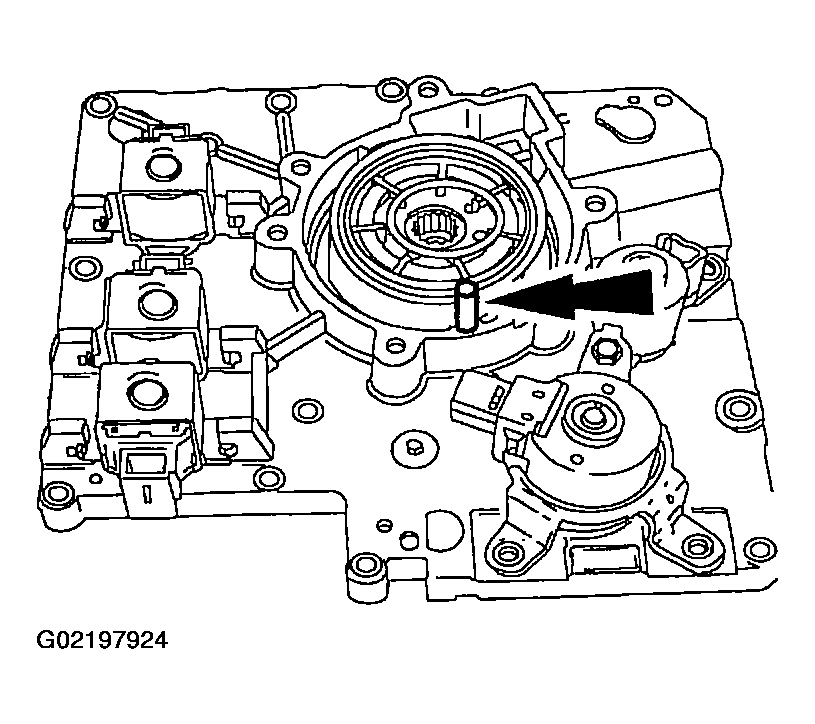

    Fig 10: Installing Bore Ring Pivot Pin
    G02197924
    11. CAUTION: Be sure the pump bore area is well cleaned. It is a hidden debris trap. Flow from the pump goes into the manual valve circuit, then passes into the EPC circuit. Pump pressure at this point is very high. Any debris not cleaned out here will be pumped through the transaxle on the first operation.

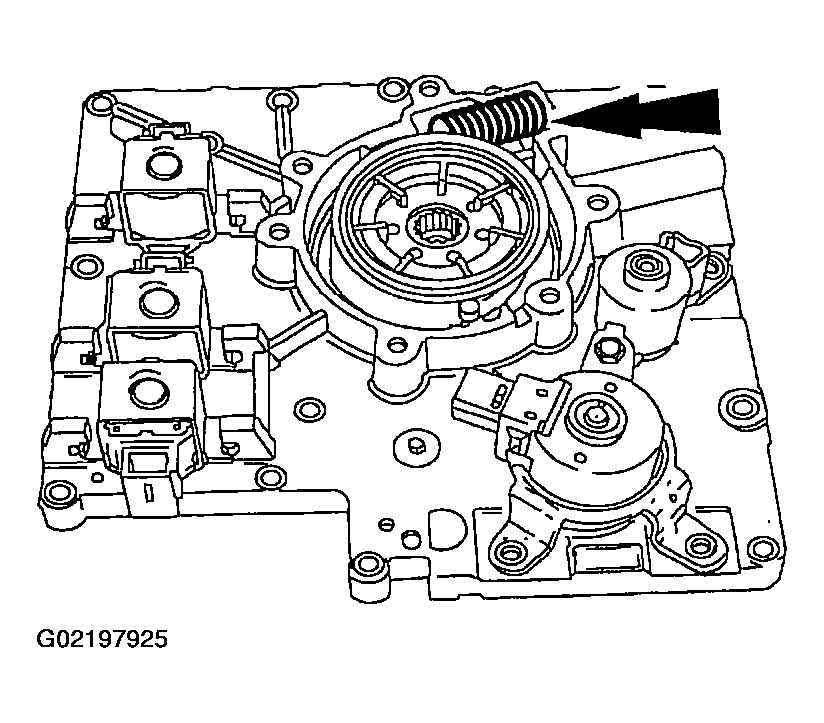

    Fig 11: Installing Pump Bore Ring Spring
    G02197925
  11. Install the pump bore ring spring between the case and the tab on the pump bore ring.
    12. NOTE: Use the pump shaft to align the pump cover during installation.
    Fig 12: Installing Pump Cover
    G02197926
  12. Install the pump cover and bolts.
  13. Install the check balls.

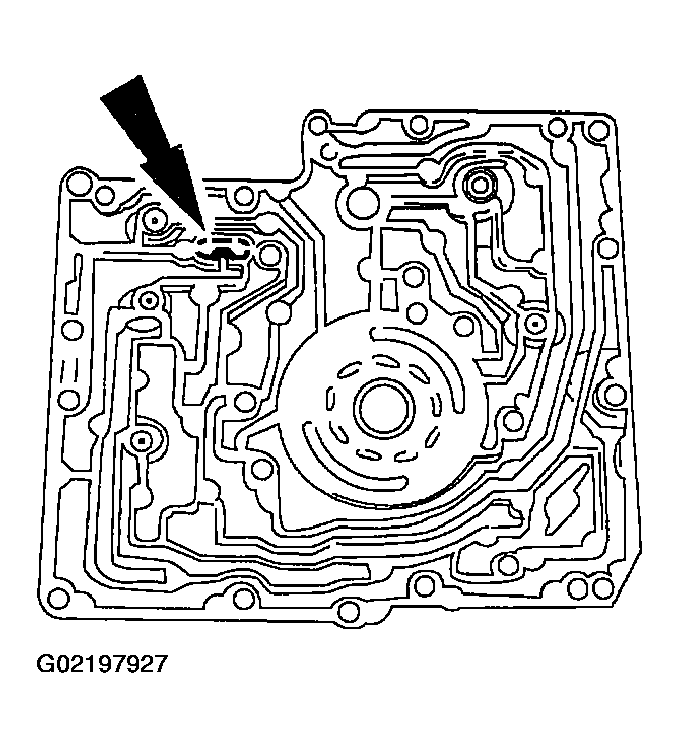

    Fig 13: Installing Check Balls
    G02197927
  14. Install the separator plate and the gaskets.

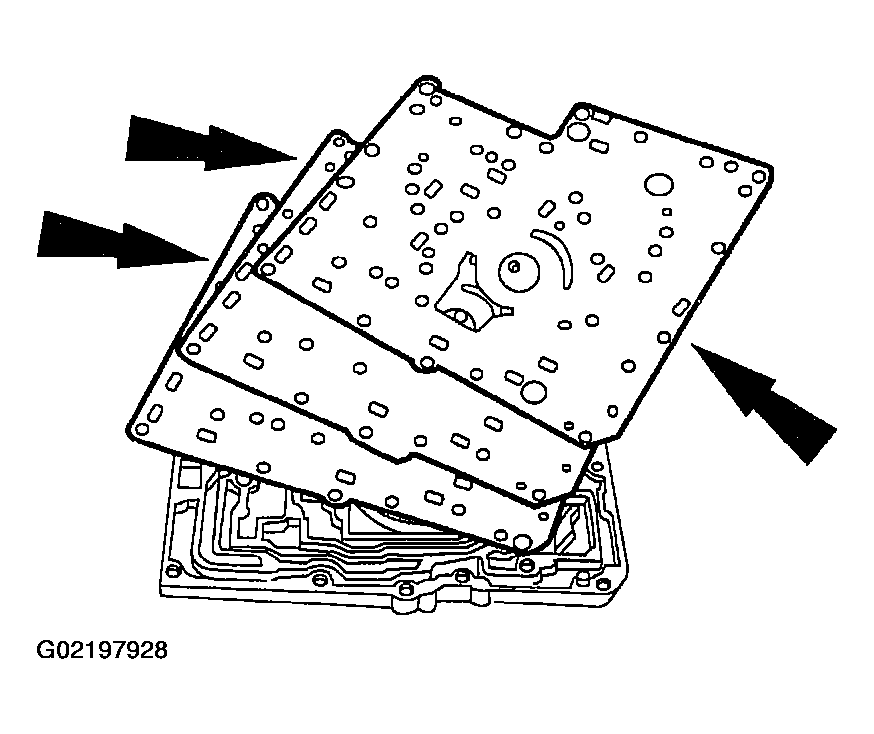

    Fig 14: Installing Separator Plate & Gaskets
    G02197928
  15. Install the bolts.
    Fig 15: Installing Separator Plate Bolts
    G02197929
  16. Using the special tool, assemble the main control assembly.

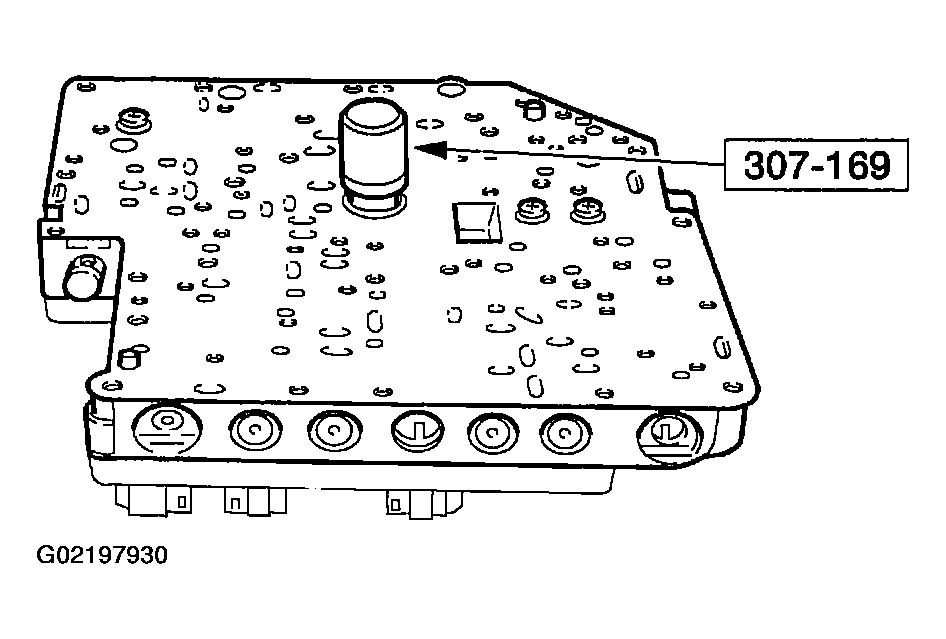

    Fig 16: Assembling Main Control Assembly
    G02197930
  17. Install the bolts.

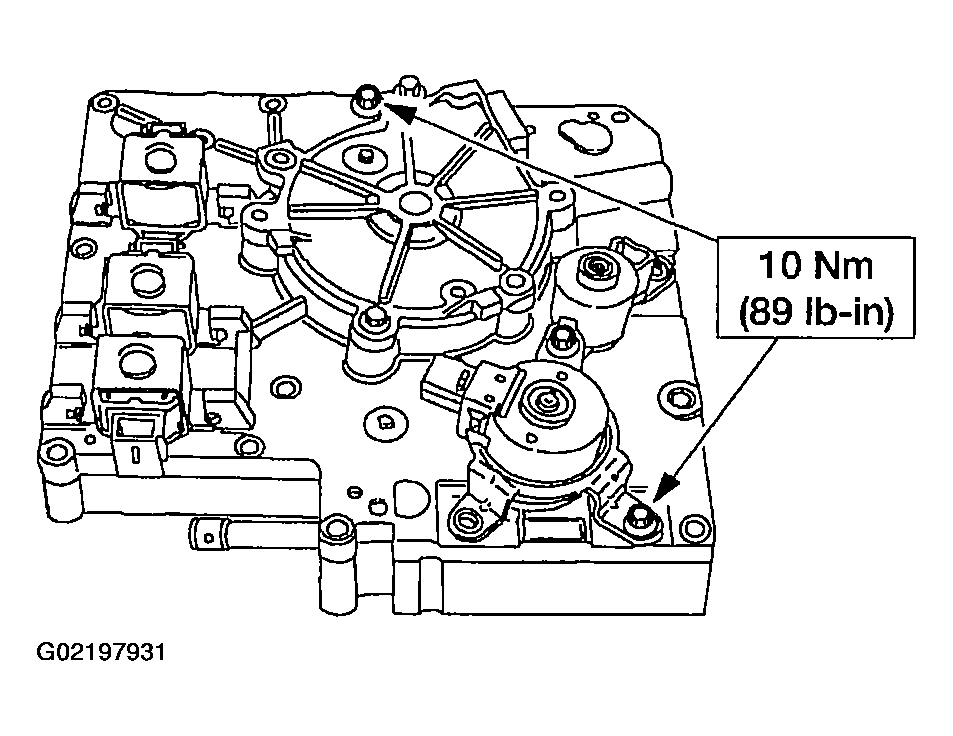

    Fig 17: Installing Pump Body Bolts
    G02197931
