Reverse Clutch: Disassembly

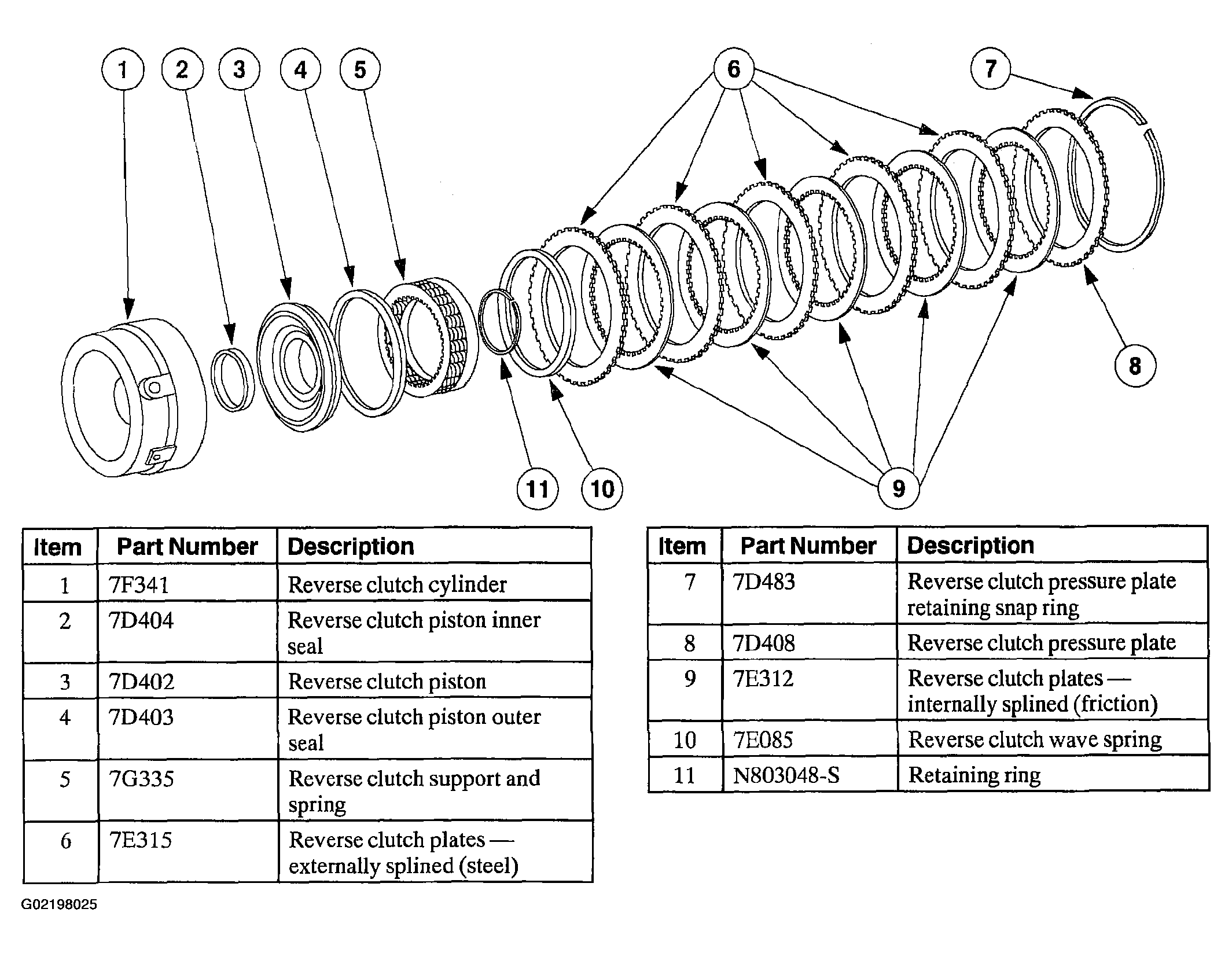

Fig 1: Identifying Reverse Clutch Assembly
G02198025

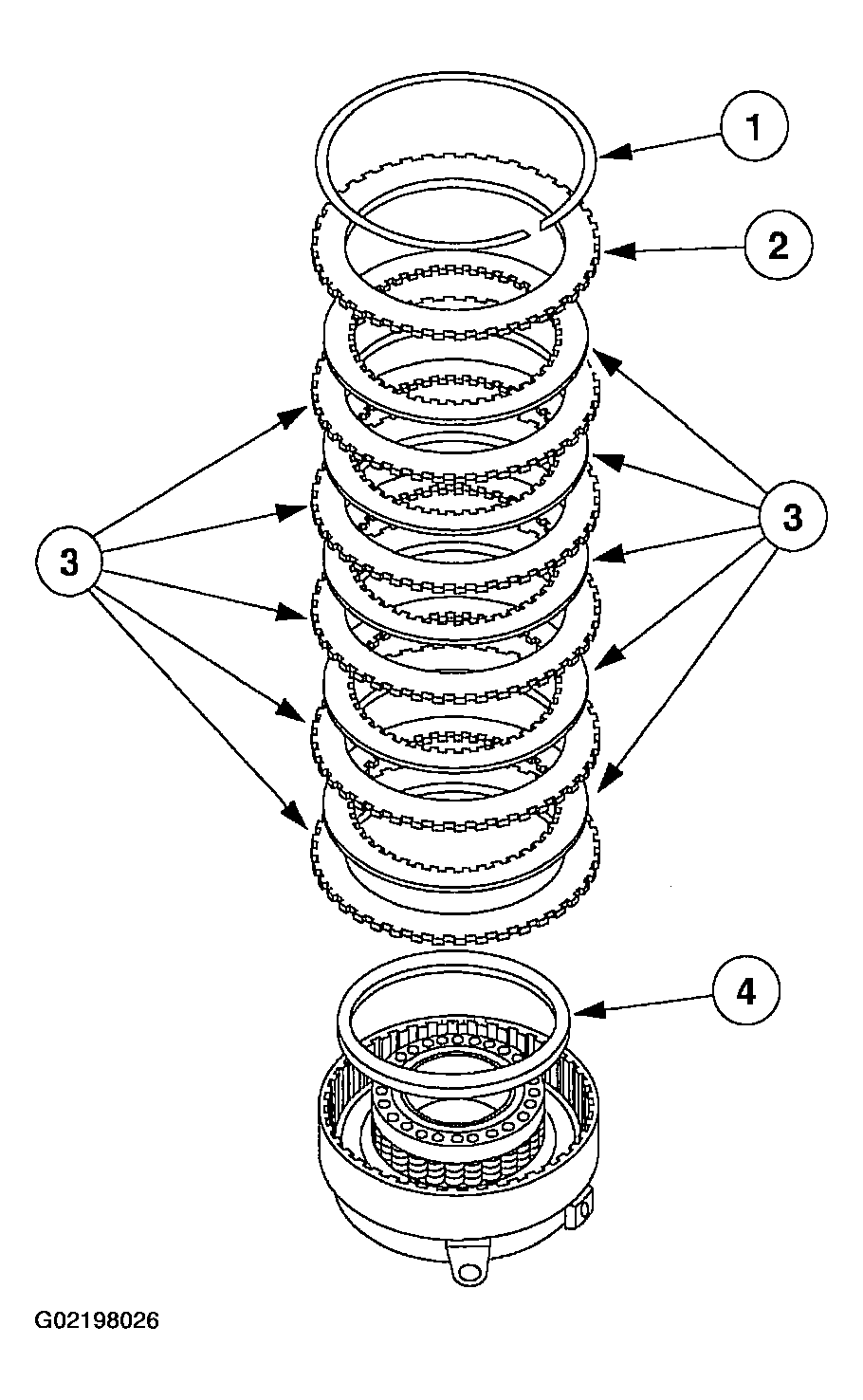

  1. Remove the reverse clutch pack assembly.
    1. Remove the reverse clutch pressure plate retaining snap ring.
    2. Remove the reverse clutch pressure plate.
    3. Remove the clutch pack.
    4. Remove the wave spring.
    Fig 2: Removing Reverse Clutch Pack Assembly
    G02198026
    2. CAUTION: Do not fully compress the spring retainer.
    Fig 3: Removing Snap Ring
    G02198027
  2. Use the special tool, remove the snap ring.

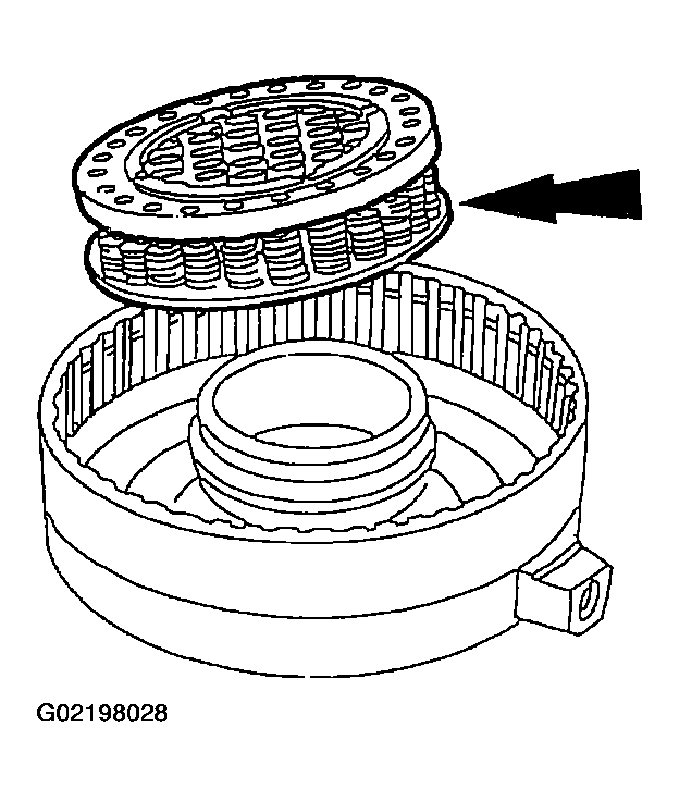

  3. Remove the reverse clutch support and spring.
    Fig 4: Removing Reverse Clutch Support & Spring
    G02198028

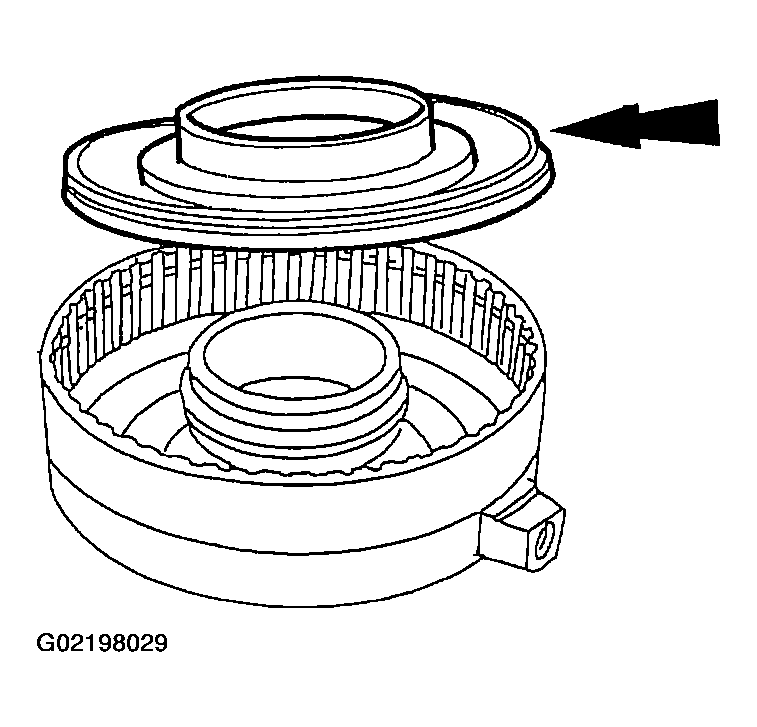

  4. Remove the reverse clutch piston.
    Fig 5: Removing Reverse Clutch Piston
    G02198029
  5. Remove the reverse clutch piston outer seal.
    Fig 6: Removing Reverse Clutch Piston Outer Seal
    G02198030
  6. Remove the reverse clutch piston inner seal.
    Fig 7: Removing Reverse Clutch Piston Inner Seal
    G02198031
