Sun & Shell Assembly - Assembly: Assembly

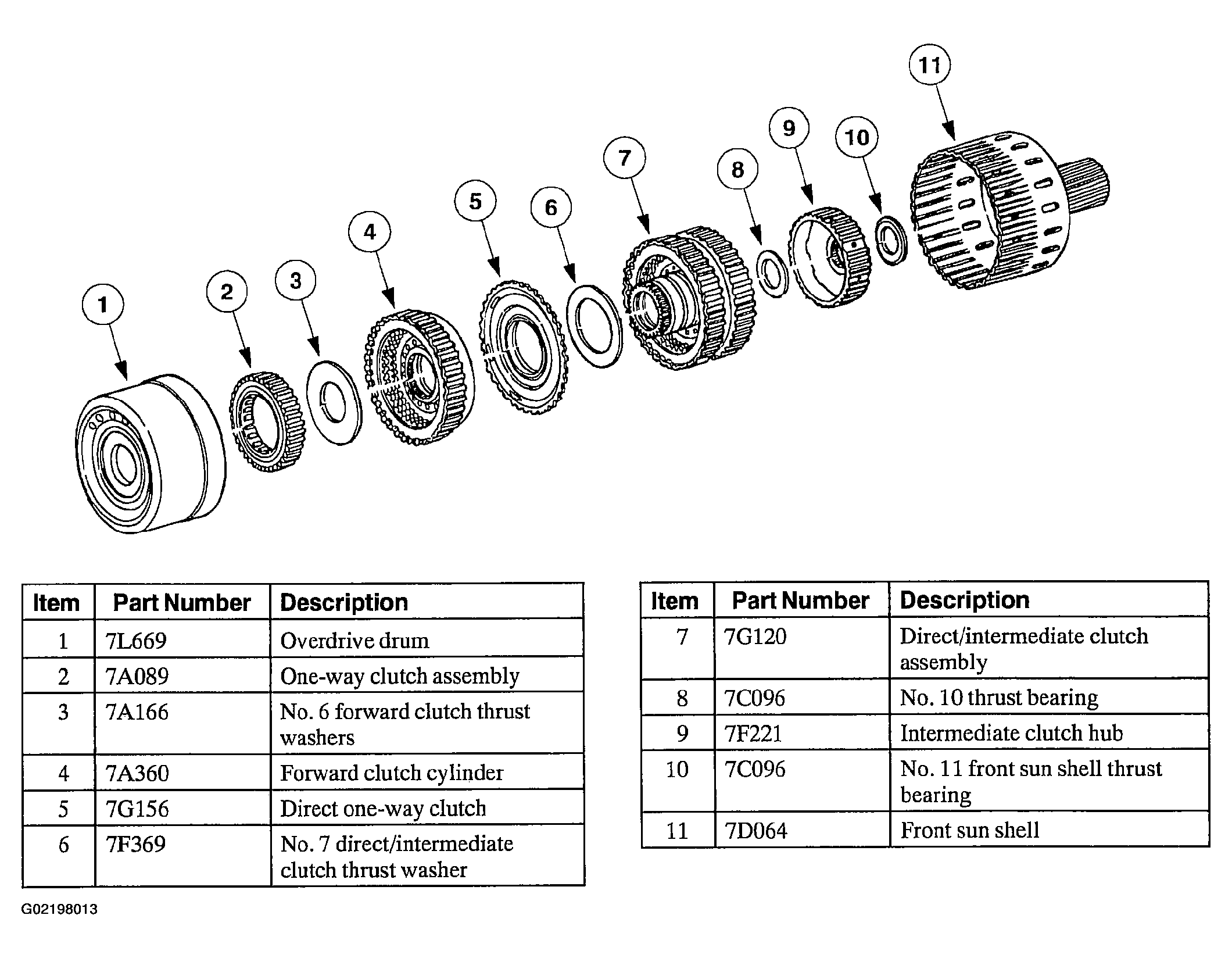

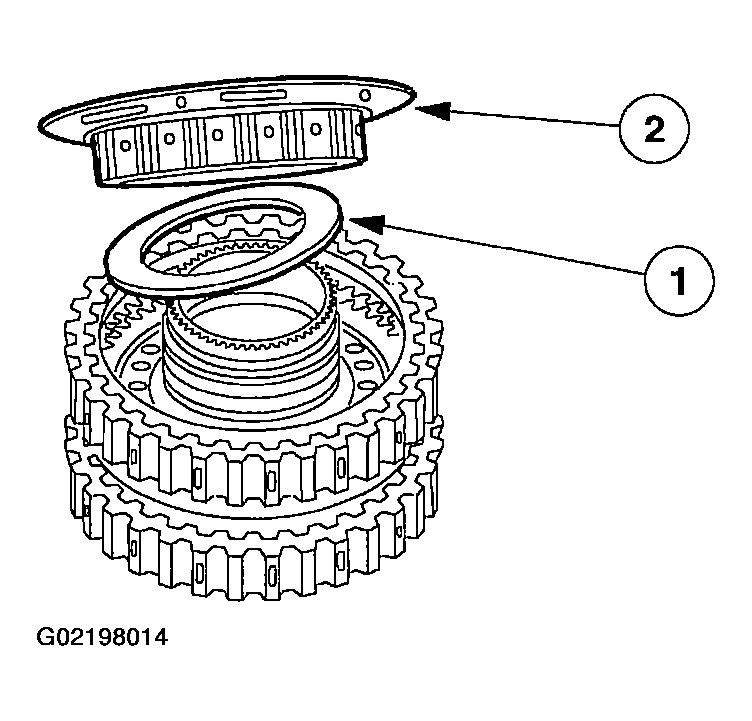

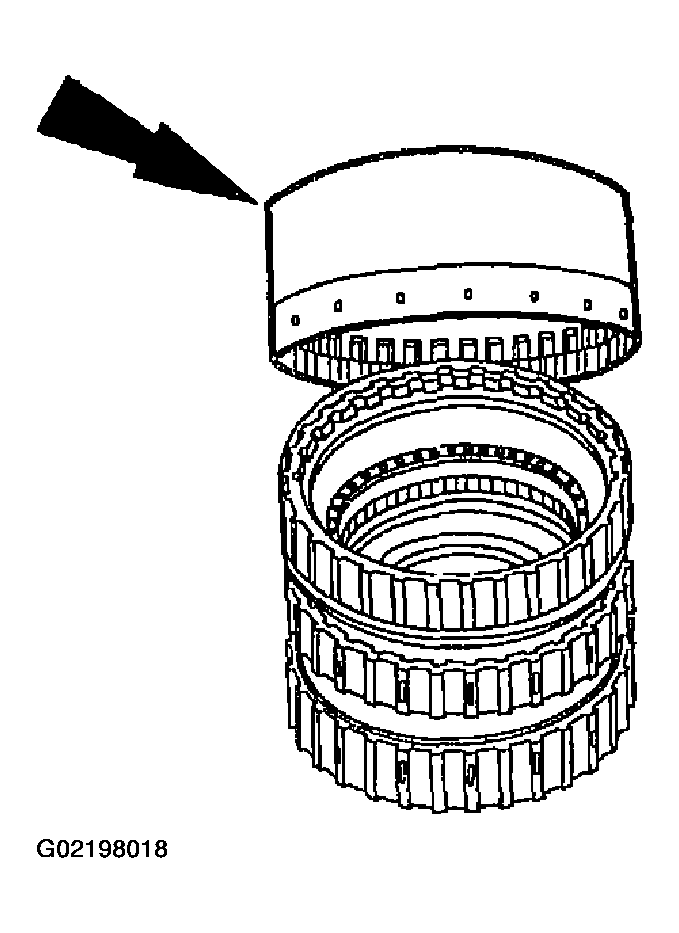

Fig 1: Identifying Sun & Shell Assembly

Install the direct one-way clutch assembly.
1. Install the No. 7 thrust washer.
2. Install the direct one-way clutch assembly.

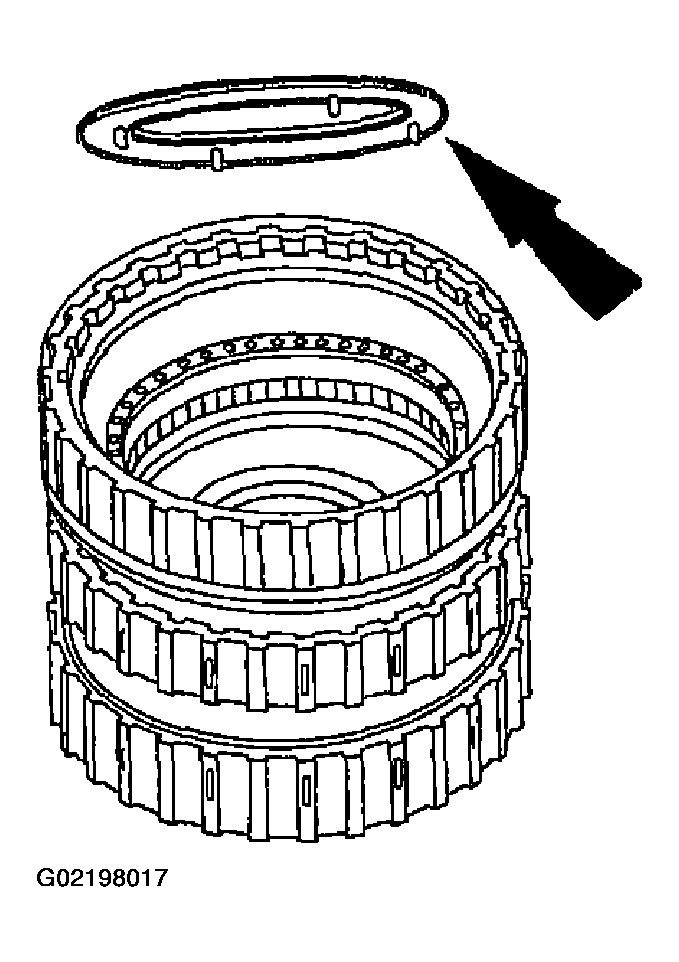

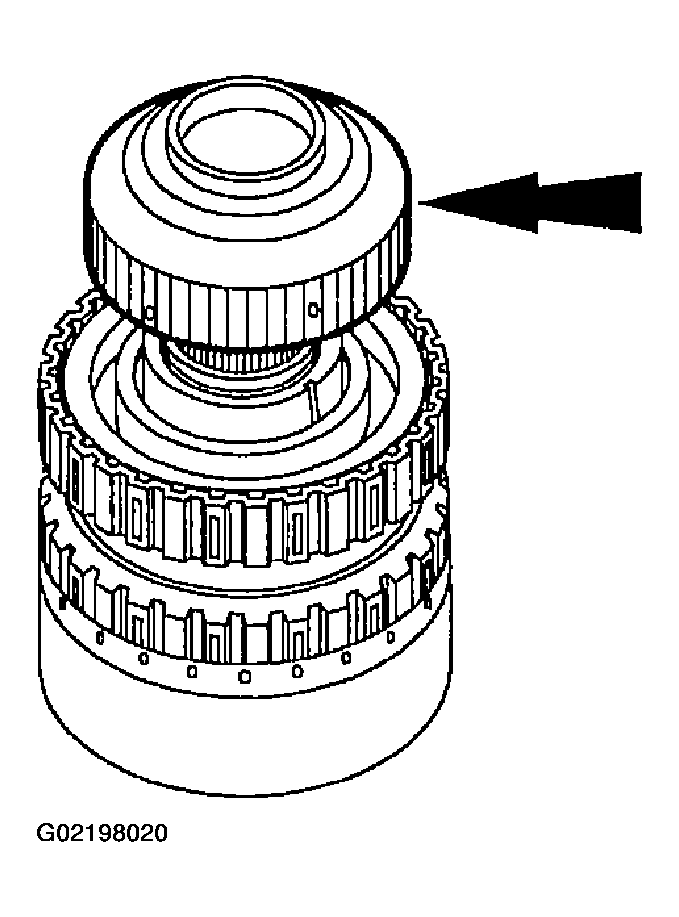

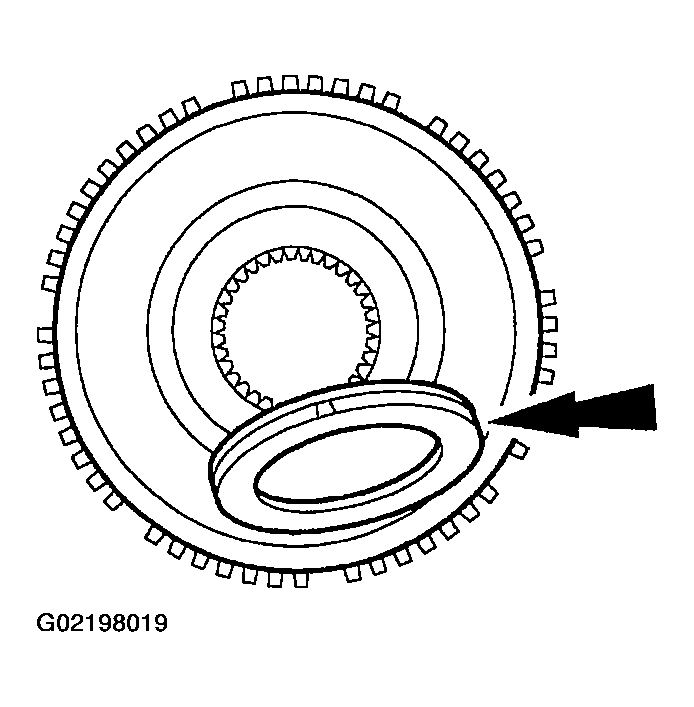

Fig 2: Installing Direct One-Way Clutch Assembly

NOTE: Lightly coat the O-rings with petroleum jelly.

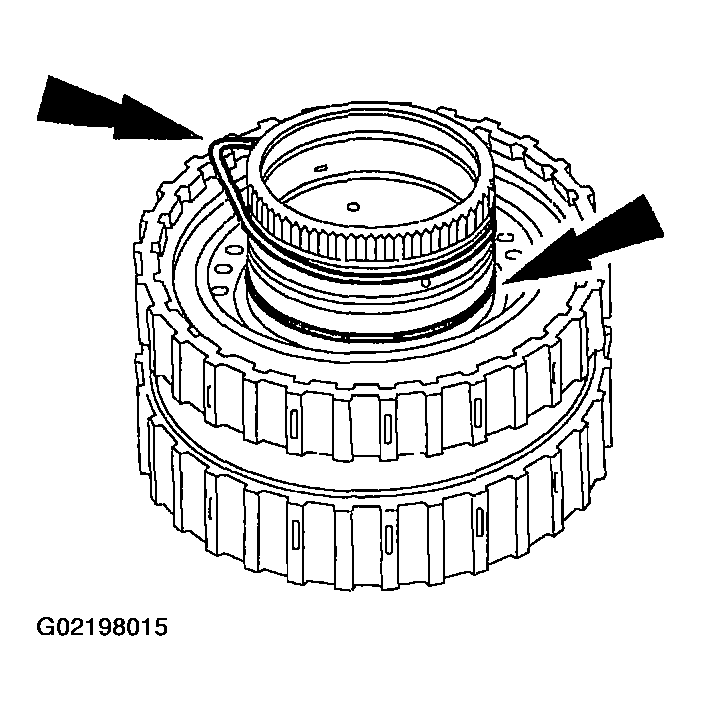

Fig 3: Installing New O-Rings

NOTE: The spring retainer assembly contains both oval and circular holes. Make sure that the washer tabs lock into the oval holes.

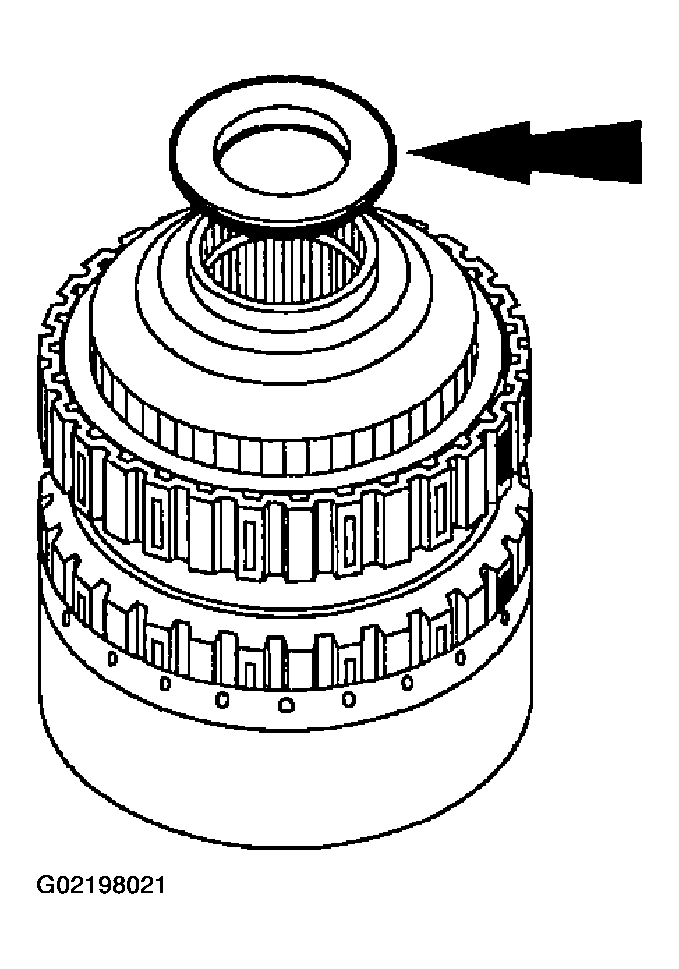

Fig 5: Installing No. 6 Rear Clutch Sun Gear Thrust Washer

NOTE: The lip on the bearing goes over the hub.

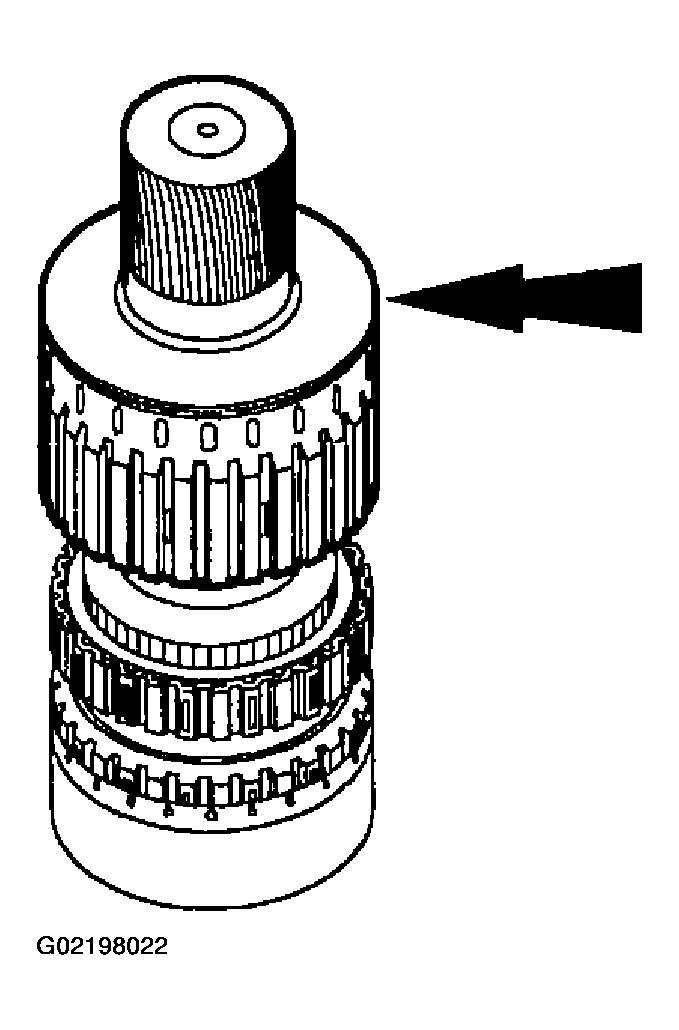

Fig 7: Installing No. 10 Thrust Bearing

Using petroleum jelly to hold the parts in place, install the No. 10 thrust bearing.
Install the rear clutch hub and the No. 10 thrust bearing.

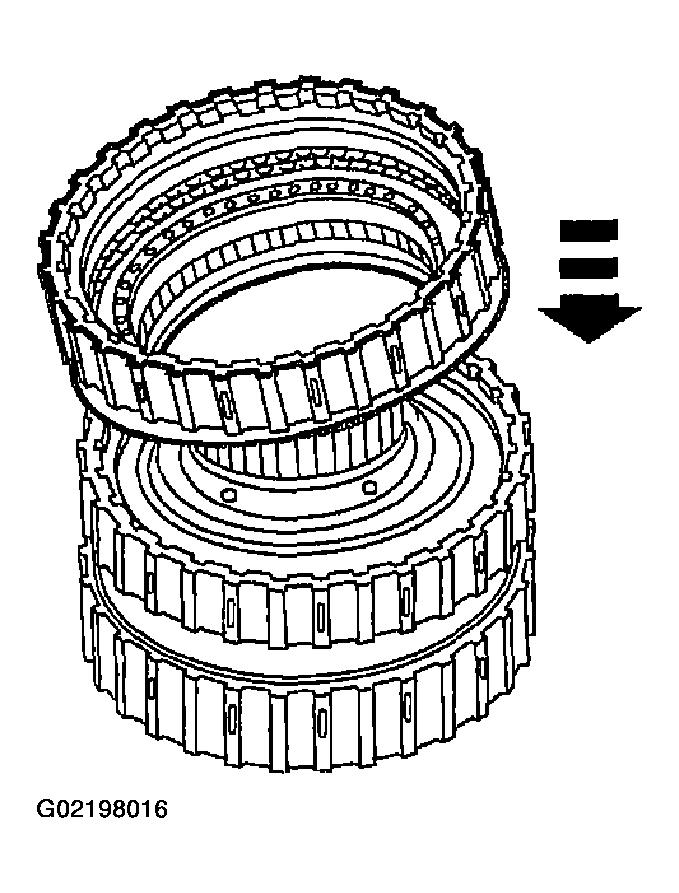

Fig 8: Installing Rear Clutch Hub & No. 10 Thrust Bearing

NOTE: The lip on the bearing goes down over the hub.

Fig 9: Installing No. 11 Thrust Bearing
