Removal & Installation

  1. Raise and support the vehicle.
  2. Remove the heat shield.

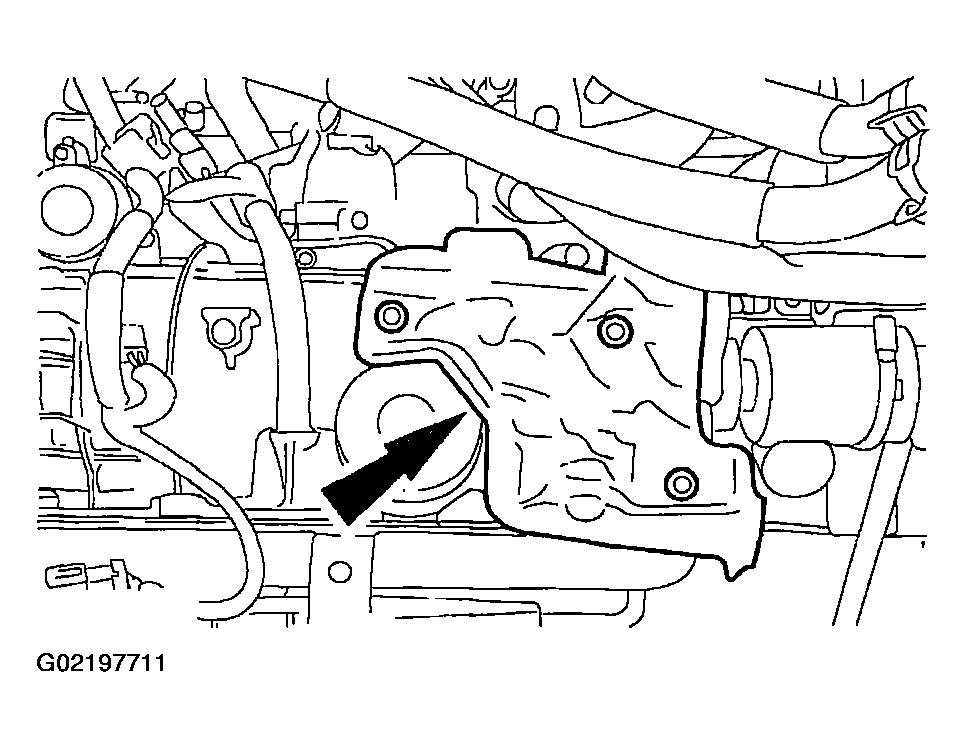

    Fig 1: Removing Heat Shield
    G02197711
  3. Disconnect the output shaft speed (OSS) sensor connector.

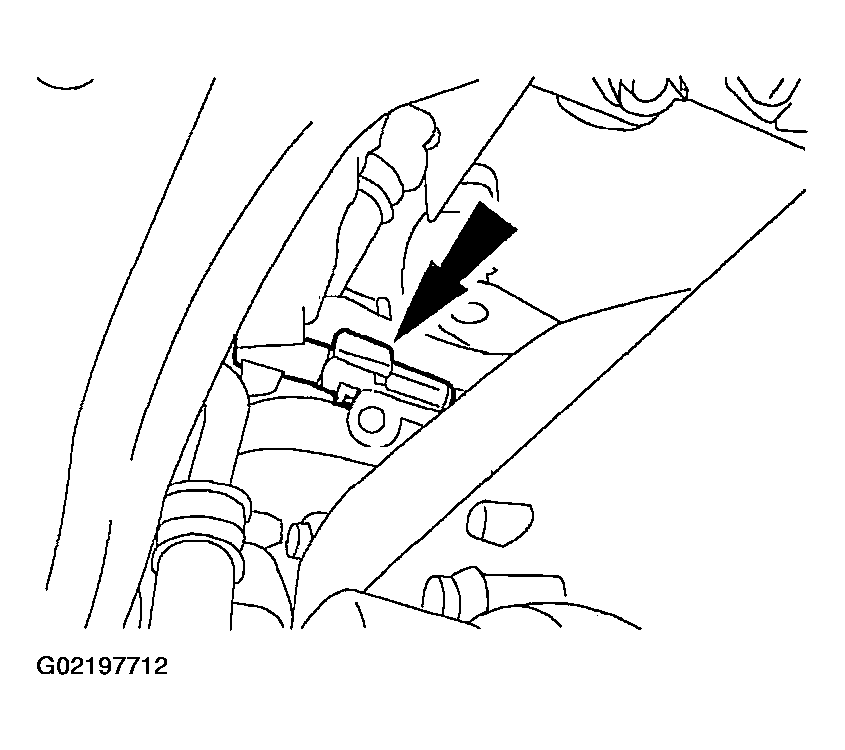

    Fig 2: Disconnecting Output Shaft Speed (OSS) Sensor Connector
    G02197712
  4. Remove the OSS Sensor cover.
    1. Remove the connector.
    2. Remove the bolt.
    3. Remove the cover.

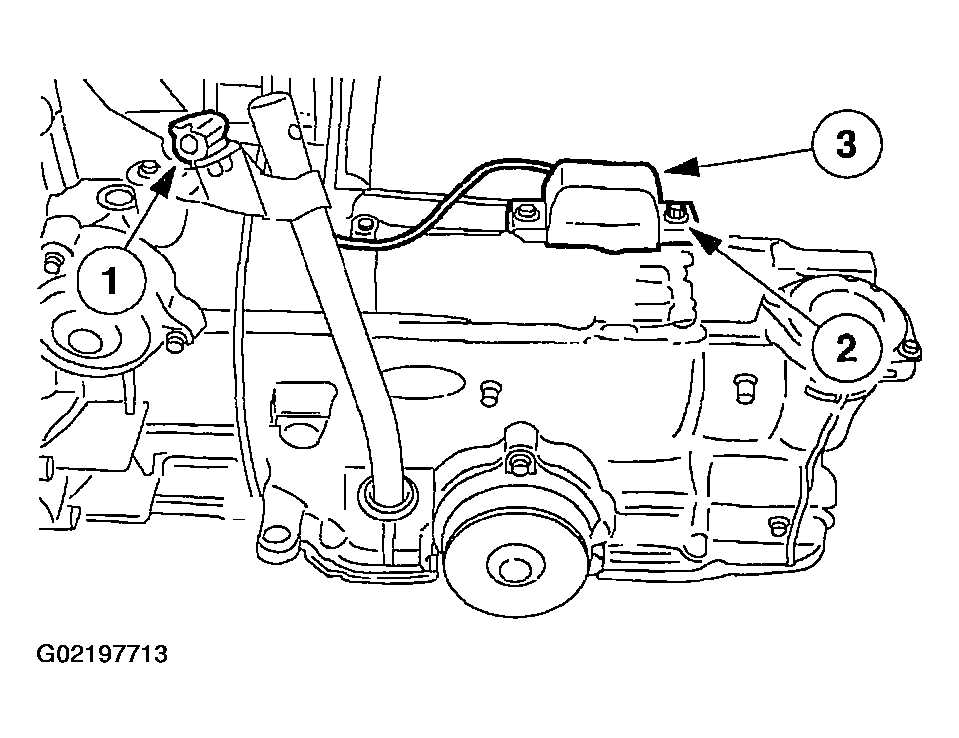

    Fig 3: Removing OSS Sensor Cover
    G02197713
  5. Remove the OSS sensor.

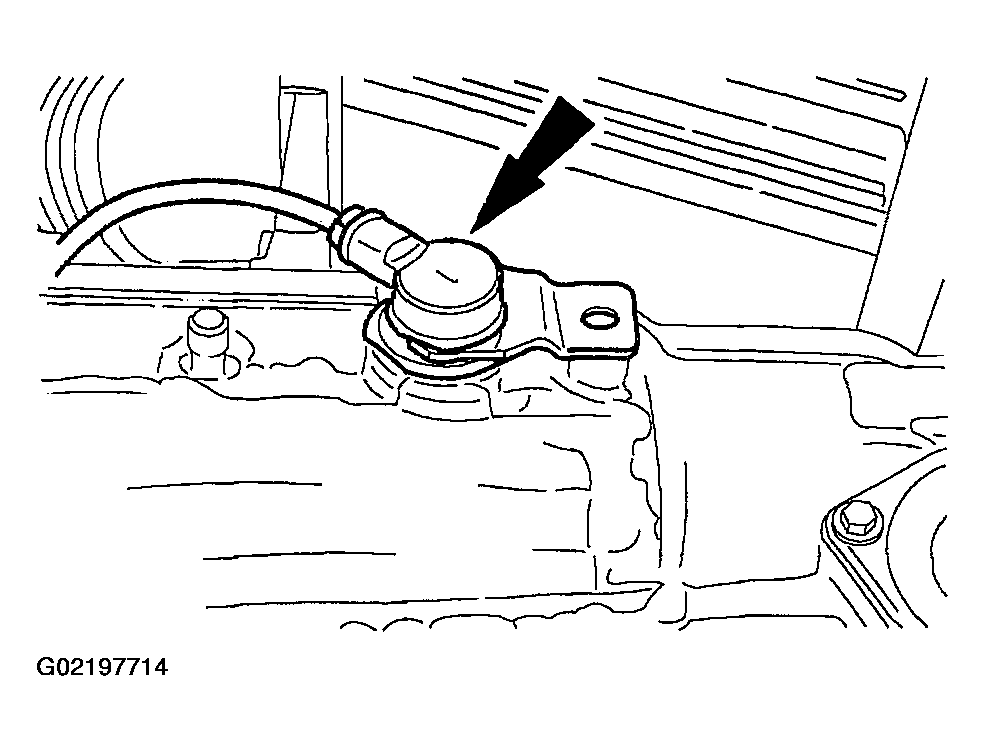

    Fig 4: Removing OSS Sensor
    G02197714
  6. To install, reverse the removal procedure.

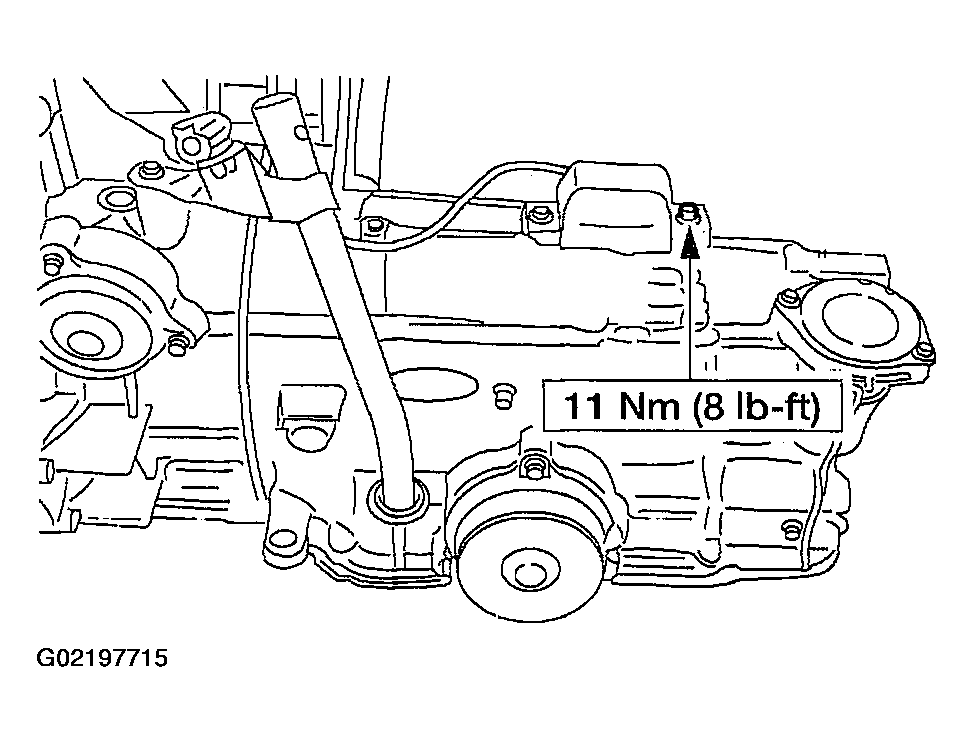

Fig 5: Installing OSS Sensor
G02197715
