Automatic Transmission: Specifications

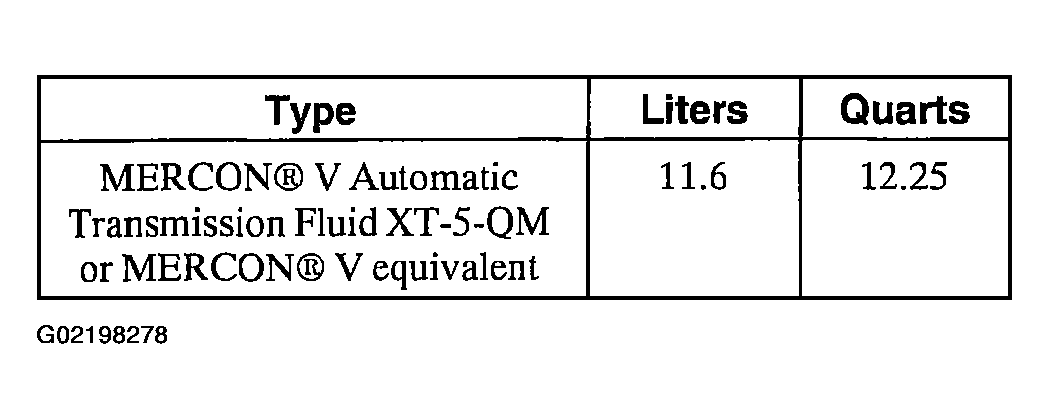

Fig 1: Transmission Capacity

General Specifications

Item	Specification
Multi-Purpose Grease D0AZ-19584-AA	ESB-M1C93-B
MERCON V® Automatic Transmission Fluid XT-5-QM	MERCON V®

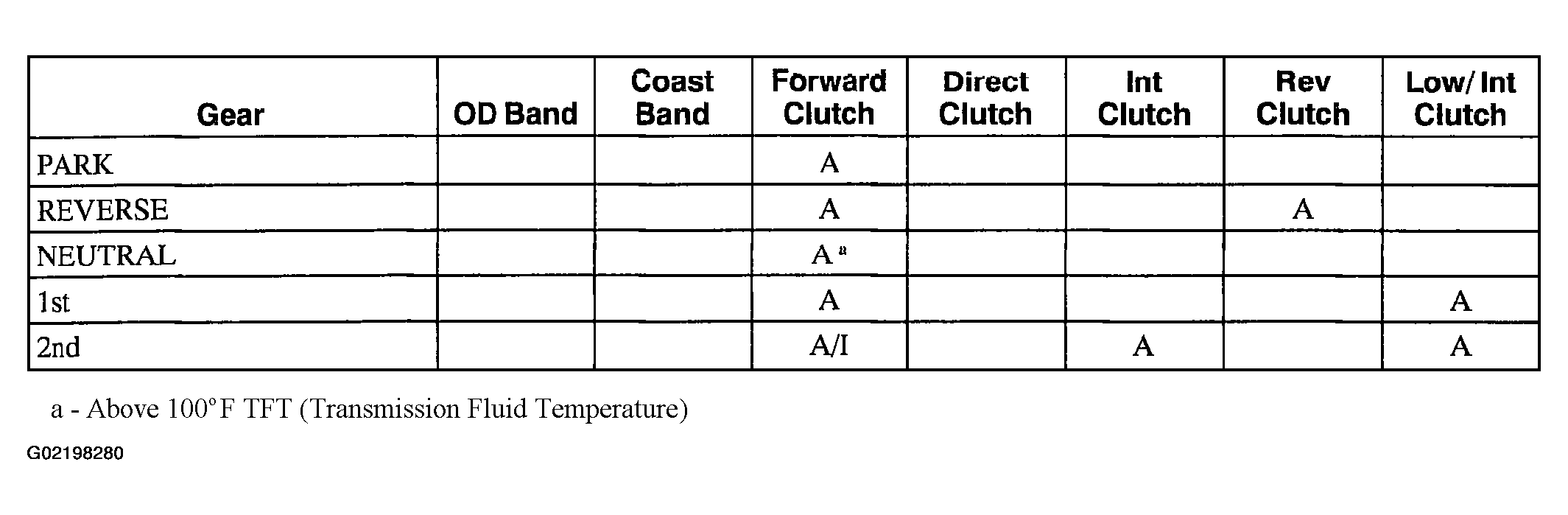

Fig 2: Band & Clutch Application Chart (1 Of 3)

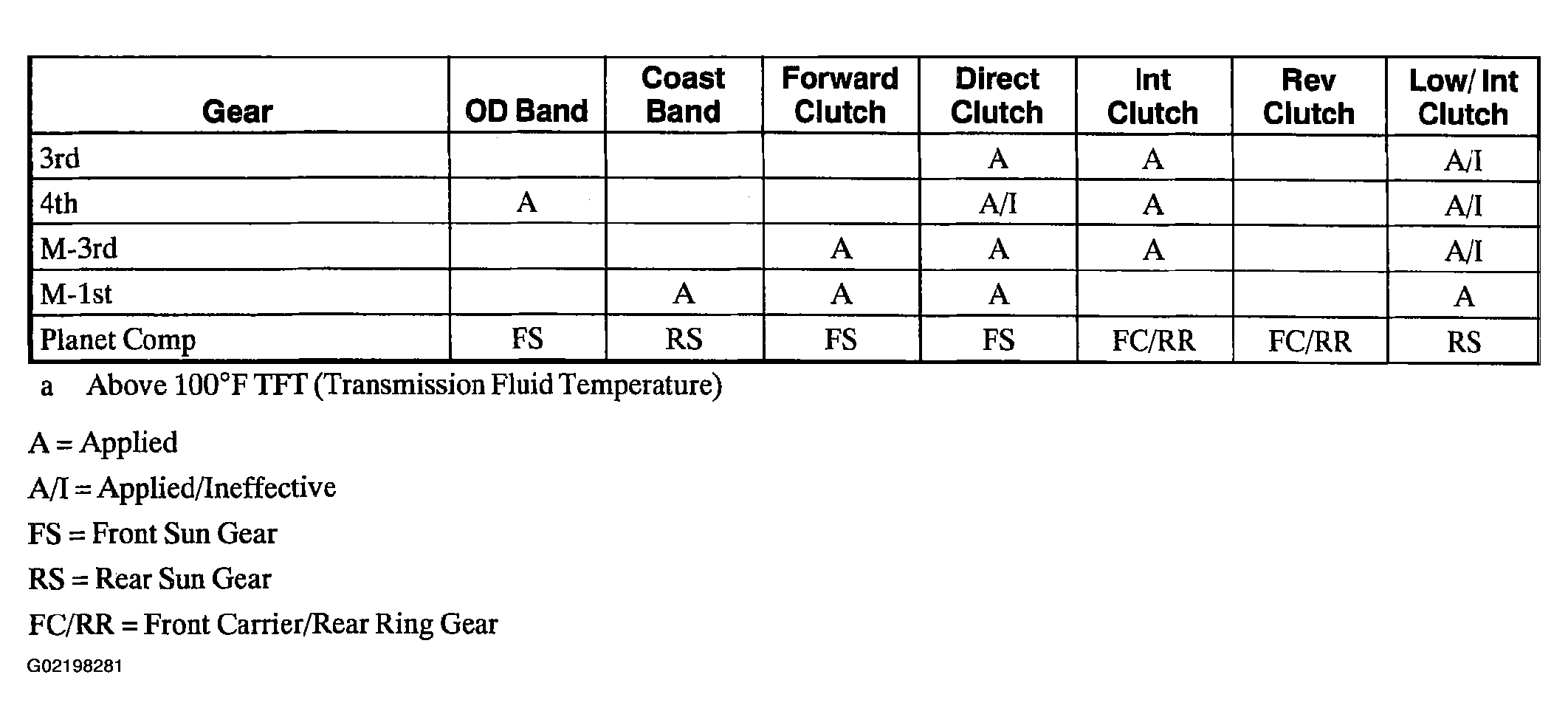

Fig 3: Band & Clutch Application Chart (2 Of 3)

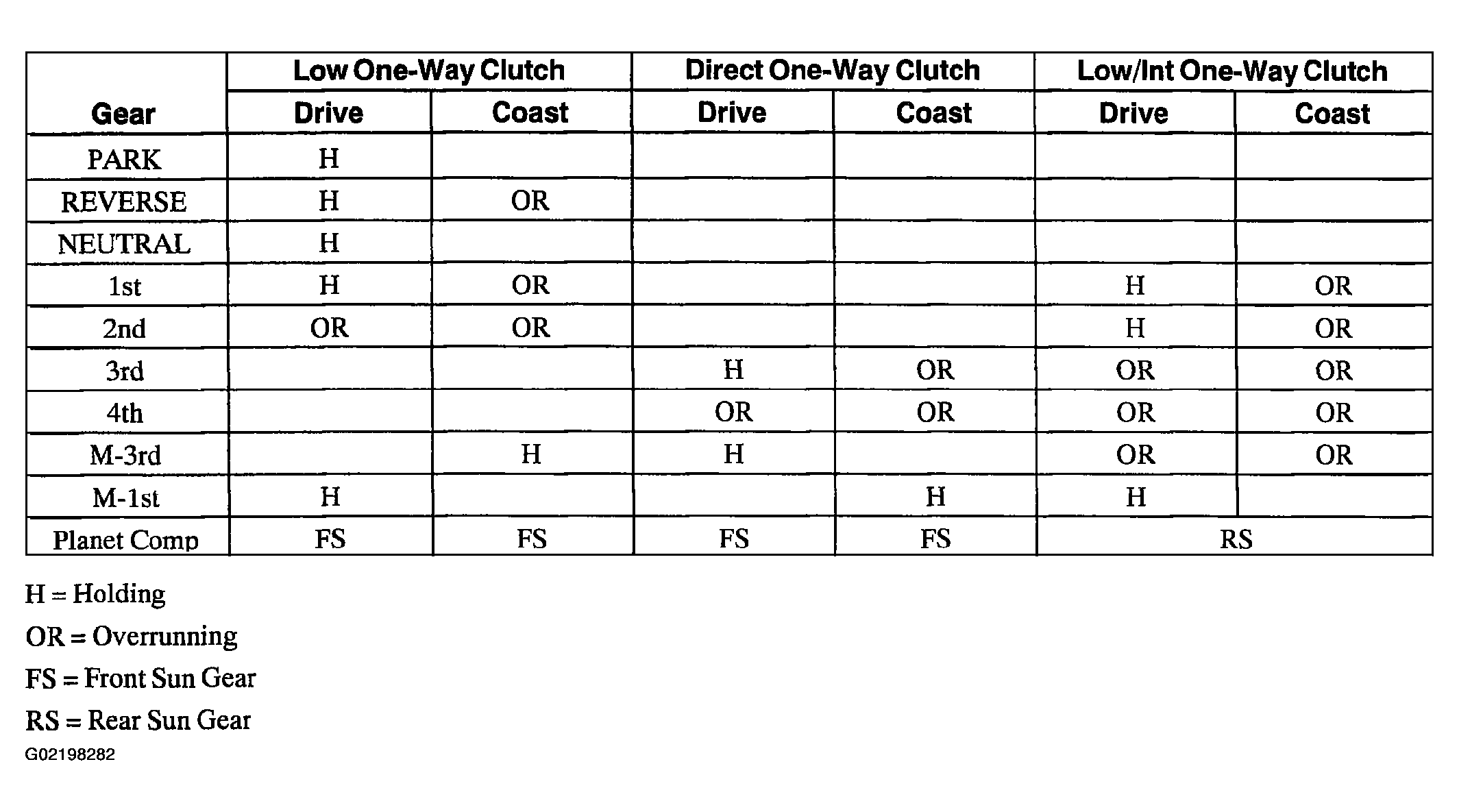

Fig 4: Band & Clutch Application Chart (3 Of 3)

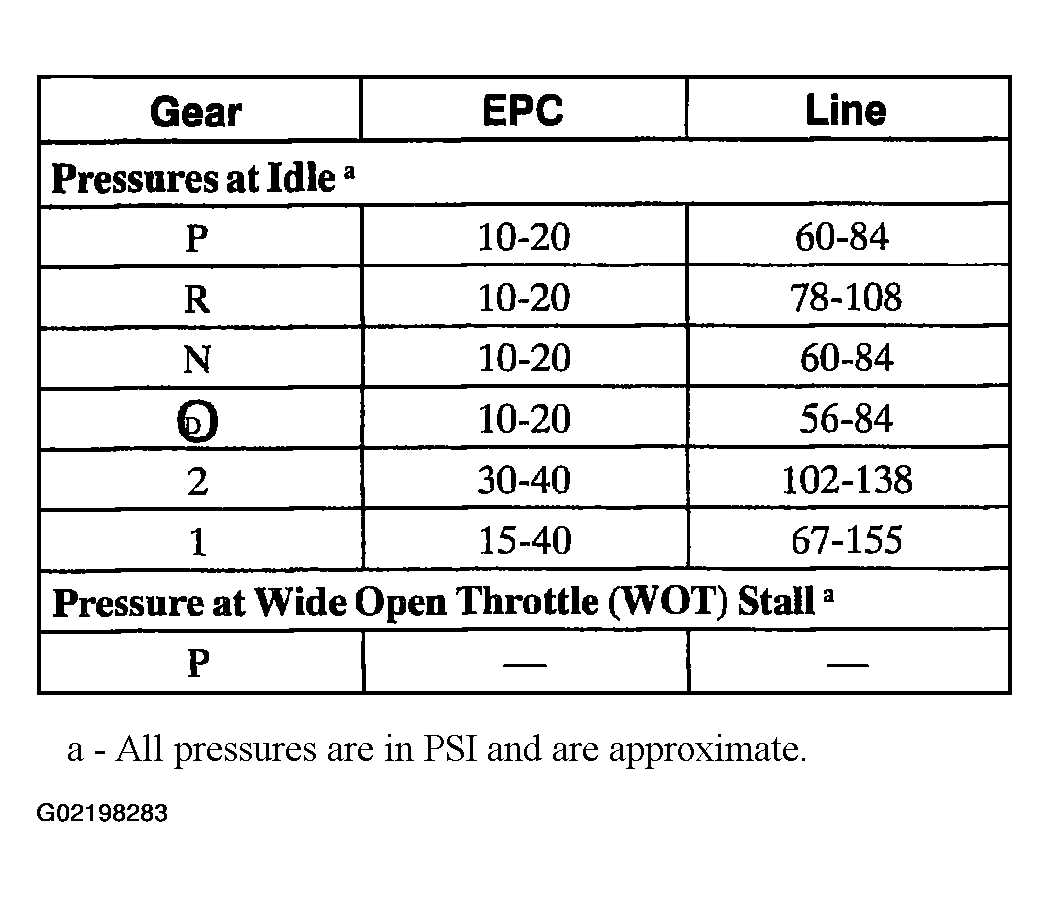

Fig 5: Line Pressure Chart (1 Of 2)

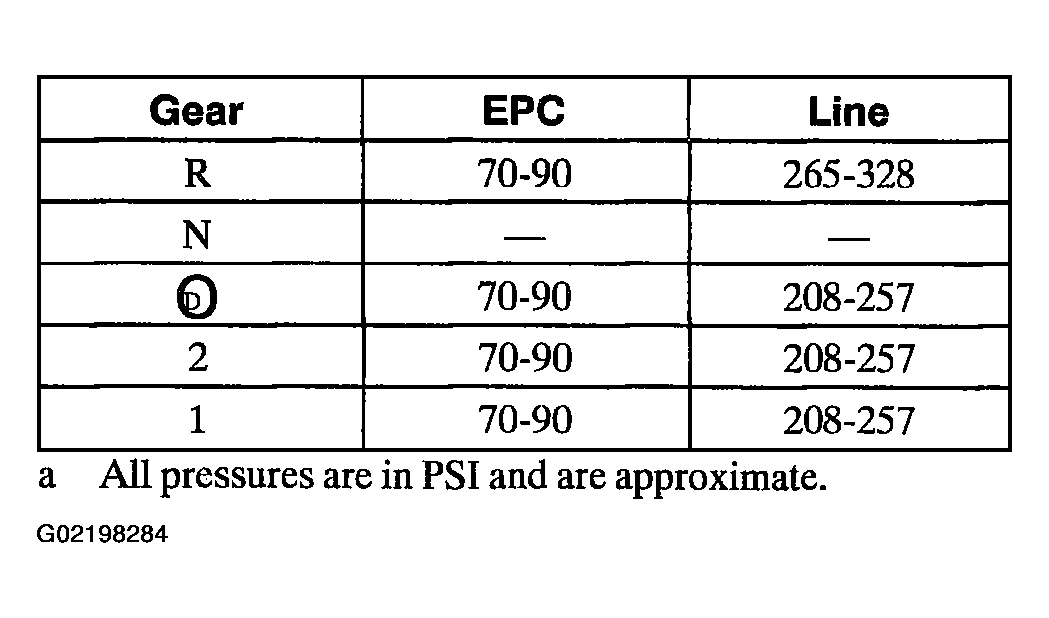

Fig 6: Line Pressure Chart (2 Of 2)

TORQUE SPECIFICATIONS

Description	Nm	Lb-Ft	Lb-In
Case-to-chain cover (10 mm socket size)	26	19	---
Case-to-chain cover (8 mm socket size)	12	9	---
Chain cover-to-case (10 mm socket size)	25	18	---
Chain cover-to-case (24 mm socket size)	31	23	---
Chain cover-to-case (13 mm socket size)	43	32	---
Chain cover-to-case bolts (8 mm socket size)	11	8	---
Case-to-stator support	11	8	---
Transmission range sensor-to-case	10	---	89
Valve body-to-pump	10	---	89
Pump assembly-to-main control	10	---	89
Valve body/solenoid-to-chain cover	10	---	89
Pump cover-to-pump body	10	---	89
Pump body-to-chain cover	10	---	89
EPC and TCC-to-pump body	12	9	---
Separator plate-to-pump body and valve body	11	8	---
Park rod abutment bolts	28	21	---
Detent spring-to-chain cover	11	8	---
Main control cover-to-chain cover (upper reservoir) (8 mm socket size)	12	9	---
Main control cover bolts (10 mm socket size)	25	18	---
Lube tube support bracket bolts	11	8	---
Fluid pan-to-case (lower reservoir)	12	9	---
Filler tube-to-case bolt	11	8	---
Upper fluid filler tube-to-case bolt	11	8	---
Reverse clutch locator bolt	11	8	---
Reverse clutch locator lock nut	43	32	---
Turbine shaft speed (TSS) sensor retaining bolt	11	8	---
Output shaft speed (OSS) sensor retaining bolt	11	8	---
Overdrive servo cover-to-case	11	8	---
Neutral/drive accumulator retaining bolt	11	8	---
Pressure tap plug for chain cover and pump body	8	---	71
Cooler line fitting at transaxle	20	15	---
Transaxle shift cable bracket retaining nut	23	17	---
Upper transaxle-to-engine bolts	62	46	---
Lower engine-to-transaxle bolts	62	46	---
Torque converter-to-flexplate nuts	35	26	---
RH engine mount-to-transaxle case bolts and nut	62	46	---
Dust cover-to-case	10	---	89
Transmission housing cover bolts	10	---	89
Engine mount bolts	98	72	---
Rear engine support bolts	70	52	---
Engine mount-to-support	90	66	---
Shaft cable stud chain cover-to-case	31	23	---
Manual lever-to-manual shaft	13	10	---
Manual cable bracket bolt	23	17	---
Rear engine transaxle-to-support bracket bolts	62	46	---
Ground strap nut	20	15	---
Cooler tube bracket bolts	11	8	---
Driven sprocket support bolts	25	18	---
Ground strap nut	20	15	---
Engine mount bolts	90	66	---
Rear engine support bolts	70	52	---
Subframe-to-body bolts	90	66	---
Power steering line-to-subframe bolts	6	---	53
Power steering rack nuts	133	98	---
Sway bar retaining bolts	62	46	---
Sway bar link nuts	55	41	---
Lower control arm pinch bolt	62	46	---
Tie rod nut	55	41	---
Engine oil pan-to-transaxle case bolt	62	46	---
RH engine mount-to-transaxle case bolts	62	46	---
