Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

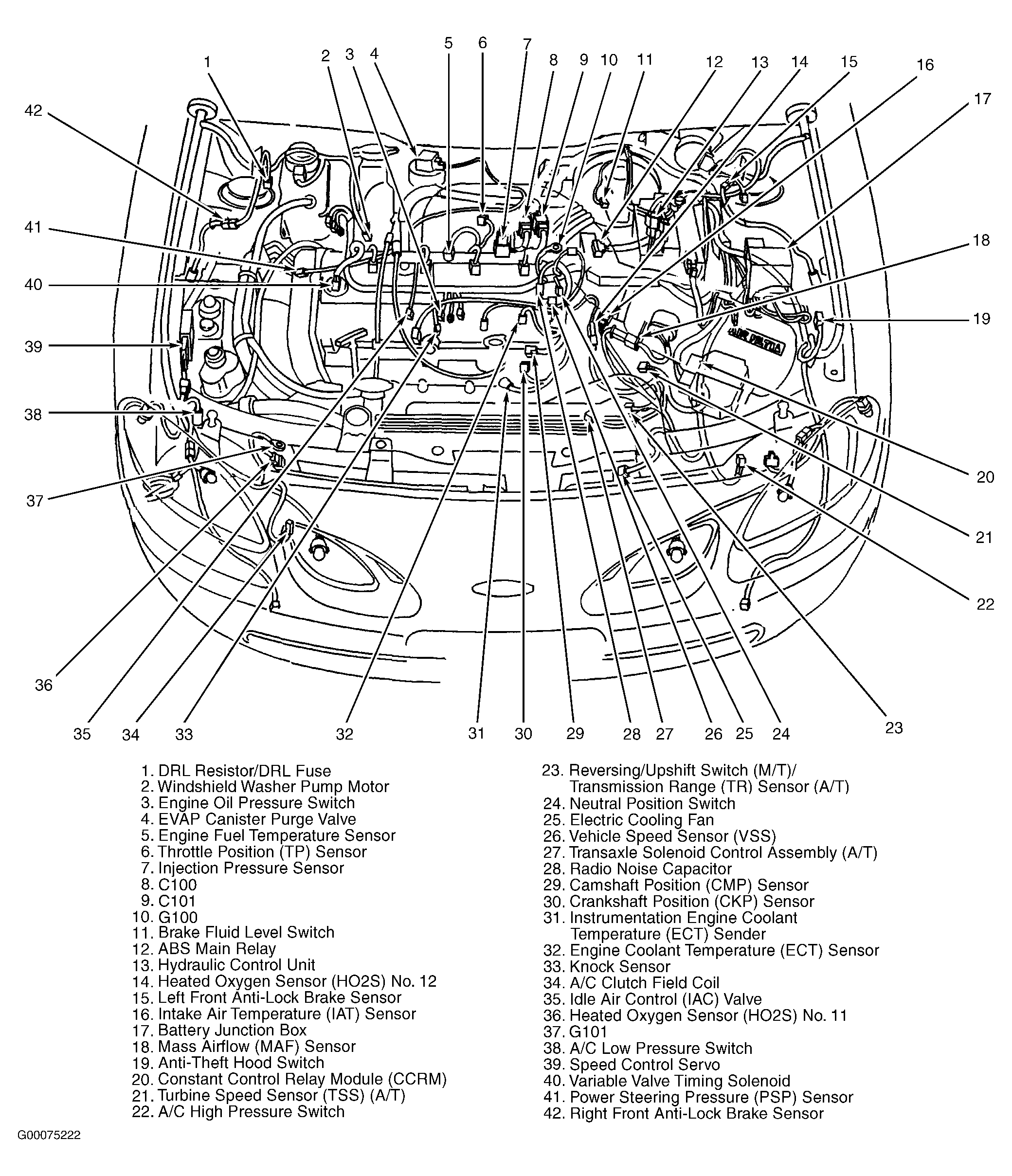

Fig 1: Engine Compartment
G00075222Courtesy of FORD MOTOR CO.

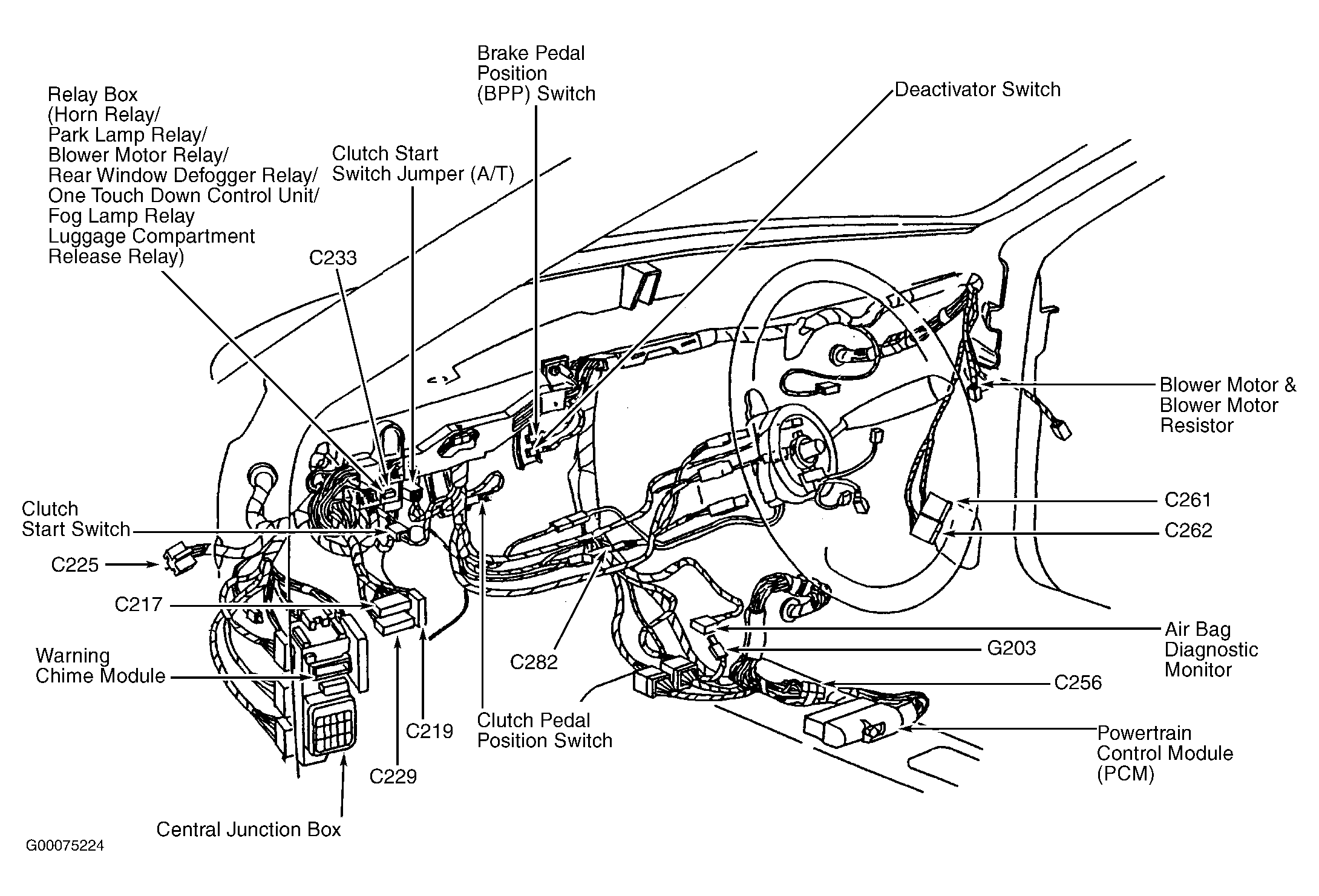

Fig 2: Dash
G00075224Courtesy of FORD MOTOR CO.
