Quick Connect Coupling

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) DESCRIPTION

G04684164Courtesy of FORD MOTOR CO.
 Disconnect Tool, Quick Connect Coupling
310-040
MATERIAL SPECIFICATION

Item Specification
Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent WSS-M2C930-A

Disconnect - Type I

WARNING: Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions can result in personal injury.
WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions can result in personal injury.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
CAUTION: If the liquid or vapor tube is damaged (torn, holes or delaminated), the affected tube assembly must be replaced with a new tube assembly. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
CAUTION: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube. Apply clean engine oil to the end of the tube before inserting the tube into the connector.
CAUTION: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.
  1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. For additional information, refer to FUEL SYSTEM PRESSURE RELEASE .
  2. Disconnect the fuel tube quick connect coupling.
    • Press the fuel tube quick connect coupling button and pull the fuel tube to disconnect.
      Fig 1: Locating Fuel Tube Quick Connect Coupling Button
      G03883087Courtesy of FORD MOTOR CO.

    Connect - Type I

    CAUTION: Make sure the fuel tube clicks into place when installing the tube. To make sure that the fuel tube is fully seated, pull on the tube.
    NOTE: Apply clean engine oil to the O-ring seals.
    Fig 2: Installing Quick Connect Coupling Onto Tube
    G03883090Courtesy of FORD MOTOR CO.
  1. Install the quick connect coupling onto the tube until it is fully seated.

Disconnect - Type

WARNING: Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions can result in personal injury.
WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions can result in personal injury.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
CAUTION: If the liquid or vapor tube is damaged (torn, holes or delaminated), the affected tube assembly must be replaced with a new tube assembly. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
CAUTION: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube. Apply clean engine oil to the end of the tube before inserting the tube into the connector.
CAUTION: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.
  1. Release the lock tab on the coupling.
    Fig 3: Positioning Locking Tab Into Un-Latched Position
    G03902006Courtesy of FORD MOTOR CO.
  2. Separate the coupling from the fitting.
    Fig 4: Identifying Quick Connect Coupling
    G03902007Courtesy of FORD MOTOR CO.

    Connect - Type II

    CAUTION: Make sure the fuel tube clicks into place when installing the tube. To make sure that the fuel tube is fully seated, pull on the tube.
    NOTE: Apply clean engine oil to the O-ring seals.
    Fig 5: Identifying Quick Connect Coupling
    G03902008Courtesy of FORD MOTOR CO.
  1. Release the lock tab and install the coupling onto the fitting.
  2. Apply the lock tab into the latched position.
    Fig 6: Positioning Locking Tab Into Latched Position
    G03902009Courtesy of FORD MOTOR CO.

Disconnect - Type

WARNING: Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions can result in personal injury.
WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions can result in personal injury.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
CAUTION: If the liquid or vapor tube is damaged (torn, holes or delaminated), the affected tube assembly must be replaced with a new tube assembly. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
CAUTION: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube. Apply clean engine oil to the end of the tube before inserting the tube into the connector.
CAUTION: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.
  1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. For additional information, refer to FUEL SYSTEM PRESSURE RELEASE .
  2. Release the quick connect coupling lock tab.

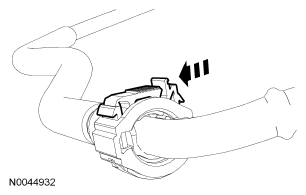

    Fig 7: Releasing Quick Connect Coupling Lock Tab
    G04684171Courtesy of FORD MOTOR CO.
  3. Rotate the primary locking tab to the fully opened position and squeeze the secondary locking tabs to release the locking mechanism.

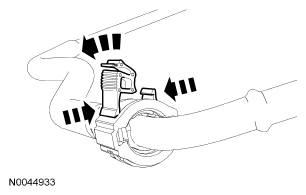

    Fig 8: Releasing Locking Mechanism
    G04684172Courtesy of FORD MOTOR CO.
  4. Push the locking mechanism outward and release the fuel supply tube.

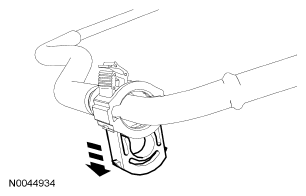

    Fig 9: Pushing Locking Mechanism Outward And Releasing Fuel Supply Tube
    G04684173Courtesy of FORD MOTOR CO.
  5. Remove the quick connect coupling from the tube.
    Fig 10: Removing Quick Connect Coupling From Tube
    G04684174Courtesy of FORD MOTOR CO.

    Connect - Type III

    NOTE: Apply clean engine oil to the O-ring seals.

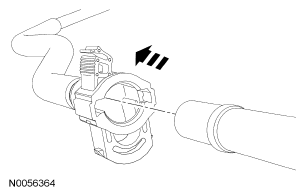

    Fig 11: Installing Quick Connect Coupling Onto Tube
    G04684175Courtesy of FORD MOTOR CO.
  1. Install the quick connect coupling onto the tube until it is fully seated.
    2. CAUTION: Make sure the retainer clip clicks into place when installing.

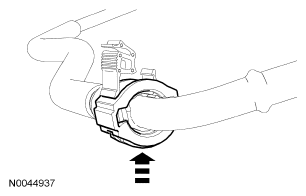

    Fig 12: Depressing Retainer Clip
    G04684176Courtesy of FORD MOTOR CO.
  2. Depress the retainer clip until it is flush with the quick connect coupler housing and is fully seated on the tube.
    3. CAUTION: To make sure that the fuel tube is fully seated, pull on the tube.

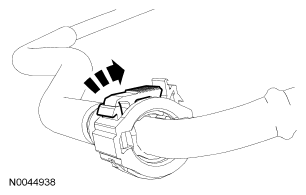

    Fig 13: Rotating Primary Locking Tab On Retainer Clip To Closed Position
    G04684177Courtesy of FORD MOTOR CO.
  3. Rotate the primary locking tab on the retainer clip to the closed position.

Disconnect - Type IV

WARNING: Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions can result in personal injury.
WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions can result in personal injury.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
CAUTION: If the liquid or vapor tube is damaged (torn, holes or delaminated), the affected tube assembly must be replaced with a new tube assembly. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
CAUTION: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube. Apply clean engine oil to the end of the tube before inserting the tube into the connector.
CAUTION: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.
  1. If servicing a liquid fuel tube quick connect coupling, release the fuel system pressure. For additional information, refer to FUEL SYSTEM PRESSURE RELEASE .
  2. Squeeze the quick connect coupling retainer clip tabs to release the locking mechanism.
    Fig 14: Releasing Locking Mechanism
    G04684178Courtesy of FORD MOTOR CO.
  3. Push the locking mechanism outward to release the tube.
    Fig 15: Pushing Locking Mechanism Outward To Releasing Tube
    G04684179Courtesy of FORD MOTOR CO.
  4. Remove the quick connect coupling from the tube.
    Fig 16: Removing Quick Connect Coupling From Tube
    G04684180Courtesy of FORD MOTOR CO.

    Connect - Type IV

    CAUTION: Make sure that the tube clicks into place when installing the quick connect coupling. Pull the tube to verify that it is fully seated.
    NOTE: Apply clean engine oil to the O-ring seals.
    Fig 17: Installing Quick Connect Coupling Onto Tube
    G04684181Courtesy of FORD MOTOR CO.
  1. Install the quick connect coupling onto the tube.
  2. Depress the quick connect coupling locking mechanism into the locked position.
    Fig 18: Depressing Quick Connect Coupling Locking Mechanism Into Locked Position
    G04684182Courtesy of FORD MOTOR CO.
  3. Visually inspect and verify that the locking mechanism is flush with the quick connect coupling housing and that the tabs are locked in place.
    Fig 19: Identifying Locking Mechanism And Quick Connect Coupling Housing
    G04684183Courtesy of FORD MOTOR CO.

Disconnect - Type V

WARNING: Do not carry lighted tobacco or open flame of any type when working on or near any fuel-related components. Highly flammable vapors are always present and can ignite. Failure to follow these instructions can result in personal injury.
WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions can result in personal injury.
WARNING: This procedure involves fuel handling. Be prepared for fuel spillage at all times and always observe fuel handling precautions. Failure to follow these instructions may result in personal injury.
CAUTION: If the liquid or vapor tube is damaged (torn, holes or delaminated), the affected tube assembly must be replaced with a new tube assembly. Do not use aftermarket sleeving. Do not re-adhere loose sleeving material.
CAUTION: When reusing liquid or vapor tube connectors, make sure to use compressed air to remove any foreign material from the connector retaining clip area before separating from the tube. Apply clean engine oil to the end of the tube before inserting the tube into the connector.
CAUTION: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. It is therefore essential that absolute cleanliness is observed when working with these components. Always install blanking plugs to any open orifices or tubes.
  1. Install the special tool on the tube and push into the quick connect coupling locking clip to release.
  2. Remove the quick connect coupling from the tube.

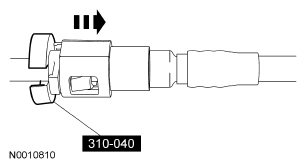

    3. Fig 20: Disconnecting Quick Connect Coupling From Tube
    G04684184Courtesy of FORD MOTOR CO.

    Connect - Type V

    CAUTION: Make sure the fuel tube clicks into place when installing the tube. To make sure that the fuel tube is fully seated, pull on the tube.
    NOTE: Apply clean engine oil to the O-ring seals.

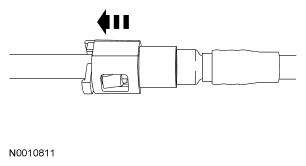

    Fig 21: Installing Quick Connect Coupling Onto Tube Until Fully Seated
    G04684185Courtesy of FORD MOTOR CO.
  1. Install the quick connect coupling onto the tube until it is fully seated.
