Pinpoint Test A: Unable To Configure The New Module

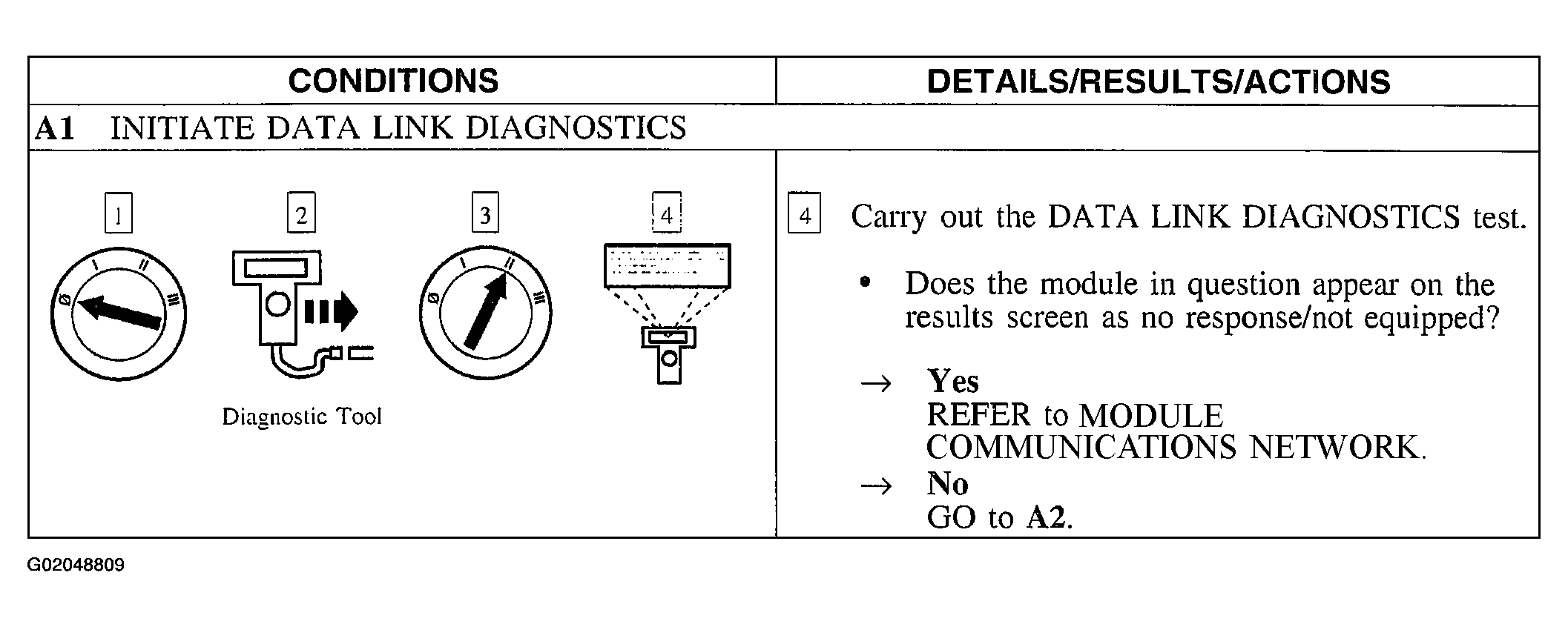

Fig 1: Pinpoint Test 1: Unable To Configure The New Module (Step A1)
G02048809Courtesy of FORD MOTOR CO.

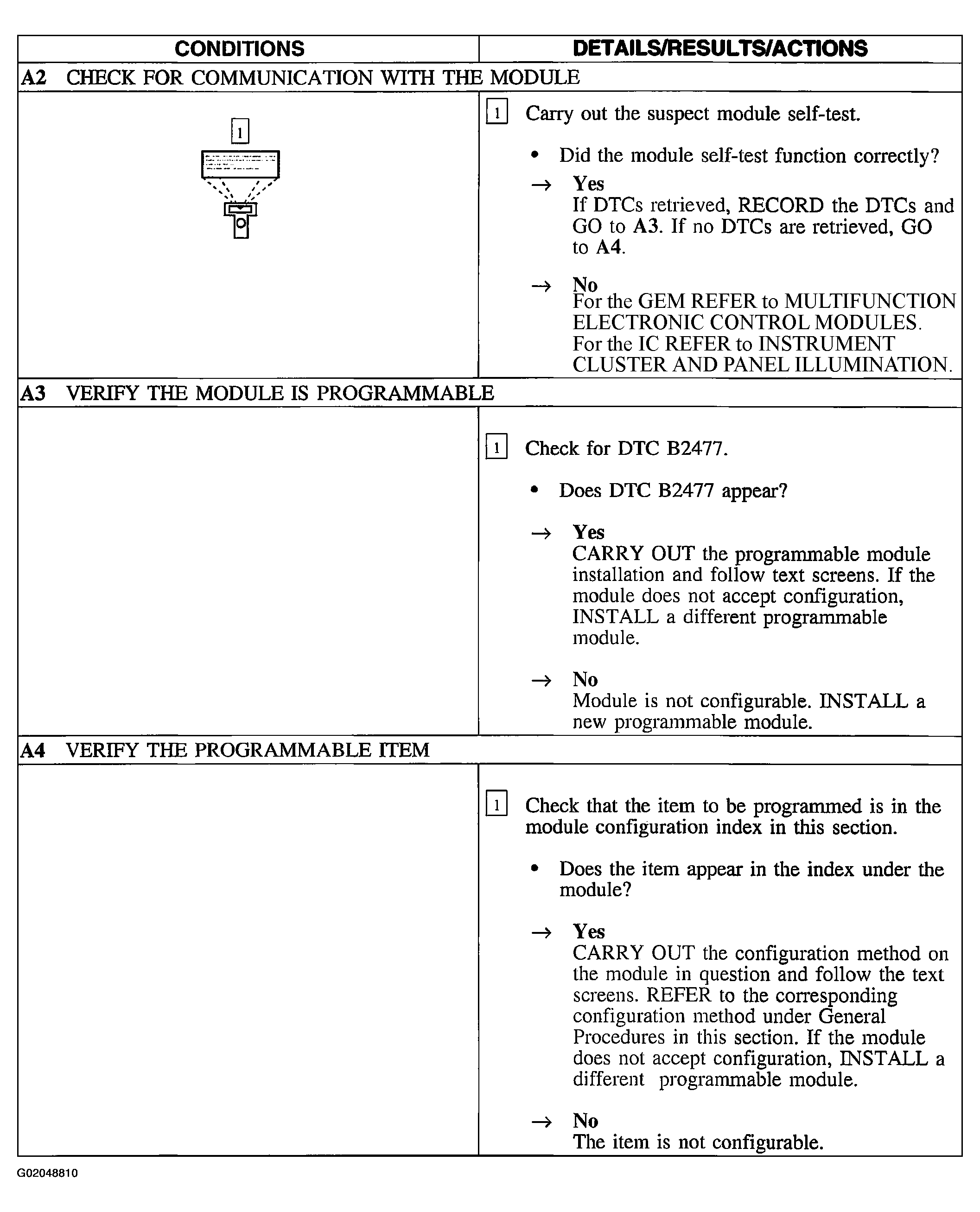

Fig 2: Pinpoint Tests A4: Unable To Configure The New Module (Steps A2-A4)
G02048810Courtesy of FORD MOTOR CO.
