Component Locations
NOTE:

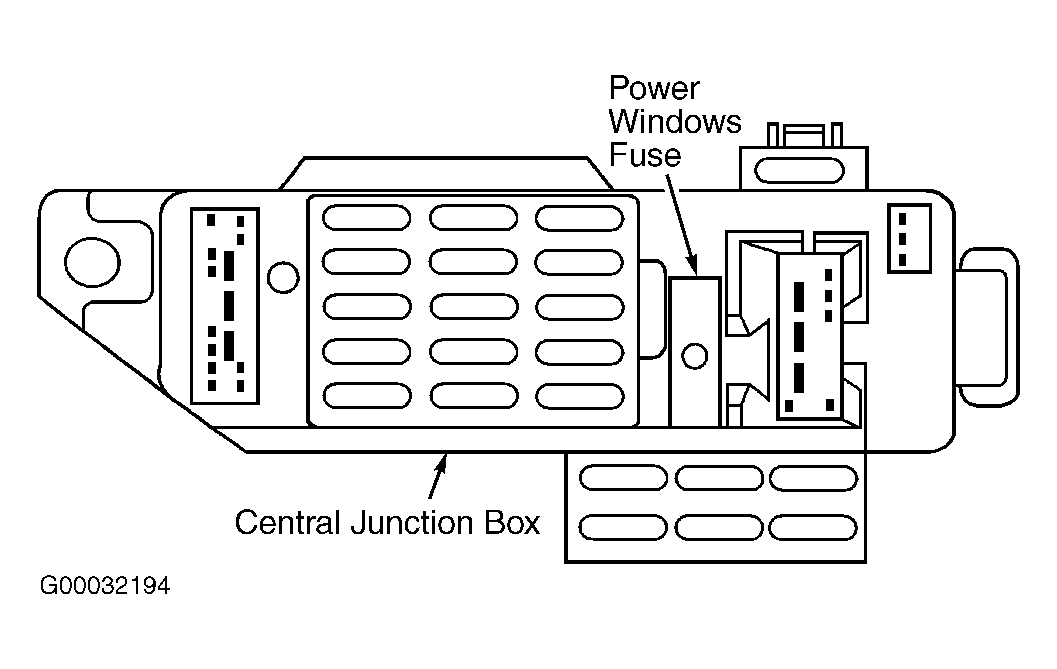

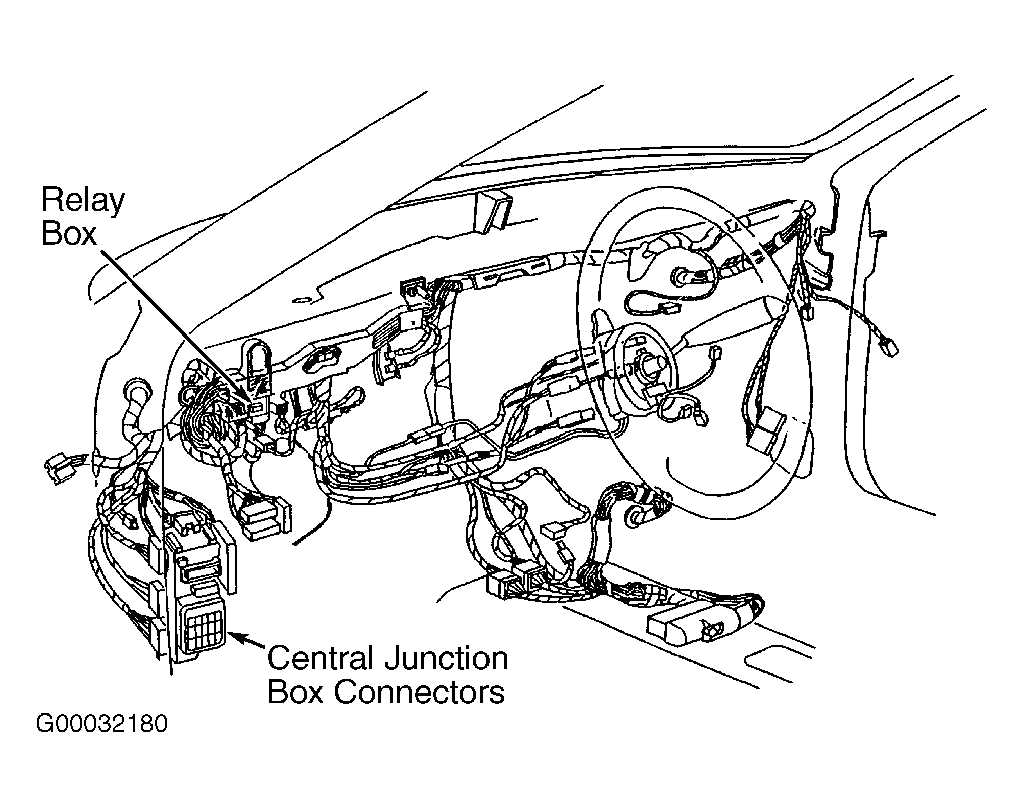

For location of Central Junction Box (CJB) harness connectors and relay box, refer to illustration. See Fig 1. For location of power window fuse in CJB, refer to illustration. See Fig 2. Power window fuse may also be referred to as power window circuit breaker.
COMPONENT LOCATIONS
| Component | Location | |
|---|---|---|
| Central Junction Box | Below Left Side Of Instrument Panel | |
| Master Window/Door Lock Switch | Driver's Door Panel Arm Rest | |
| One-Touch Down Control Unit | In Relay Box | |
| Passenger's Window/Door Lock Switch | On Respective Door Panel Arm Rest | |
| Power Window Fuse | In Central Junction Box | |
| Relay Box | Behind Left Side Of Instrument Panel | |
