Keyless Entry Key-Pad: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the front door trim panel.
3. Position the watershield aside.
4. Disconnect the keypad electrical connector.
^ Release the harness pin-type retainers.

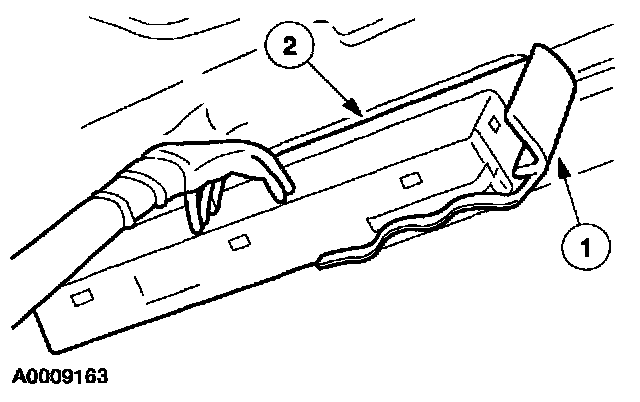

5. Remove the keyless entry keypad and harness.
1 Remove the clip.
2 Remove the keyless entry keypad and harness.

INSTALLATION
1. To install, reverse the removal procedure.
