Cruise Control Switch: Service and Repair

REMOVAL
1. Remove the driver side air bag module.







2. Remove the speed control actuator switch.

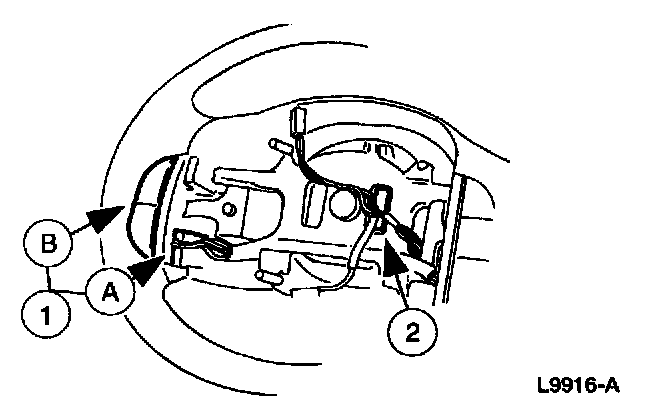

1 Release the four (A) speed control actuator switch clips and remove the (B) speed control actuator switch.
2 Disconnect the speed control actuator switch electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
