Rear

REMOVAL







1. Remove the auxiliary climate control assembly.

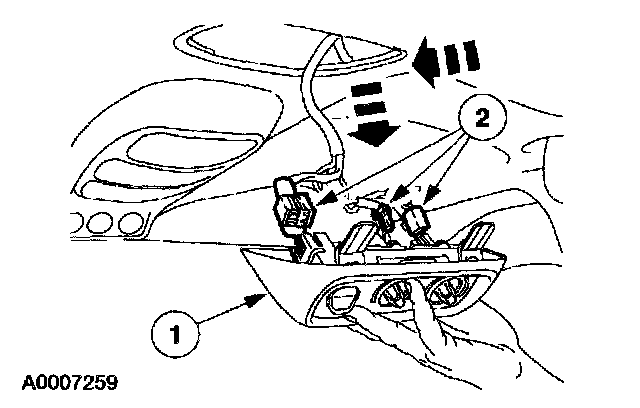

1 Pull down on the front of the auxiliary climate control assembly and slide forward and downward.
2 Disconnect the electrical connectors.

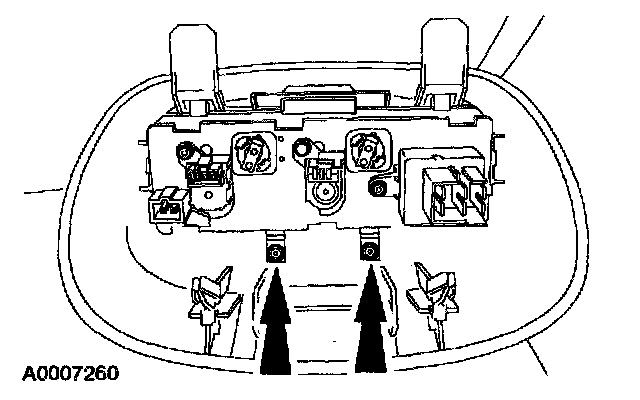

2. Remove the screws and the climate control assembly.

INSTALLATION
1. To install, reverse the removal procedure.
