Climate Control Assembly - Manual A/C

REMOVAL
1. Remove the audio unit.

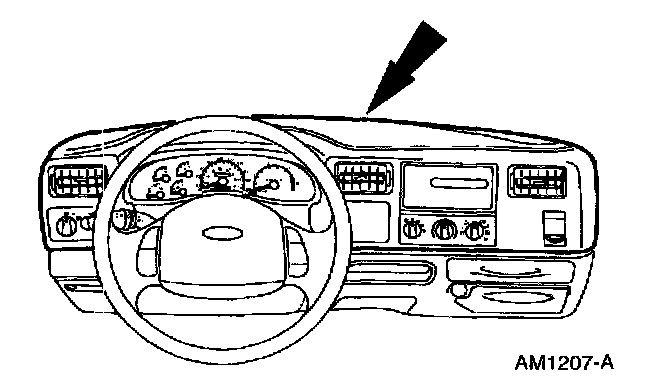

2. Disengage the clips and position aside the instrument cluster finish panel.

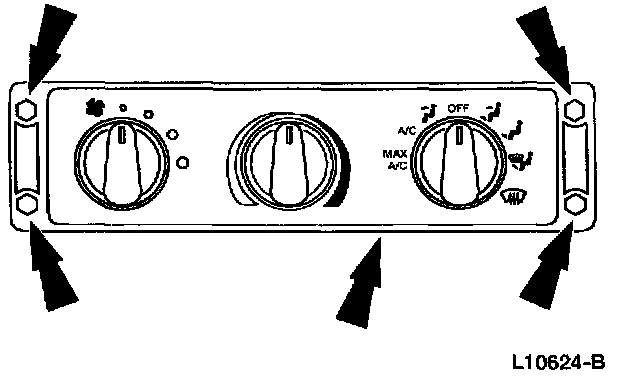

3. Remove the screws and remove the climate control assembly.

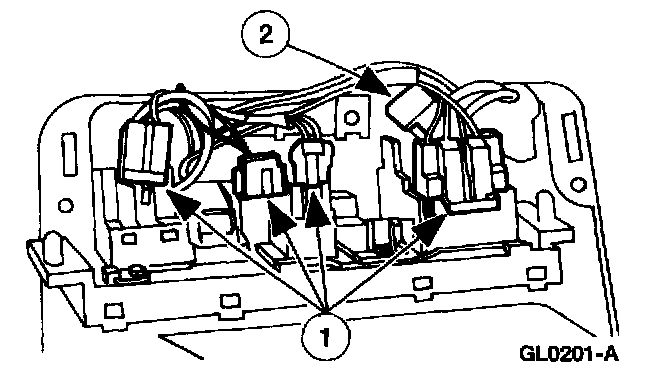

4. Disconnect the climate control assembly.
1 Disconnect the electrical connectors.
2 Disconnect the vacuum harness connector.

INSTALLATION
1. To install, reverse the removal procedure.
