Control Module HVAC: Service and Repair

REMOVAL

All vehicles

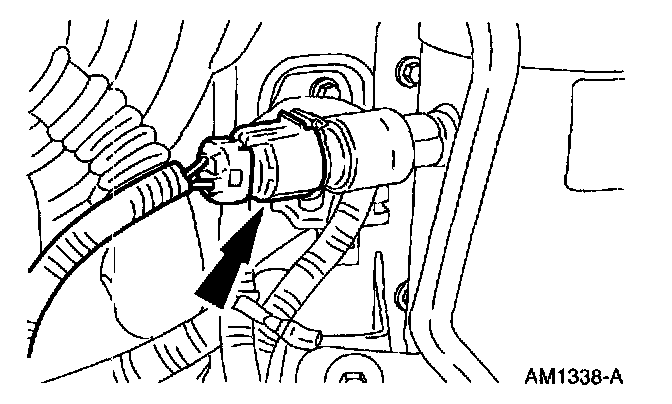

1. Disconnect the A/C cycling switch electrical connector.

Vehicles with auxiliary A/C

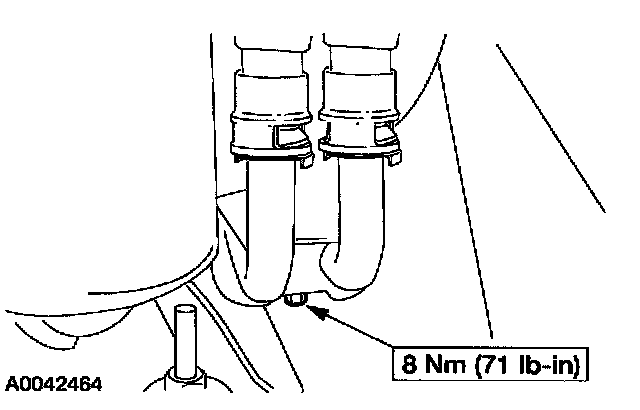

2. Remove the bolt and position the auxiliary heater lines aside.

All vehicles

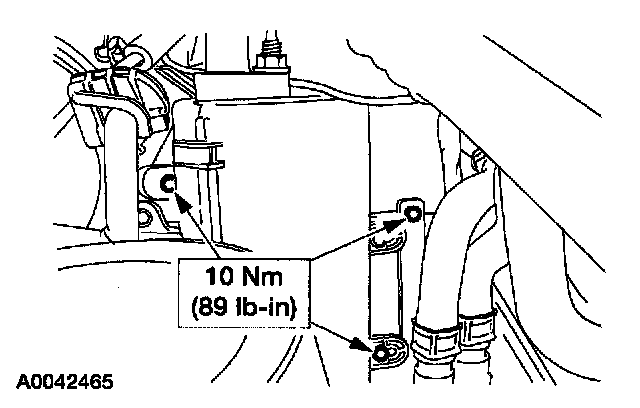

3. Remove the screws and slightly position the suction accumulator aside.

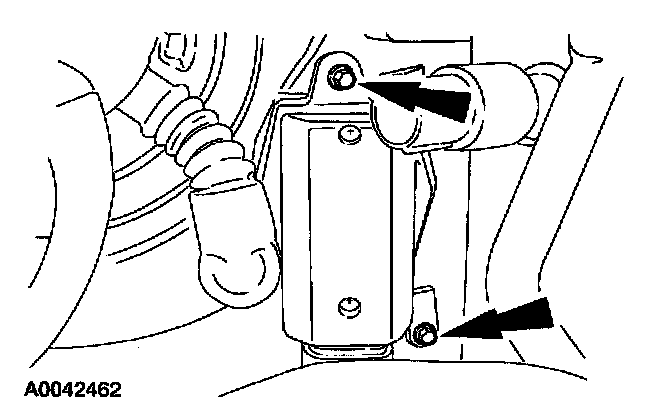

4. Remove the screws.

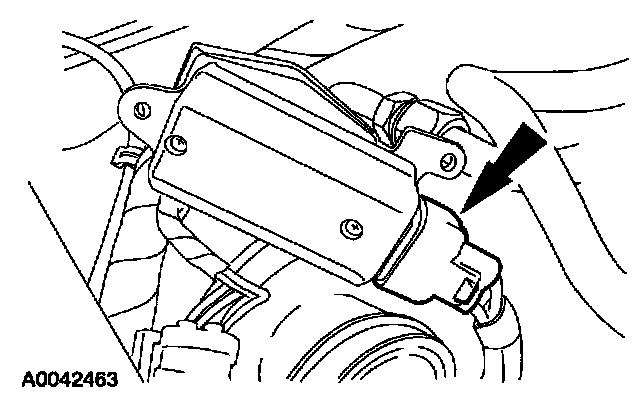

5. Disconnect the electrical connector and remove the blower motor speed control.

INSTALLATION
1. To install, reverse the removal procedure.
