Test W: Panel/Floor Control Inop W/Front/Rear Aux Controls

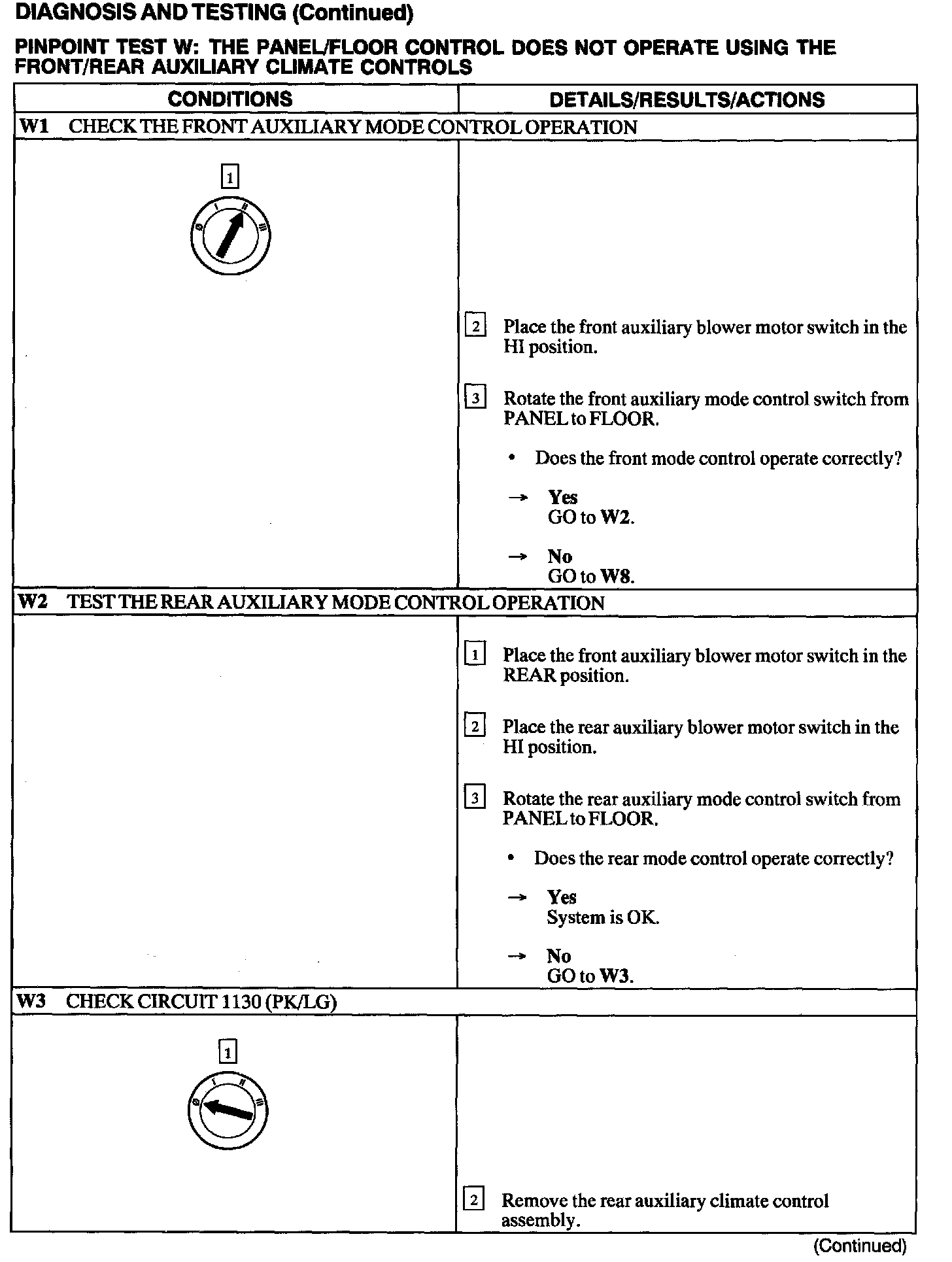

W1 - W3:

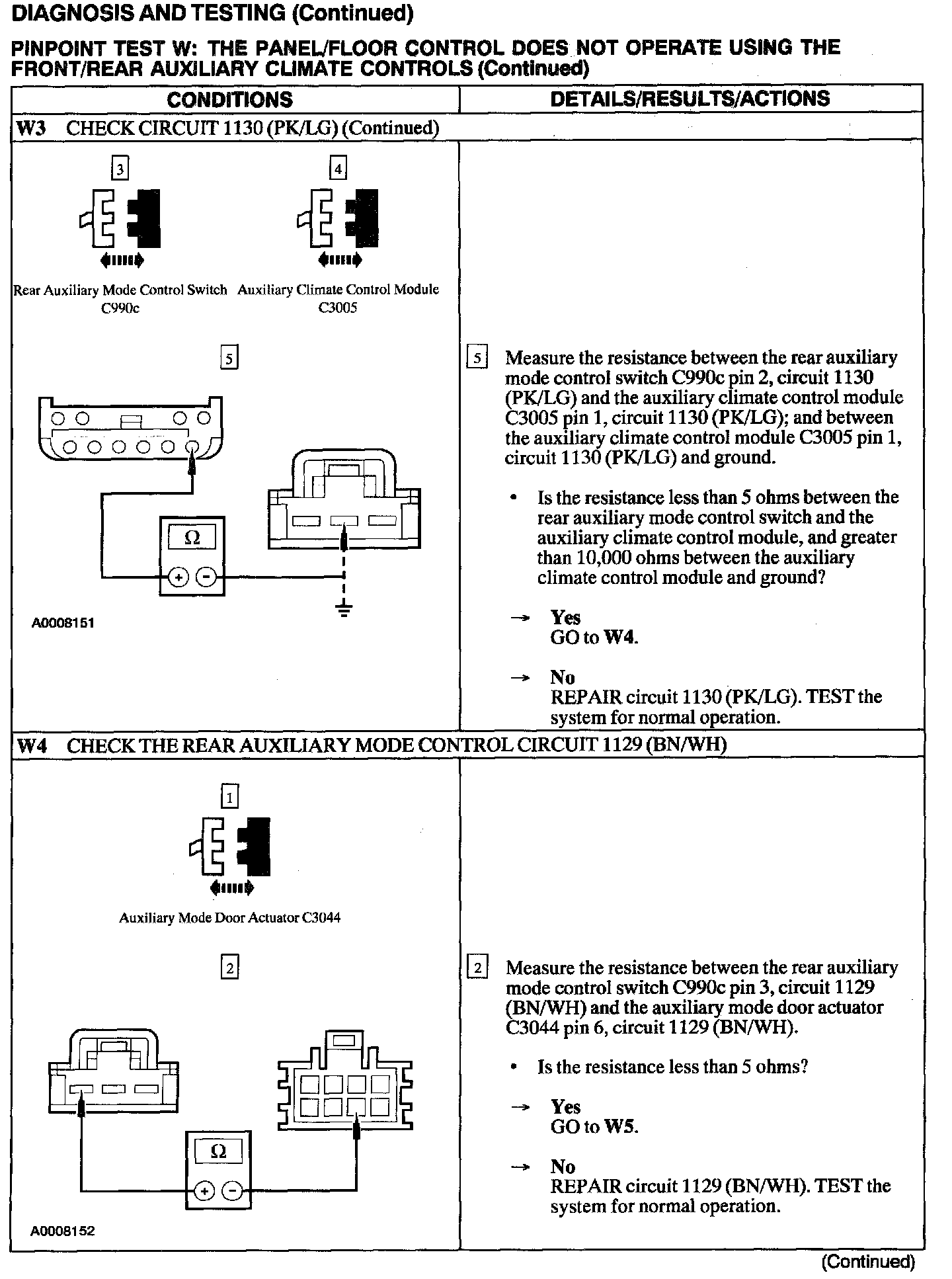

W3 - W4:

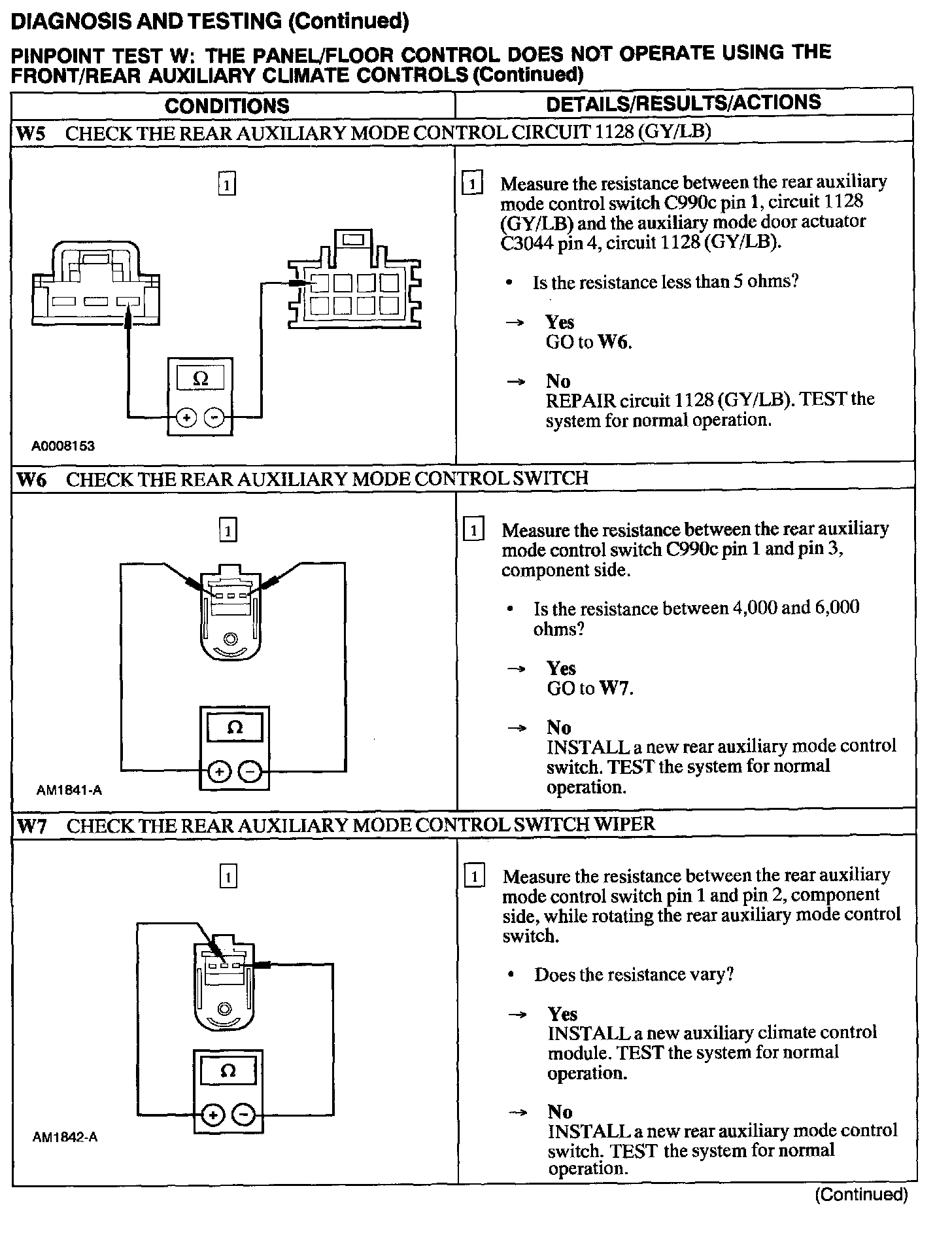

W5 - W7:

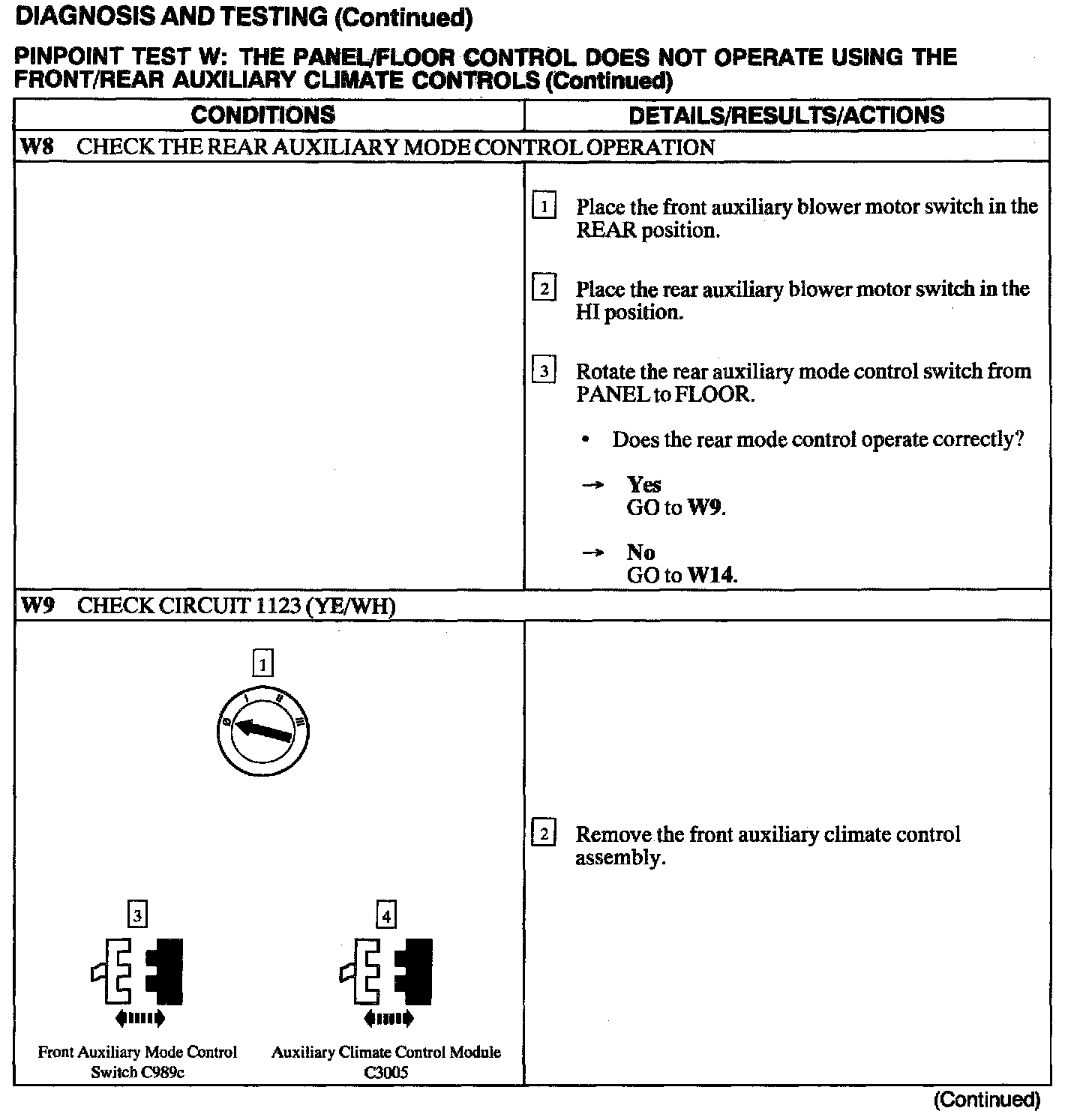

W8 - W9:

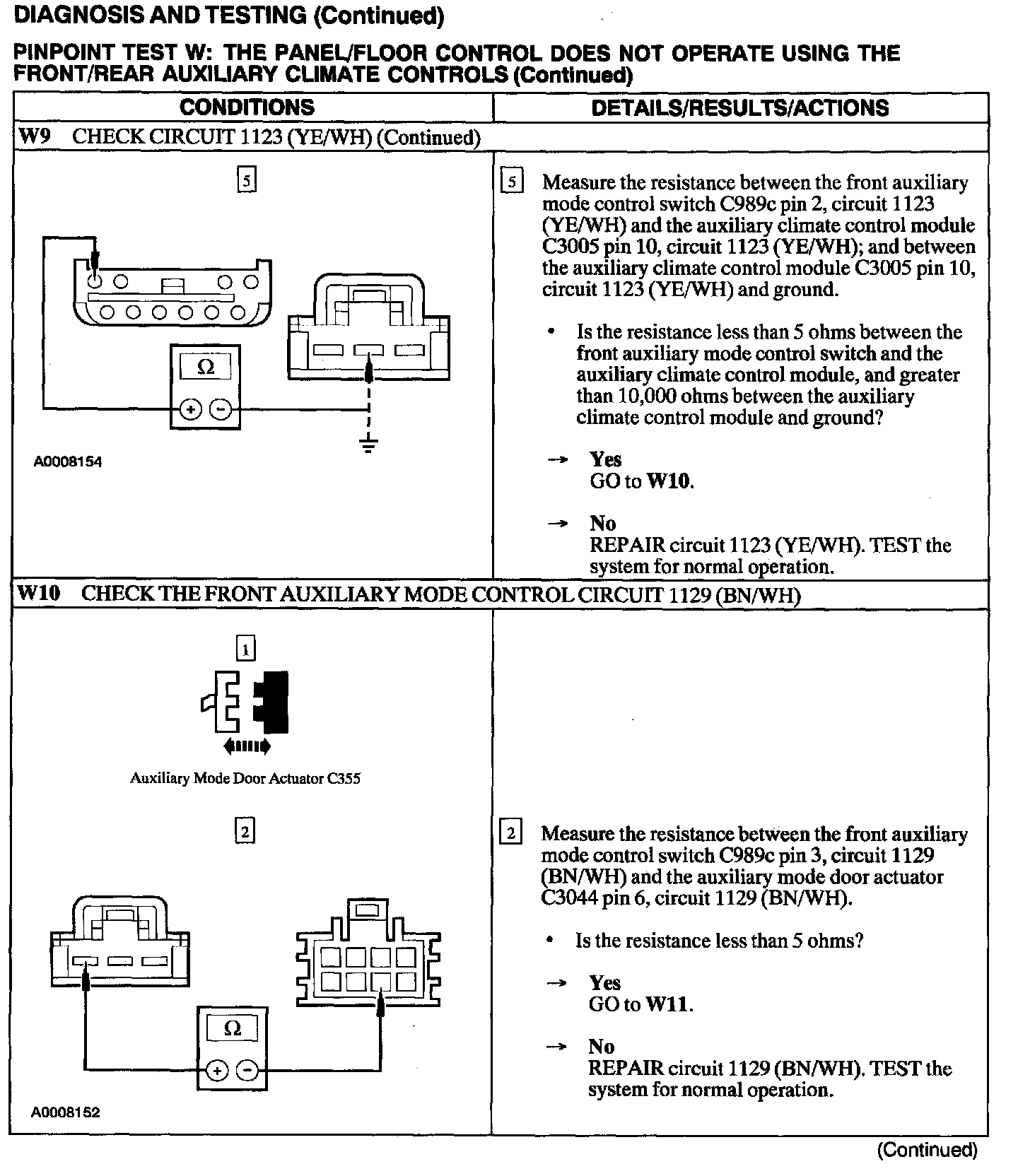

W9 - W10:

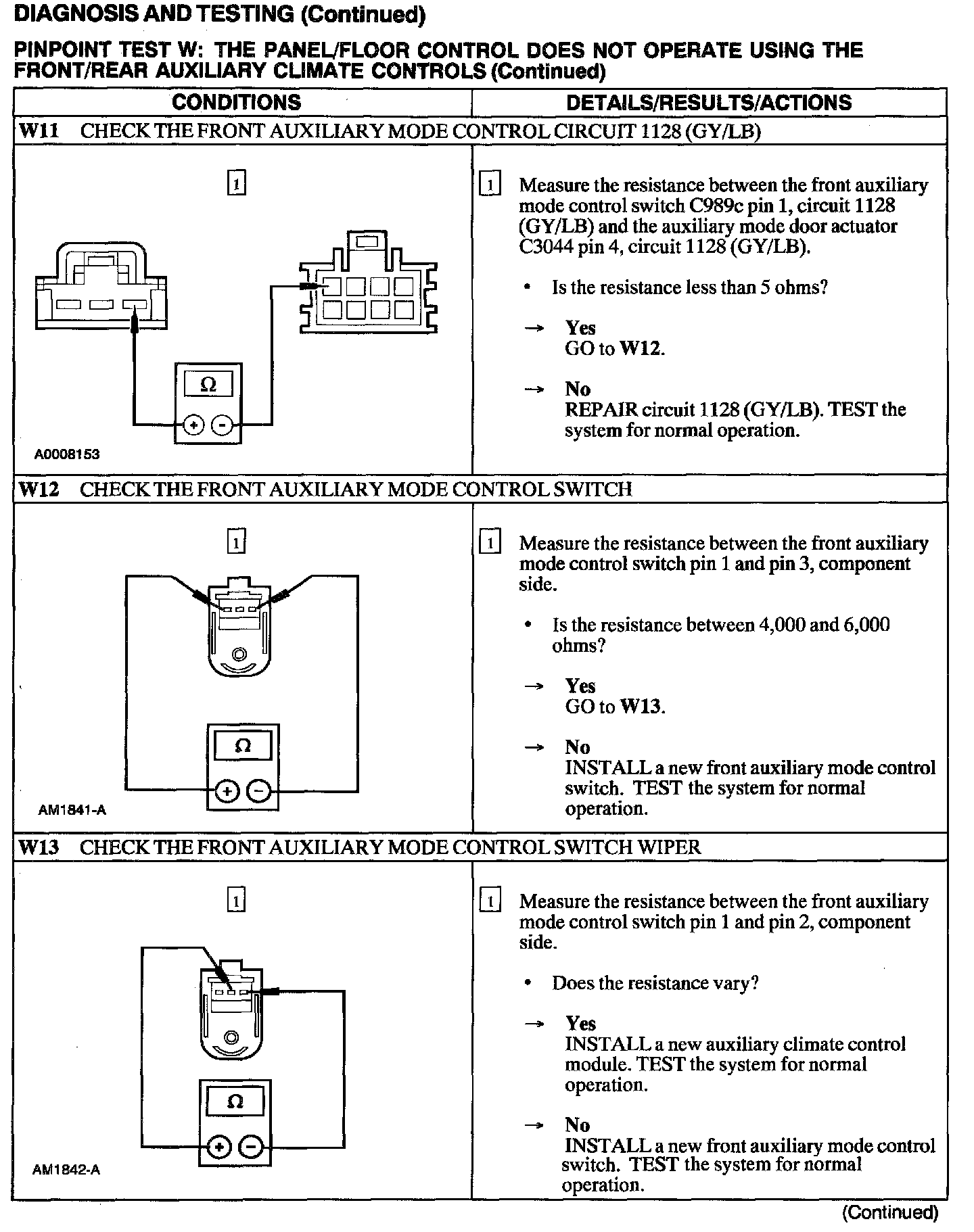

W11 - W13:

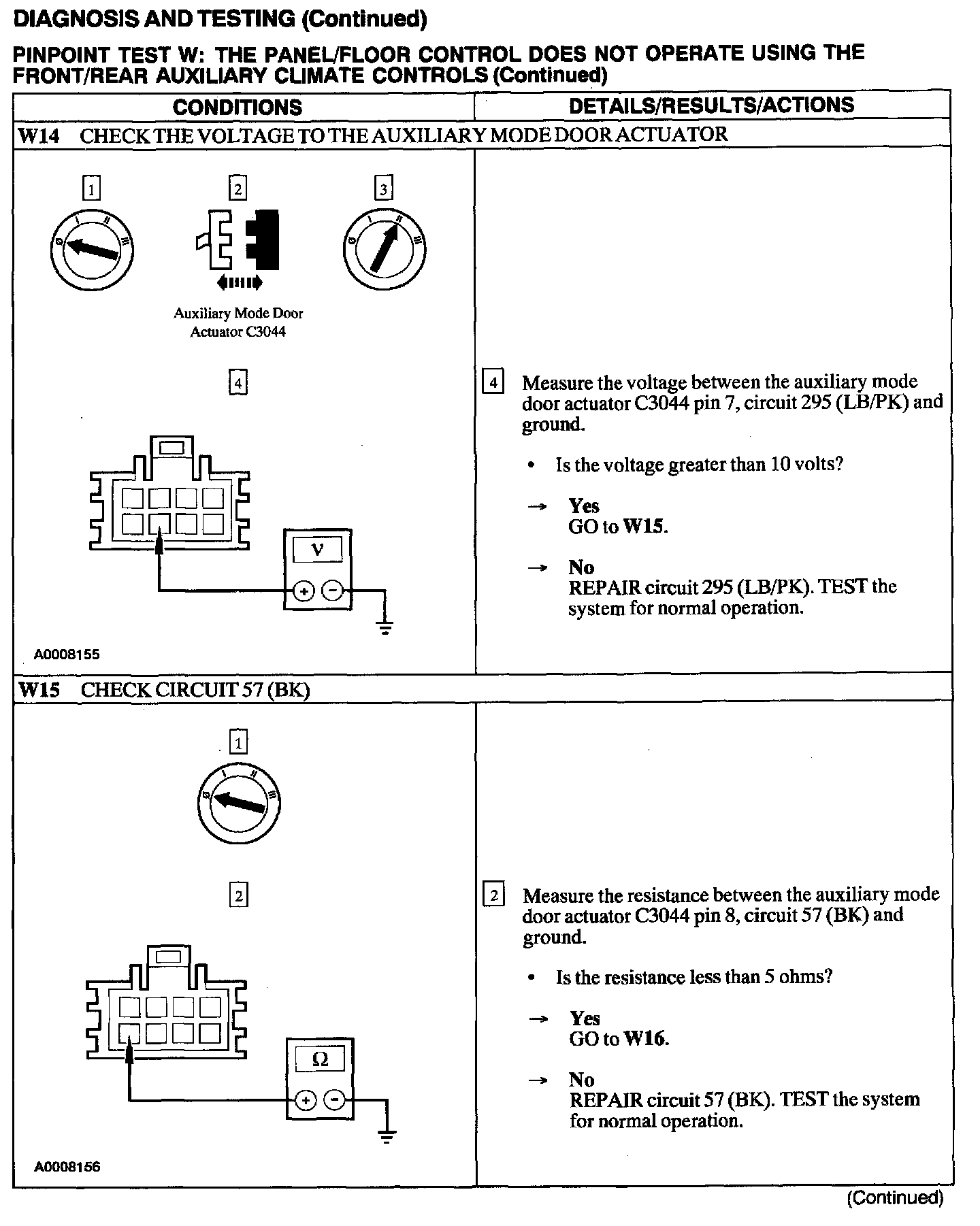

W14 - W15:

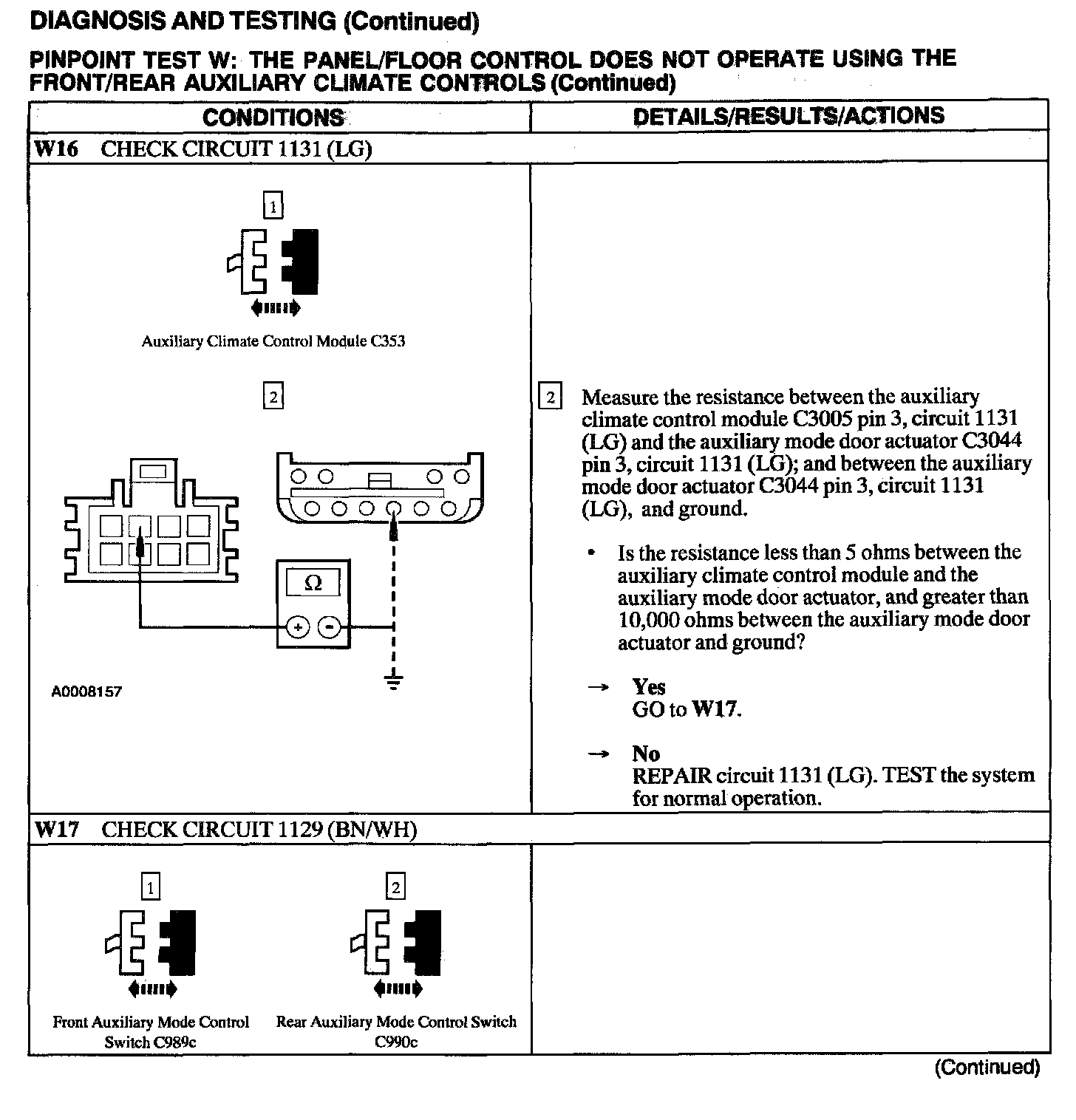

W16 - W17:

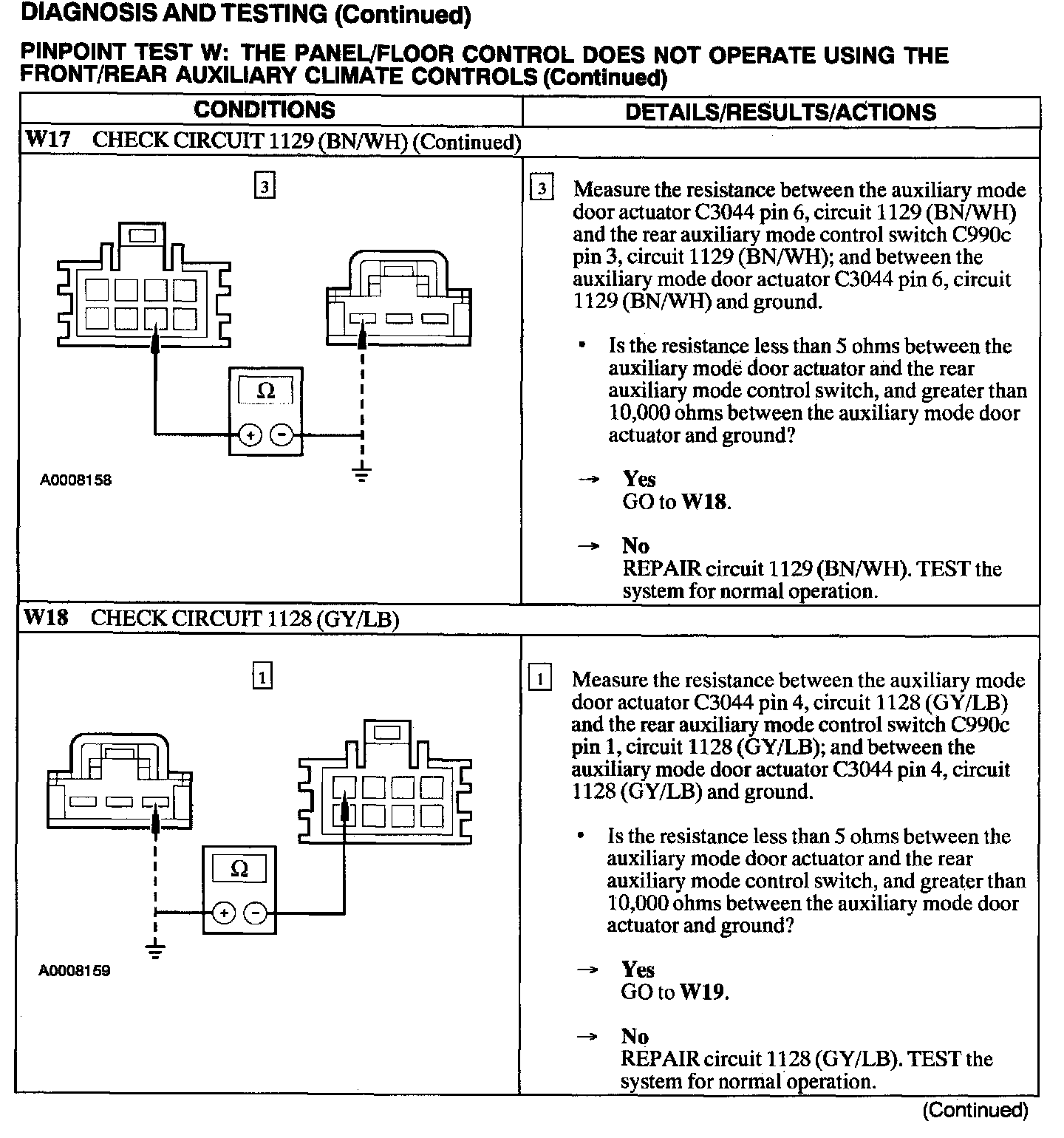

W17 - W18:

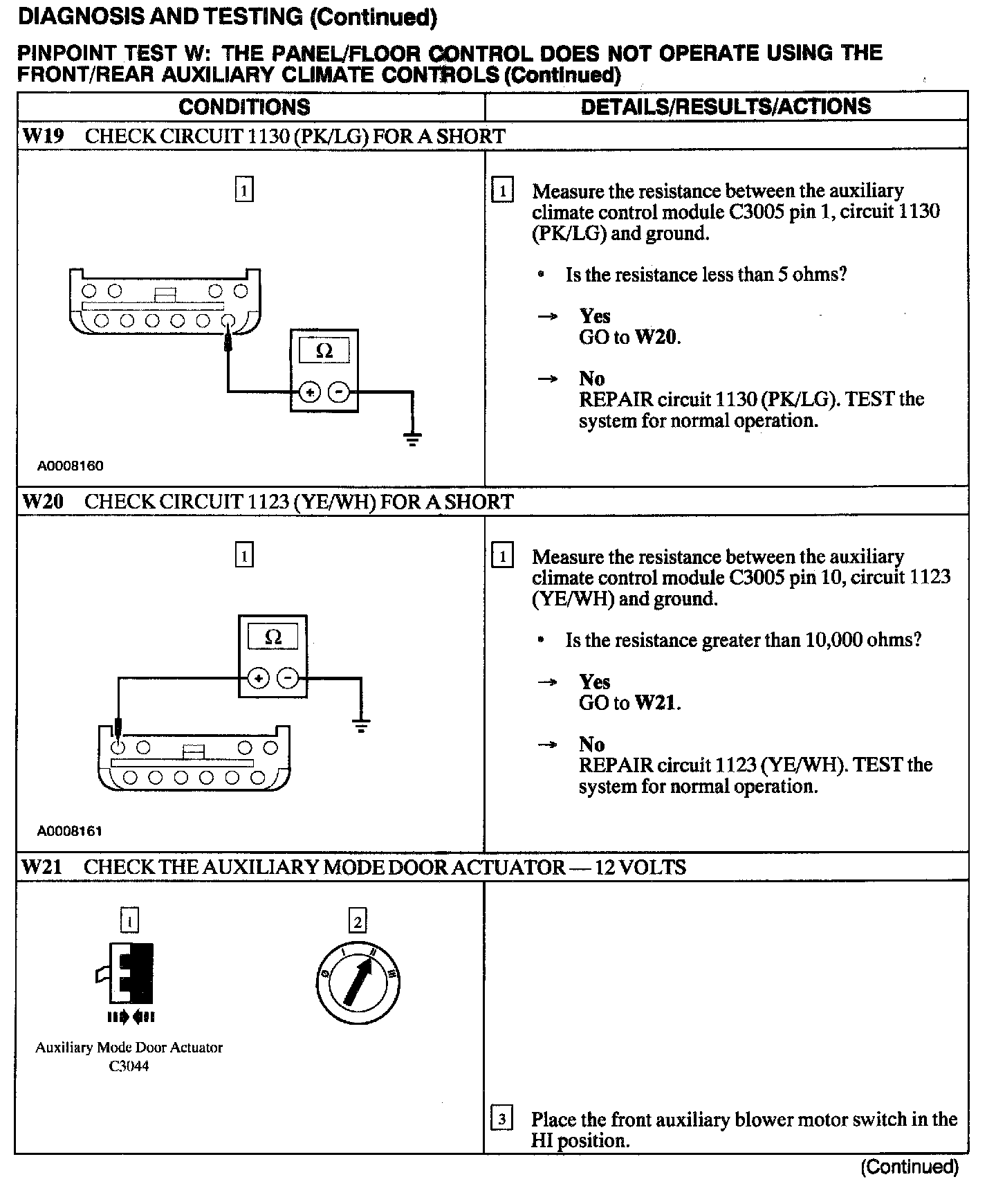

W19 - W21:

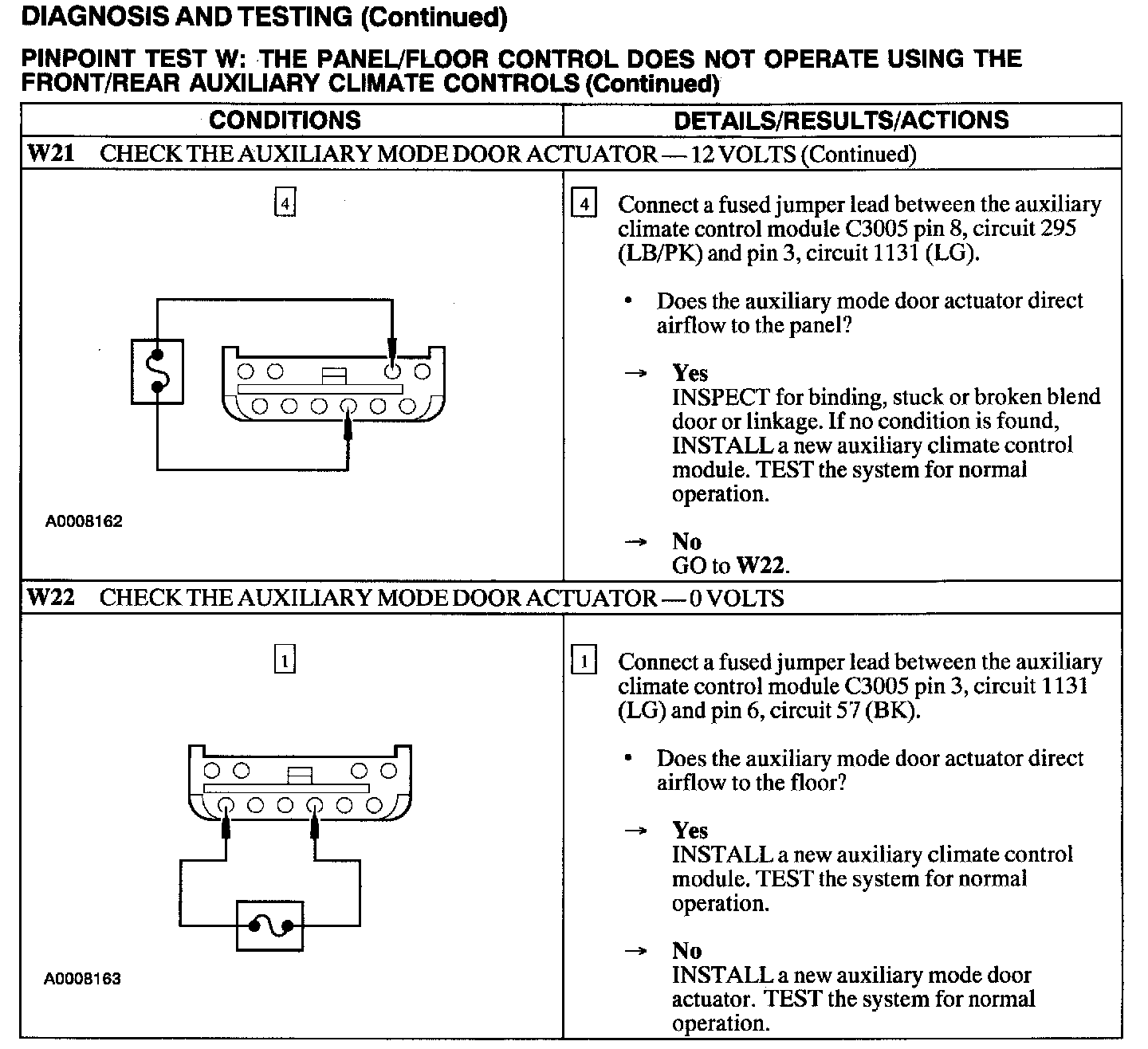

W21 - W22:
