Clutch Switch: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.

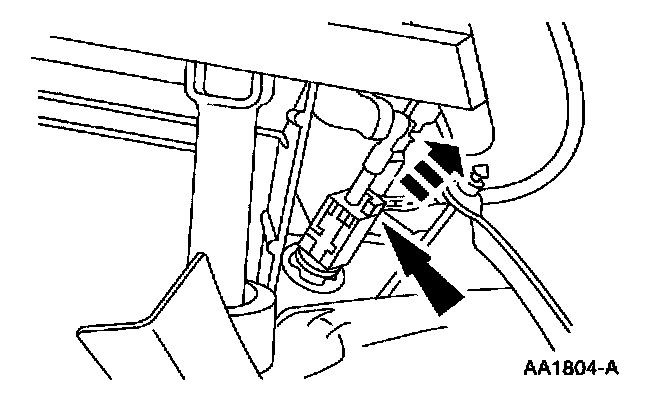

2. Disconnect the electrical connector from the Clutch Pedal Position (CPP) switch.

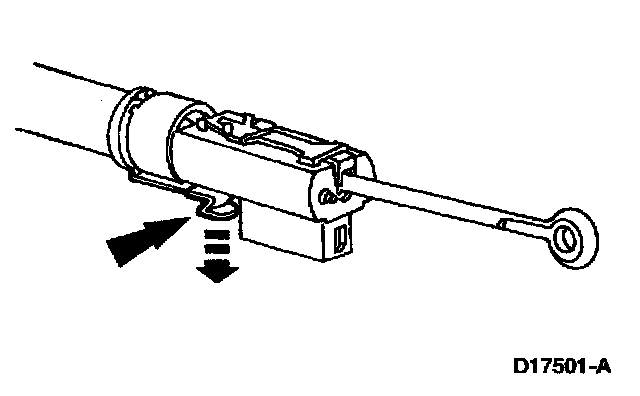

3. Release the CPP from the orientation clip.

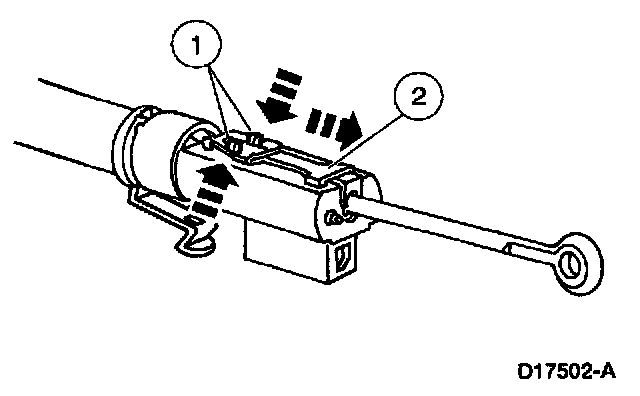

4. Remove the plastic retainer.
1 Push the lock tabs together.
2 Slide the plastic retainer off the CPP switch.

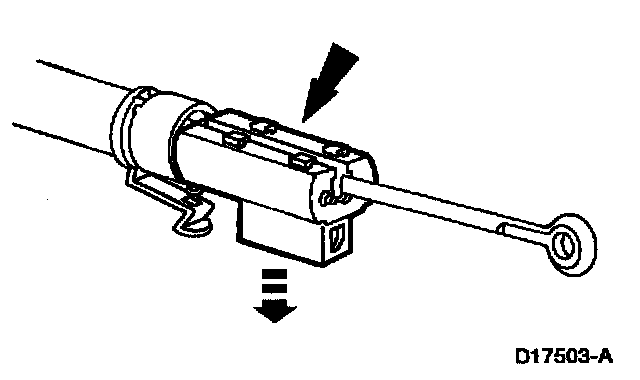

5. Remove the CPP switch.

INSTALLATION
1. To install, reverse the removal procedure.
