Engine Temperature Sensor: Service and Repair

Cylinder Head Temperature (CHT) Sensor

REMOVAL
1. Remove the upper intake manifold.

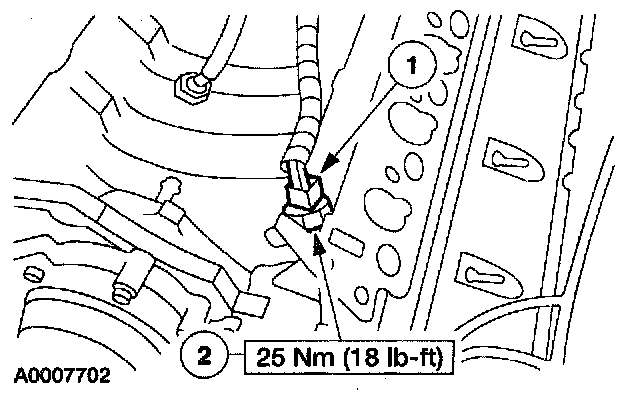

2. Remove the Cylinder Head Temperature (CHT) sensor.
1 Disconnect the electrical connector.
2 Remove the CHT sensor.

INSTALLATION
1. To install, reverse the removal procedure.
