Test O: No ISO 9141 Network Communication

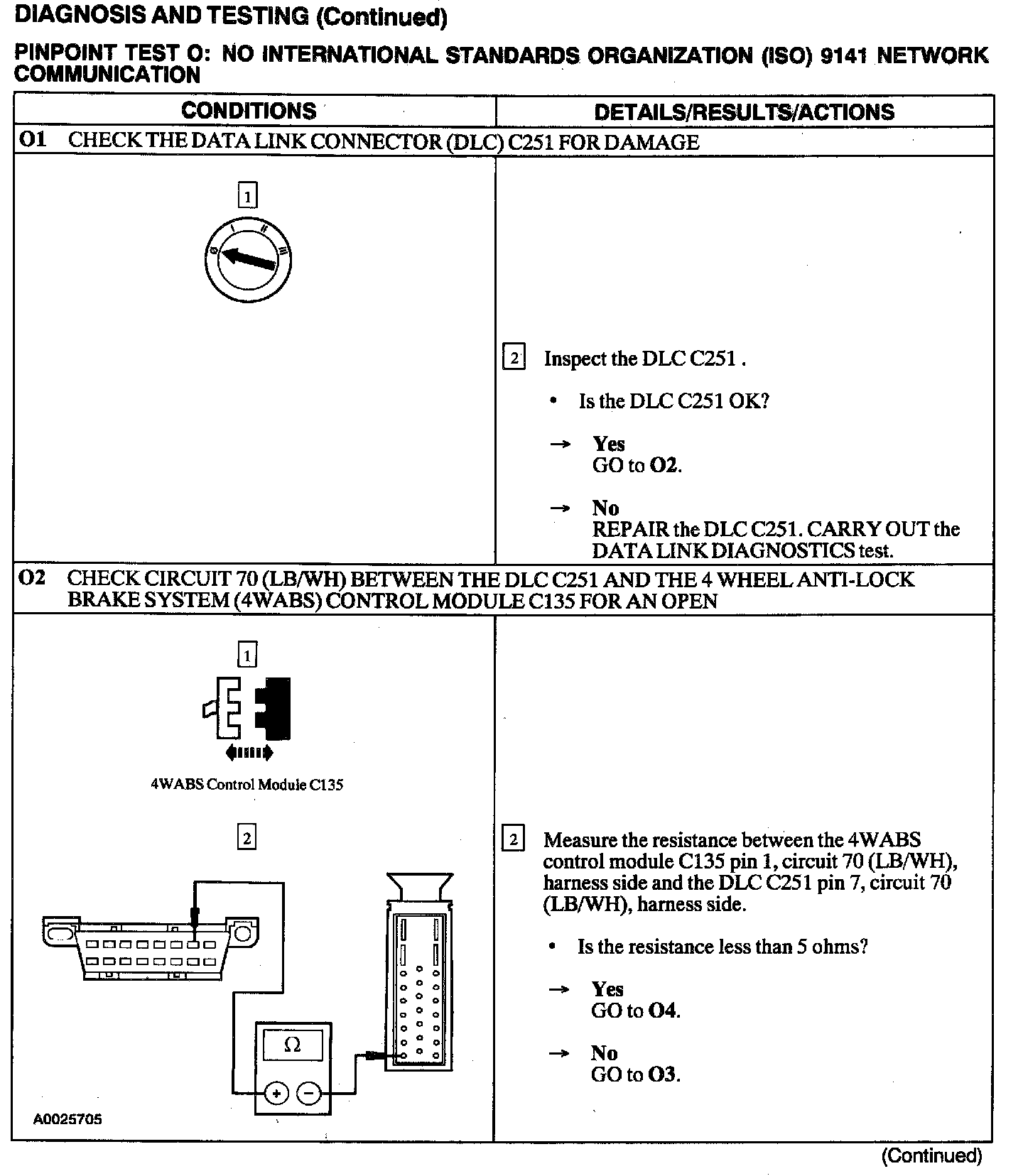

O1 - O2:

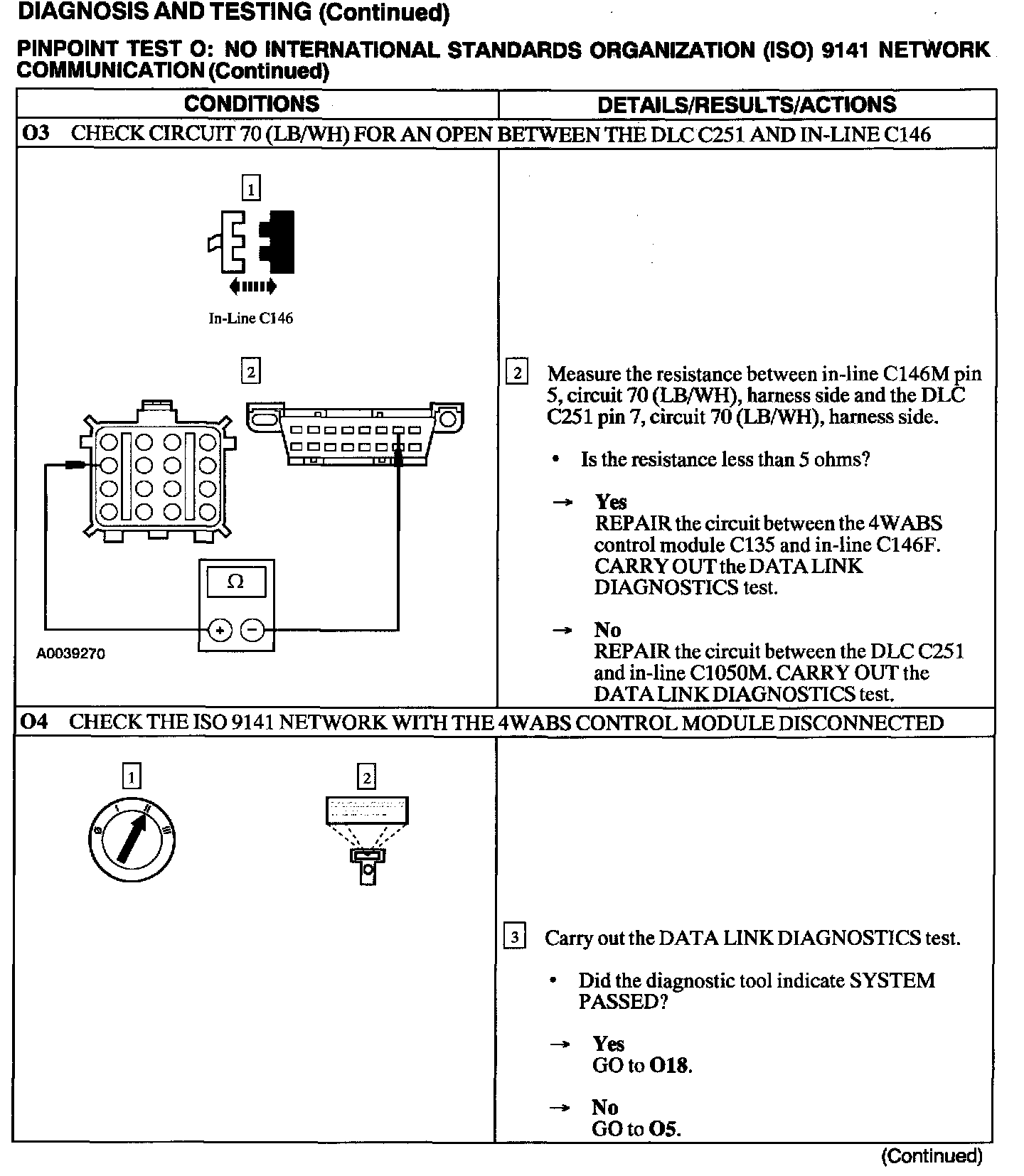

O3 - O4:

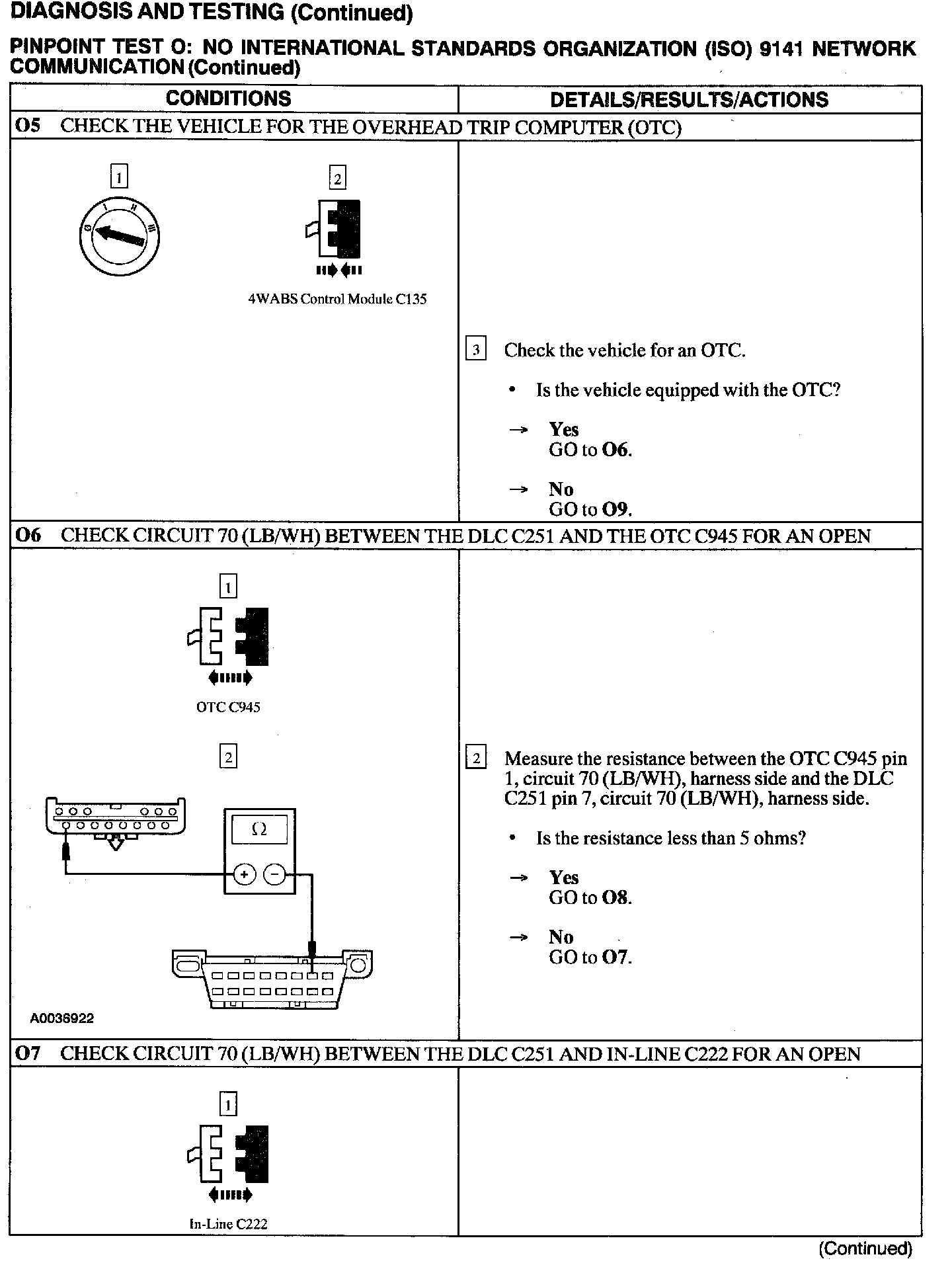

O5 - O7:

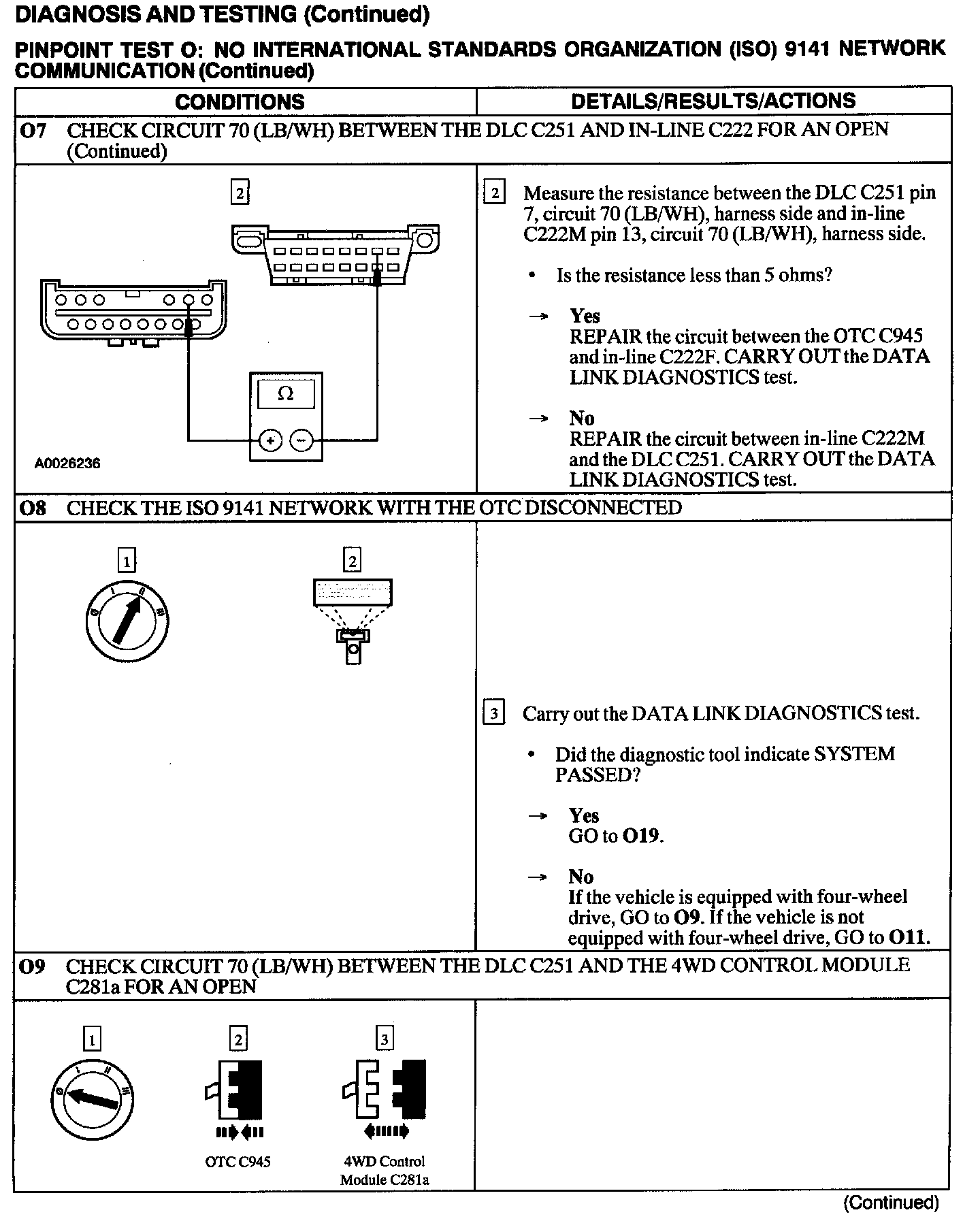

O7 - O9:

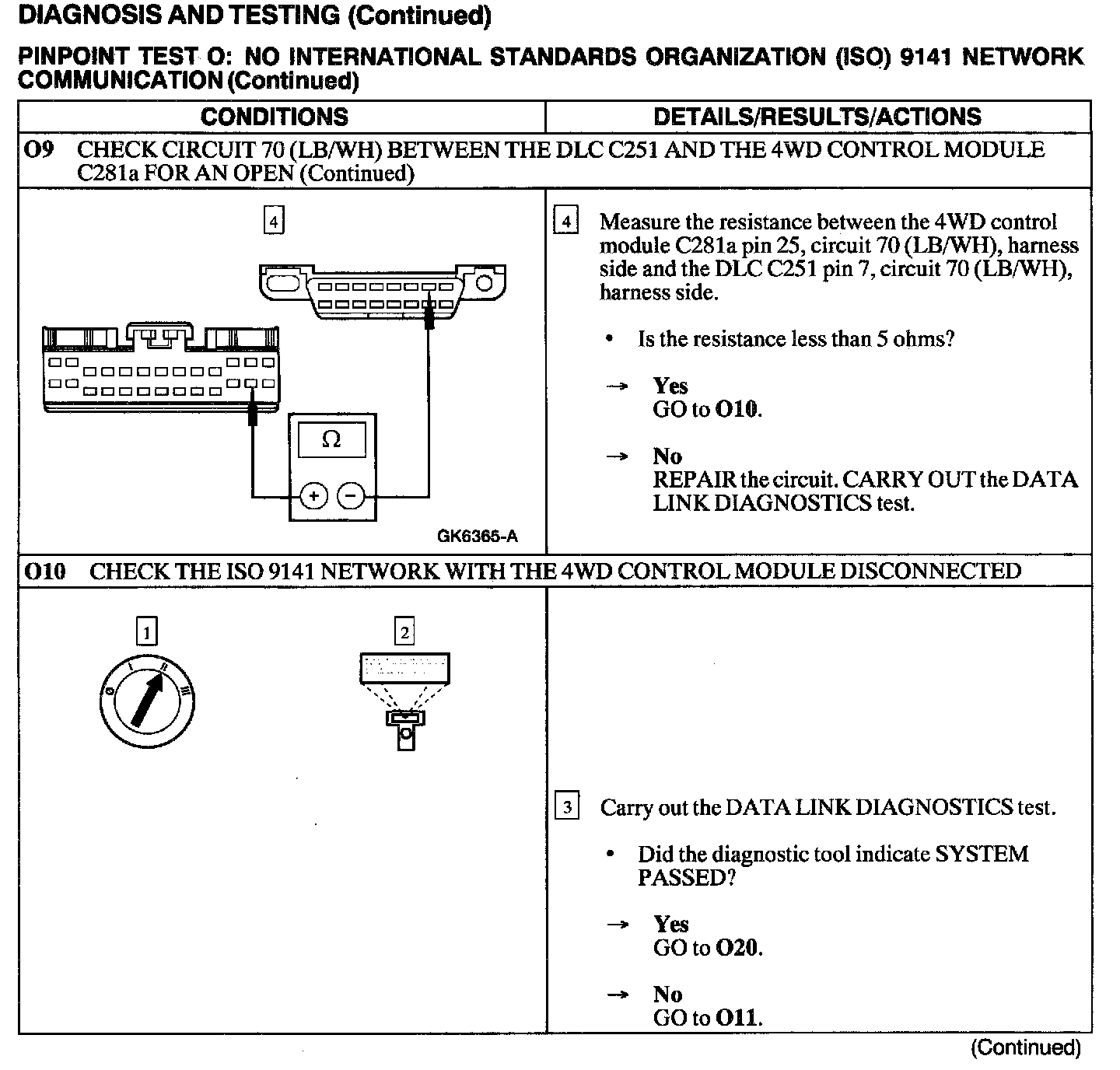

O9 - O10:

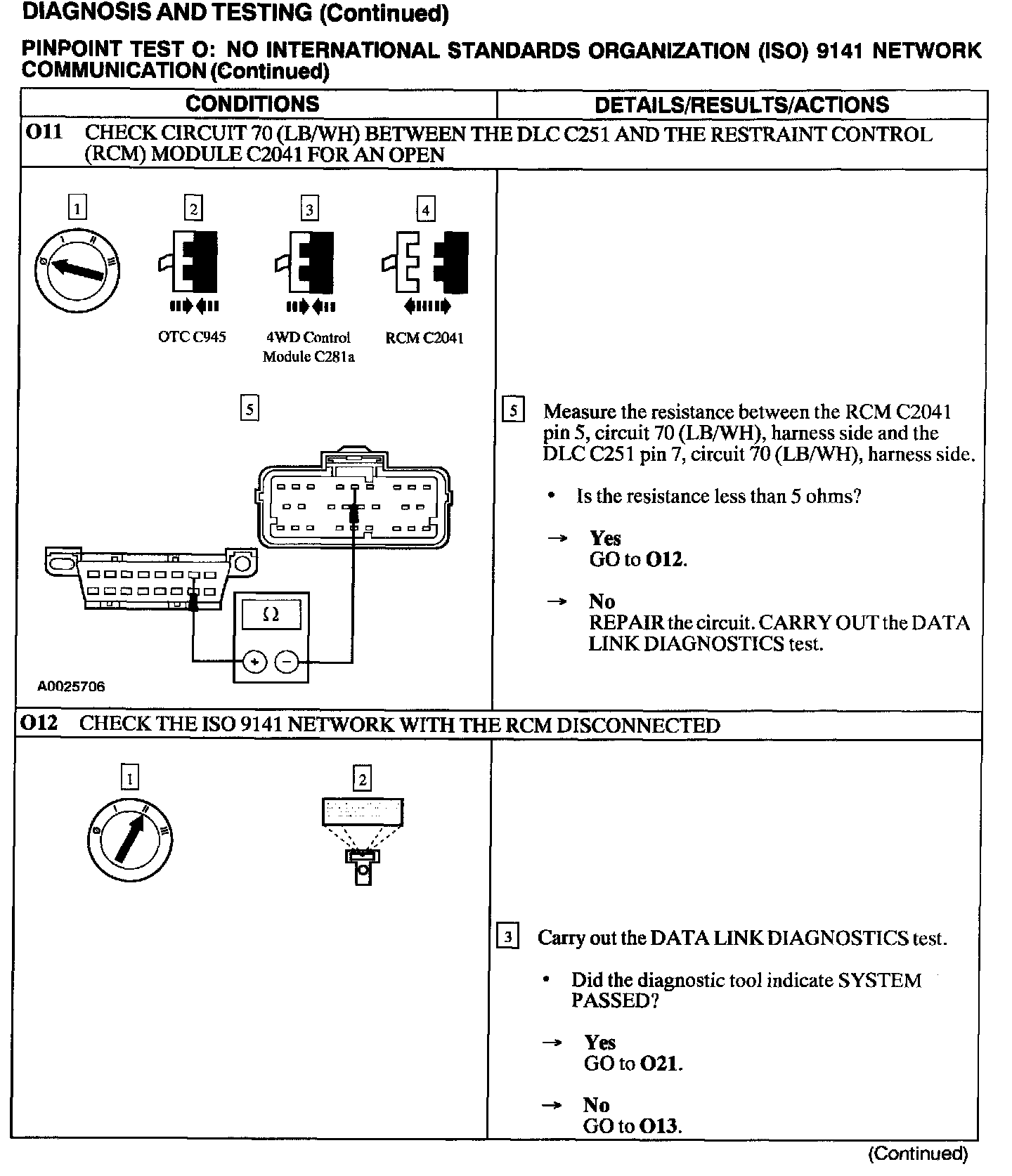

O11 - O12:

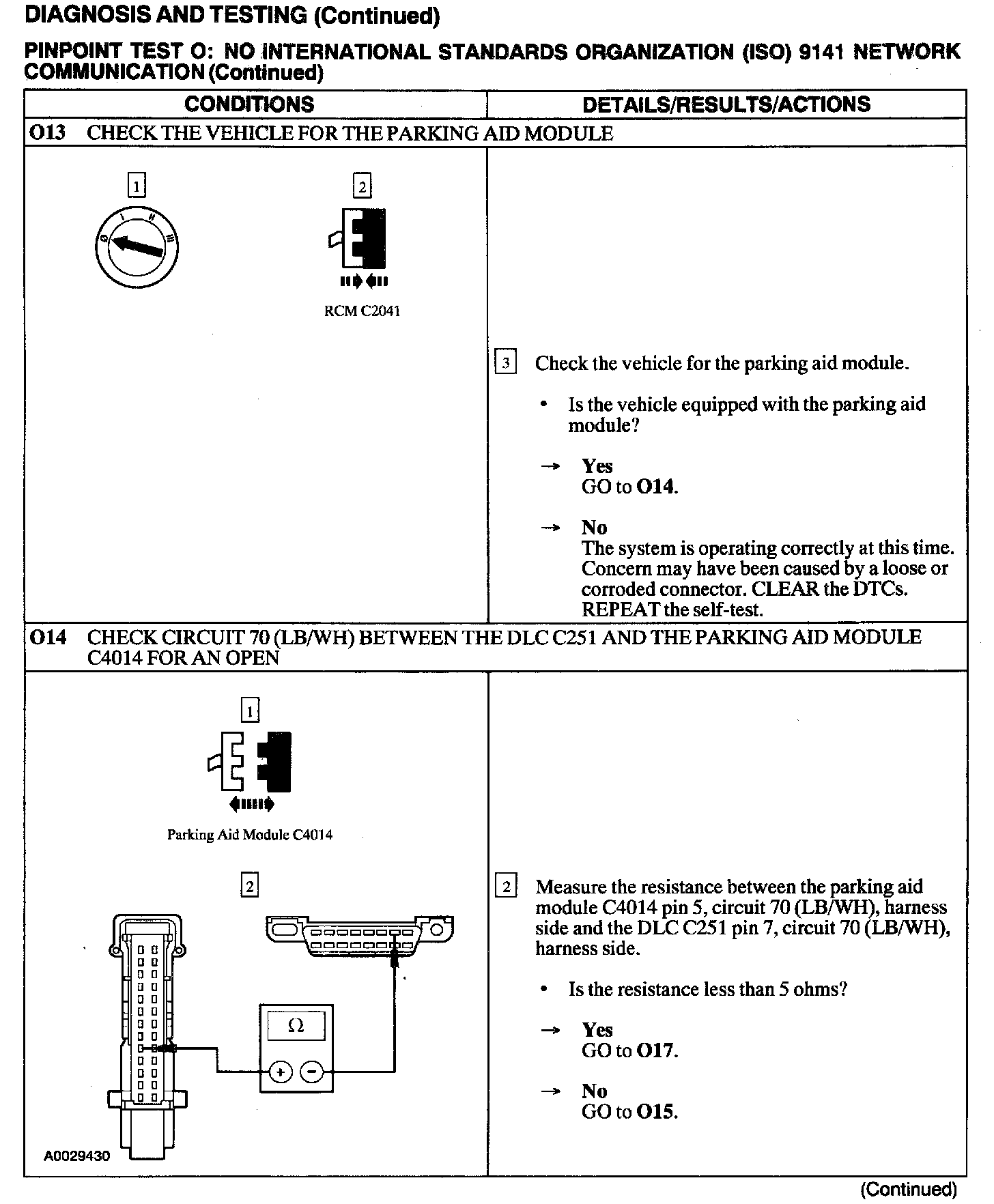

O13 - O14:

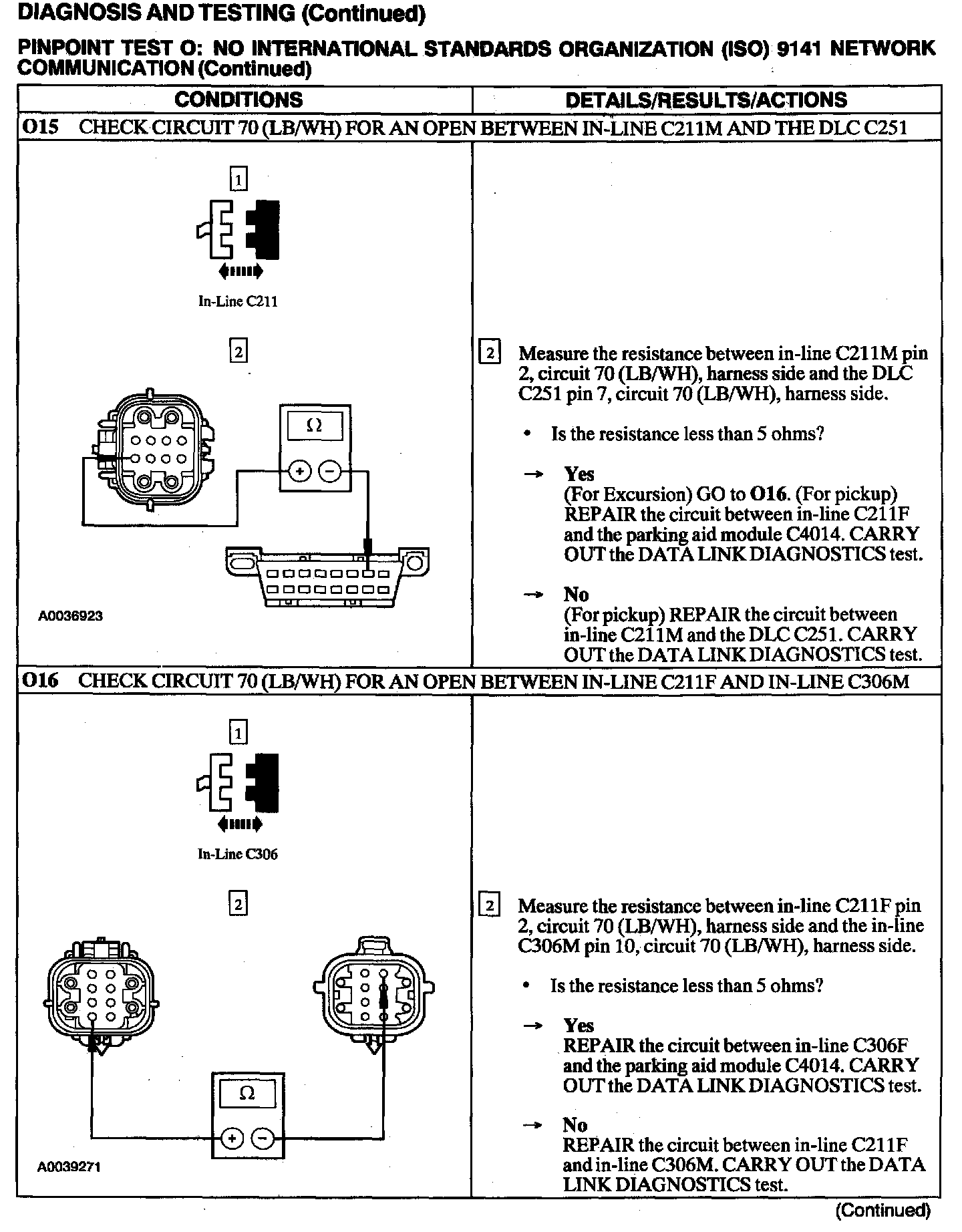

O15 - O16:

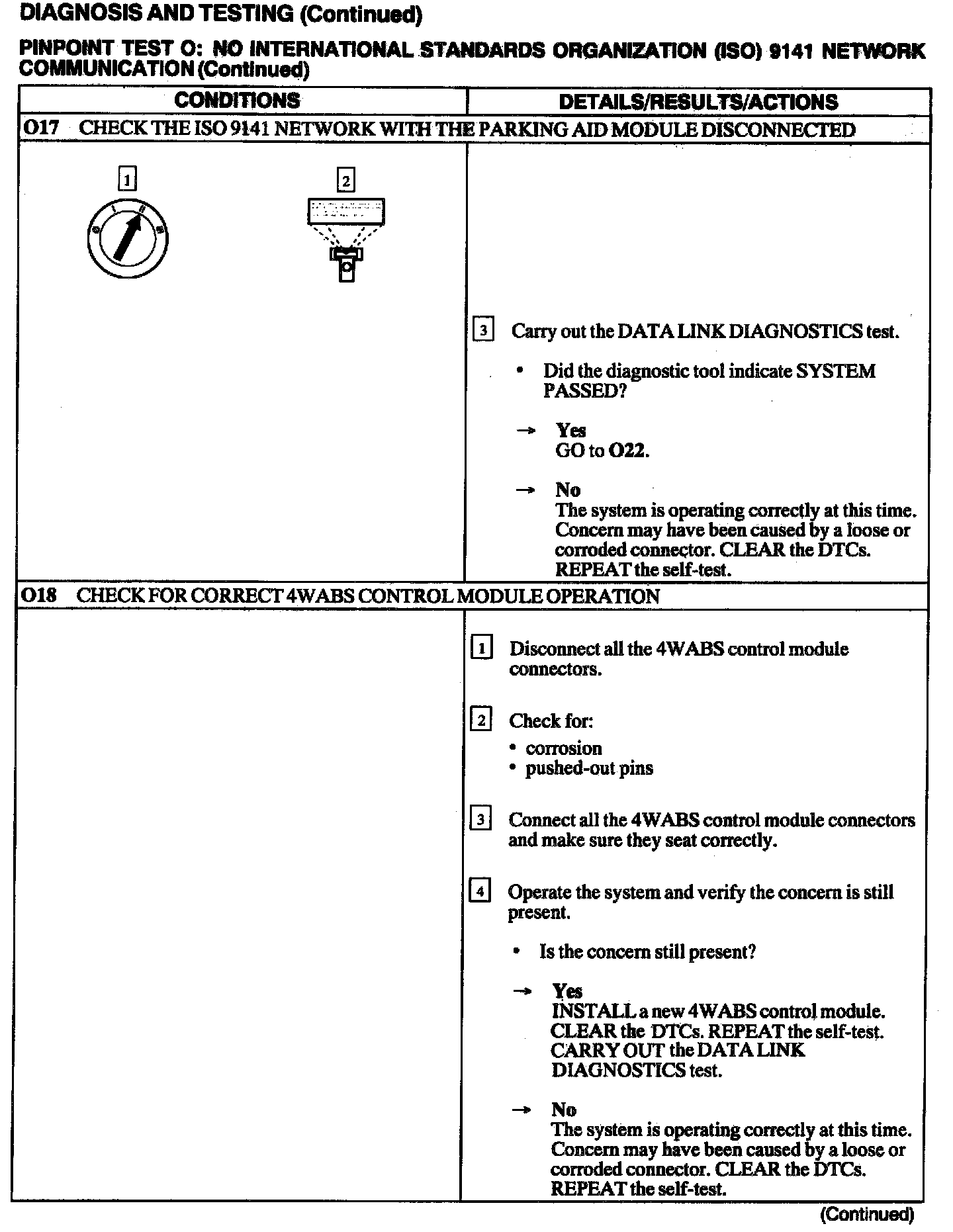

O17 - O18:

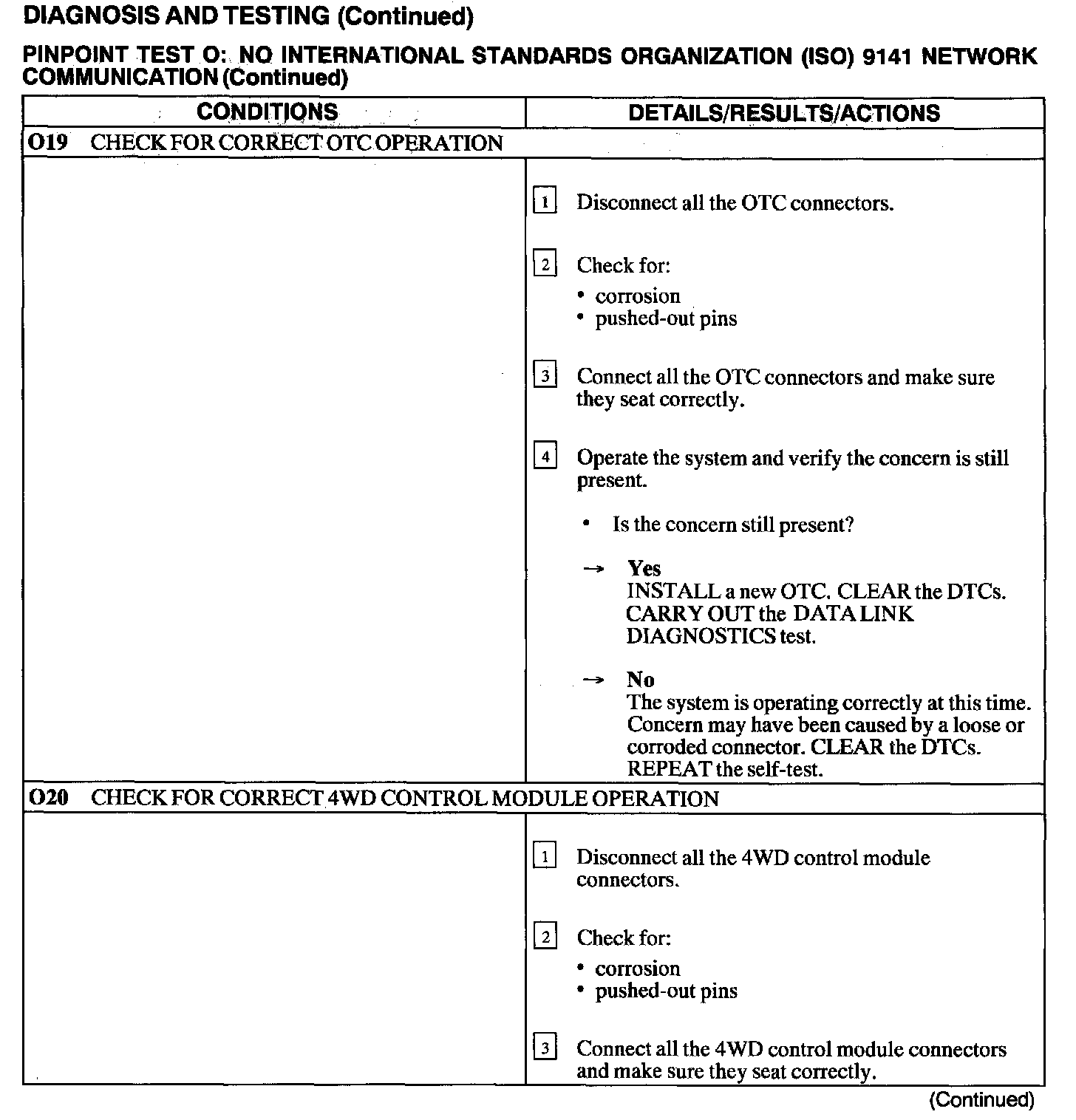

O19 - O20:

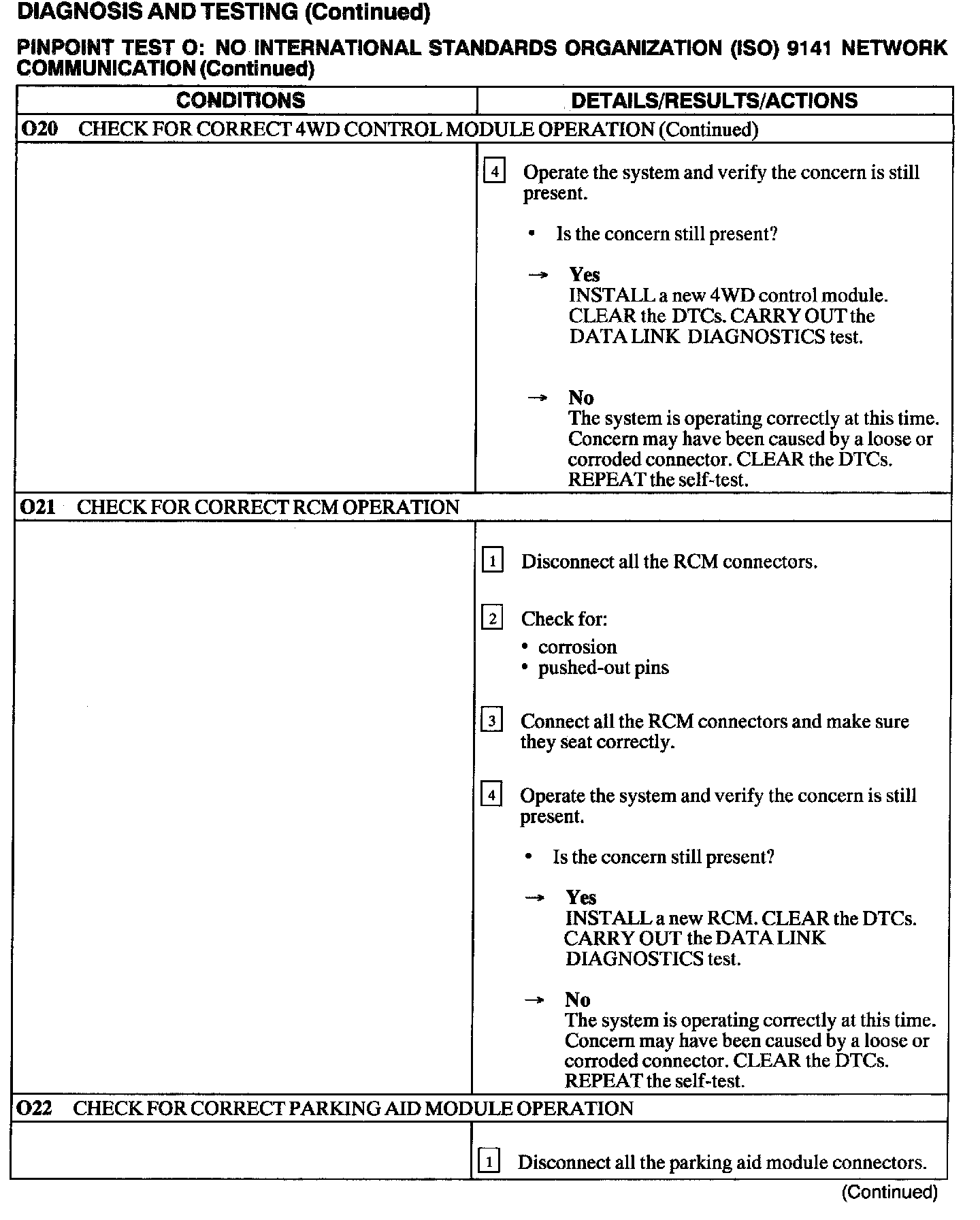

O20 - O22:

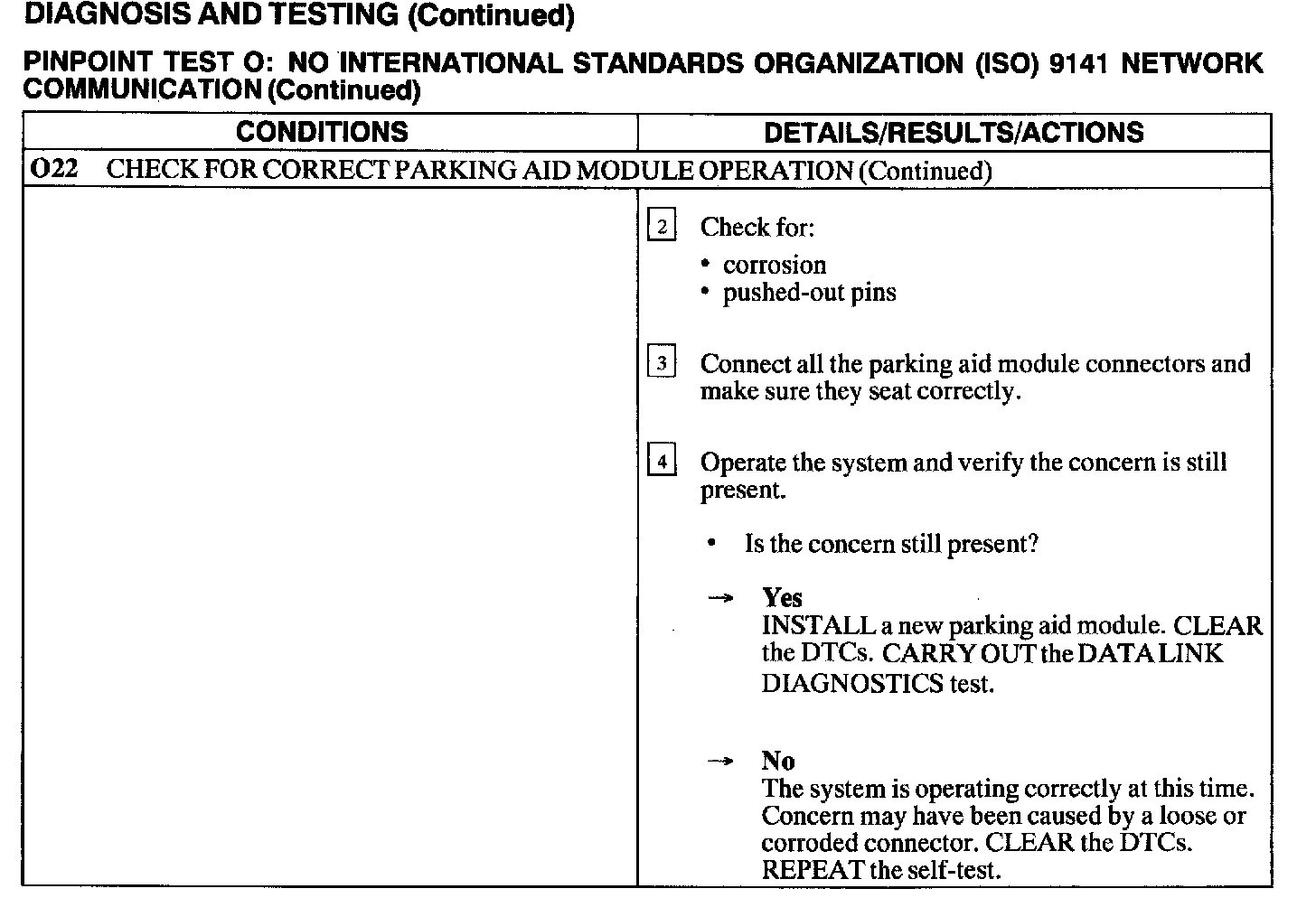

O22:
