Injector Driver Module Relay: Testing and Inspection

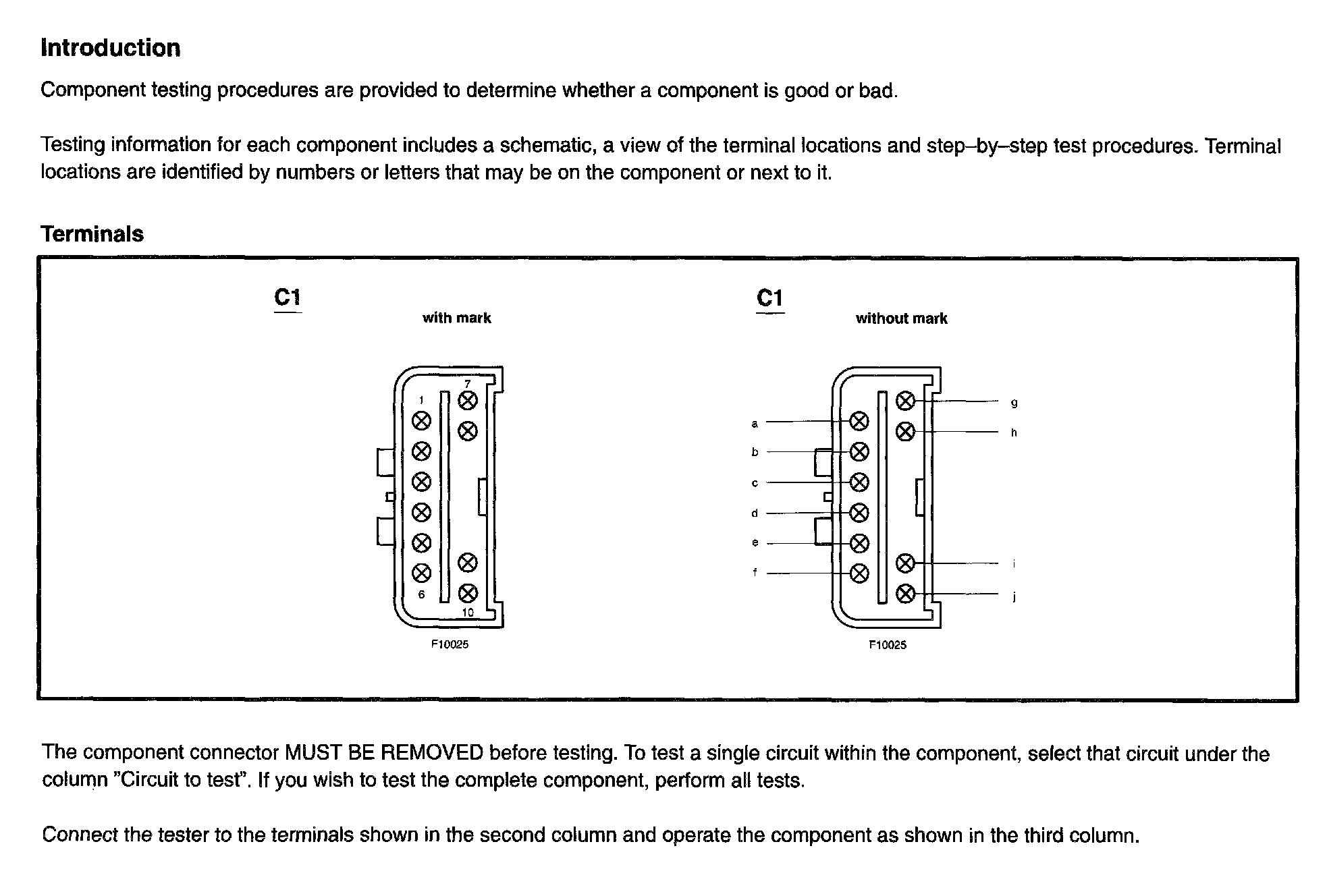

Introduction To Component Testing:

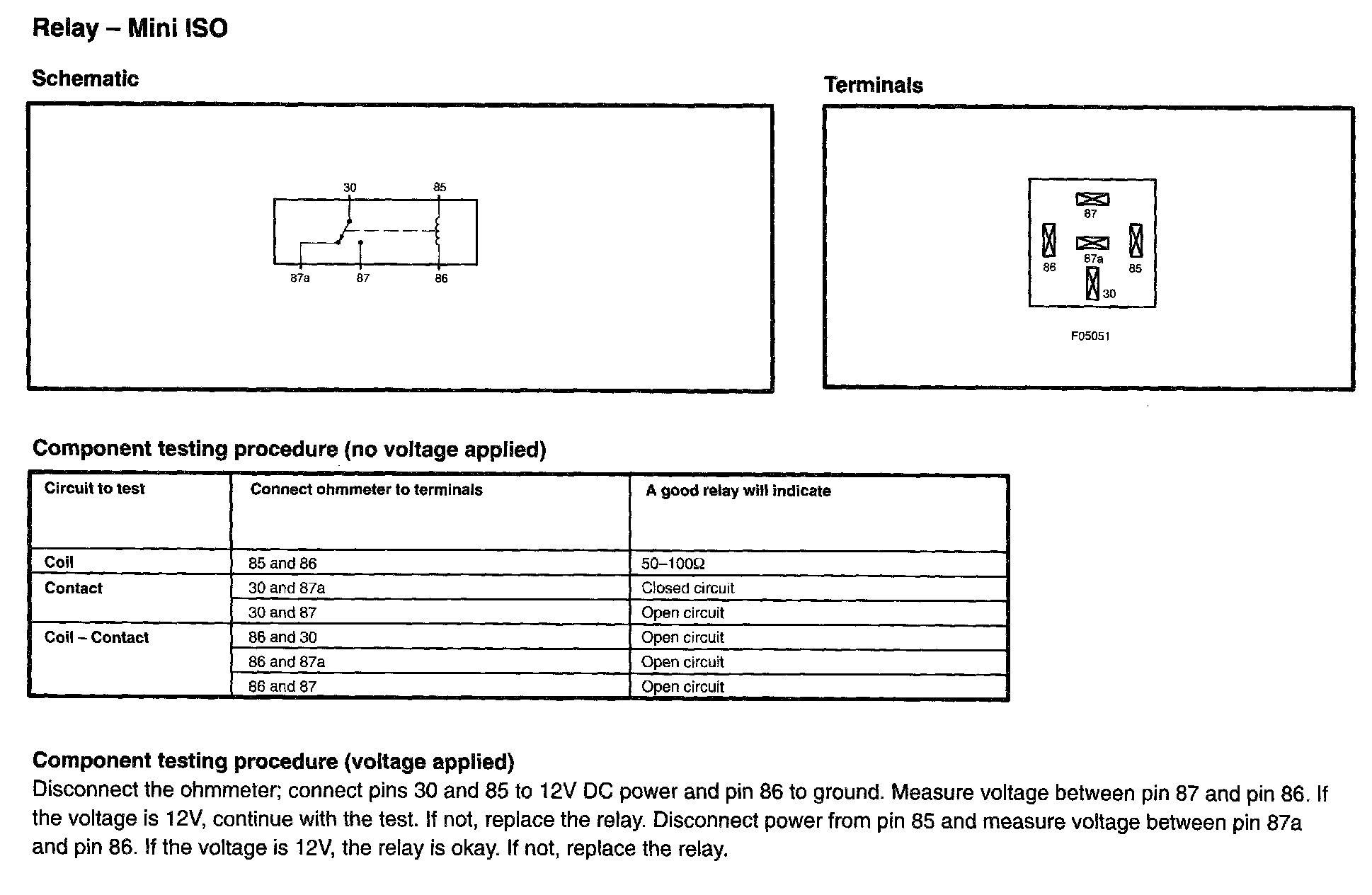

Relay - Mini ISO:
