Test B: Powertrain Control Module PCM Power Relay

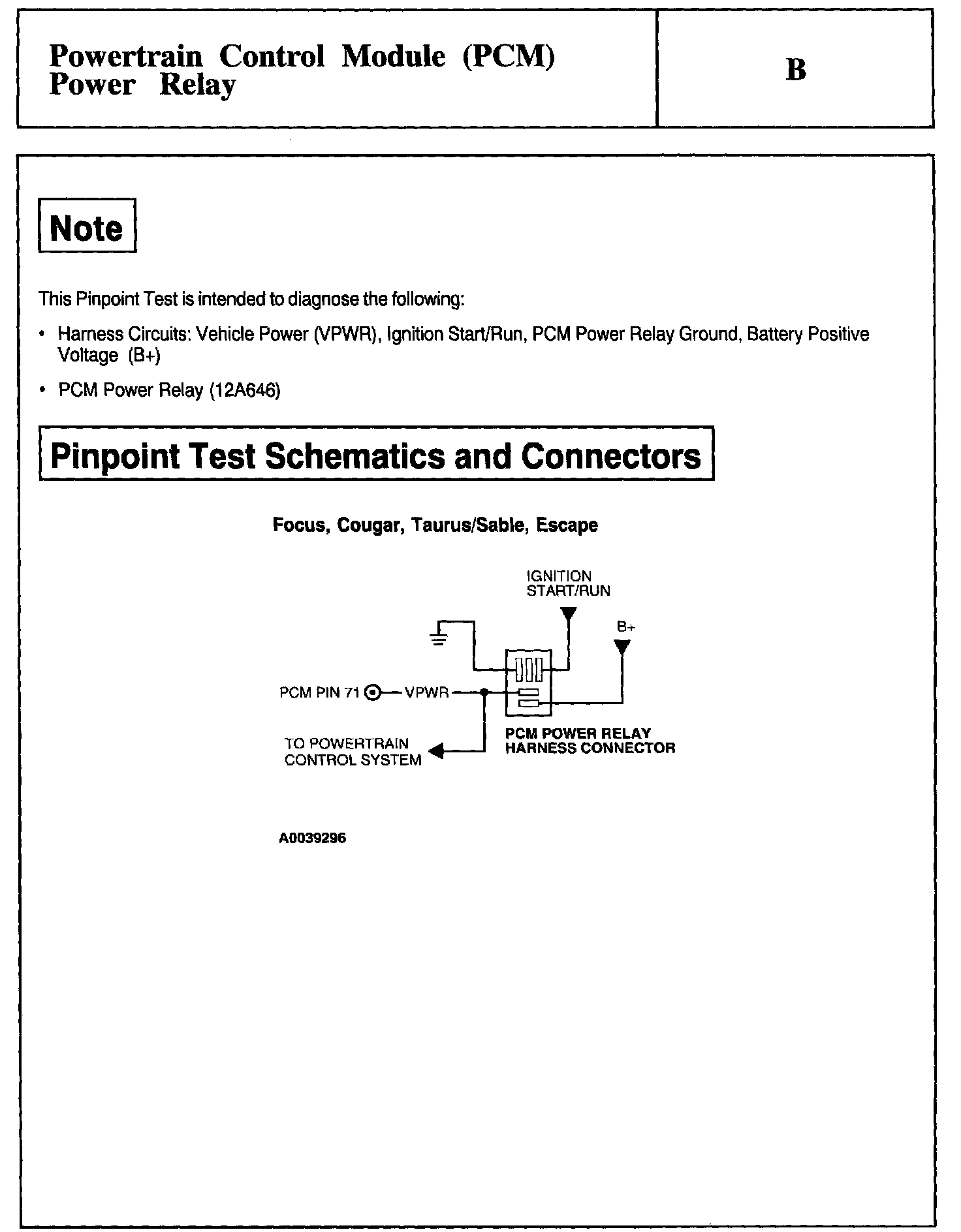

Note, Schematics and Connectors:

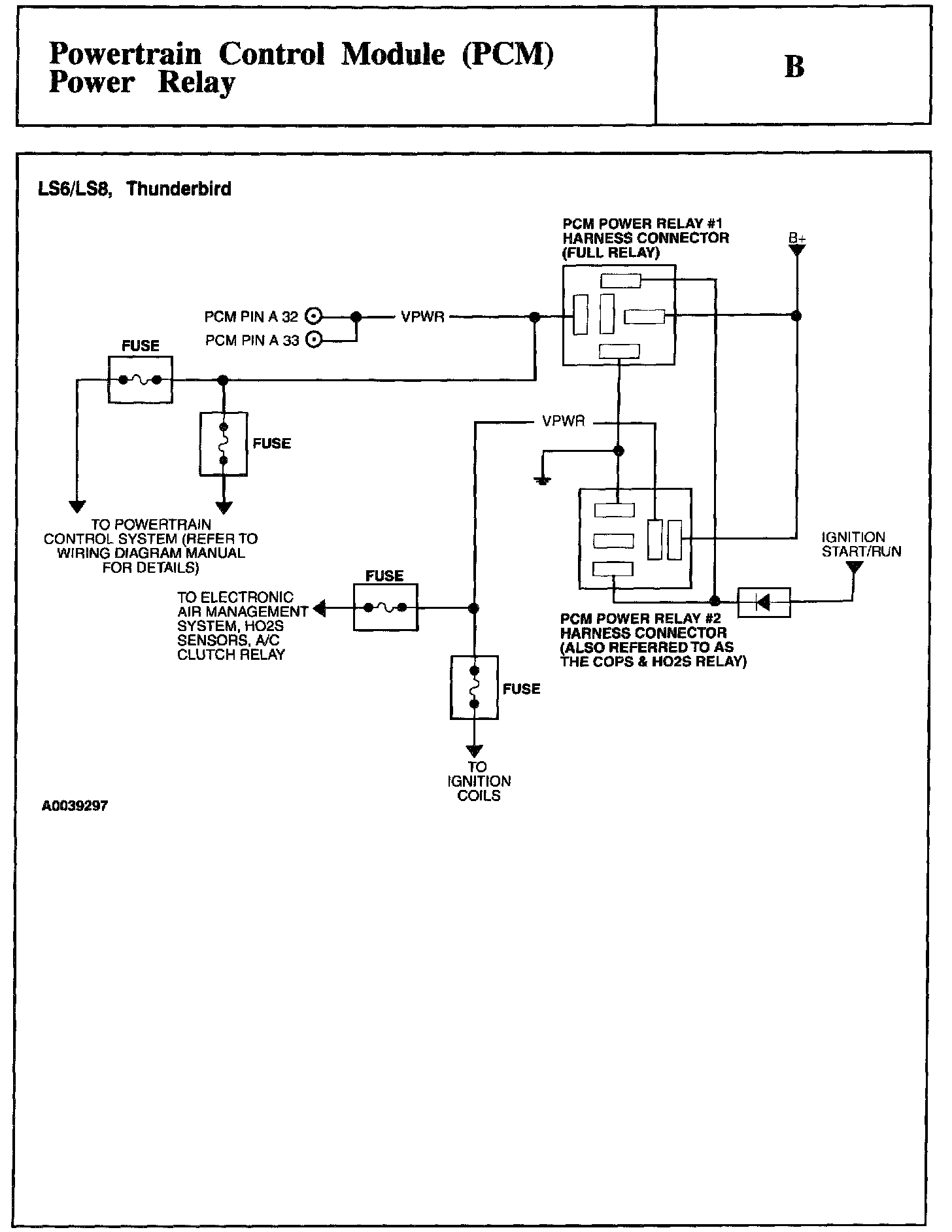

Test Schematic:

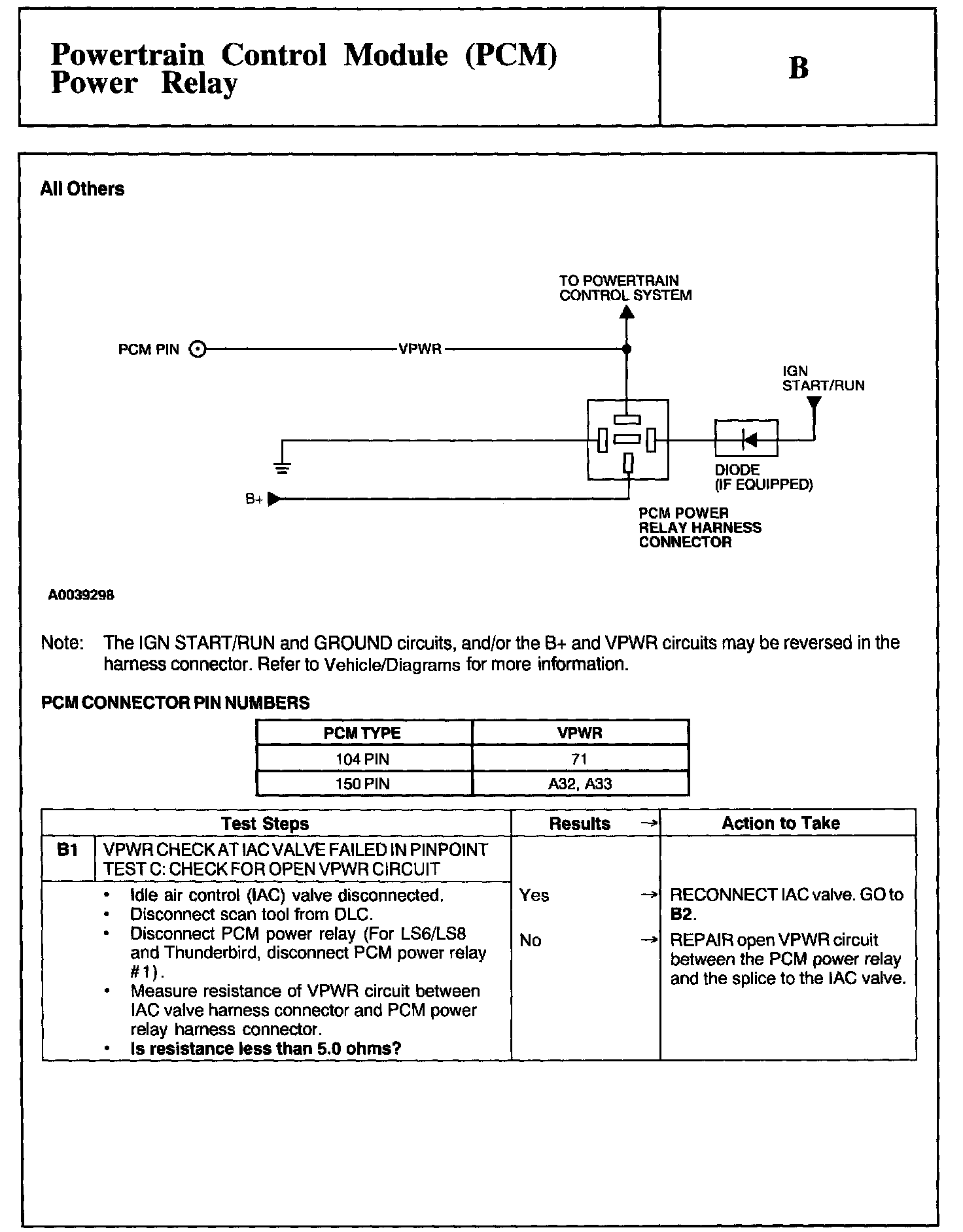

Schematic, Test B1:

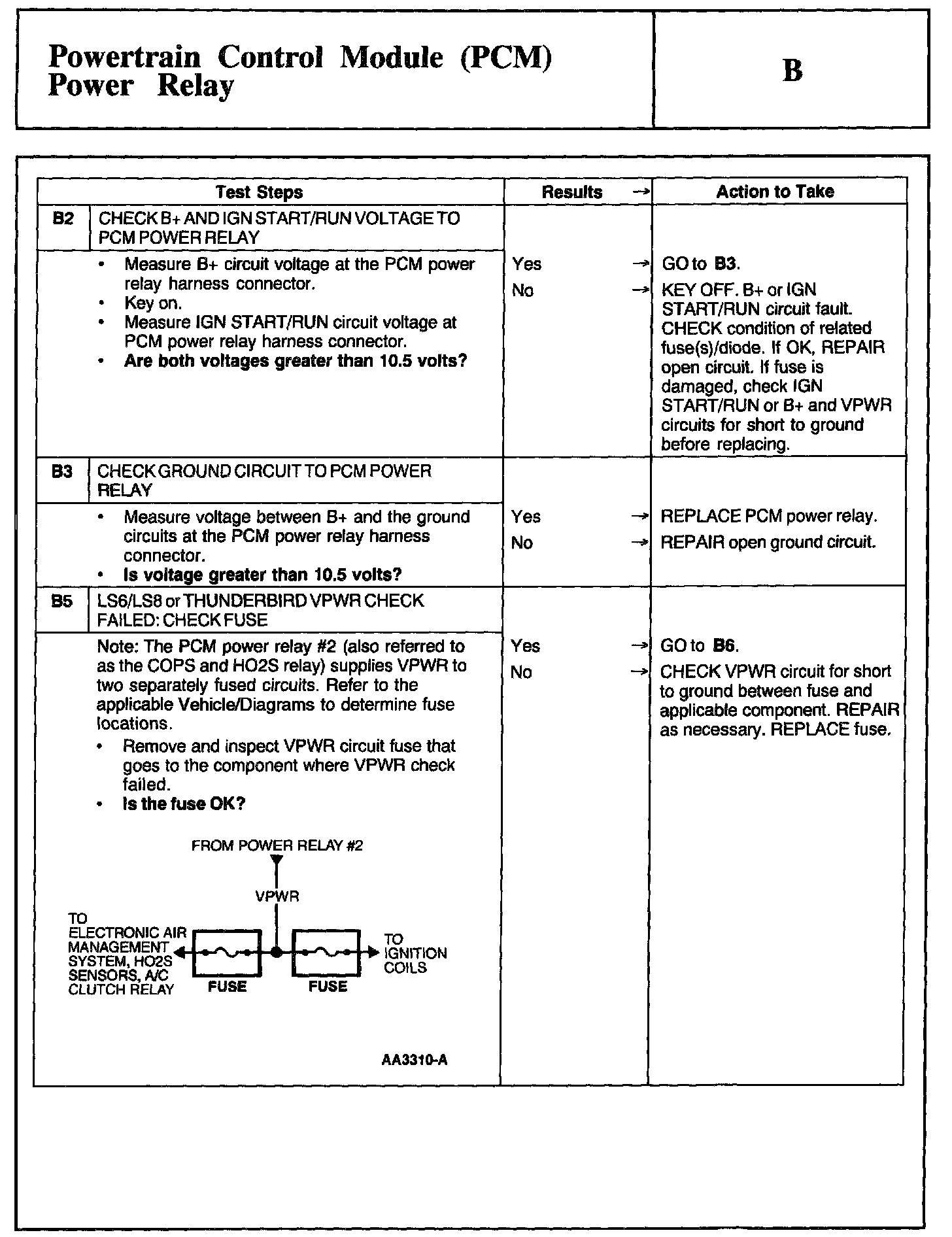

B2 - B5:

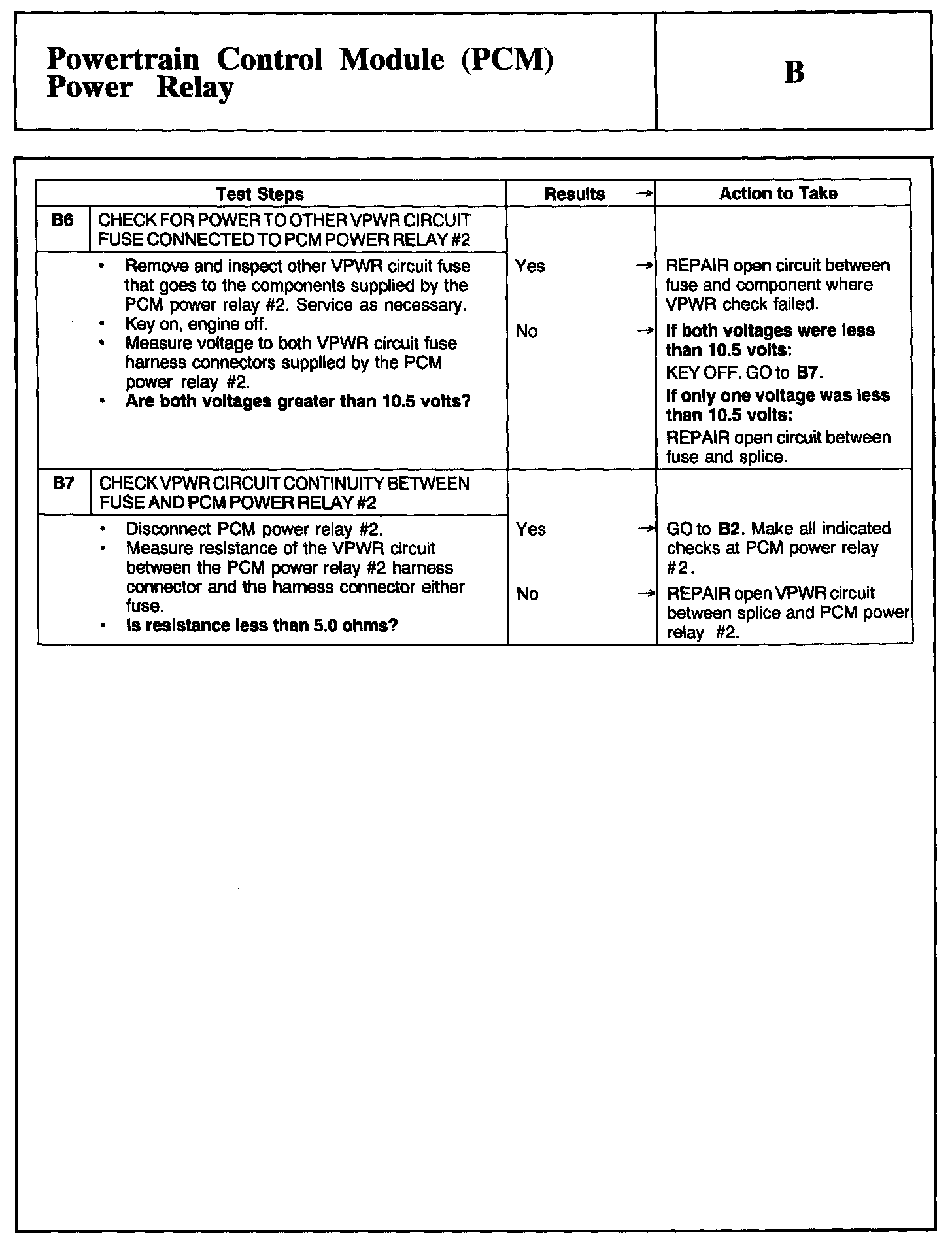

B6 - B7:
