Tests DR: Camshaft Position (CMP) Sensor

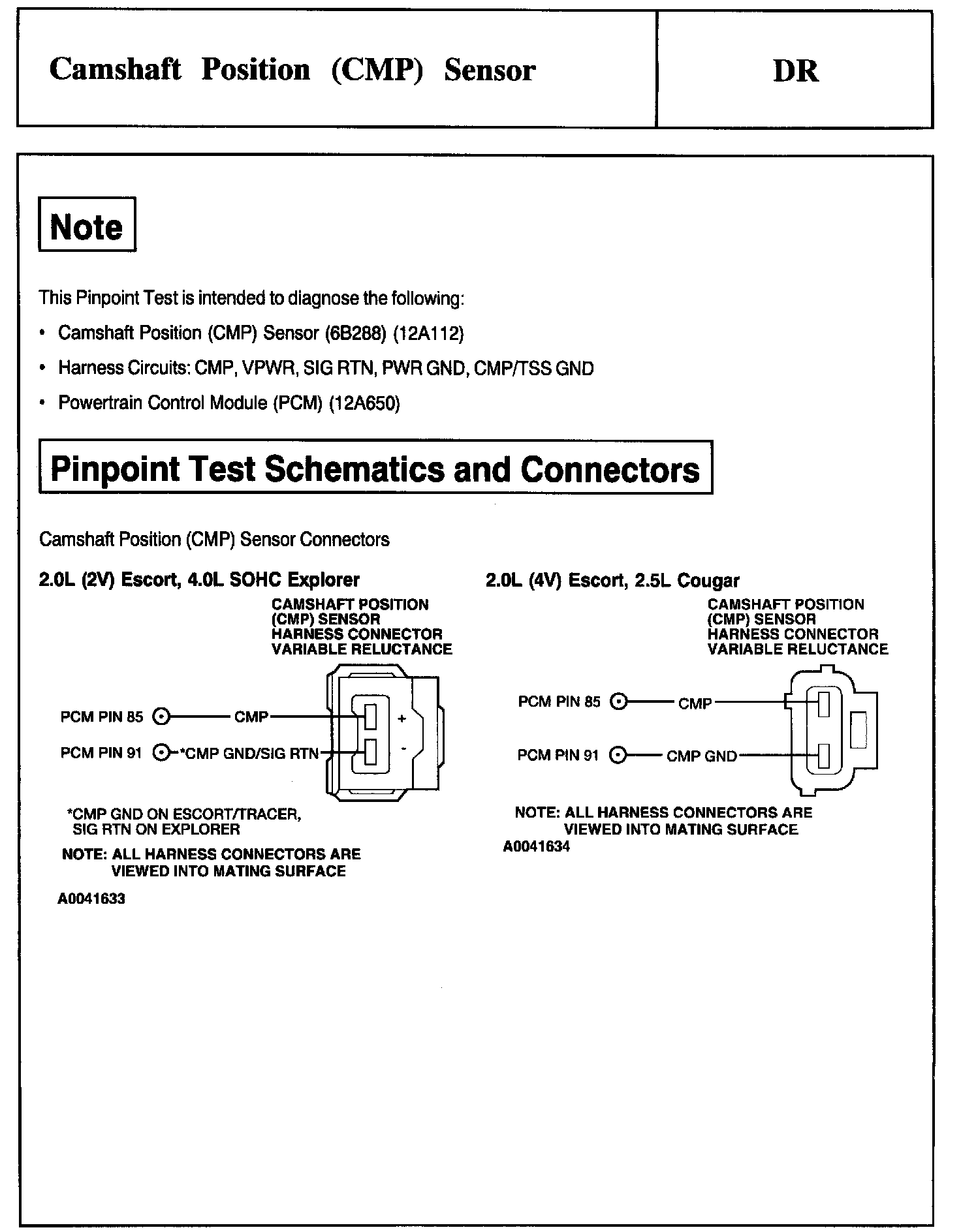

Note, Schematics and Connectors:

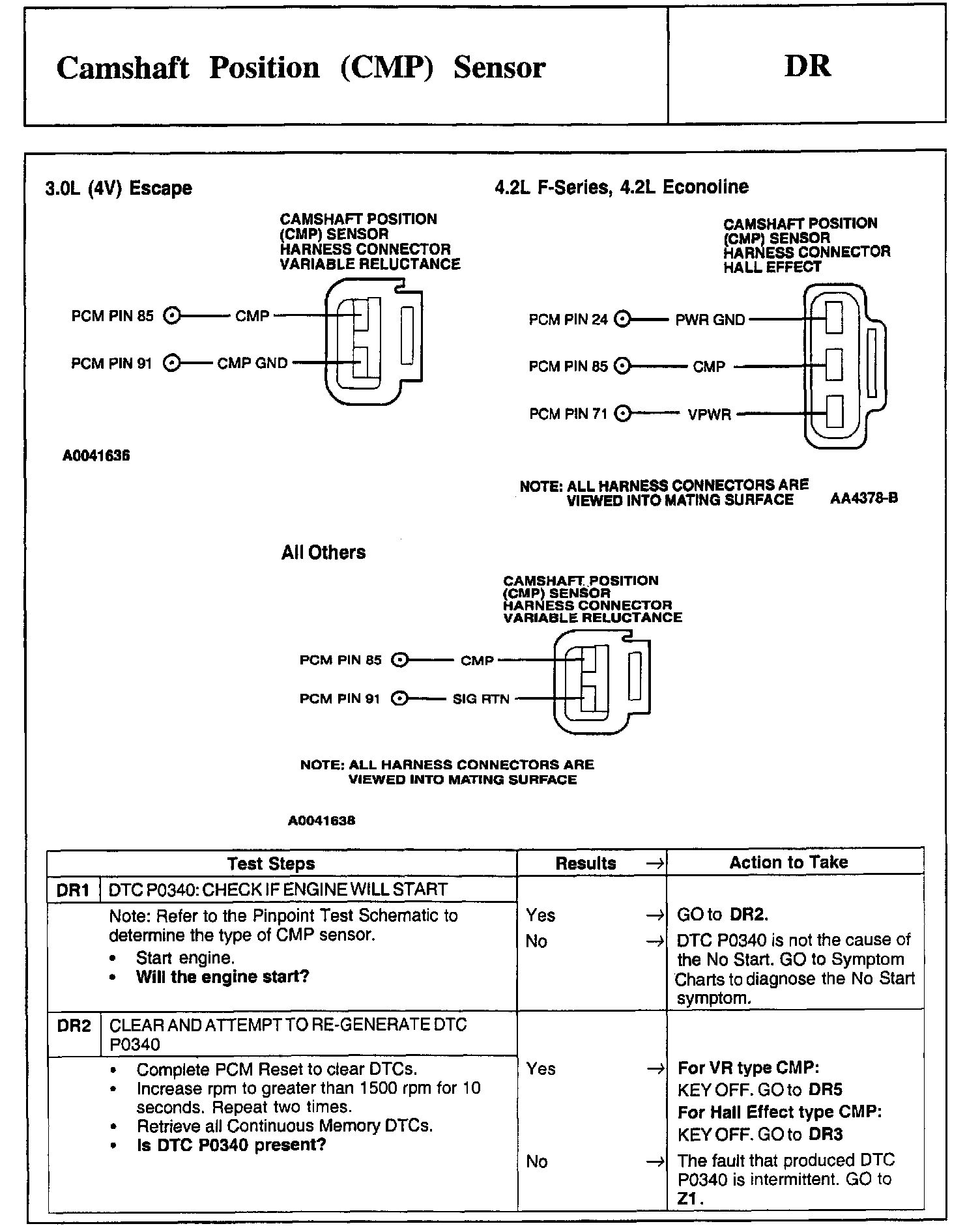

Test Schematic:

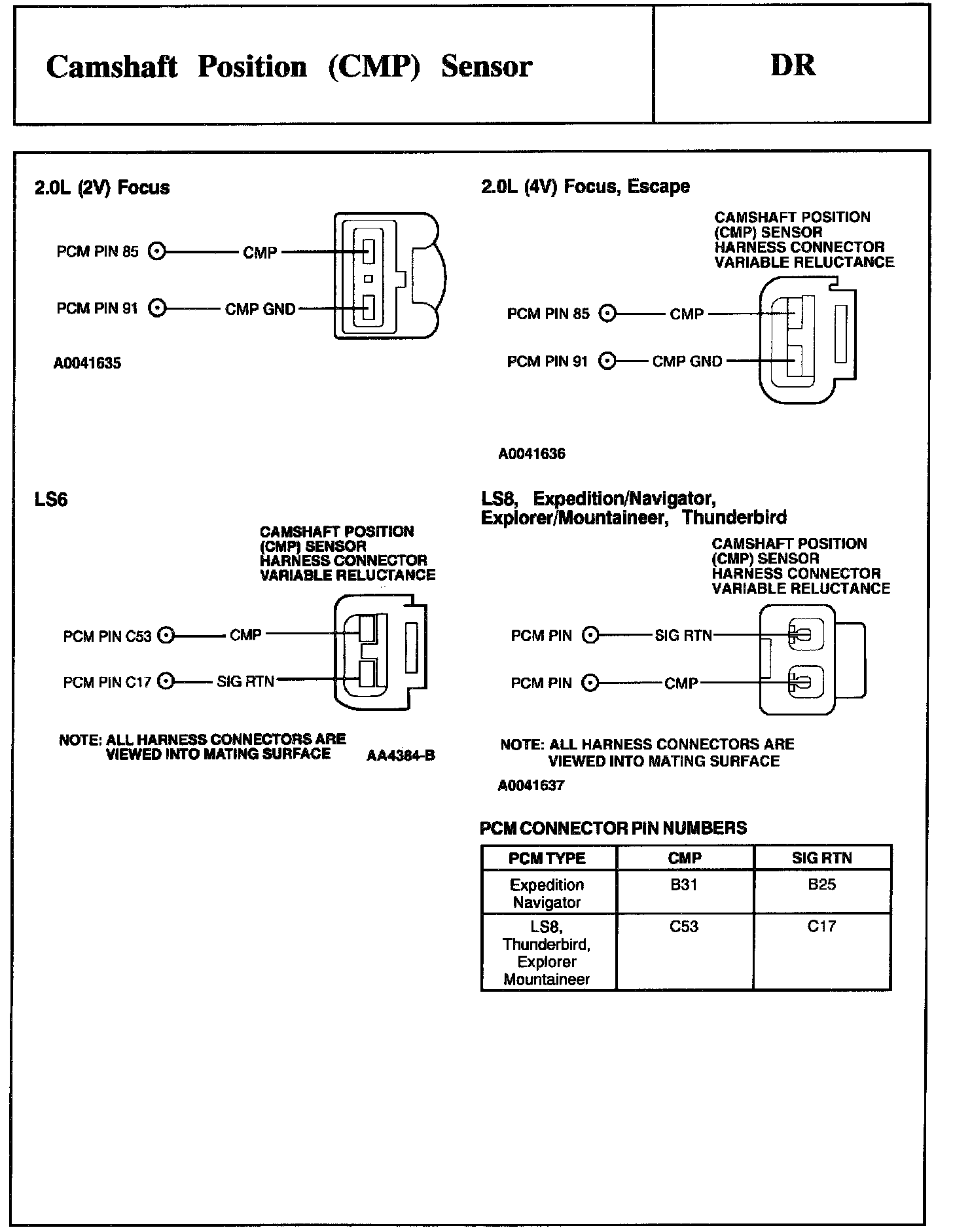

Schematic, Test DR1 - DR2:

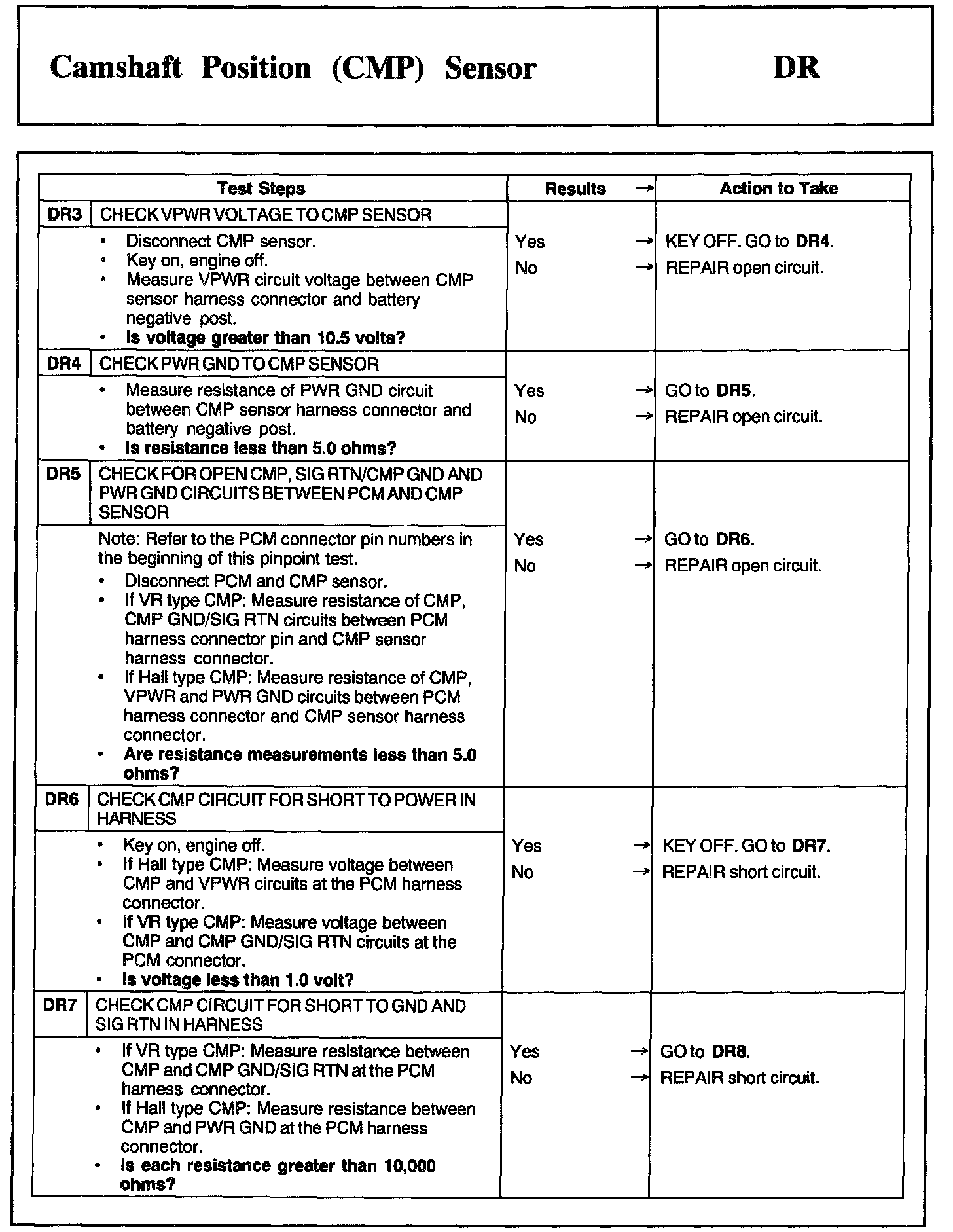

DR3 - DR7:

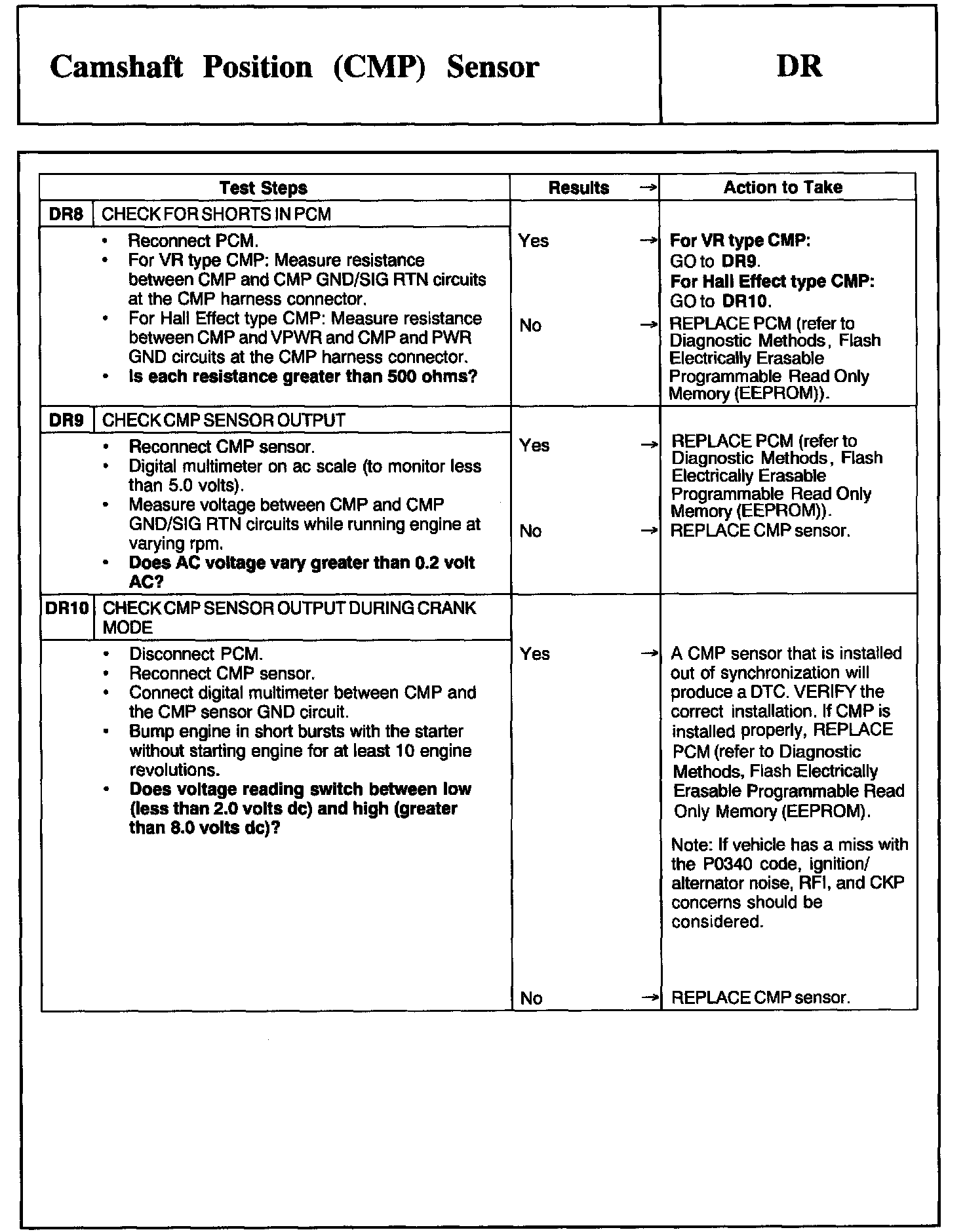

DR8 - DR10:
