Tests EM: Emissions Compliance

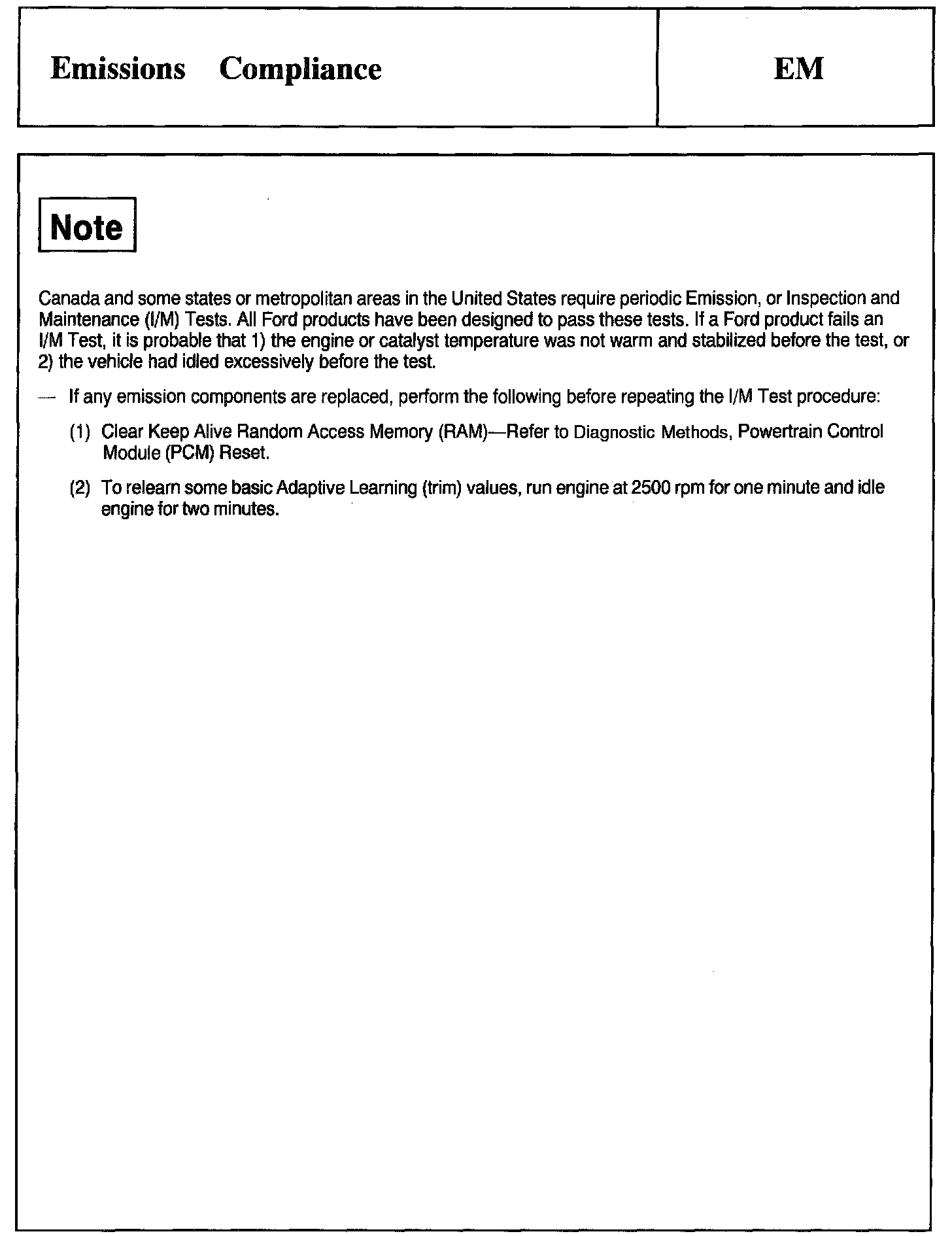

Test Note:

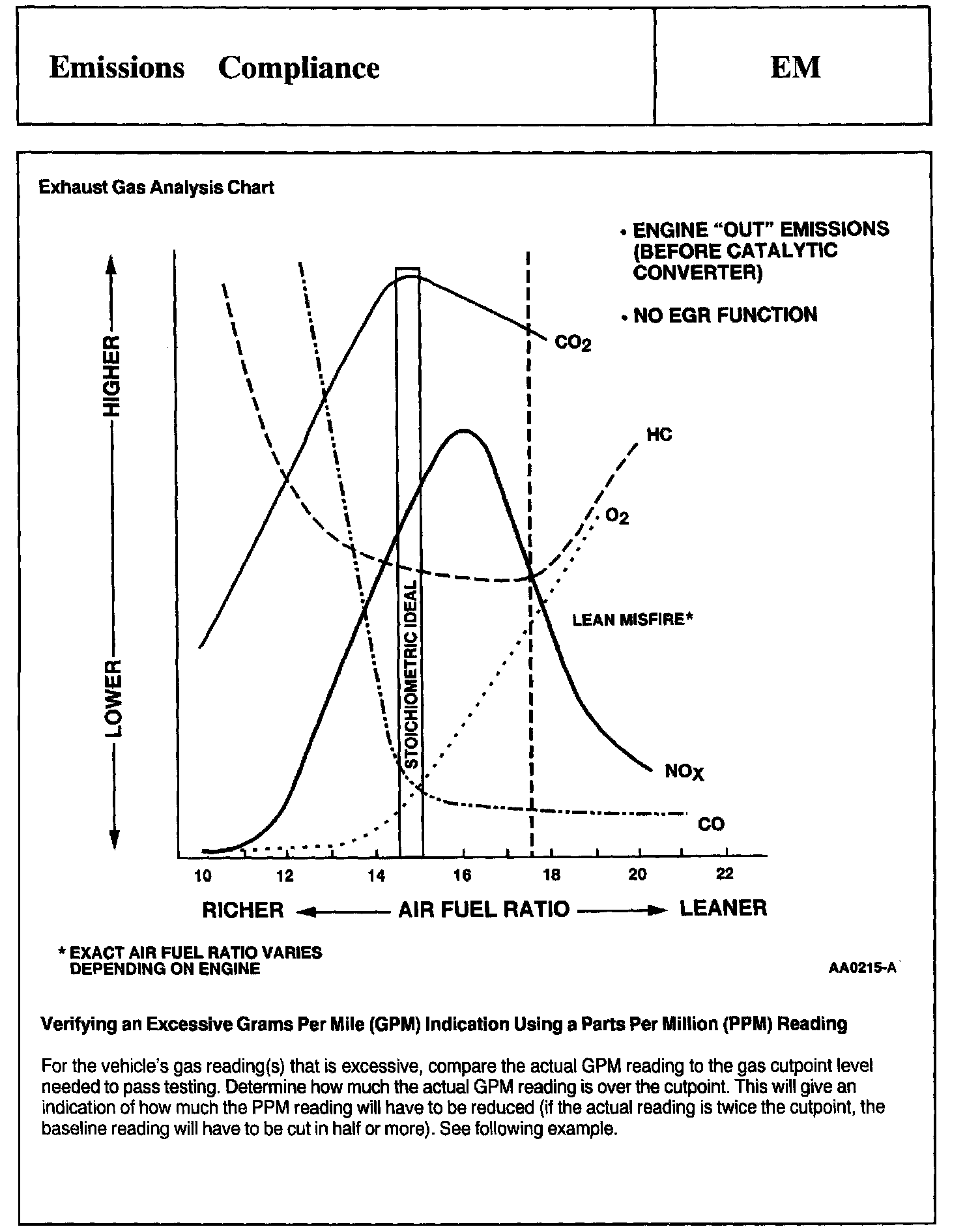

Test Graph, Description:

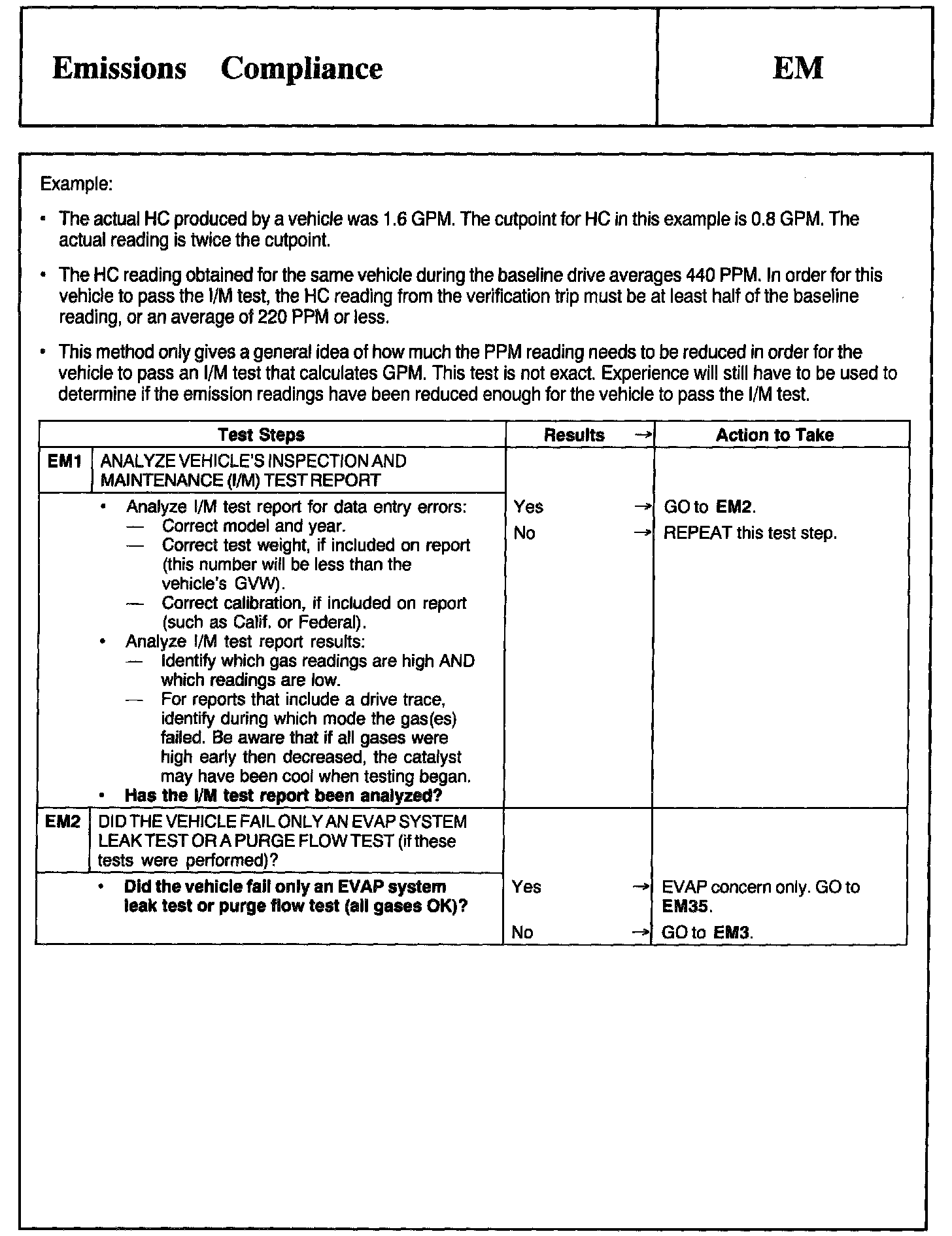

Description, Test EM1 - EM2:

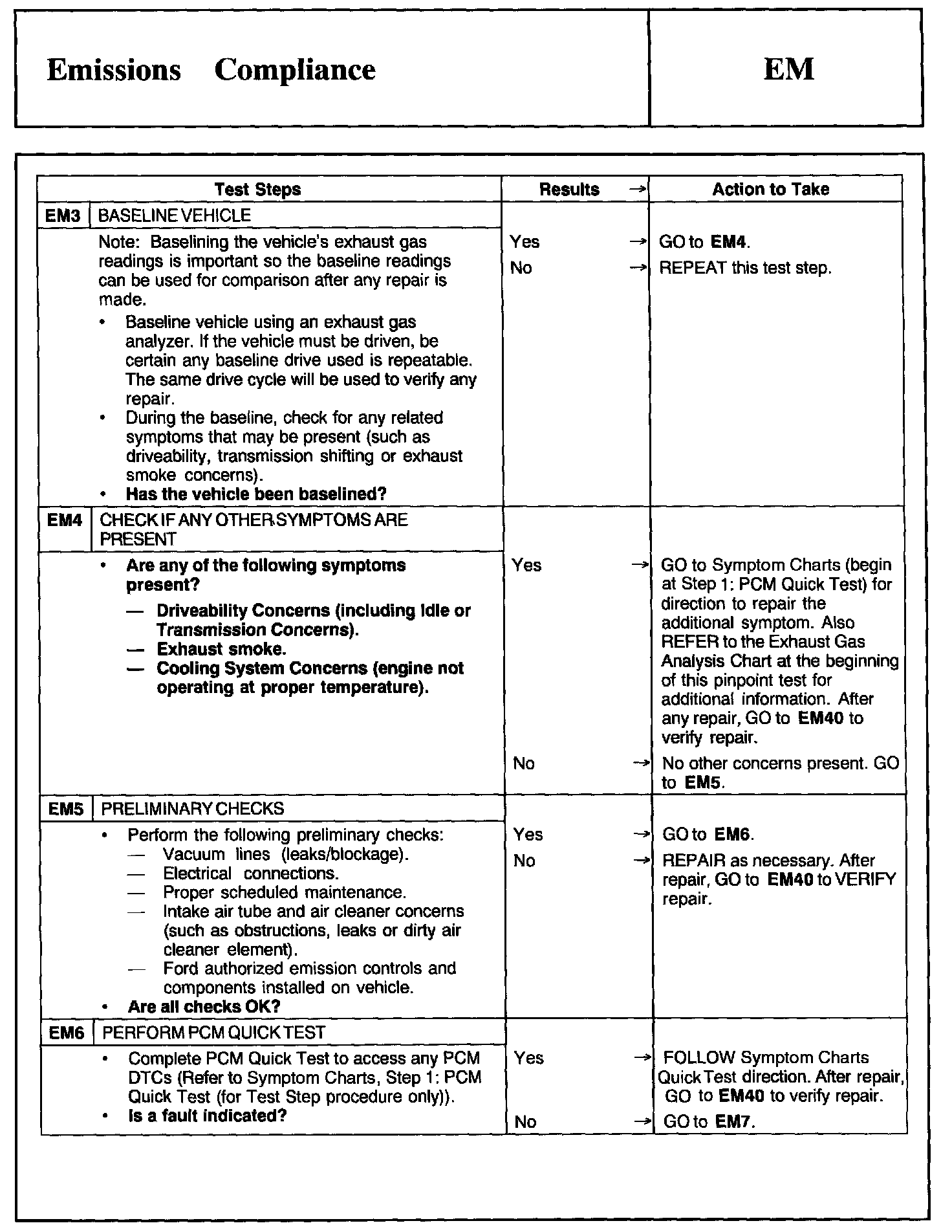

EM3 - EM6:

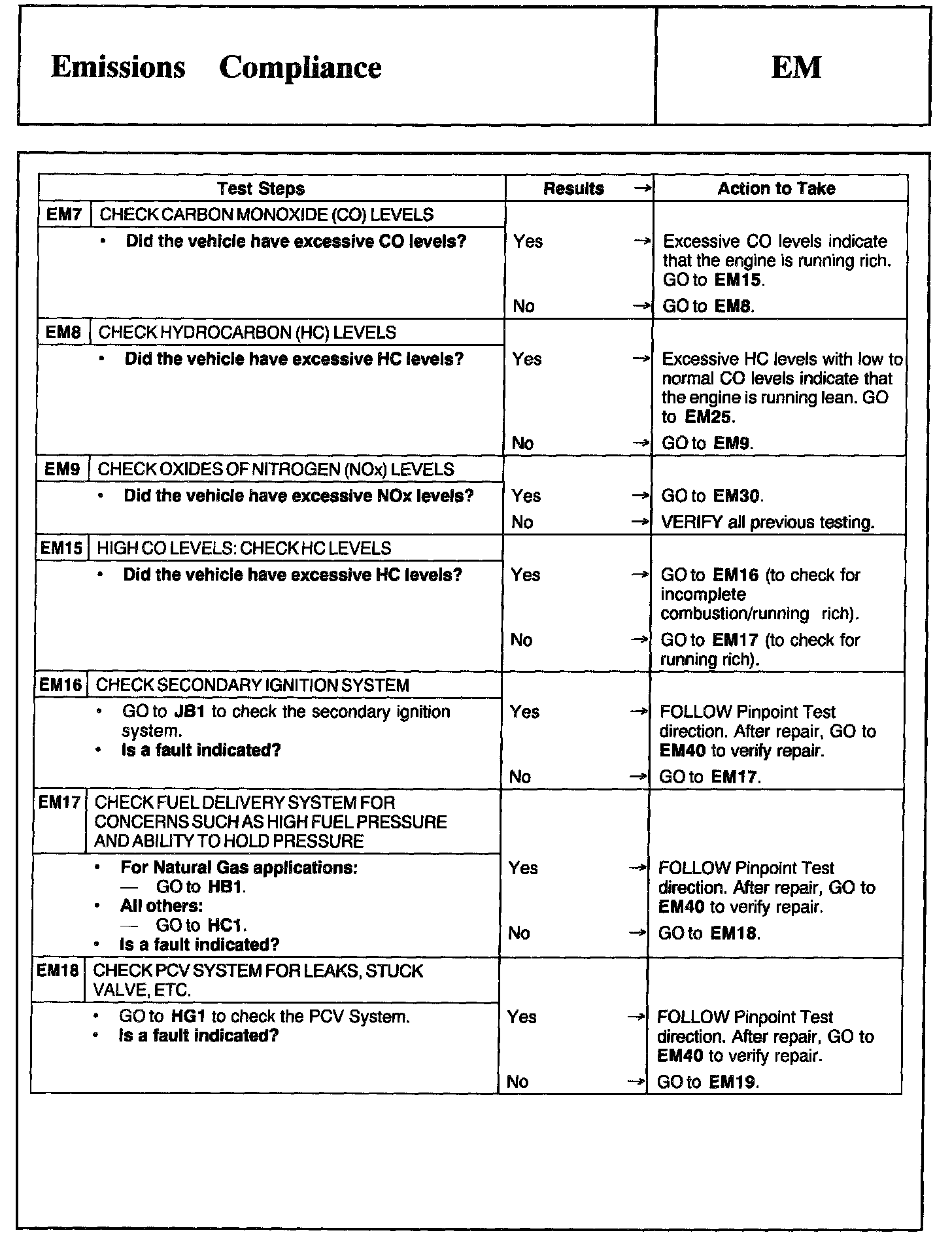

EM7 - EM18:

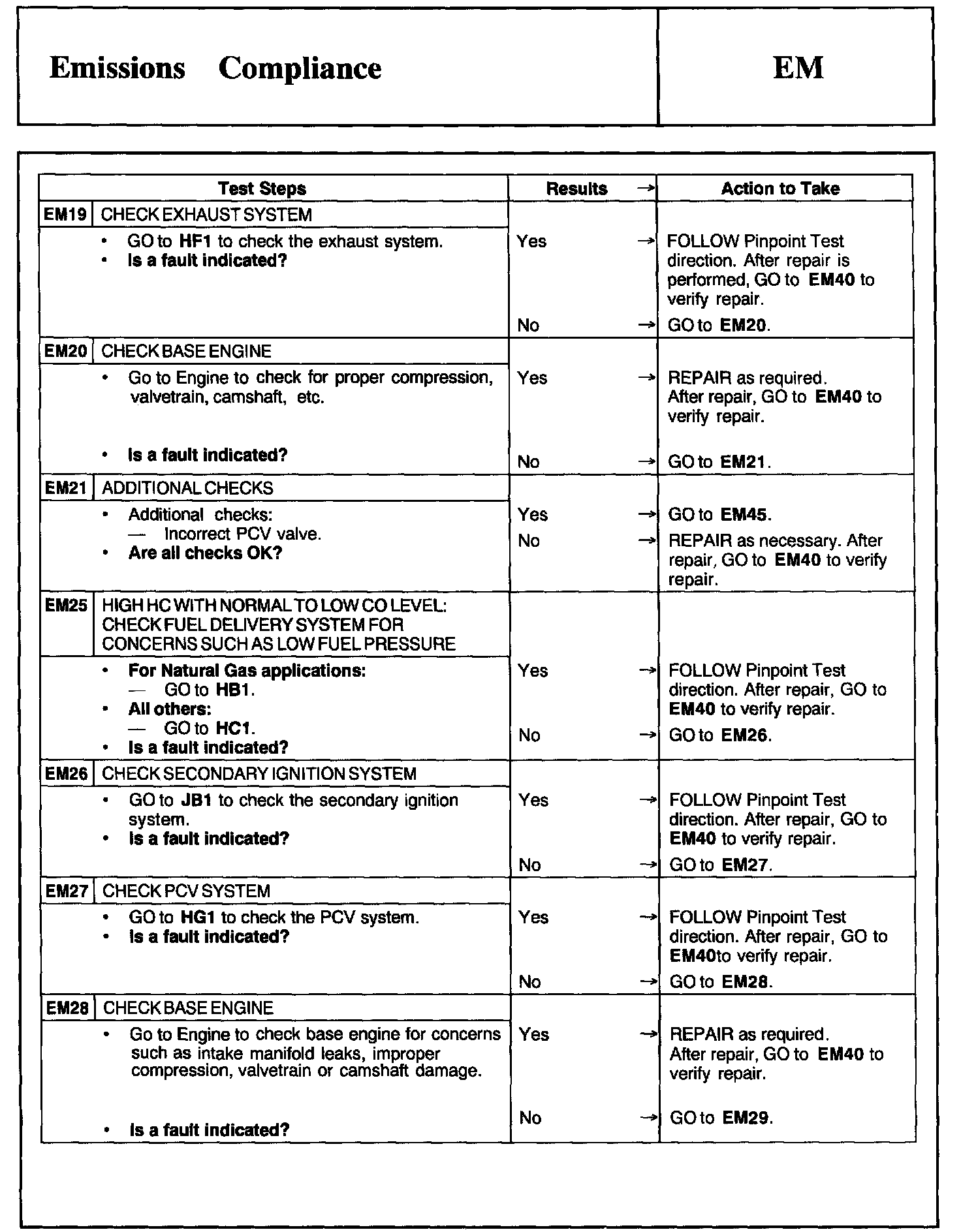

EM19 - EM28:

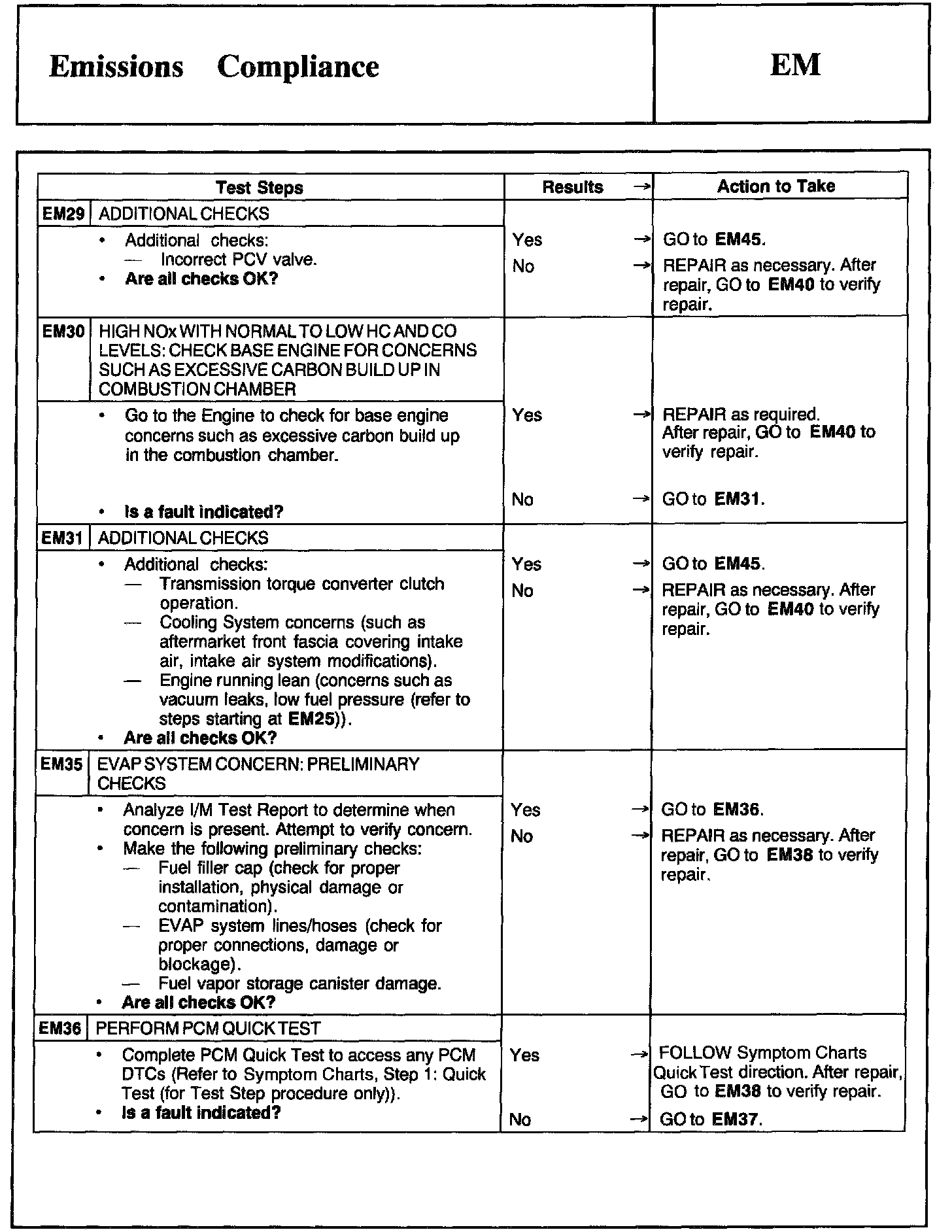

EM29 - EM36:

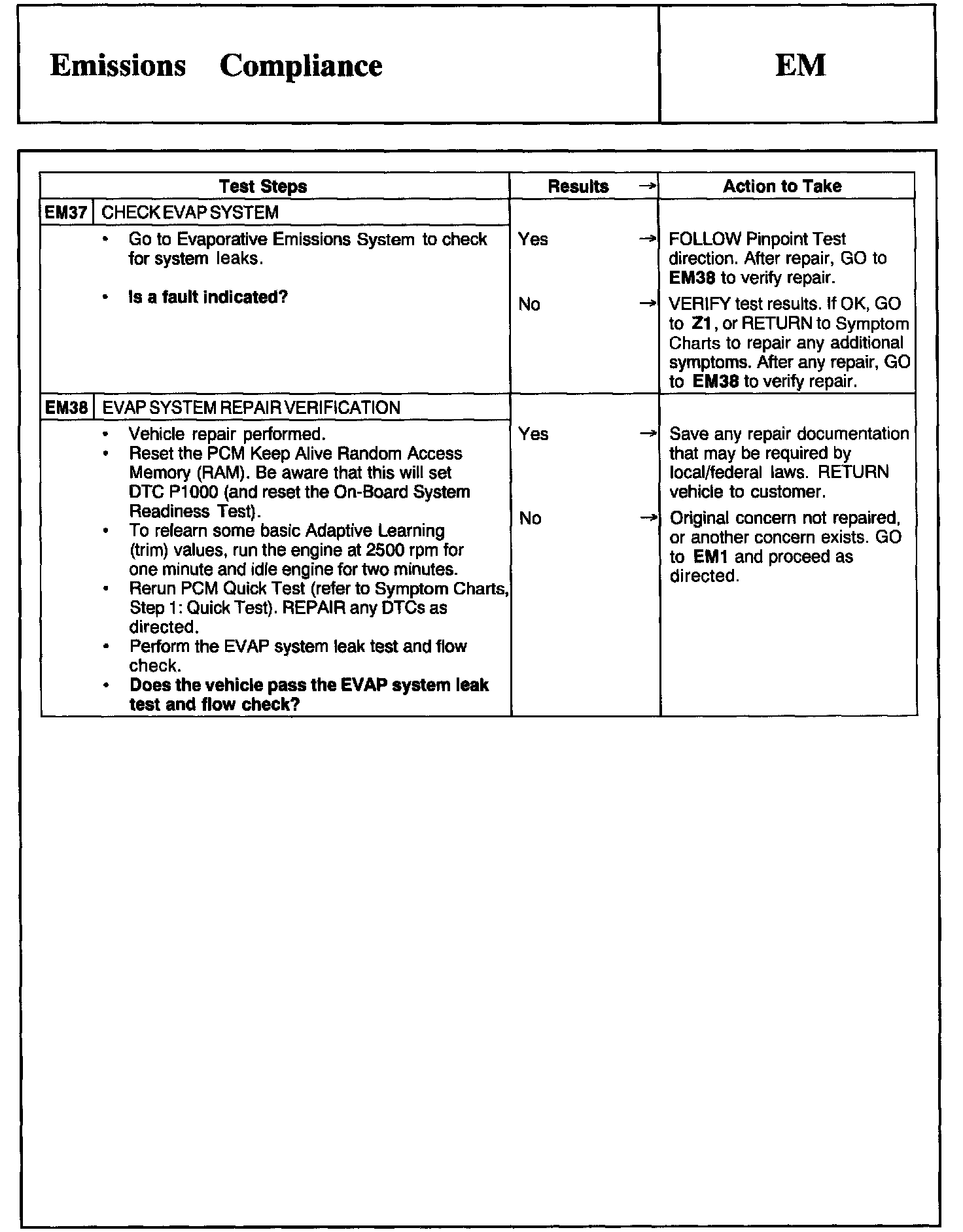

EM37 - EM38:

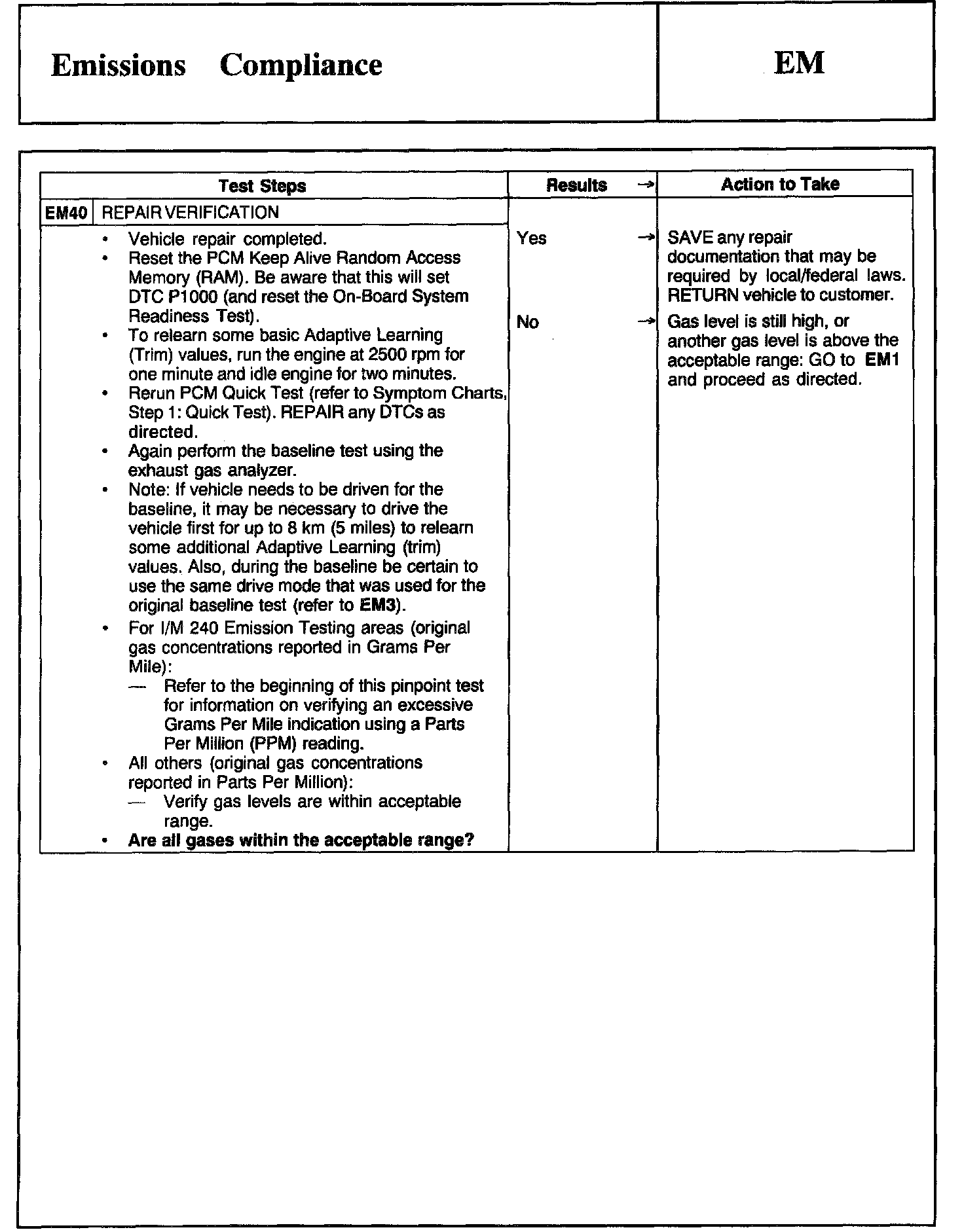

EM40:

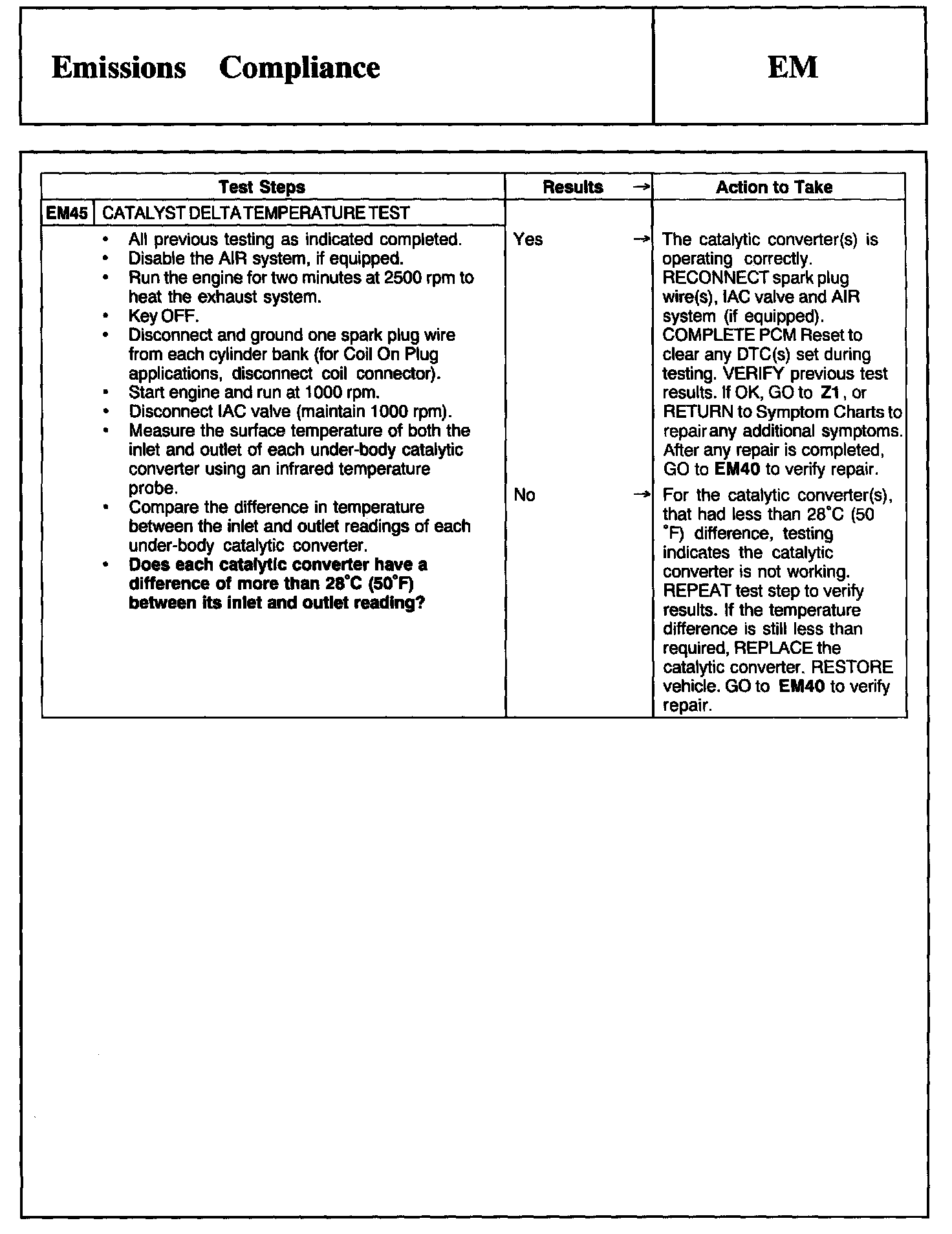

EM45:
