Tests TJ: Output Shaft Speed (OSS) Sensor

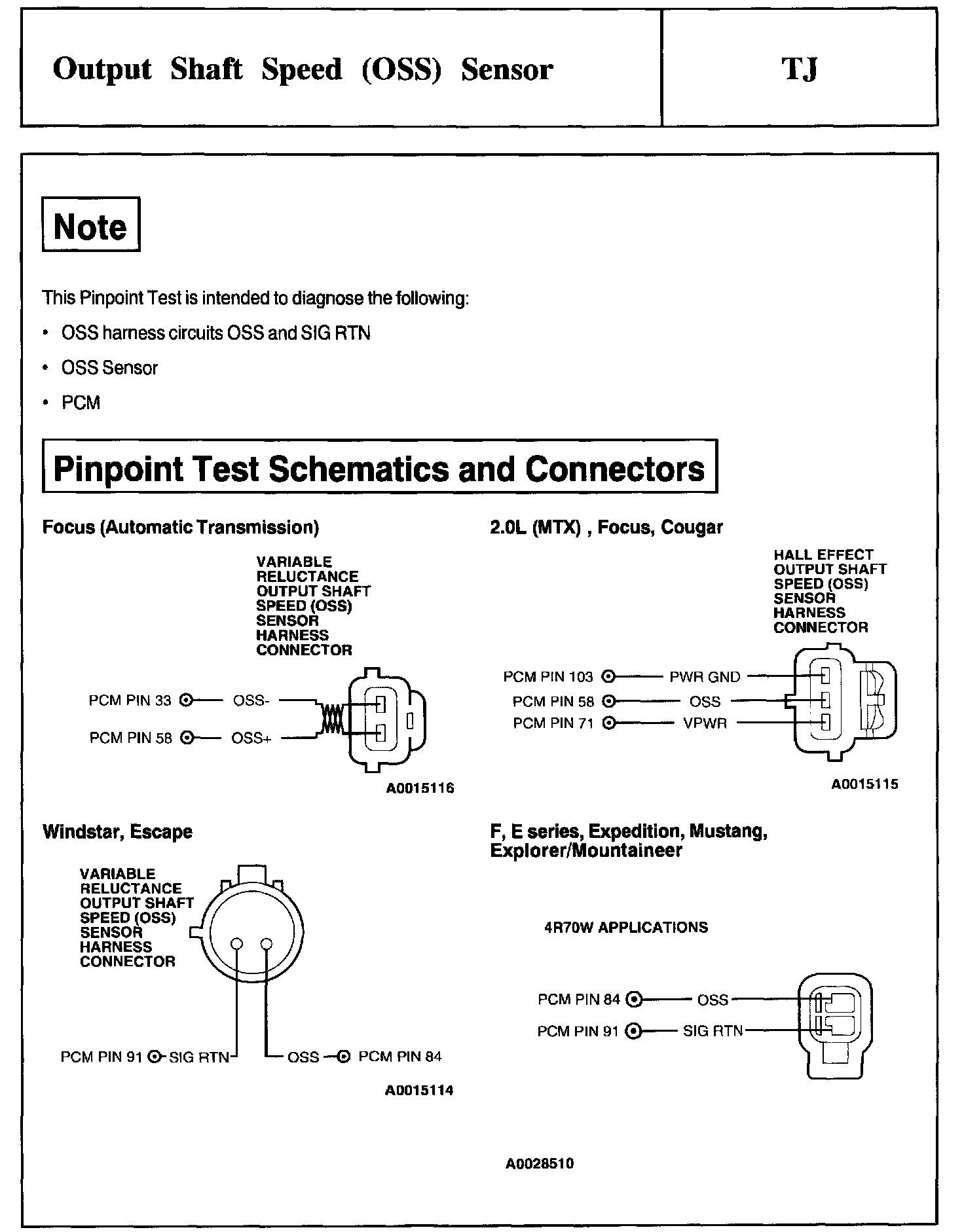

Note, Schematics and Connectors:

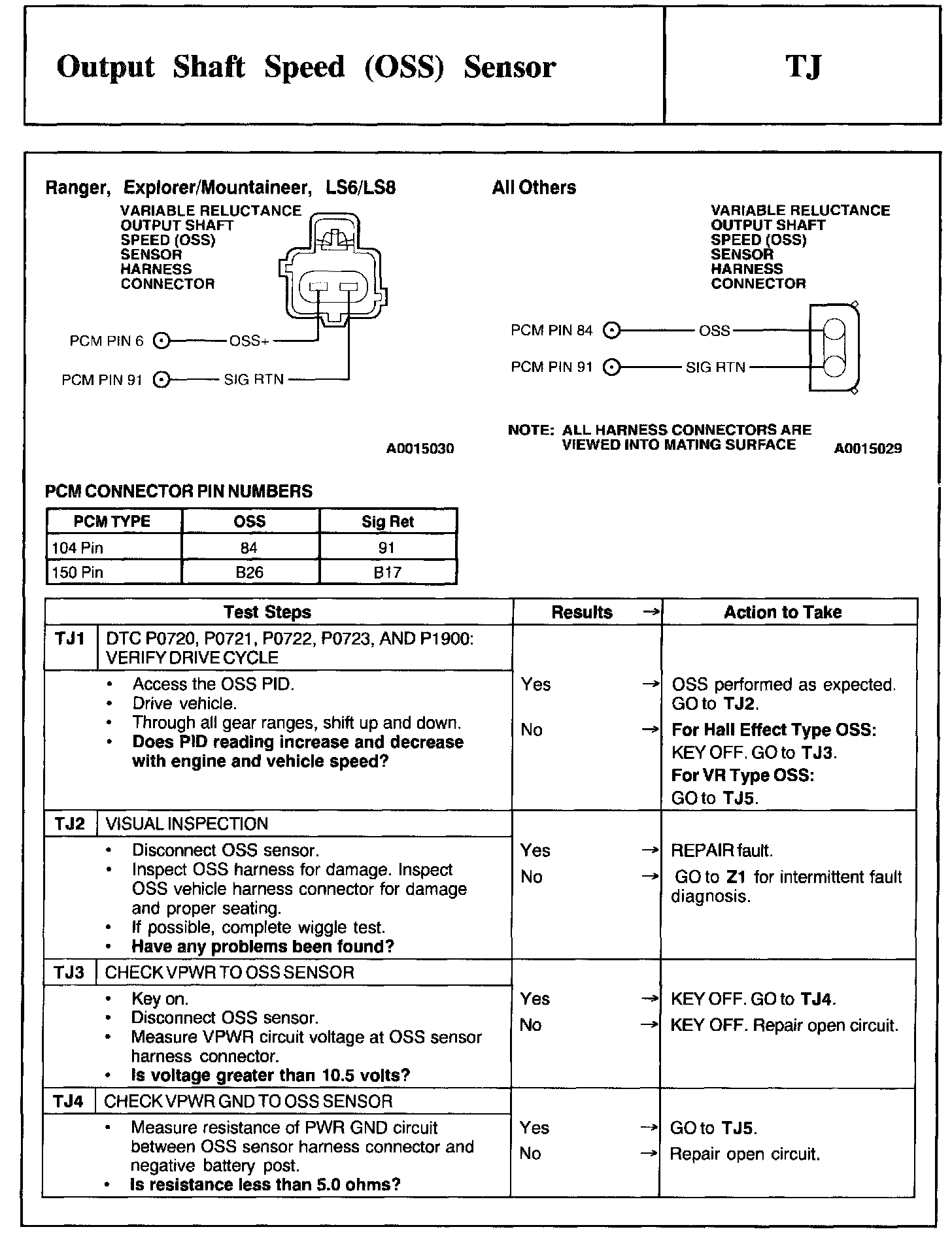

Schematic, Test TJ1 - TJ4:

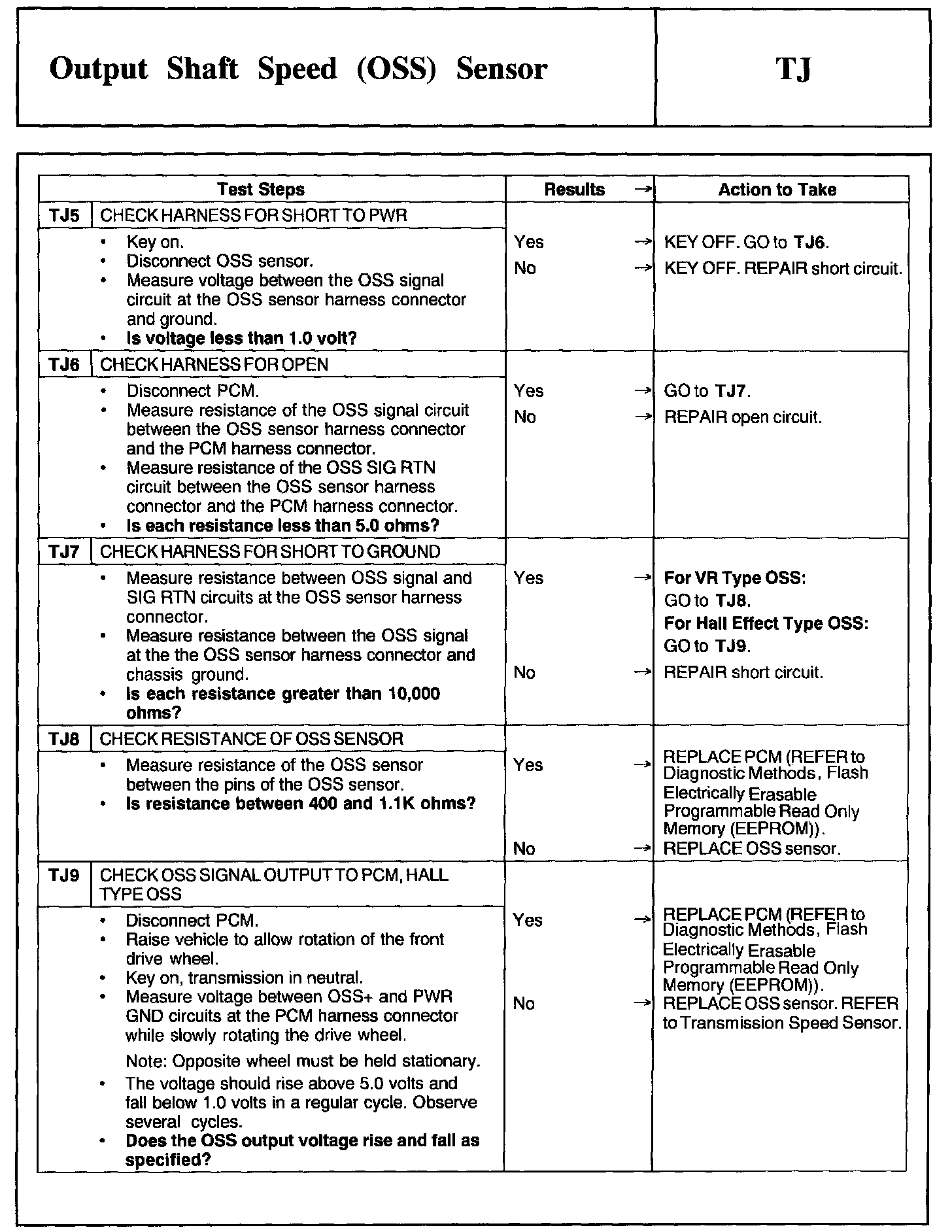

TJ5 - TJ9:
