Reference Value PID/Measured Signal Chart

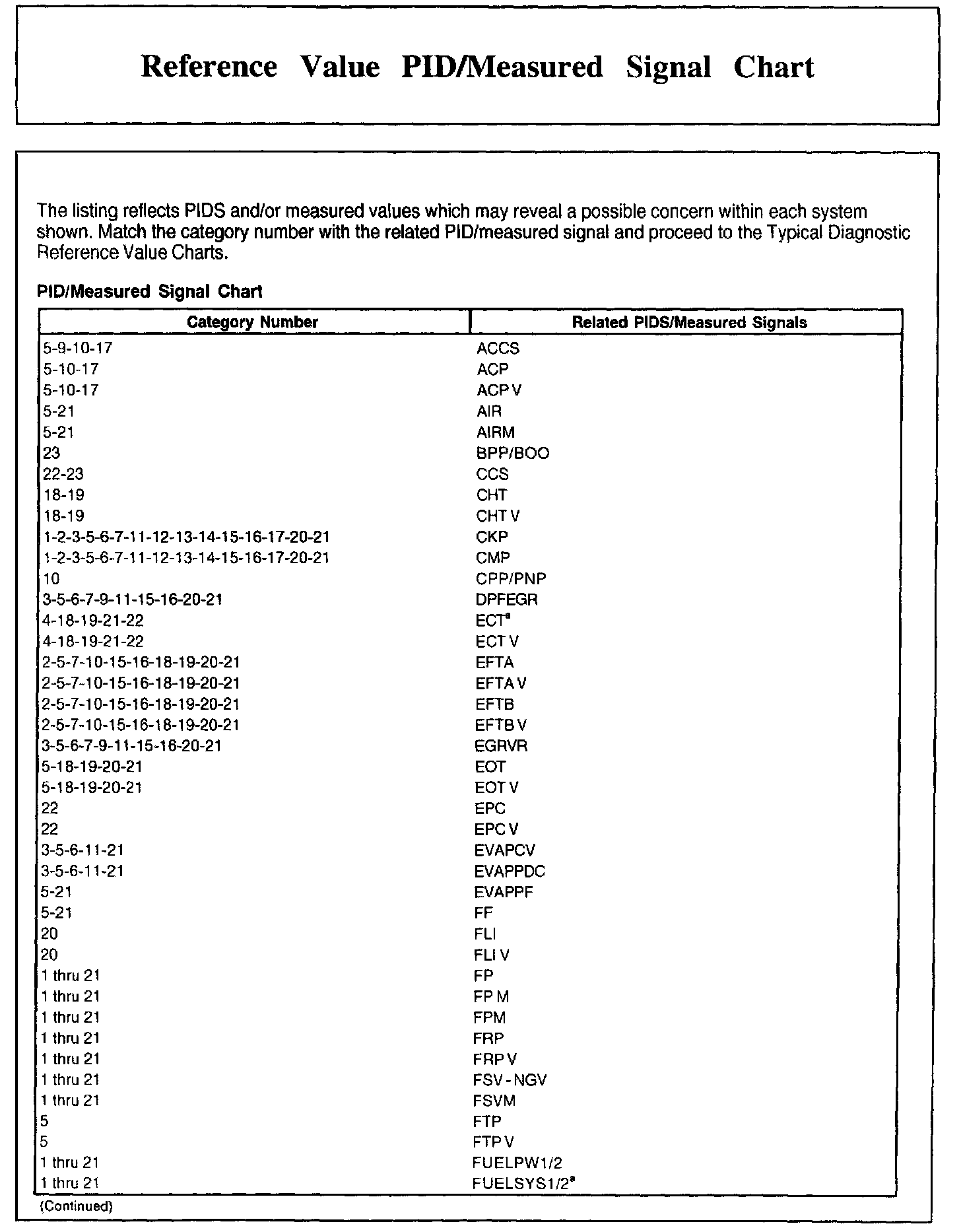

Reference Value PID/Measured Signal Chart, Part 1:

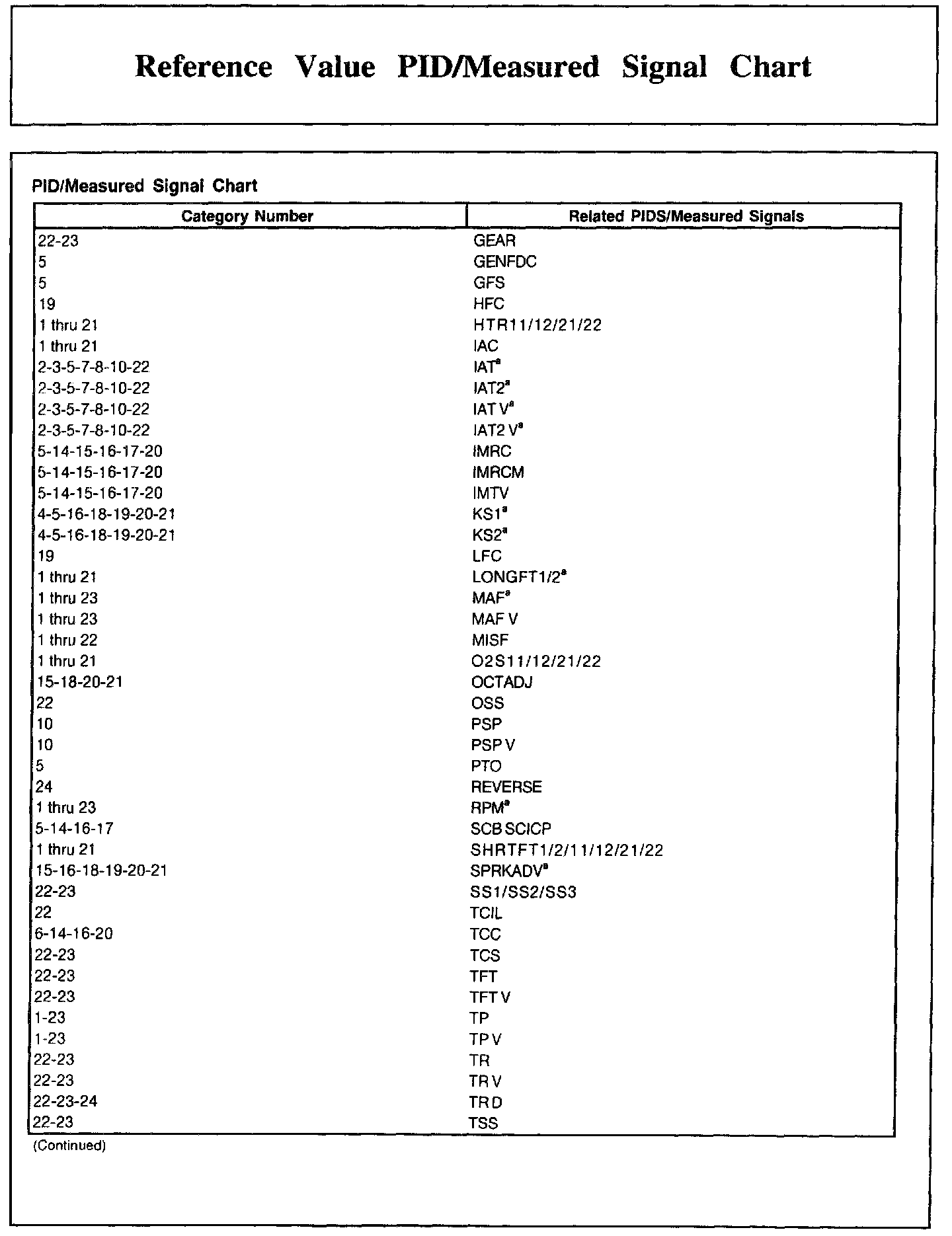

Reference Value PID/Measured Signal Chart, Part 2:

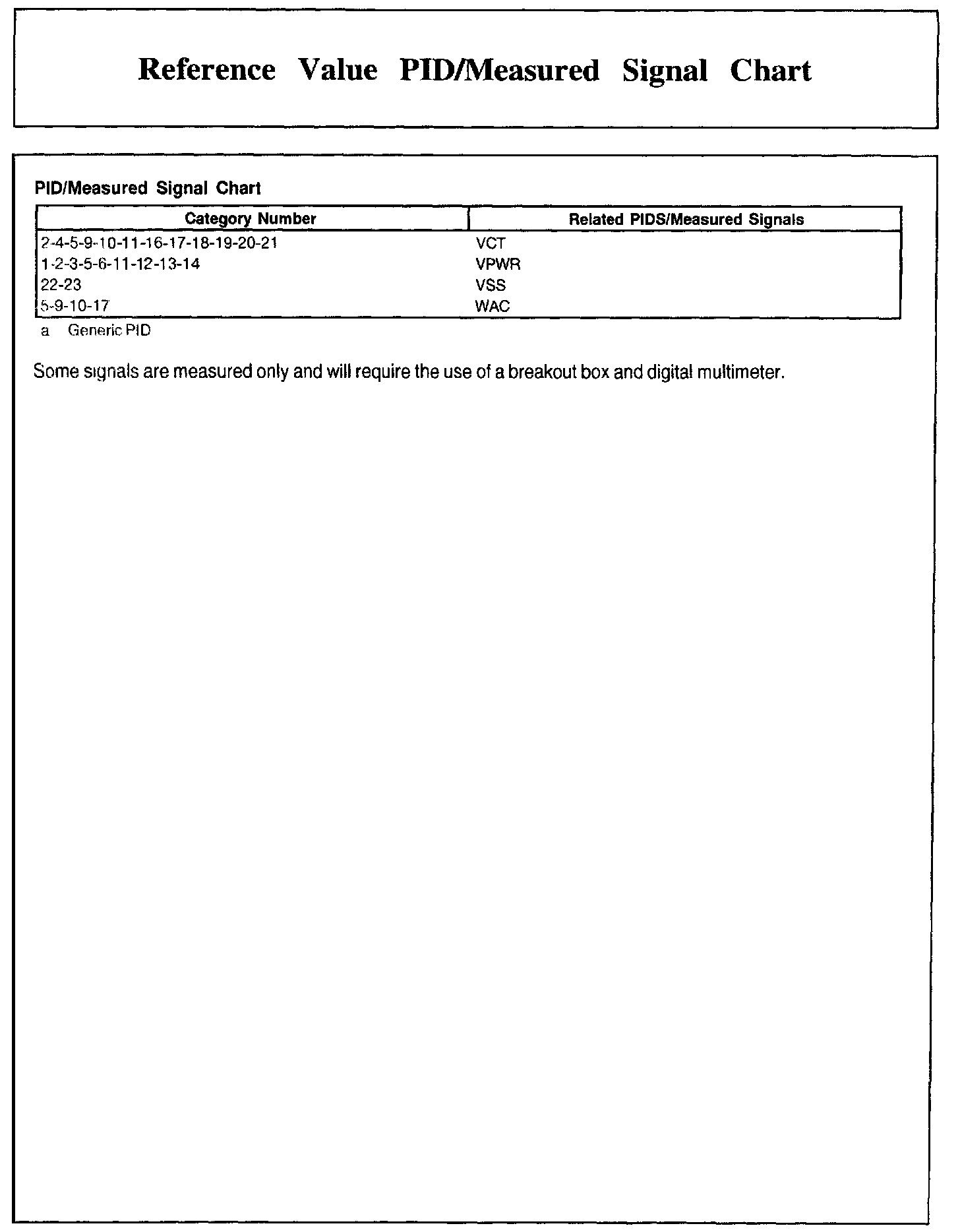

Reference Value PID/Measured Signal Chart, Part 3:
