System Specifications

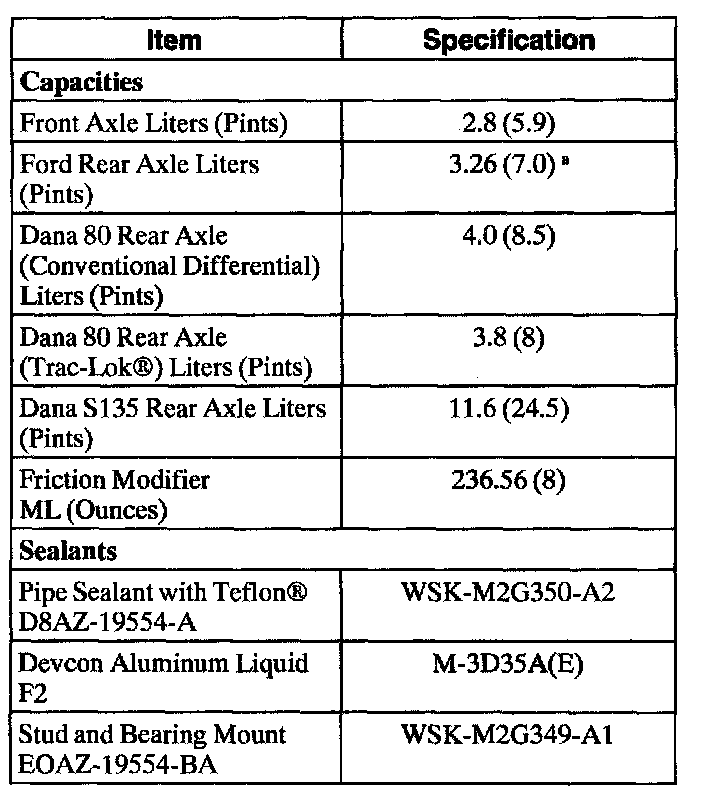

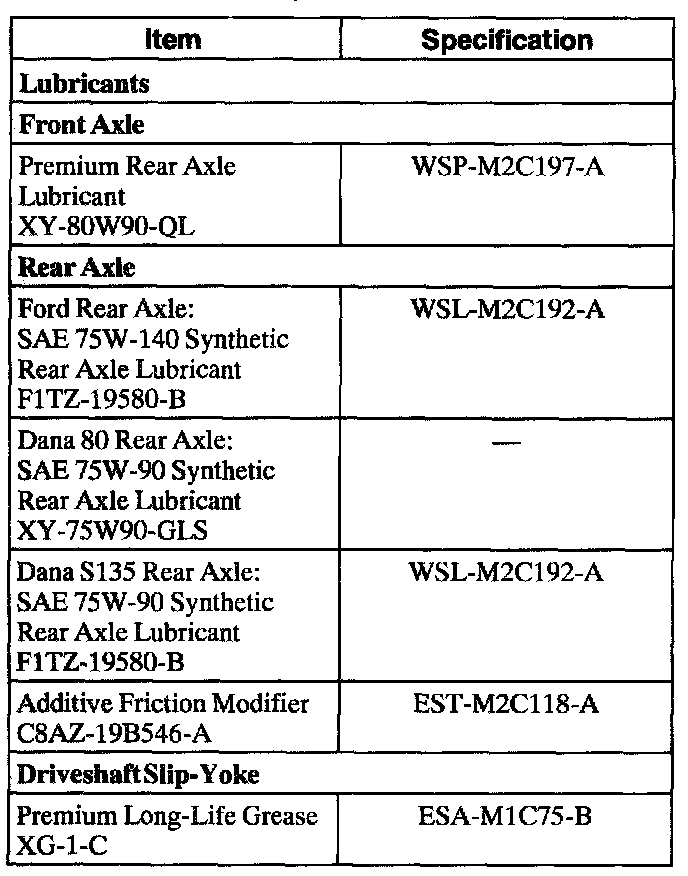

Driveline System General Information








a Service refill capacities are determined by filling the axle at the bottom of the filler hole. On Traction-Loc(R) axles, always add friction modifier first.

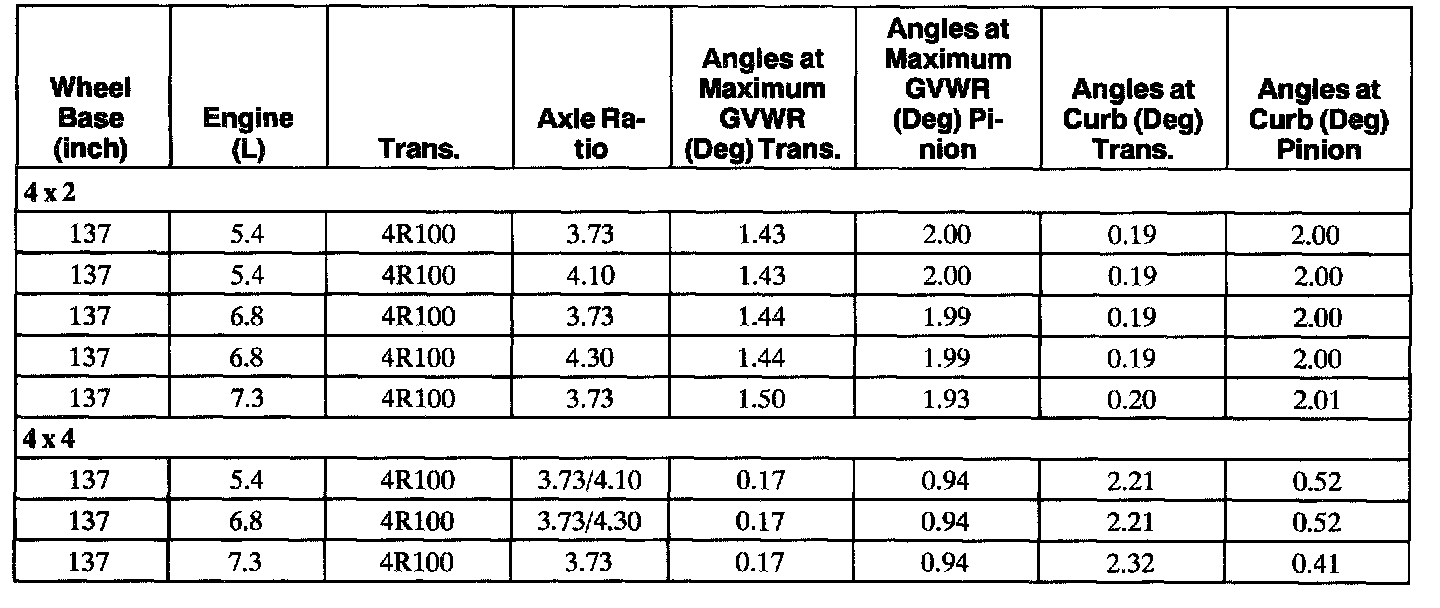

Rear Driveline Angle Specifications-Excursion
