Power Window Switch: Service and Repair

REMOVAL

NOTE: Driver side shown, passenger side, Crew Cab and Excursion rear door similar.

1. Disconnect the battery ground cable.

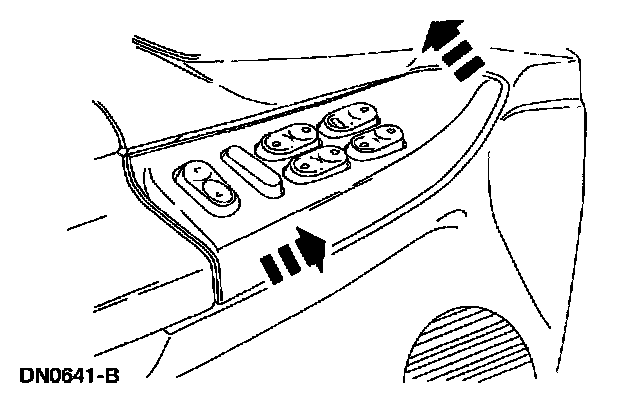

2. Remove the door command center from the door.

NOTE: The left front door with power windows and power mirror is shown. The right front door with power windows is similar.

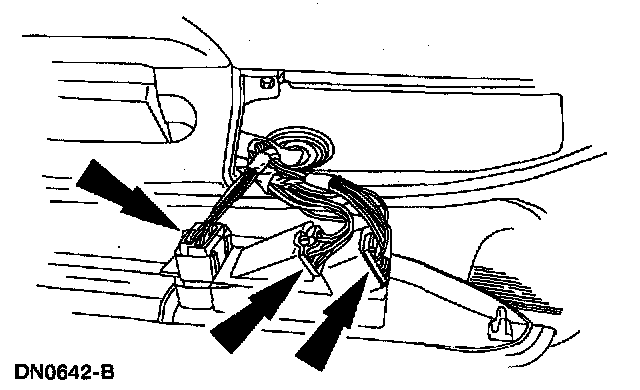

3. Disconnect the electrical connectors.
4. Remove the door command center from the vehicle.
5. Remove the retaining clips on the mirror switch and remove.

INSTALLATION
1. To install, reverse the removal procedure.
