Transfer Case

Disassembled View

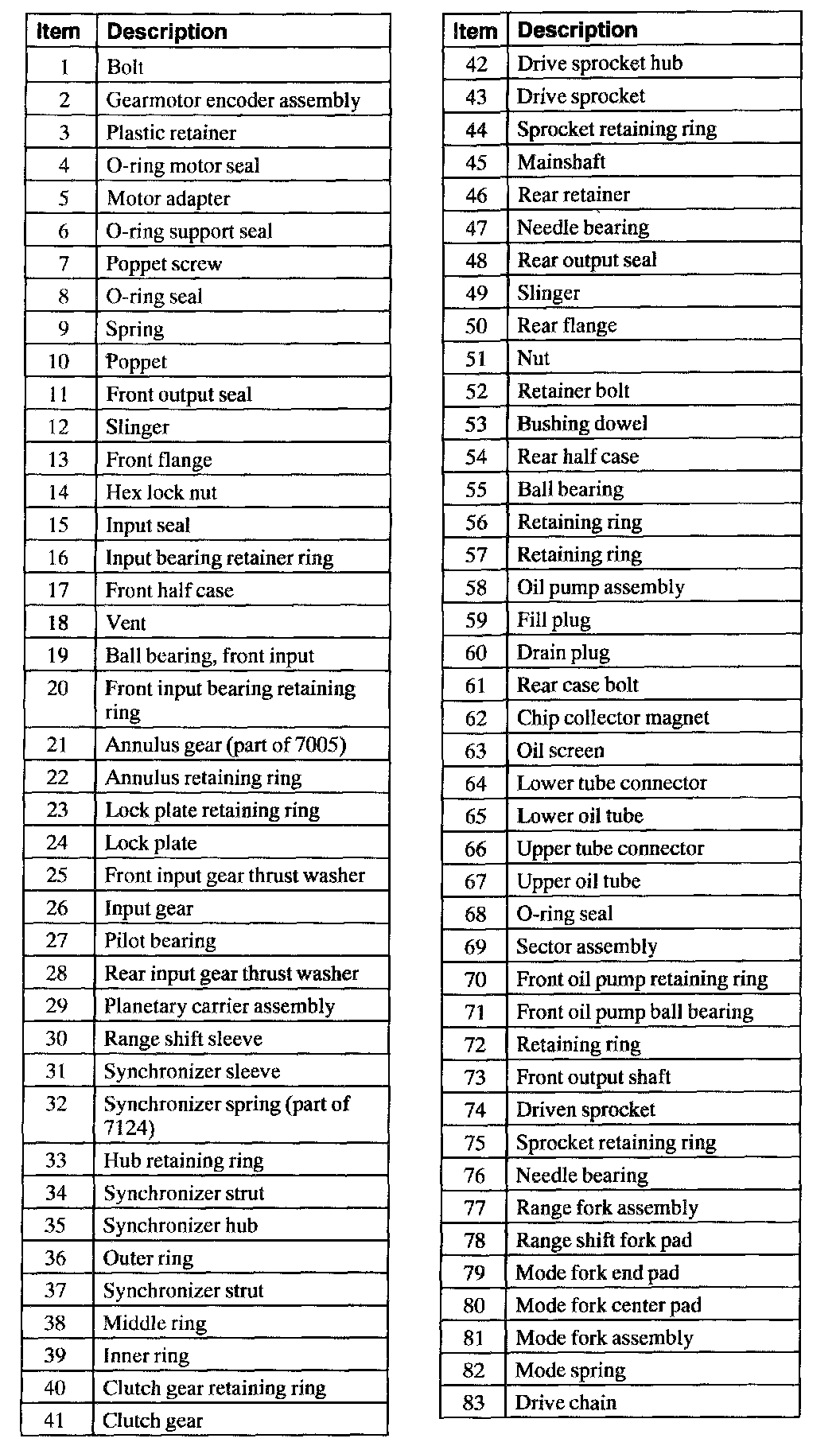

Item 1 - 83

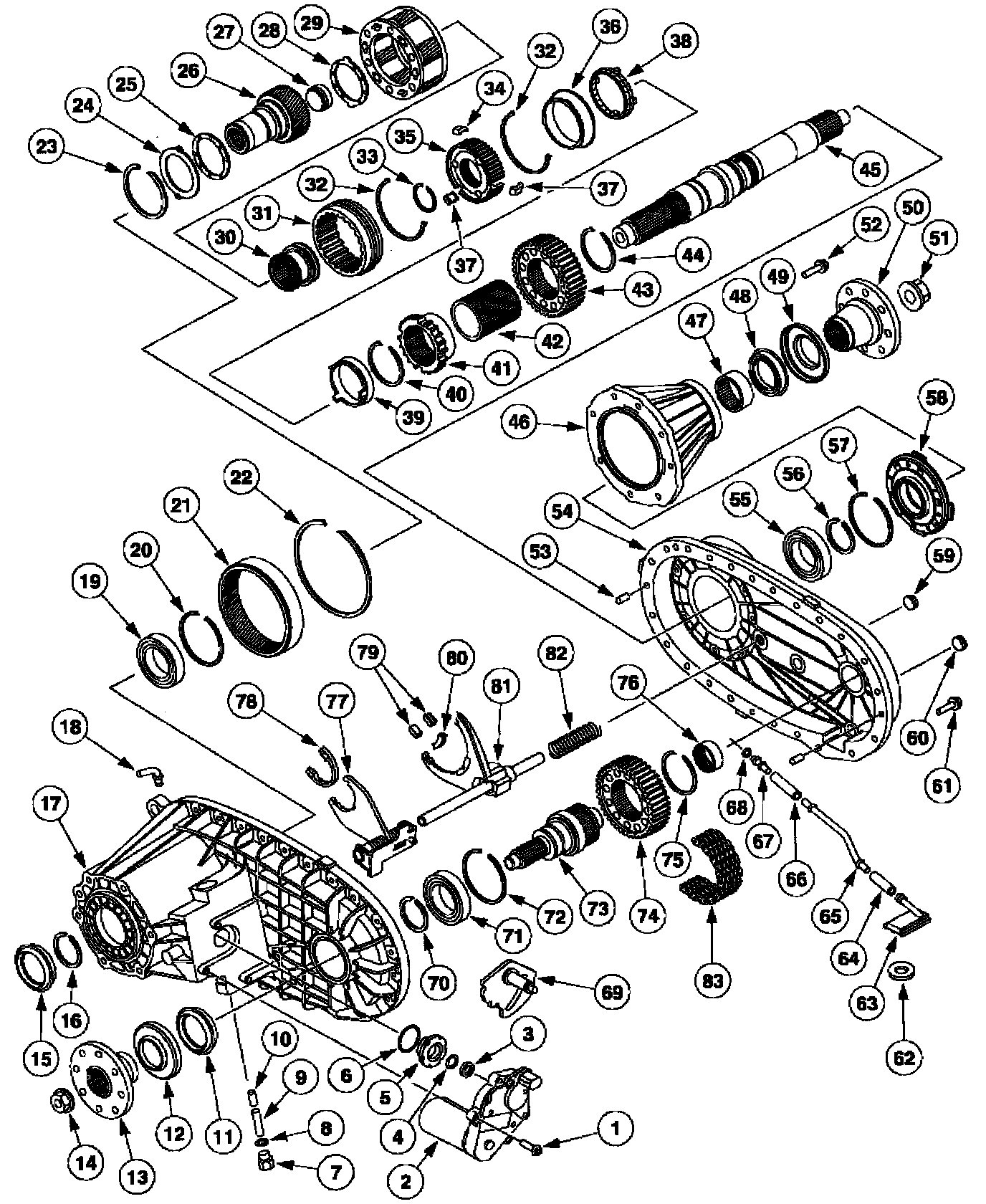

Electric Shift Transfer Case

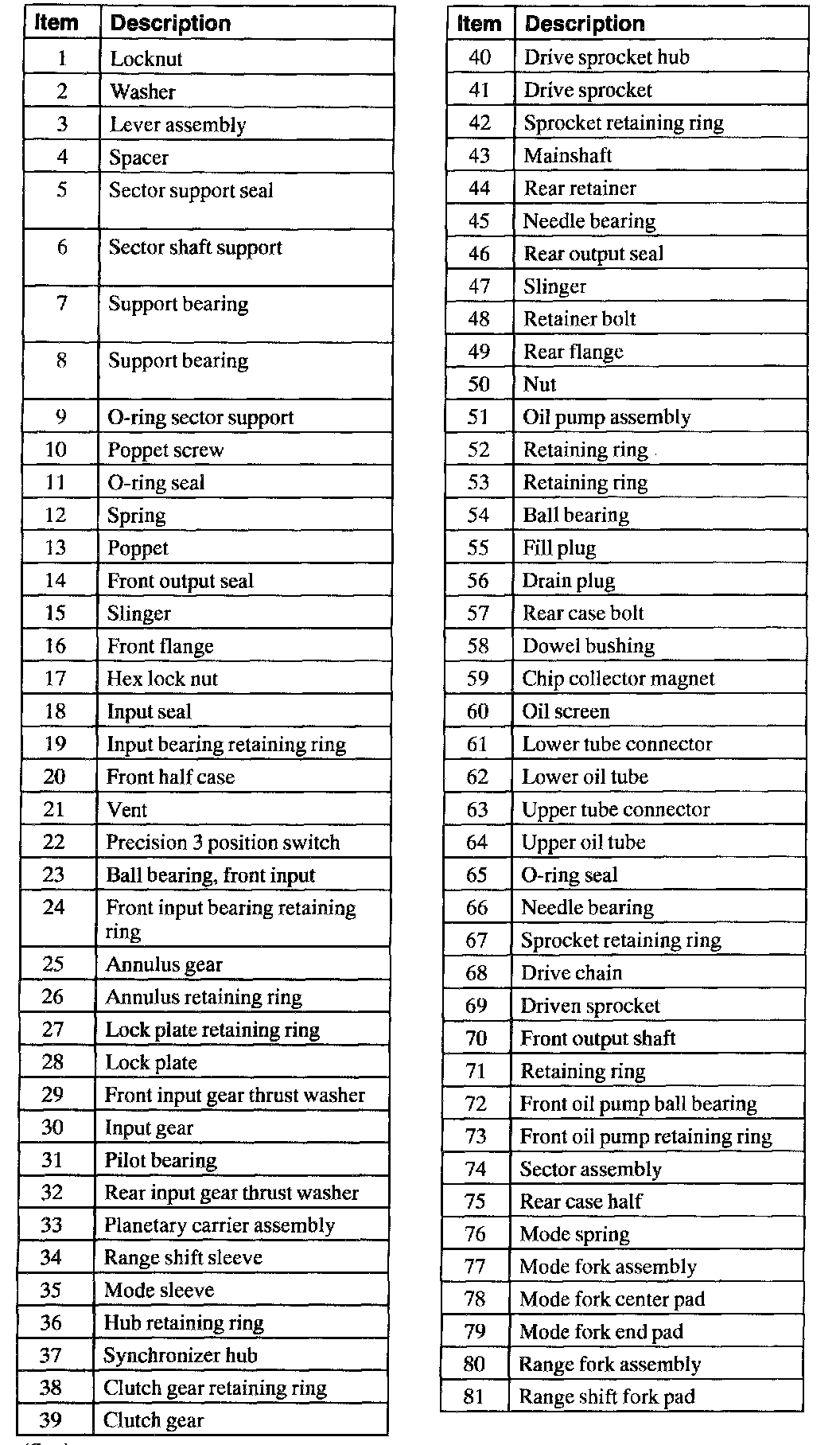

Item 1 - 81

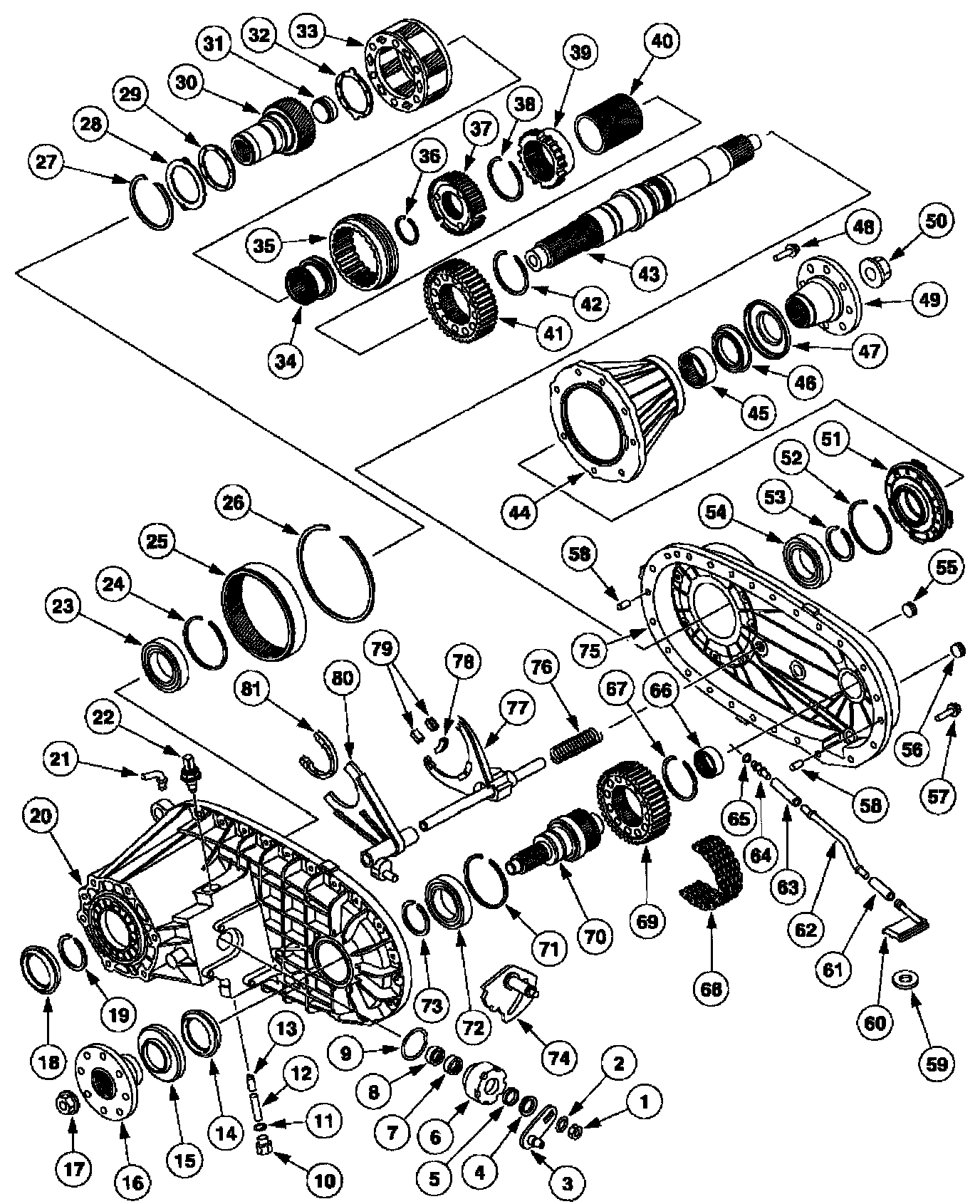

Mechanical Shift Transfer Case
